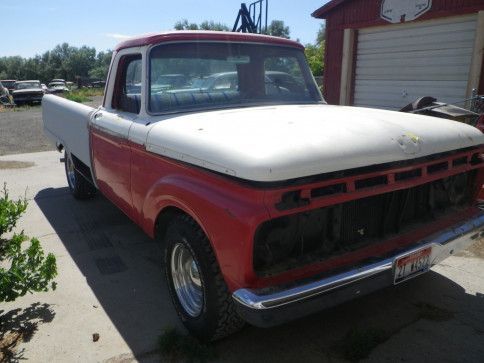

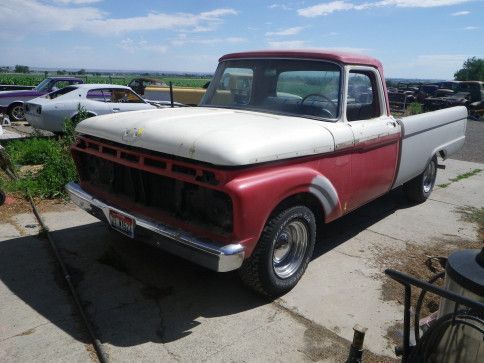

1966 Ford F100

Great looking truck.

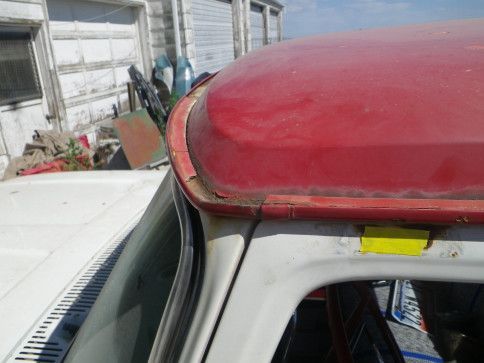

Will clean out rain gutter and reseal

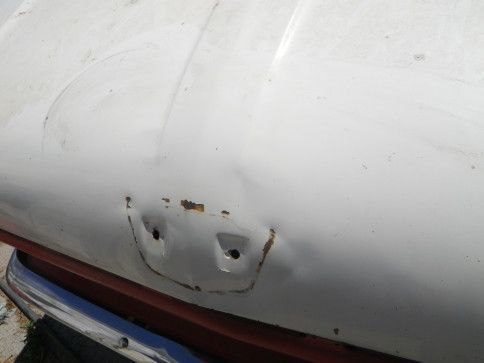

Dented around emblem area

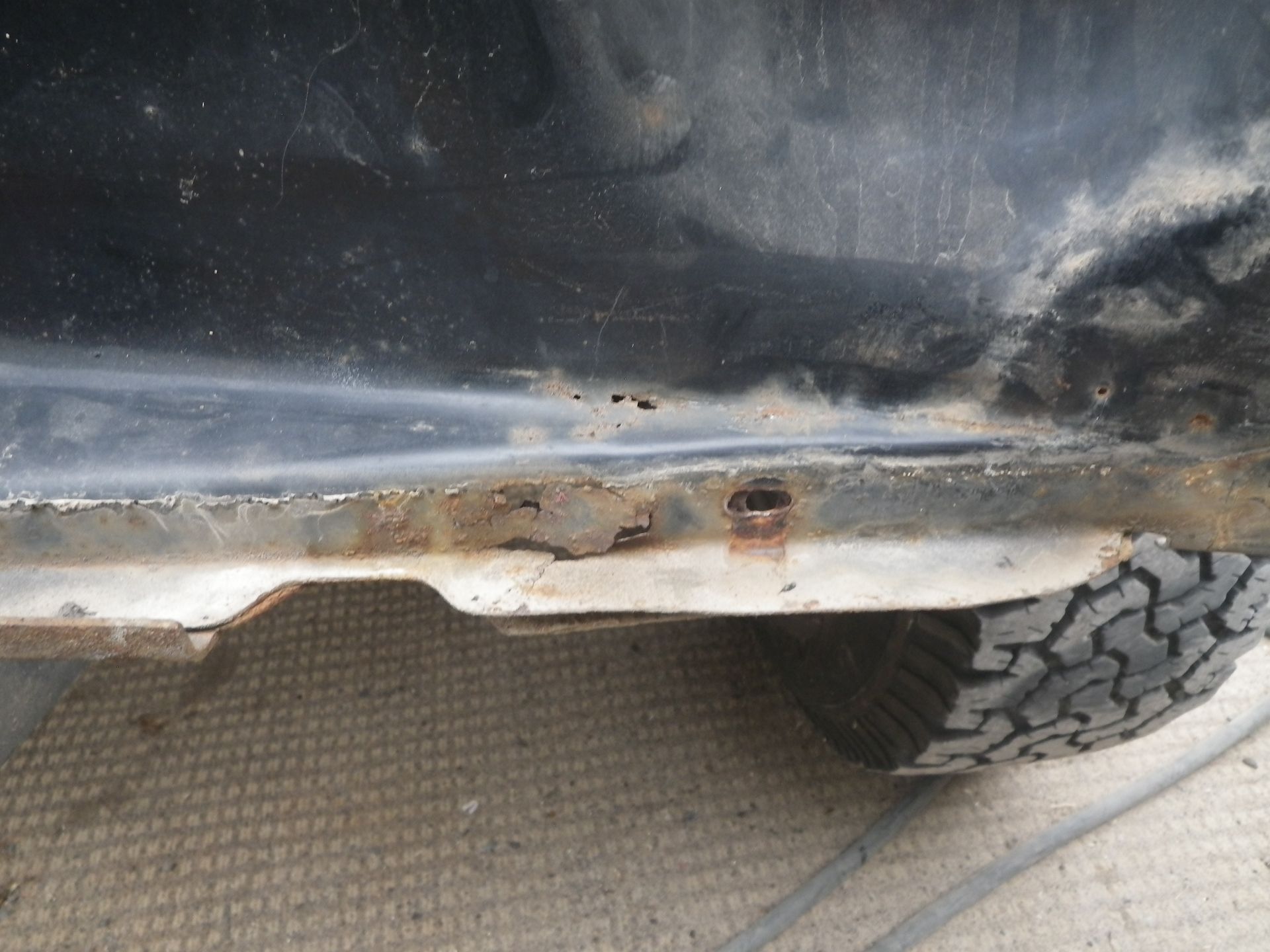

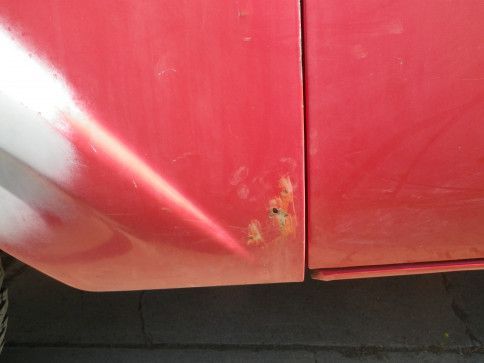

Only visible rust hole on outside of body

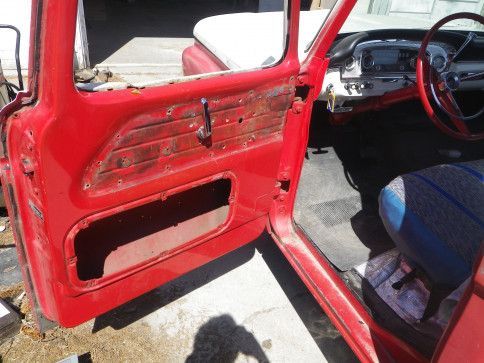

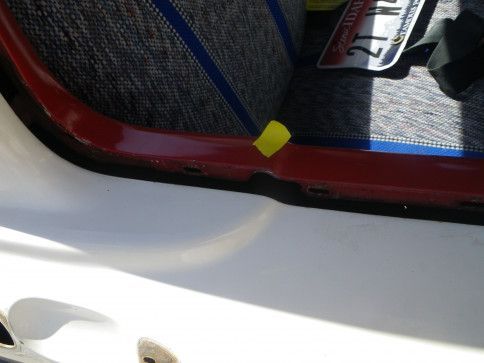

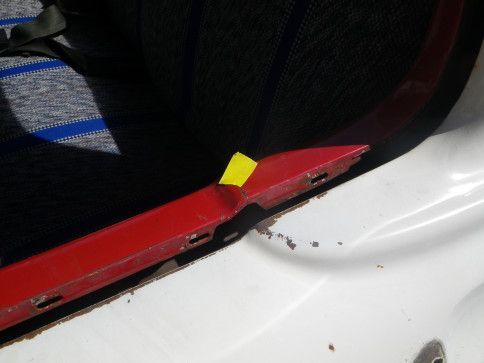

Crack in both doors at tape

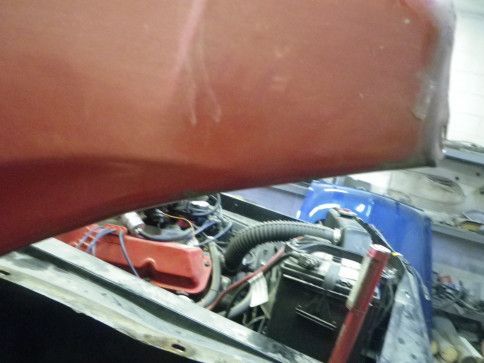

Front fender lip folded in for tire clearance

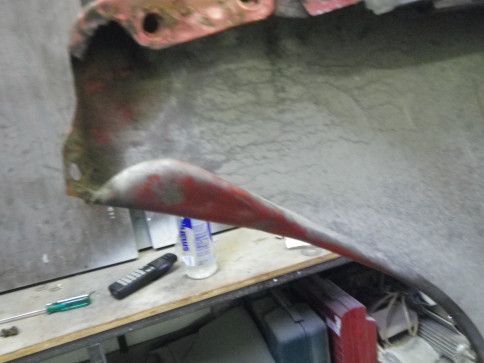

Fold more visible

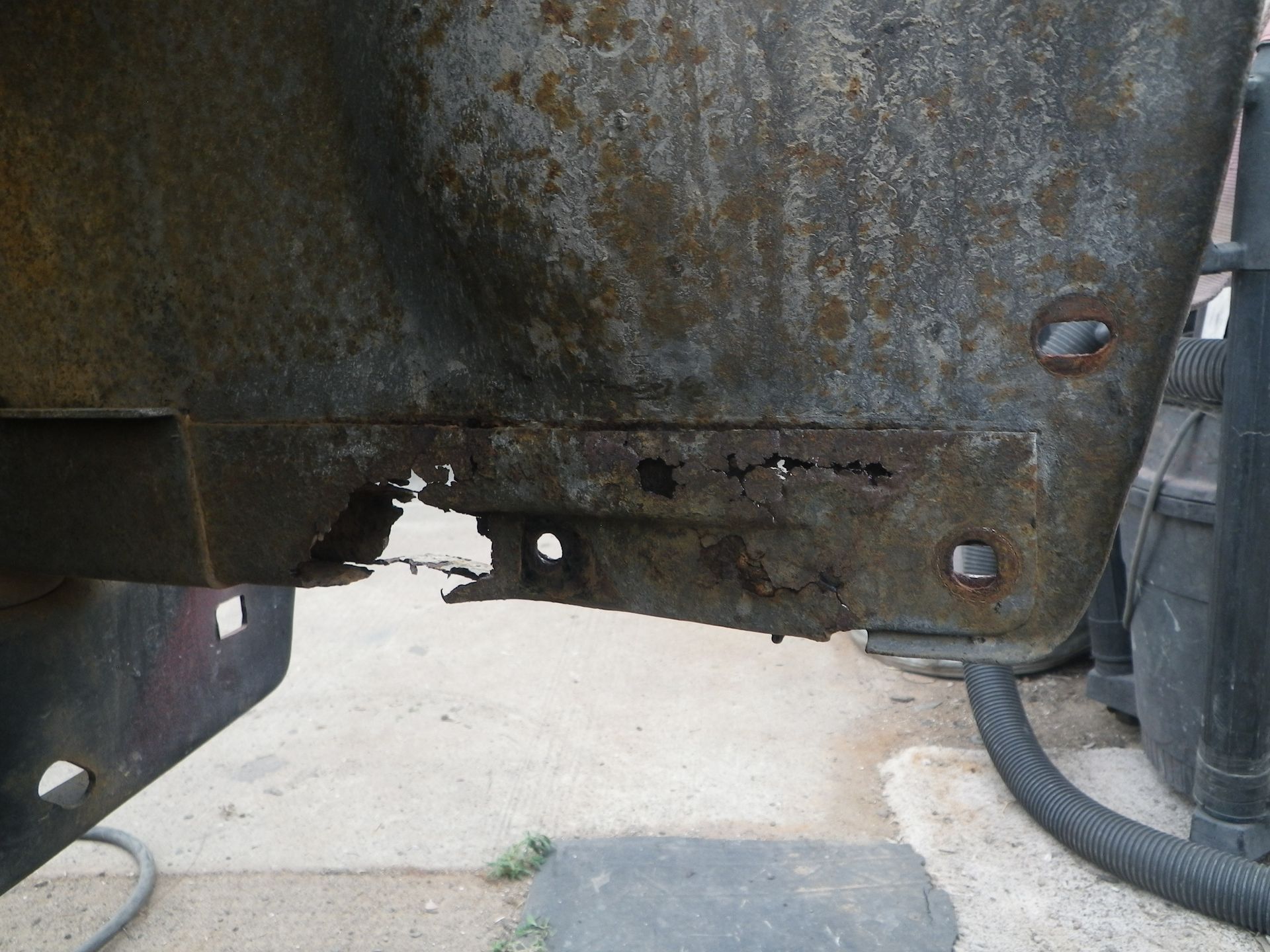

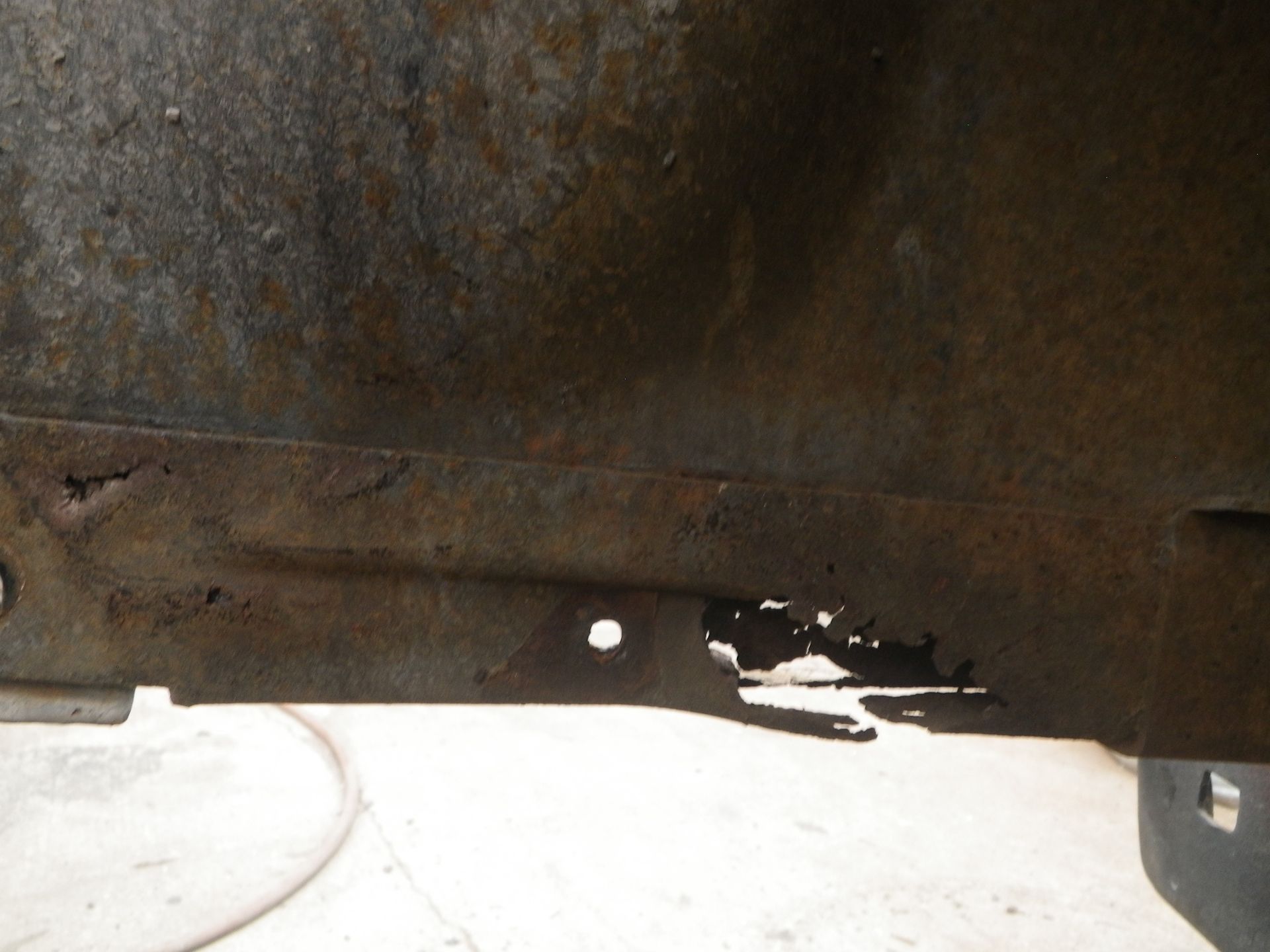

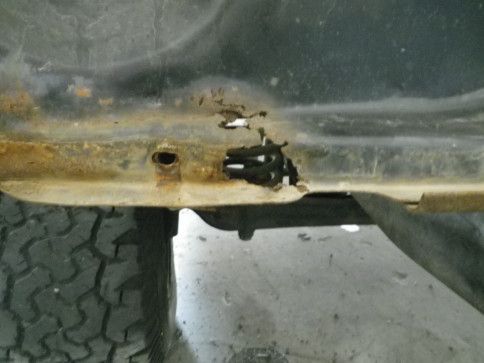

Rust hole in lower radiator support

Small dent easy to hammer out

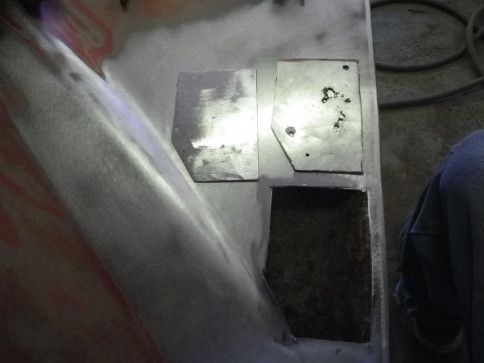

Out with the old rust, in with the new

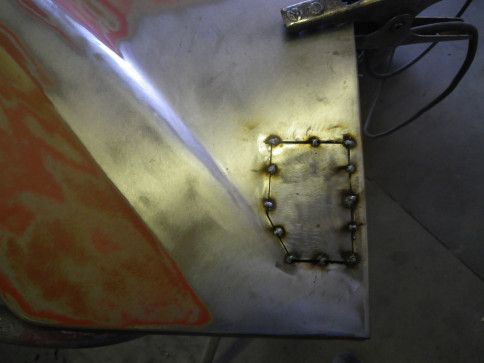

Spot welded in

Patch complete, add tiny amount of filler to smooth to perfection

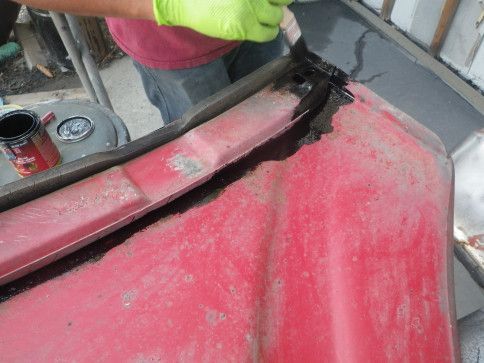

Clean, rinse, acid etch, rinse, paint with POR-15. Literally pour in behind brace, tipping fender to get into where the brush won't go.

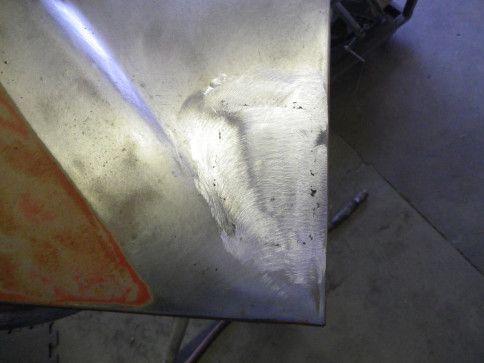

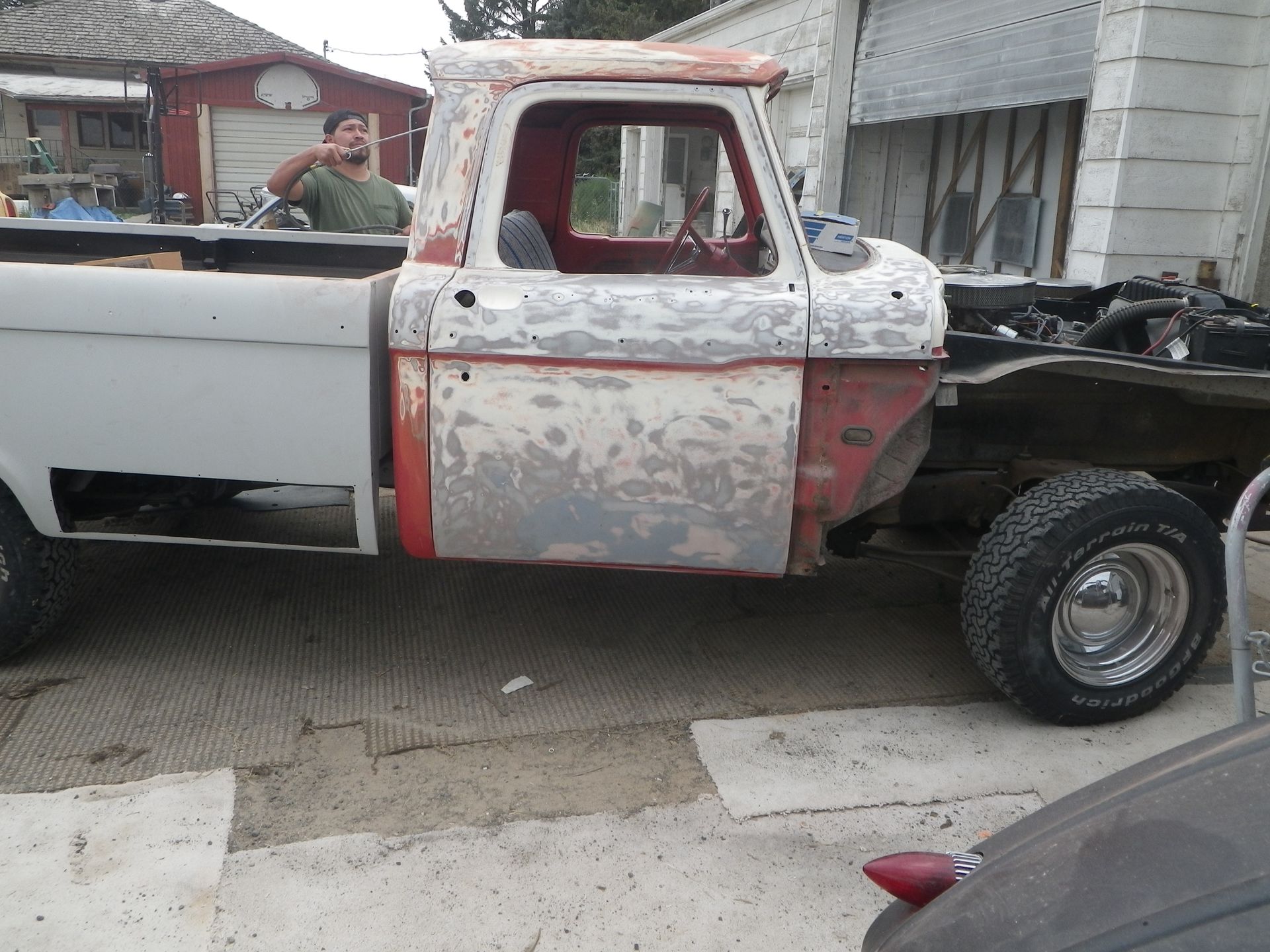

Some of the truck had been painted twice, removing majority for new paint

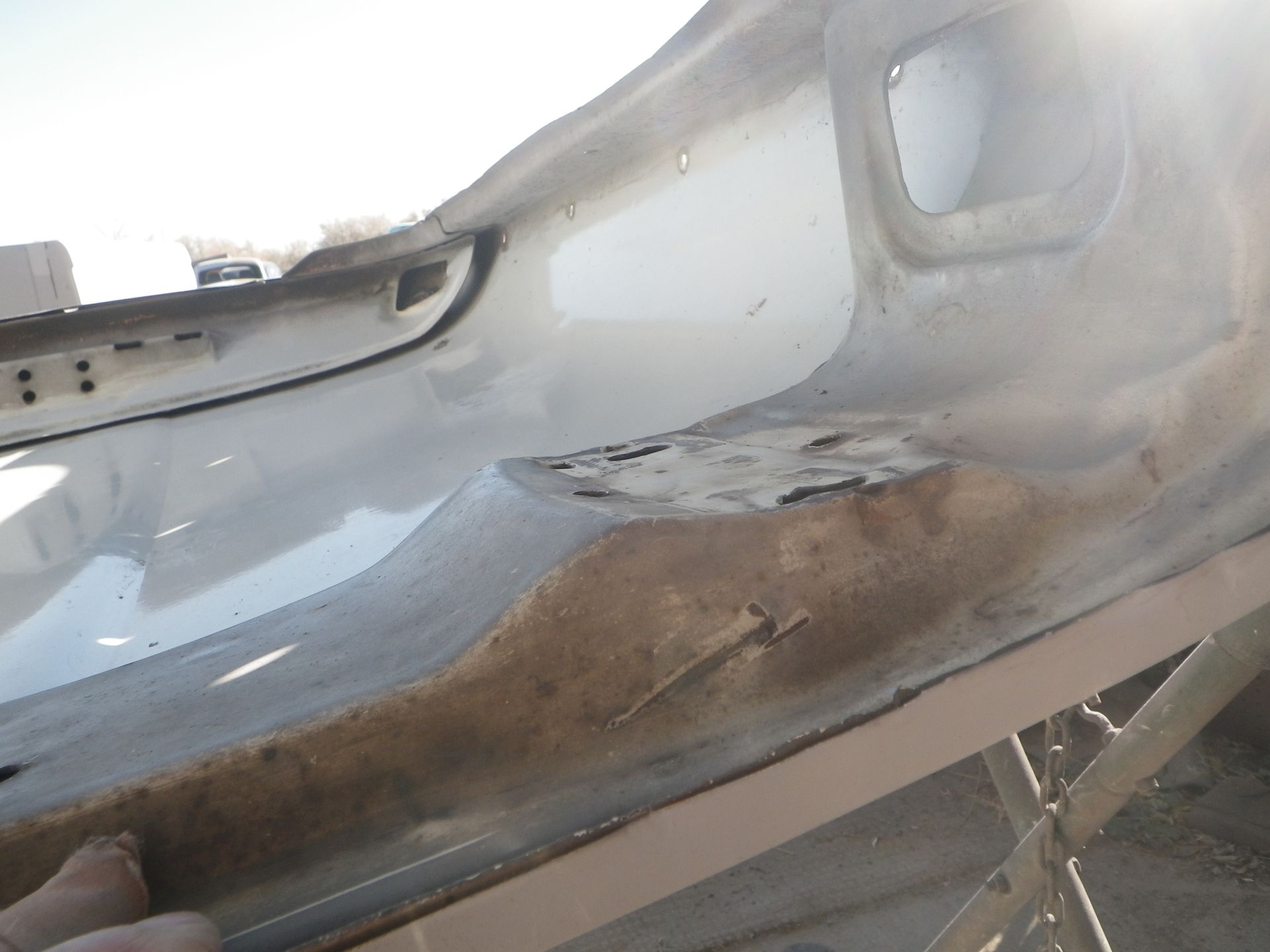

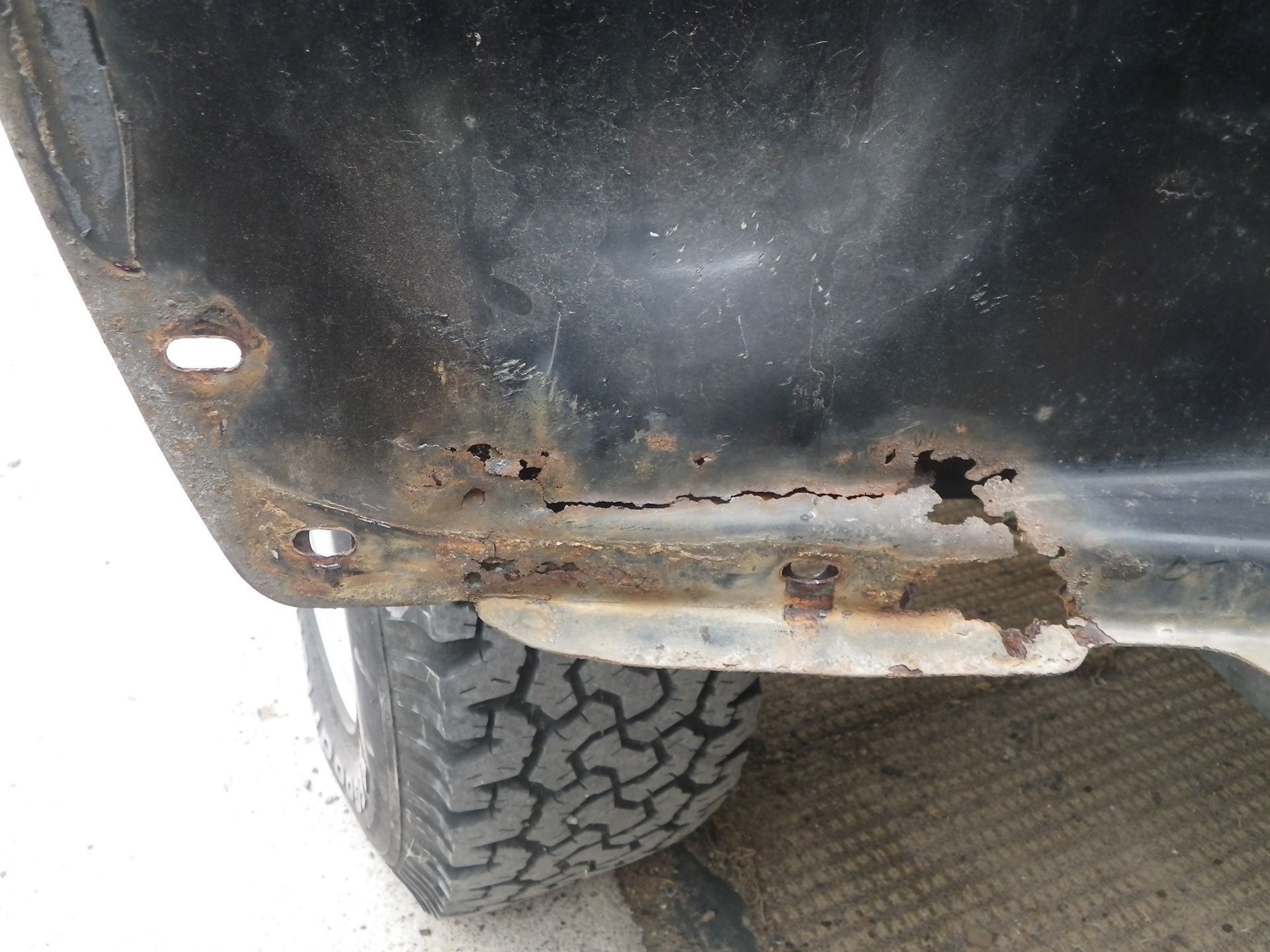

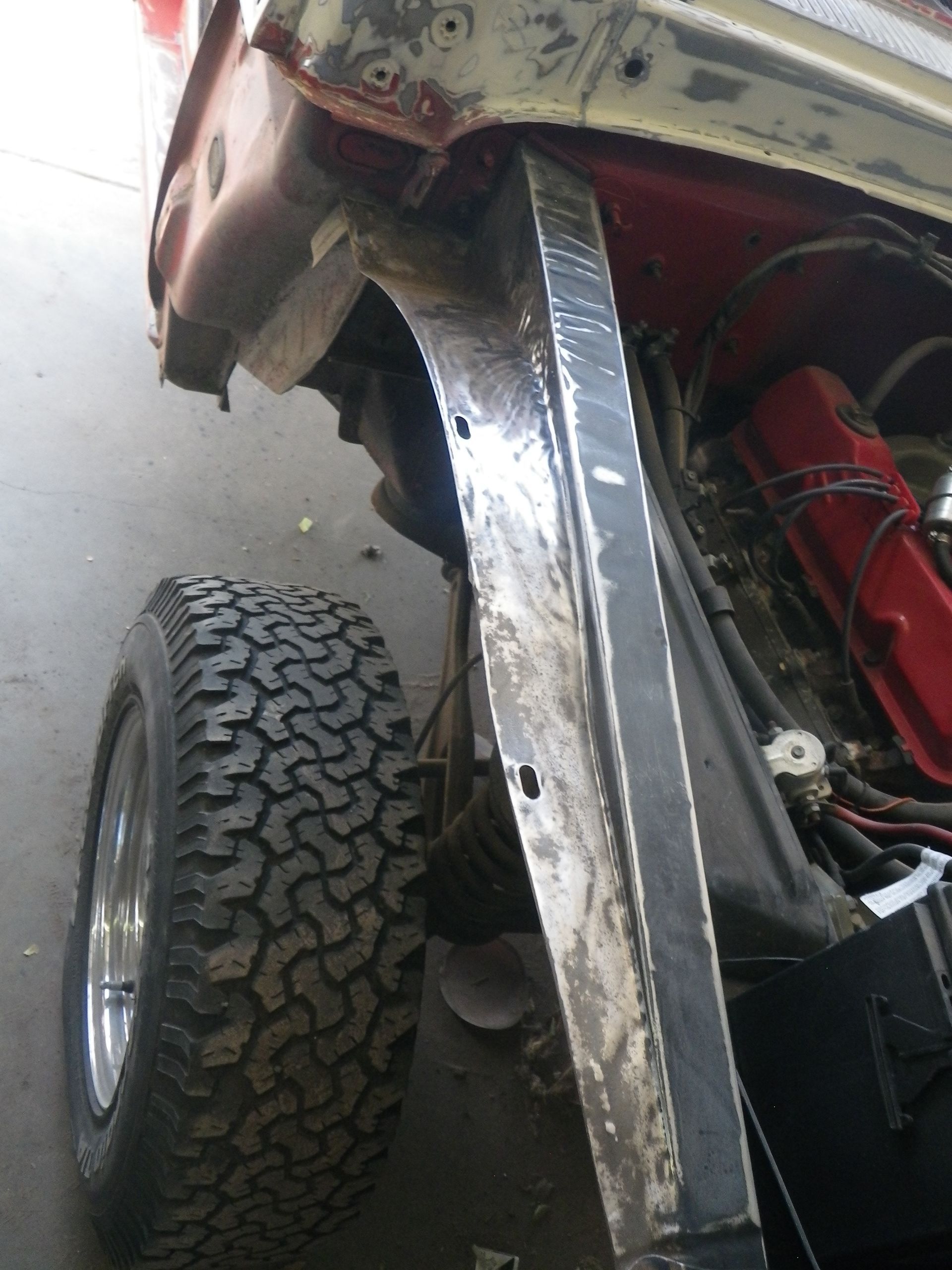

Radiator support rusted out on both sides, will replace

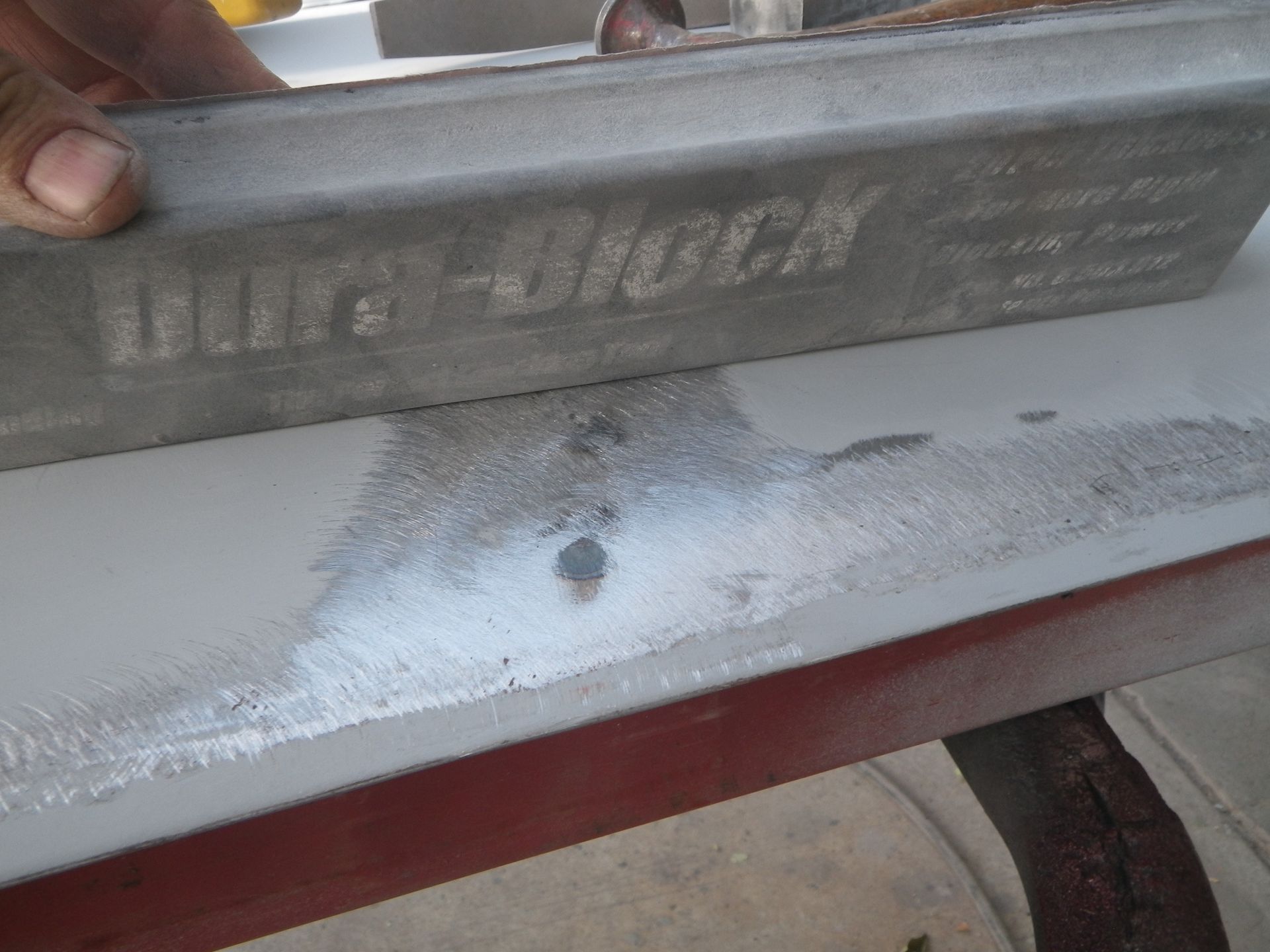

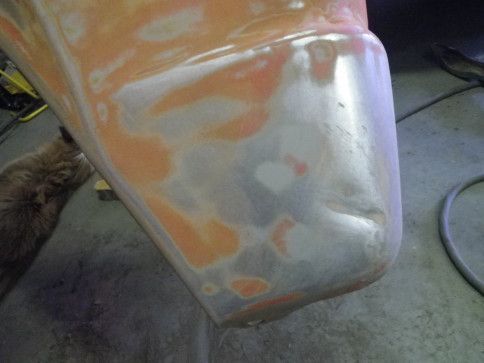

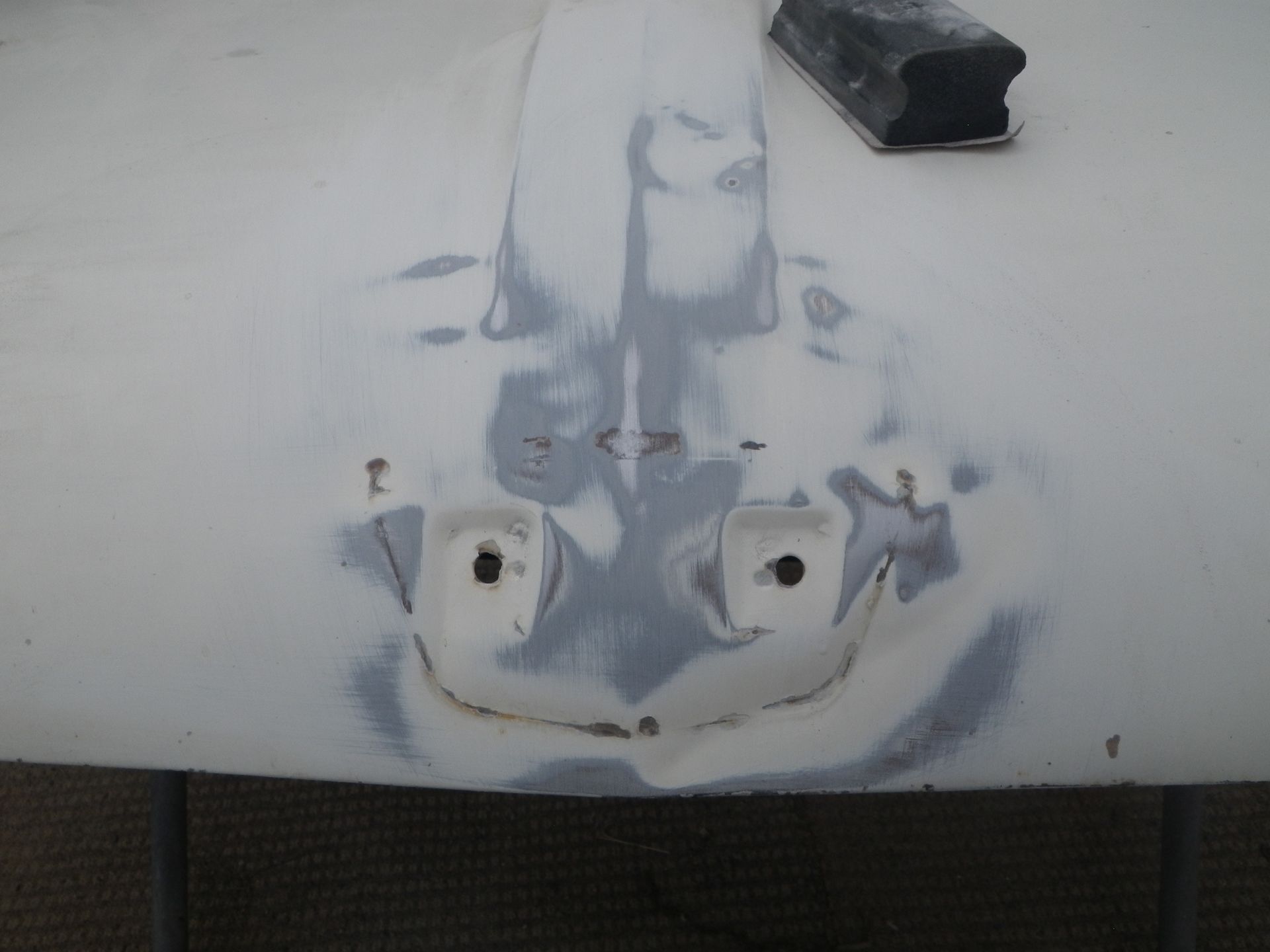

Block sanding shows how rough the front of the hood is

Because of double panels using stud welds to pull dents

Dent in corner of hood had been filled with bondo, will pull it out and use a skim coat of filler

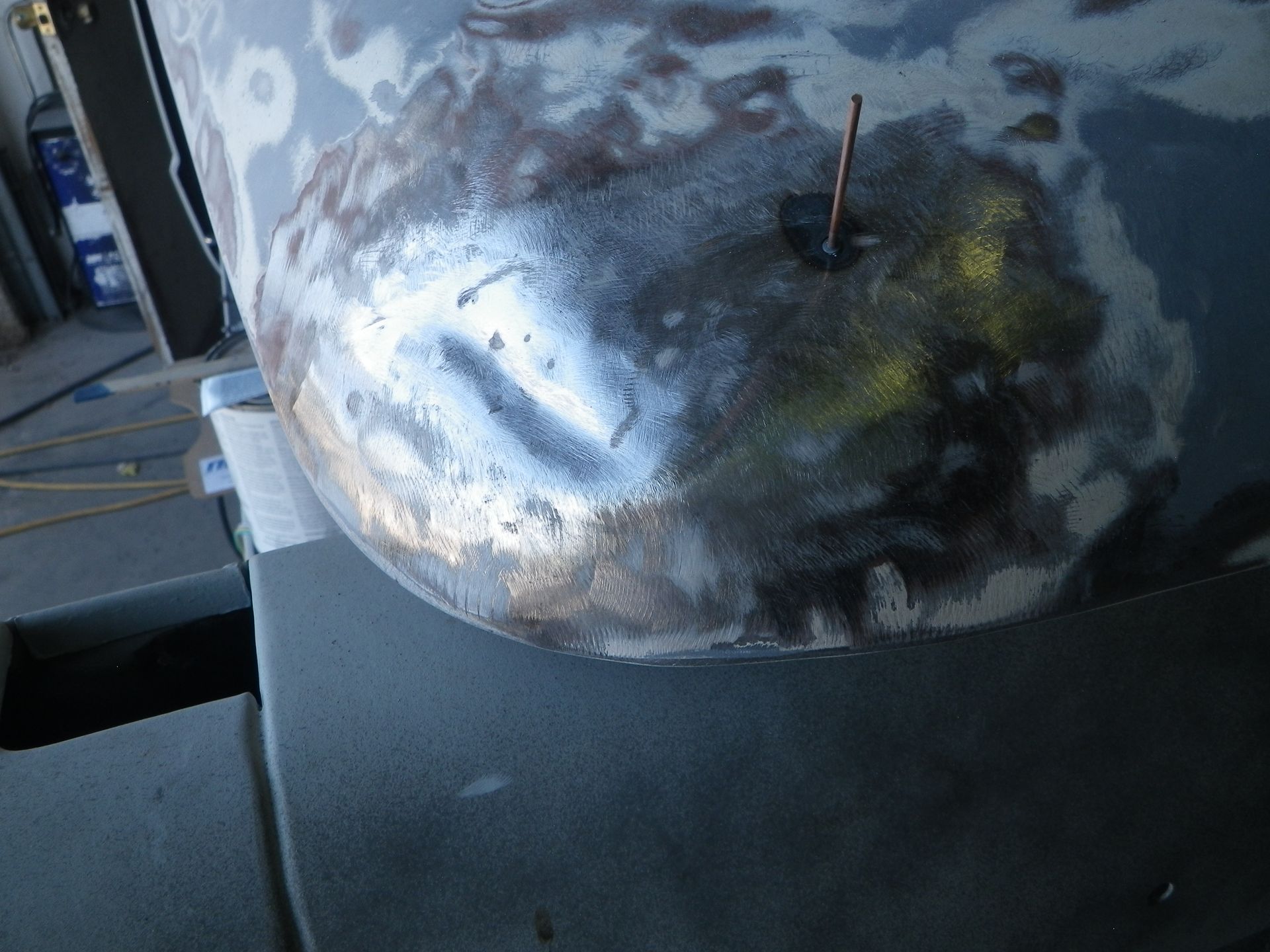

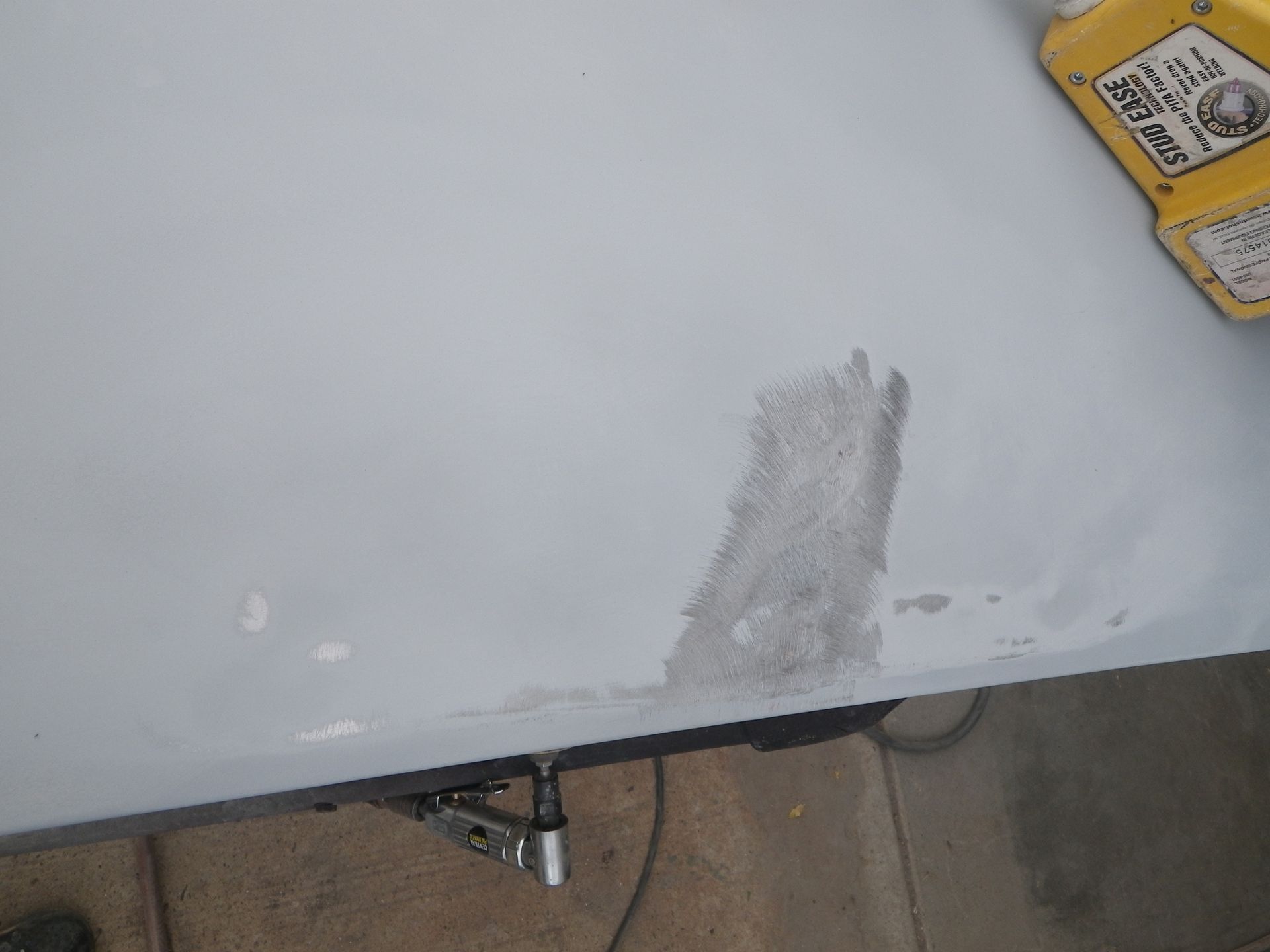

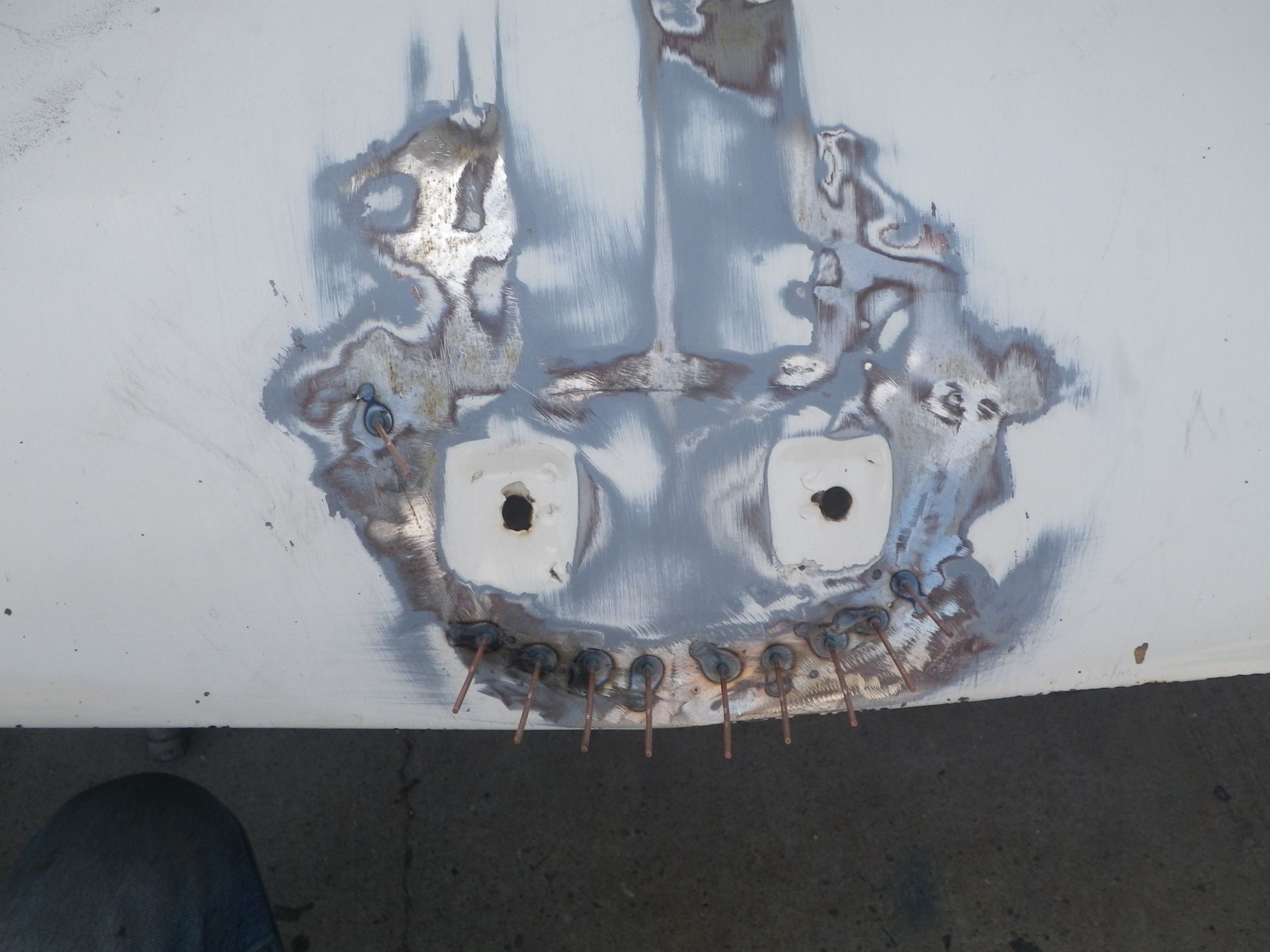

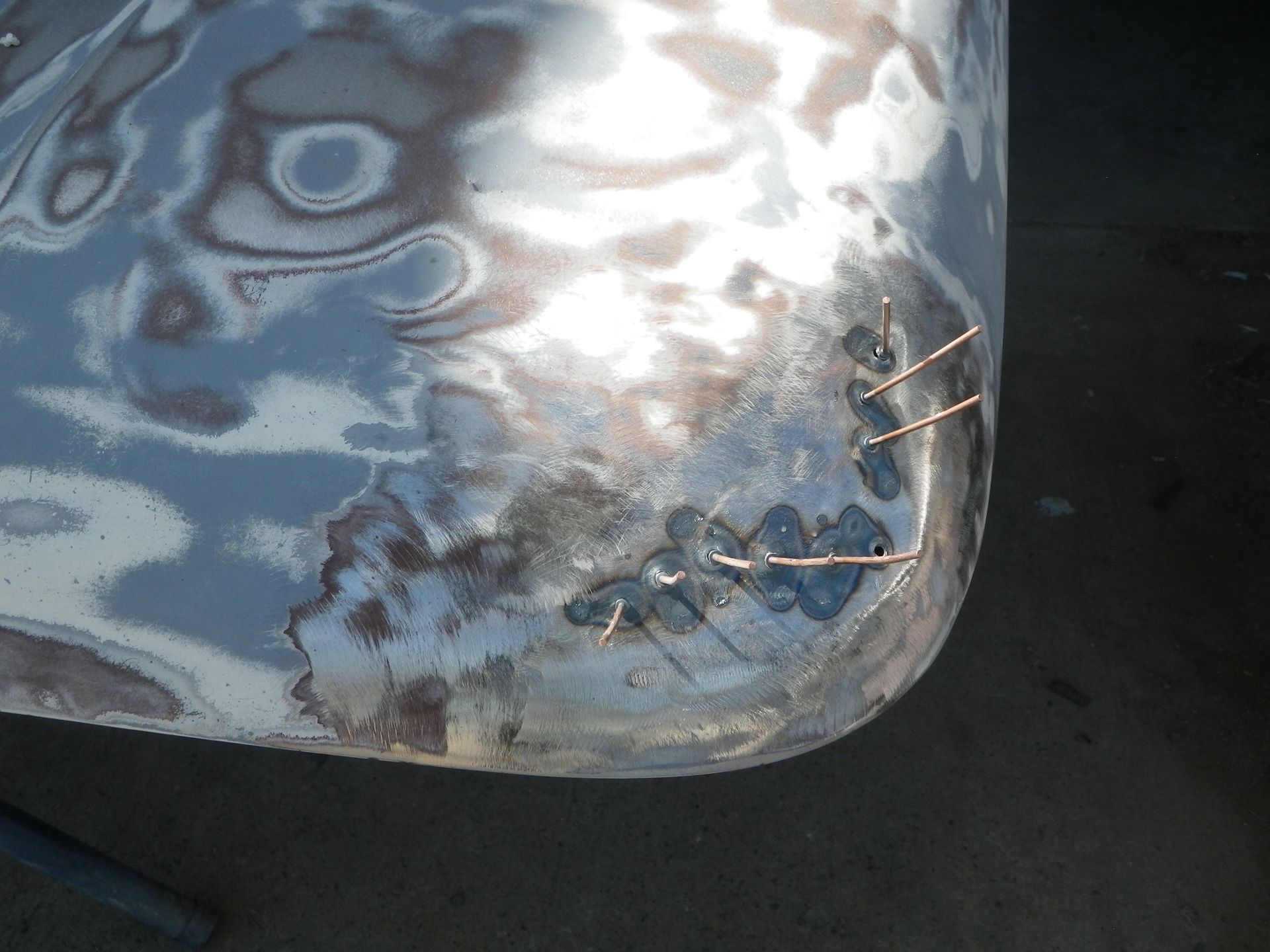

Stud welds and slide hammer to the rescue.

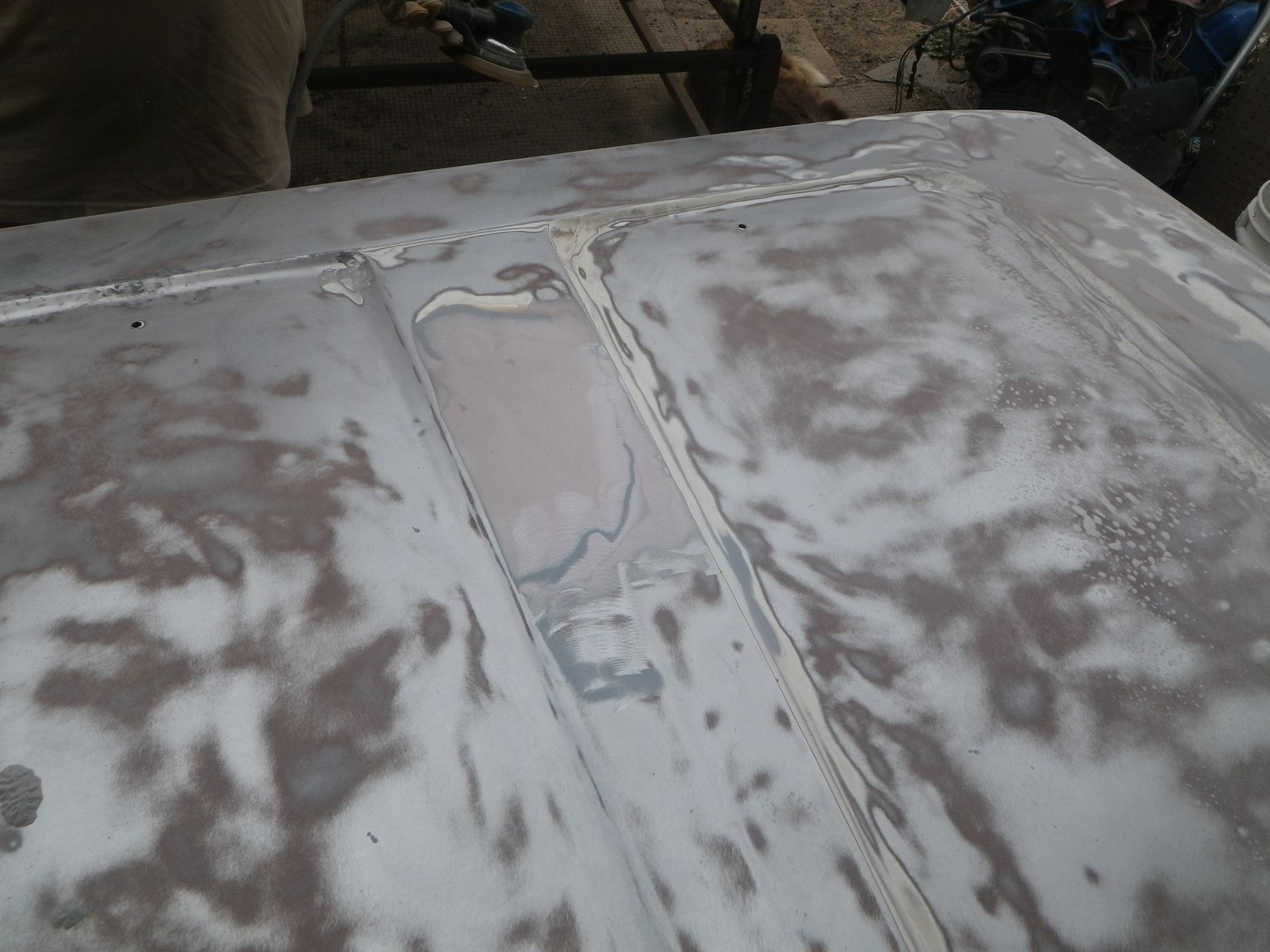

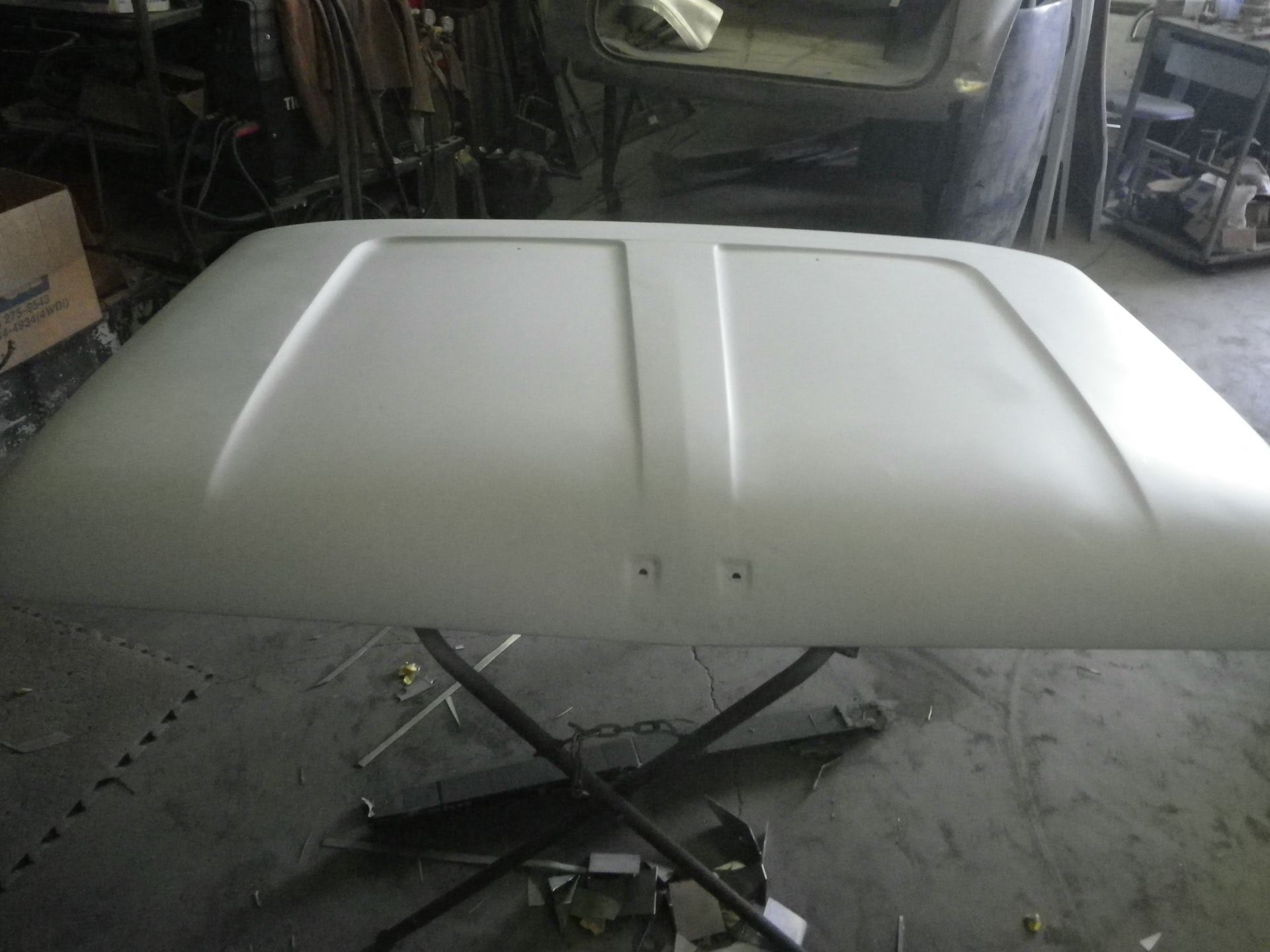

More filler on hood

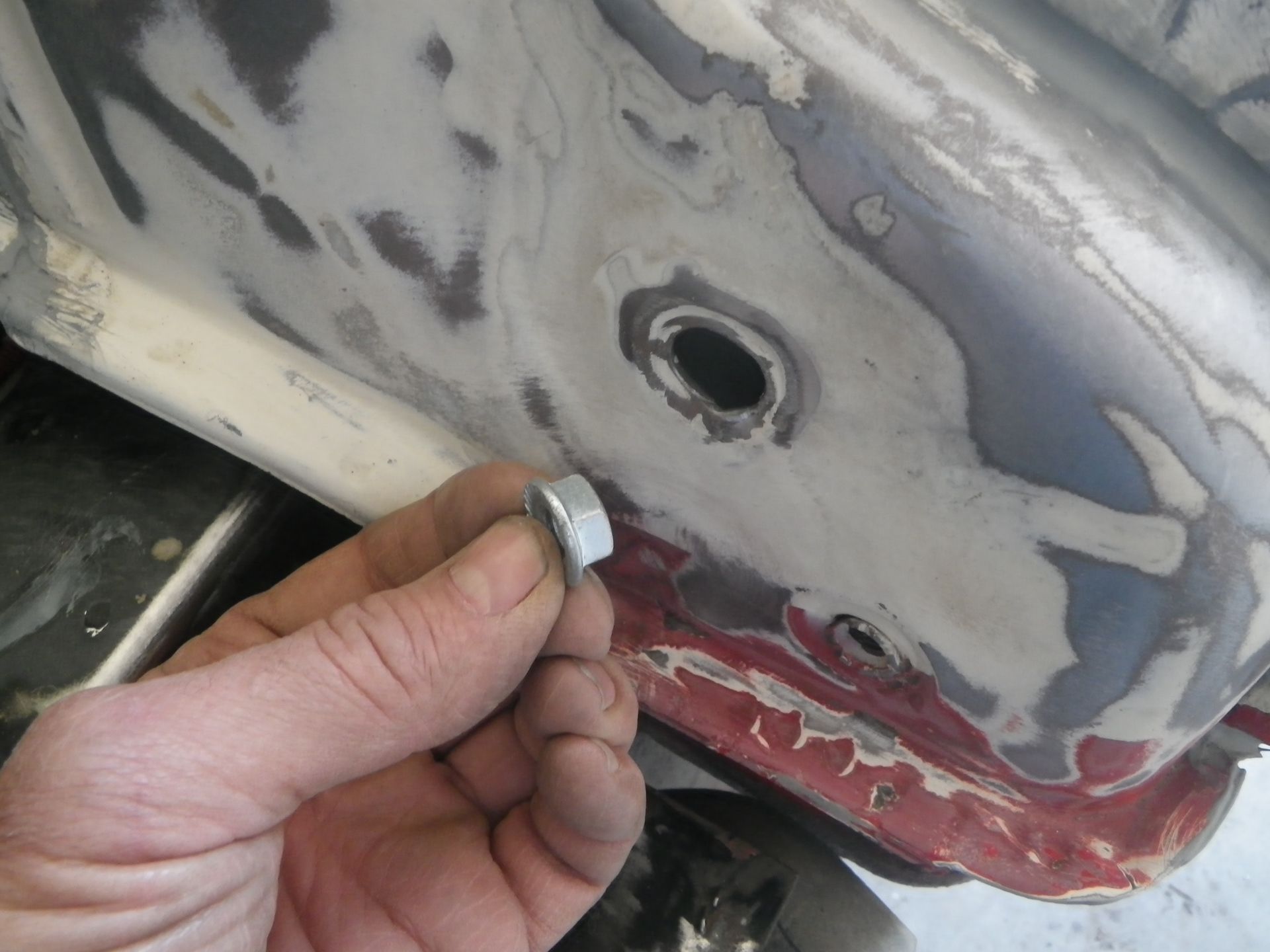

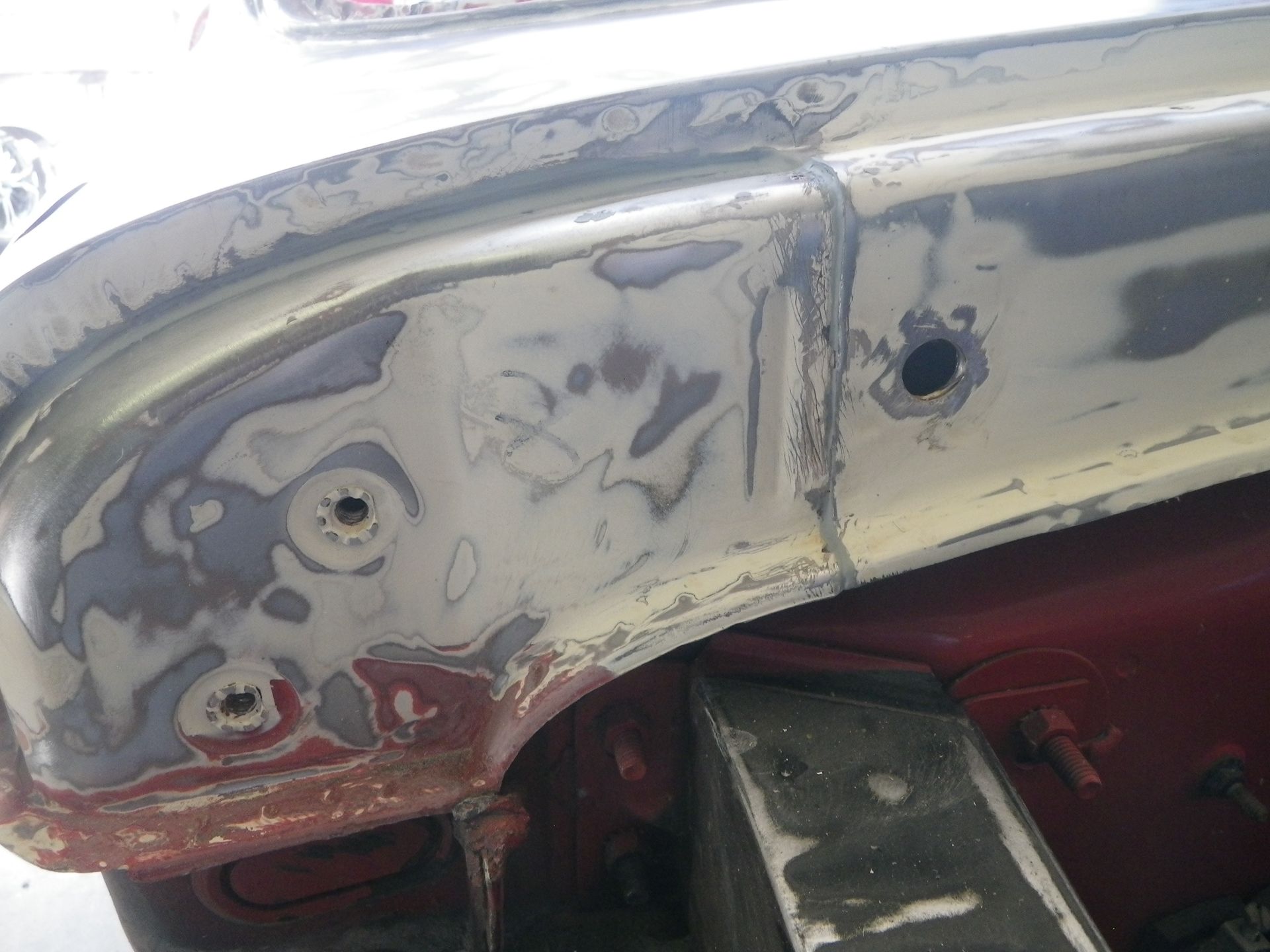

3 hood hinge mounting nuts have been ripped out, will weld in new nuts

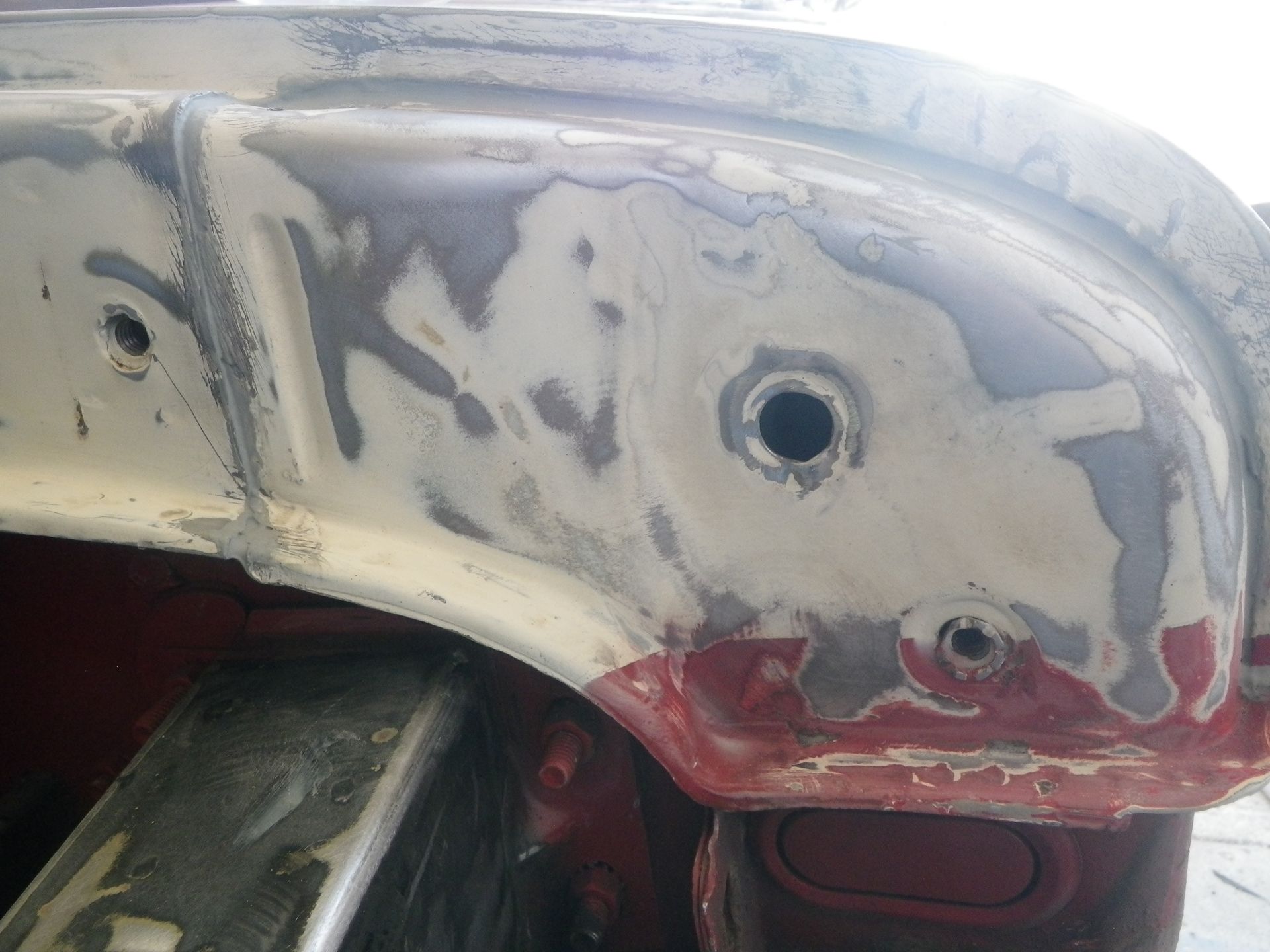

Discovered some hood hinge mounting damage

sealing of all factory seams

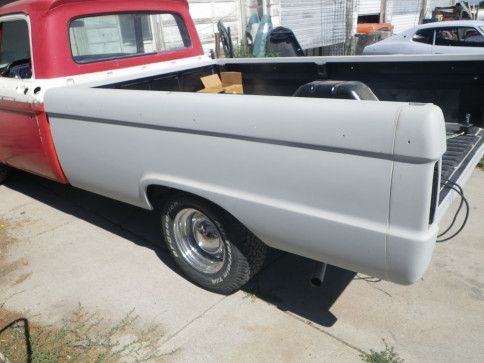

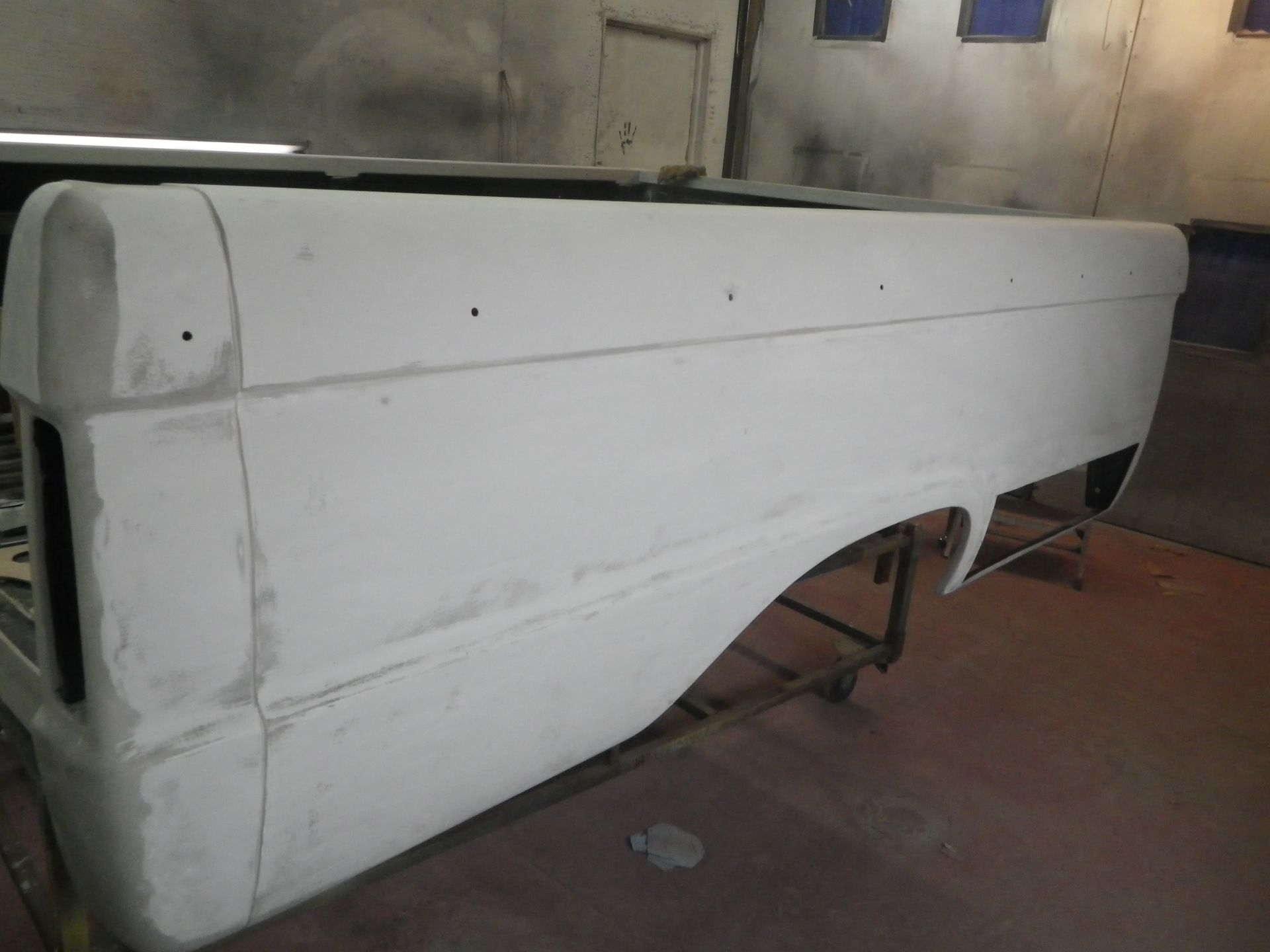

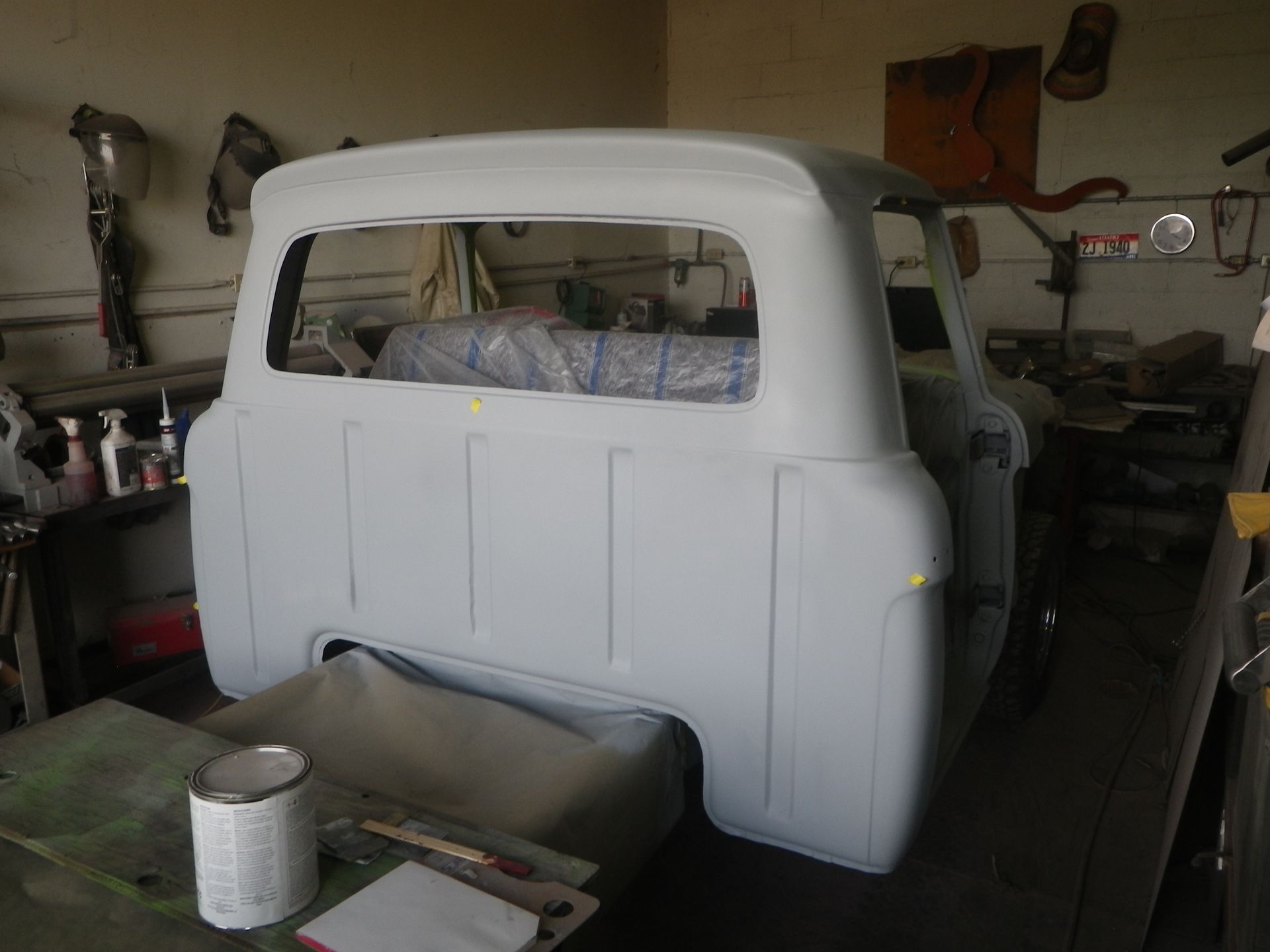

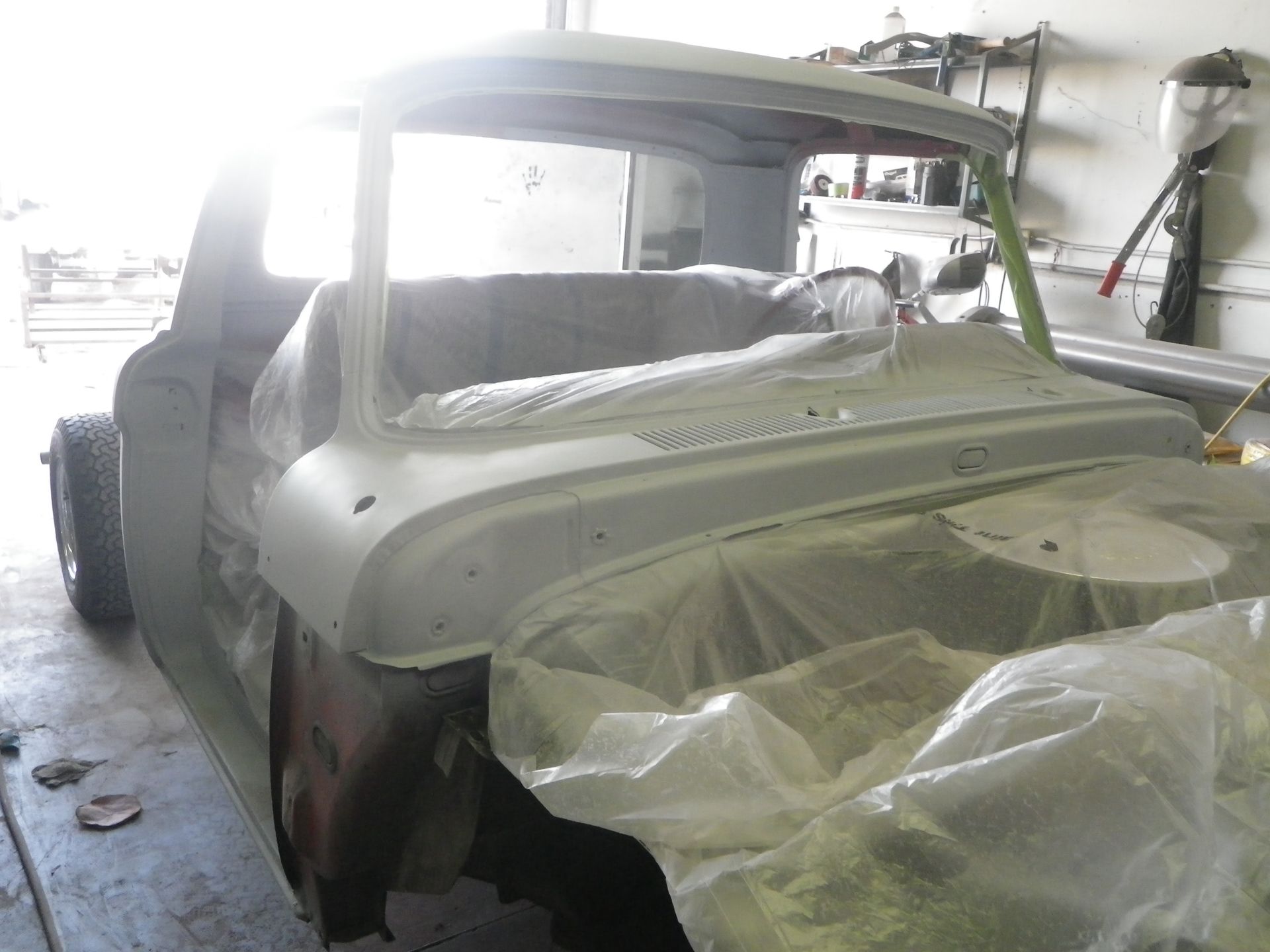

In primer

Crease in lower door

pulled out

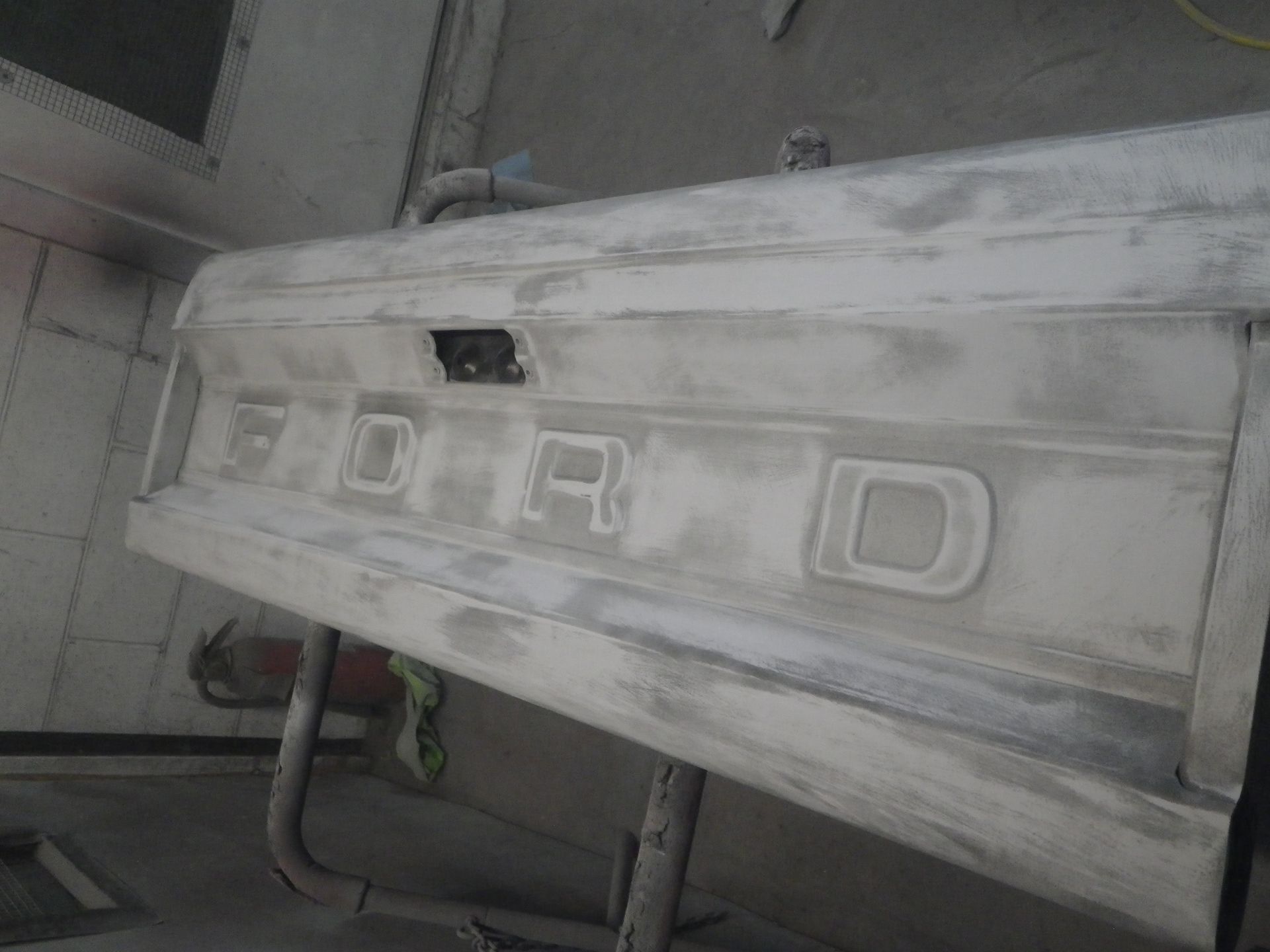

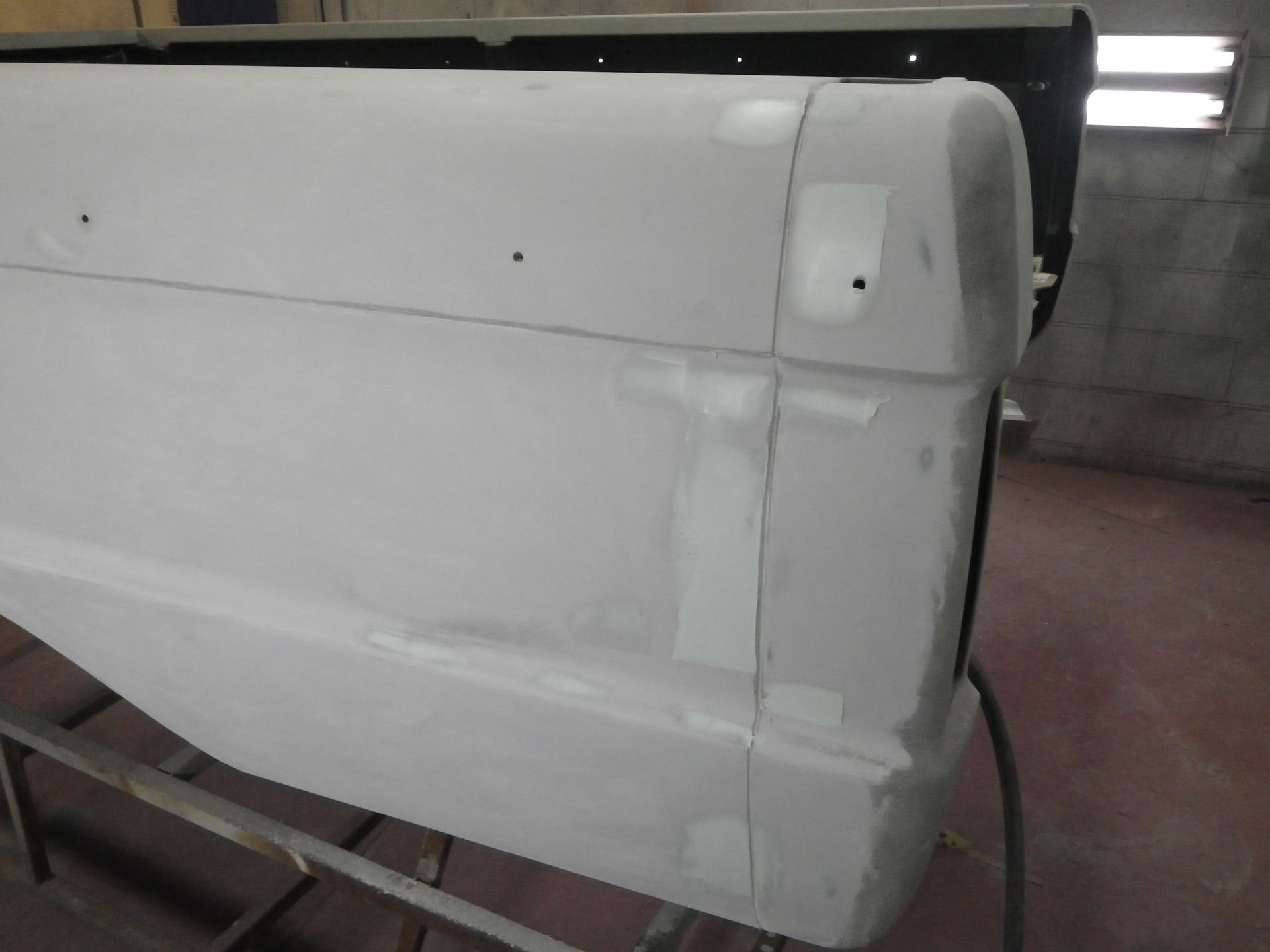

Start block sanding tailgate, lots of highs and lows

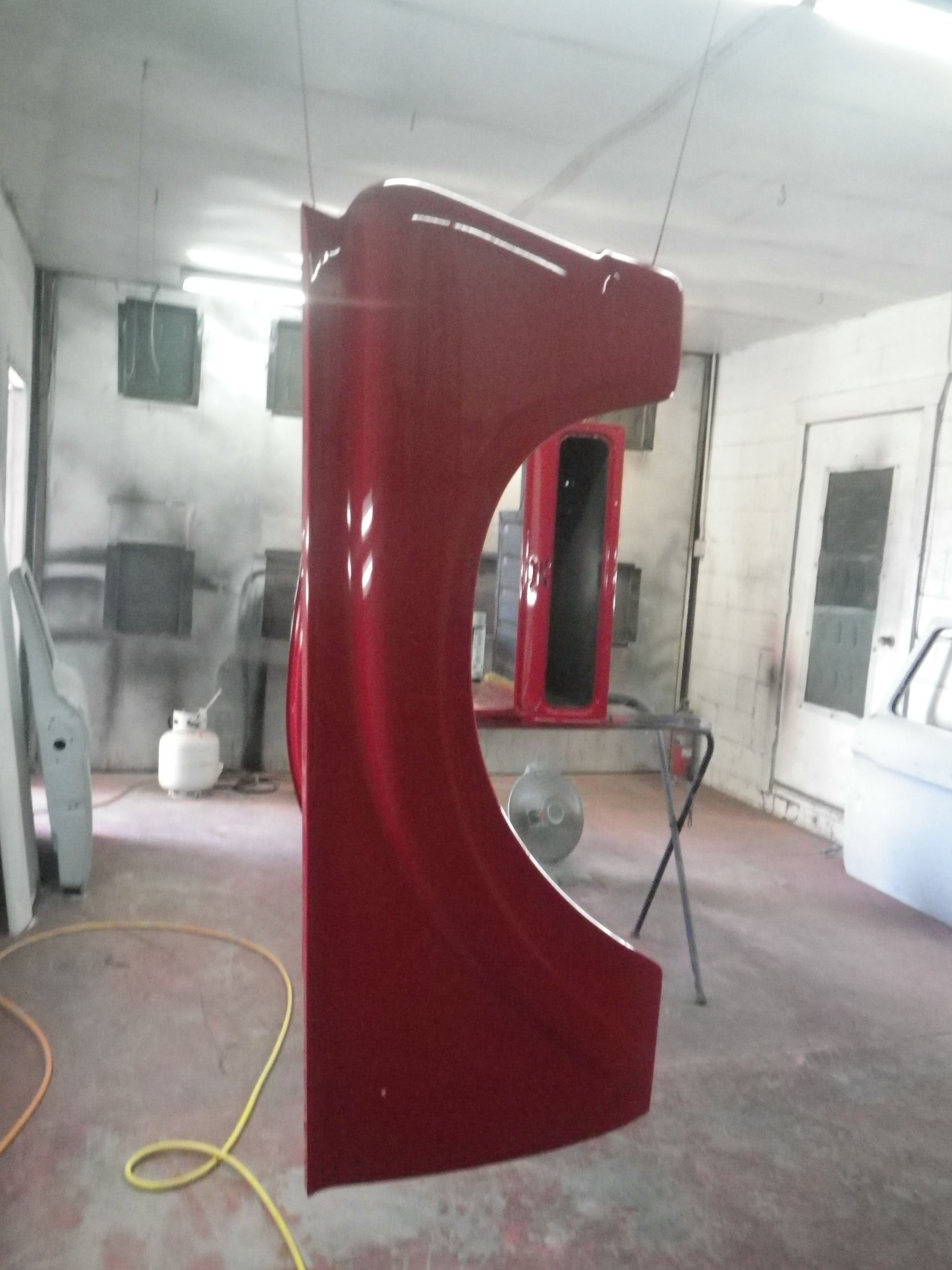

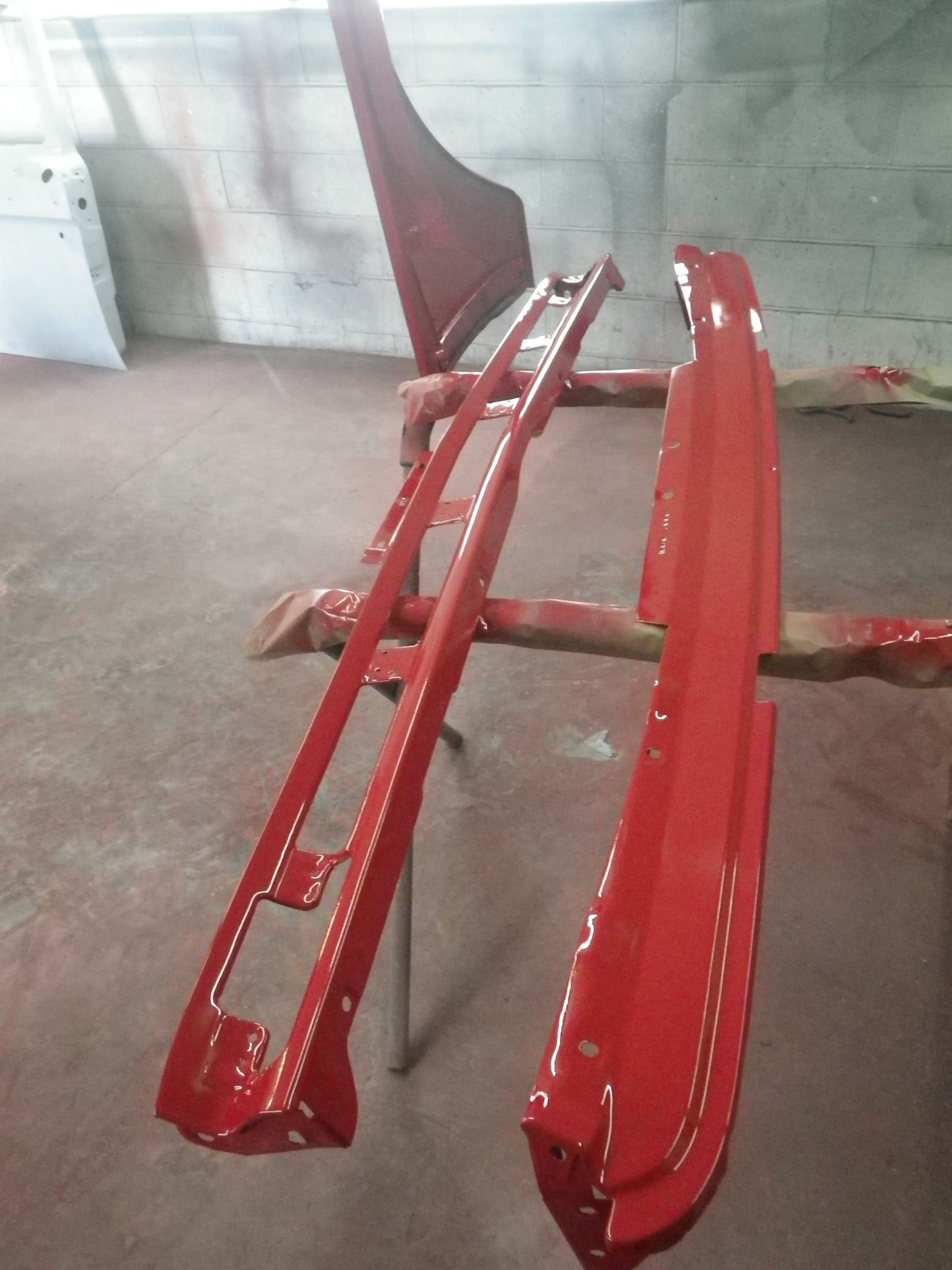

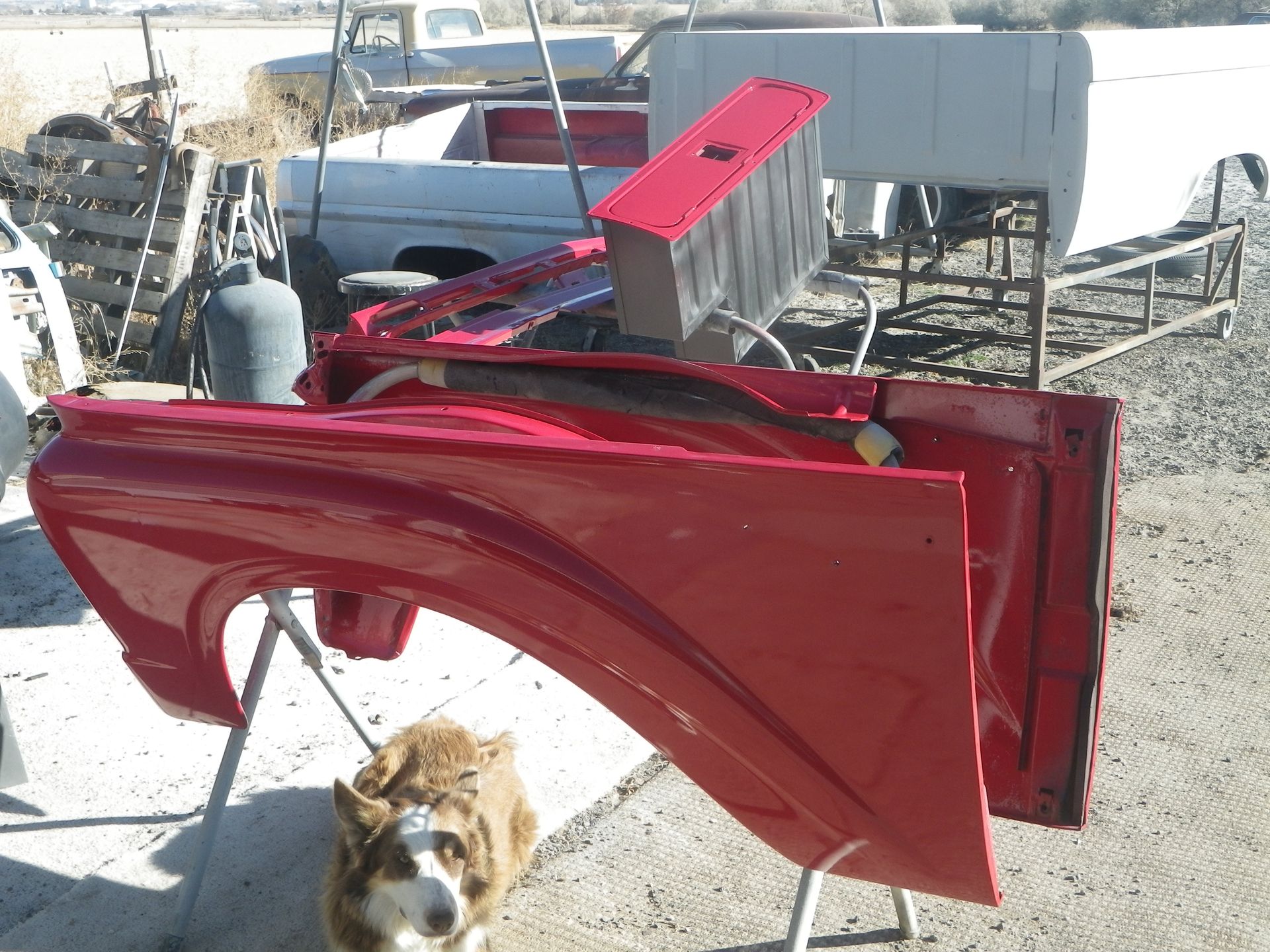

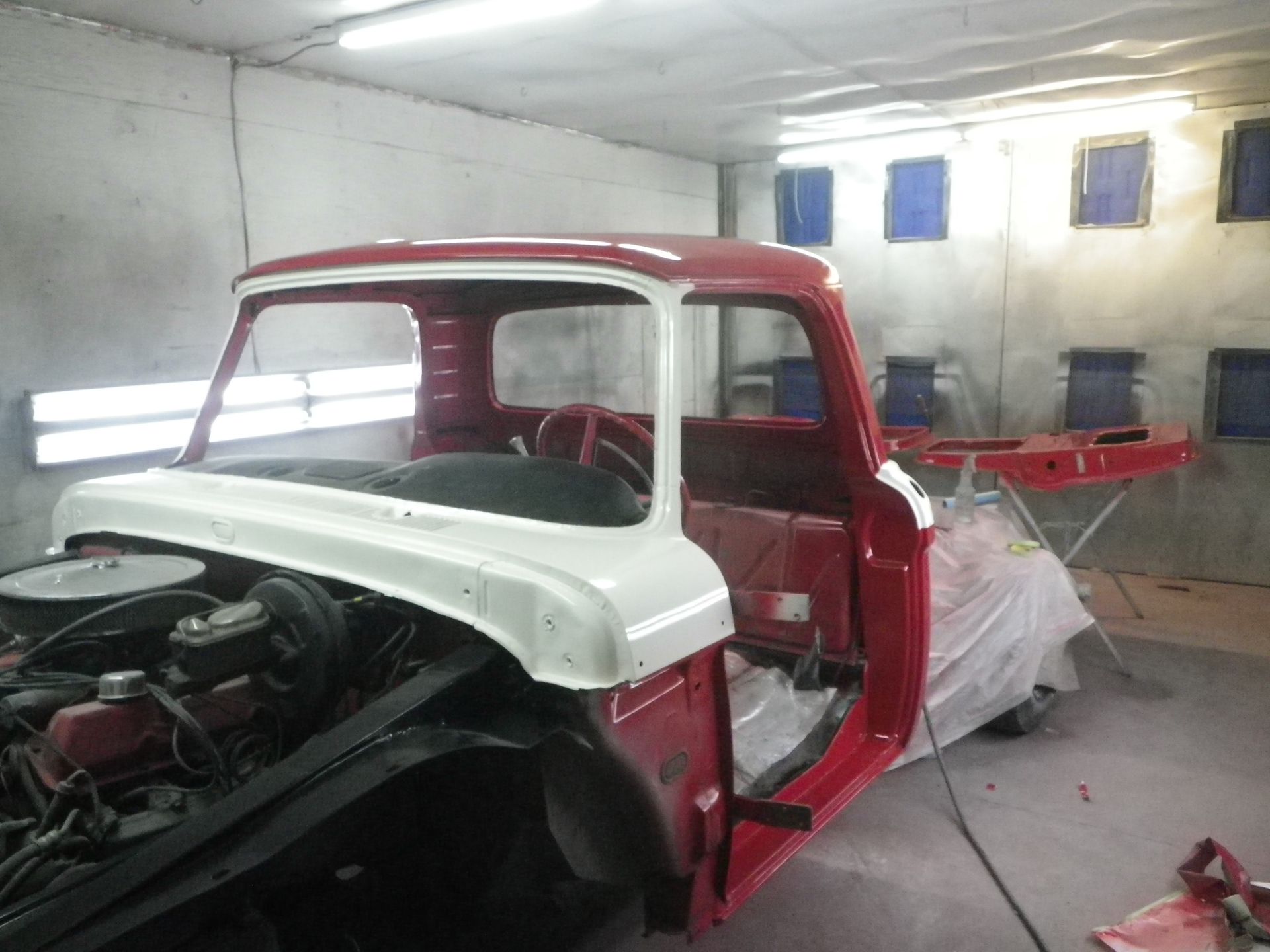

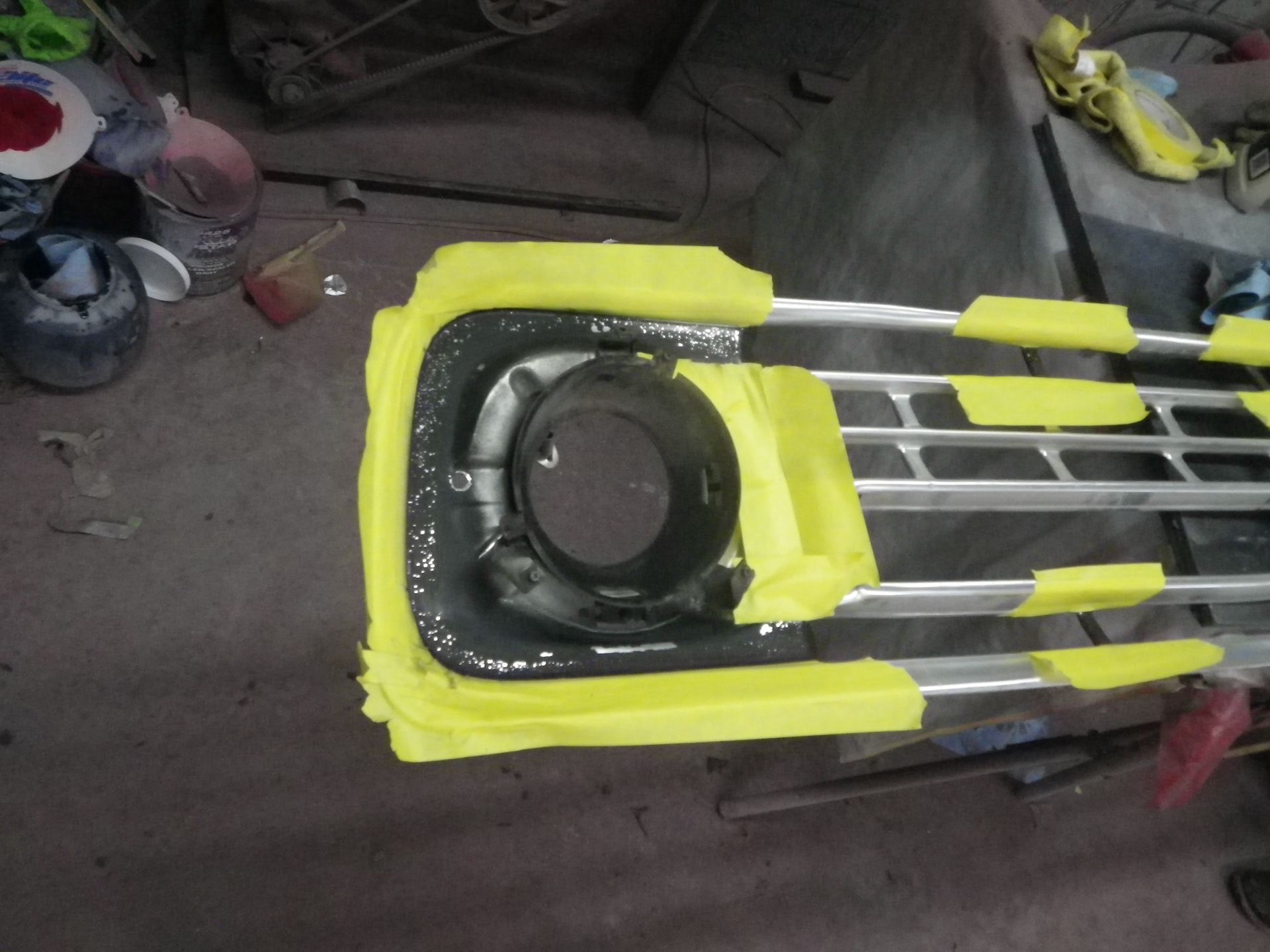

Red onto fenders, grill trim and toolbox

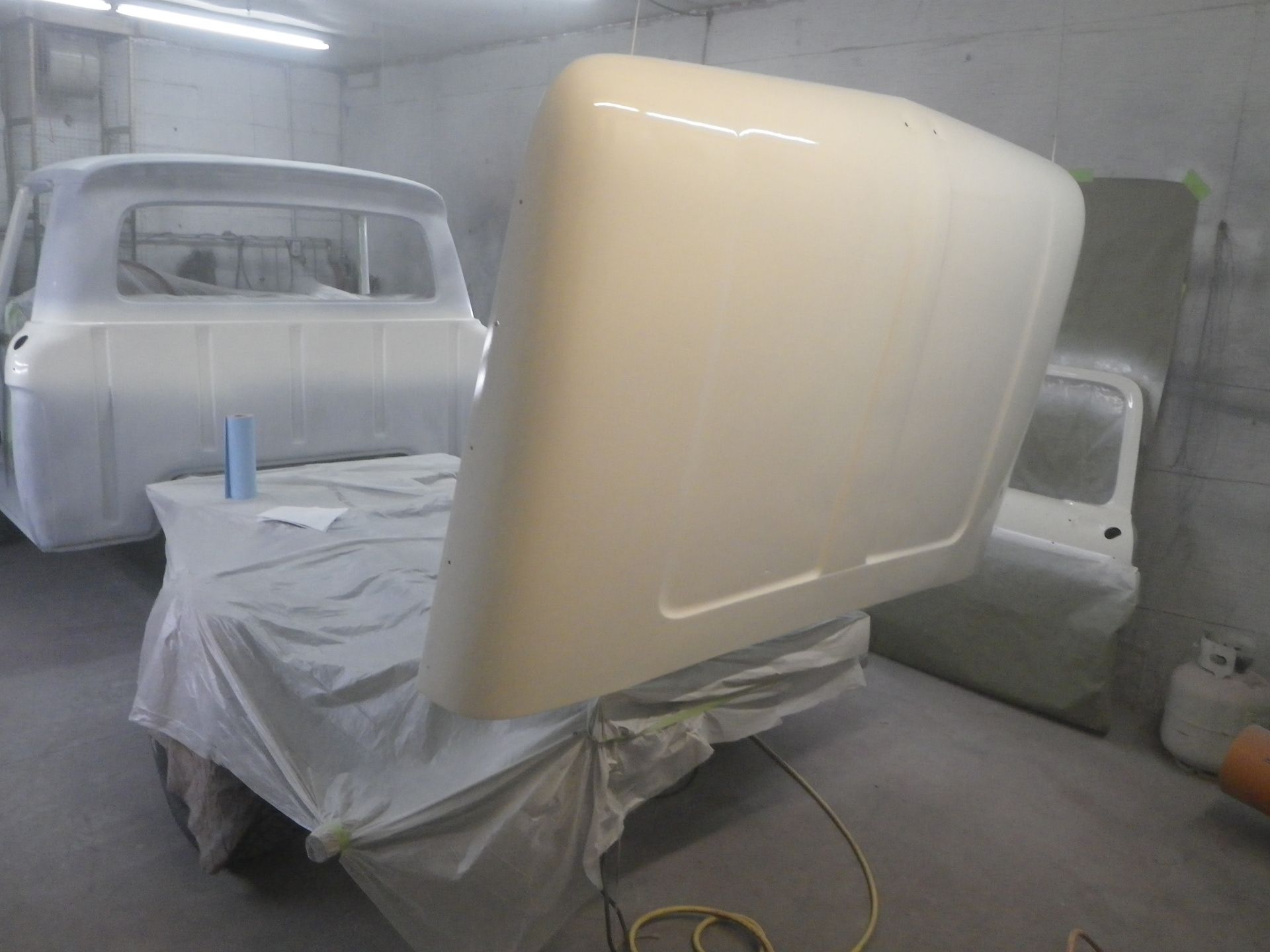

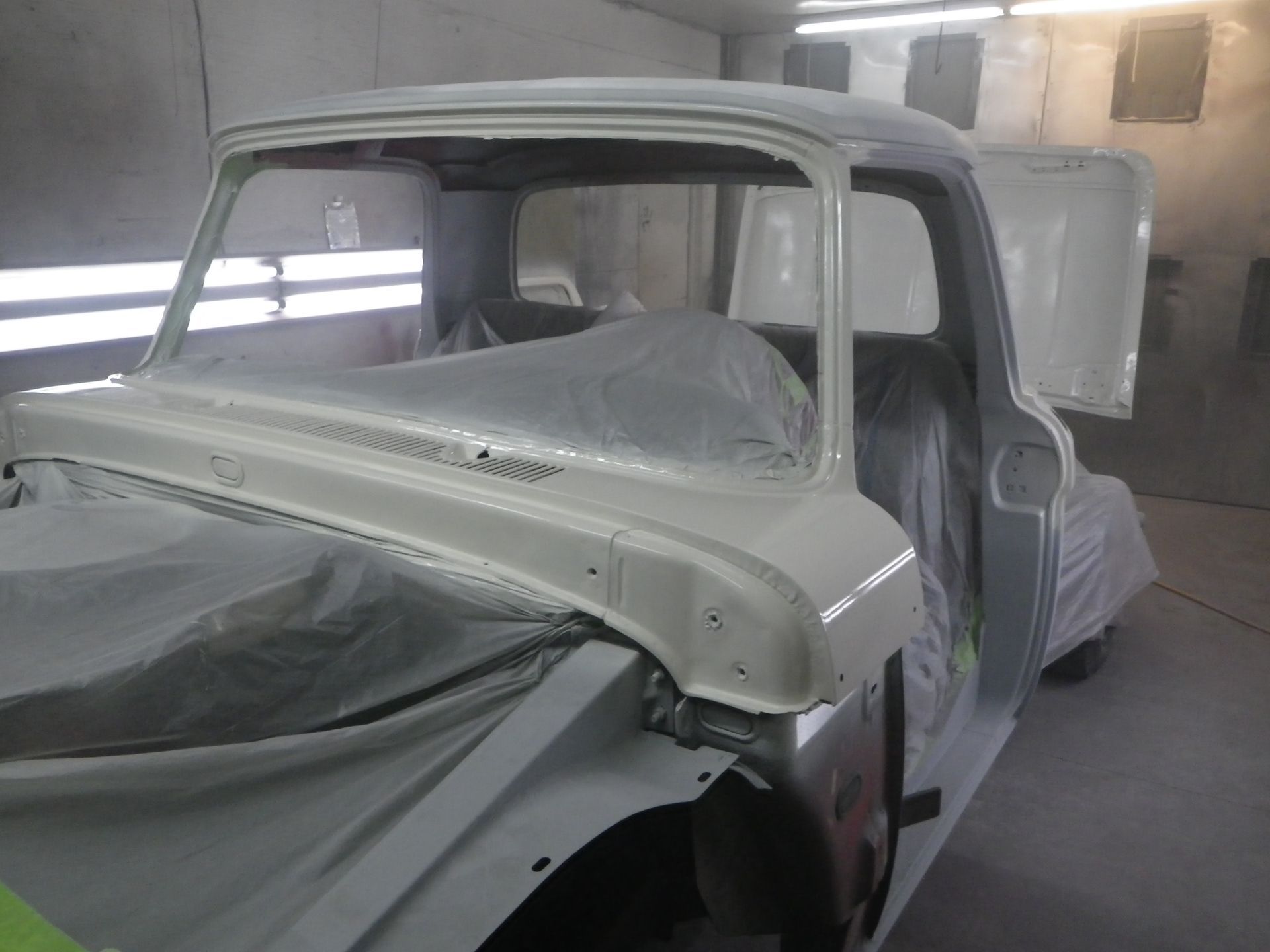

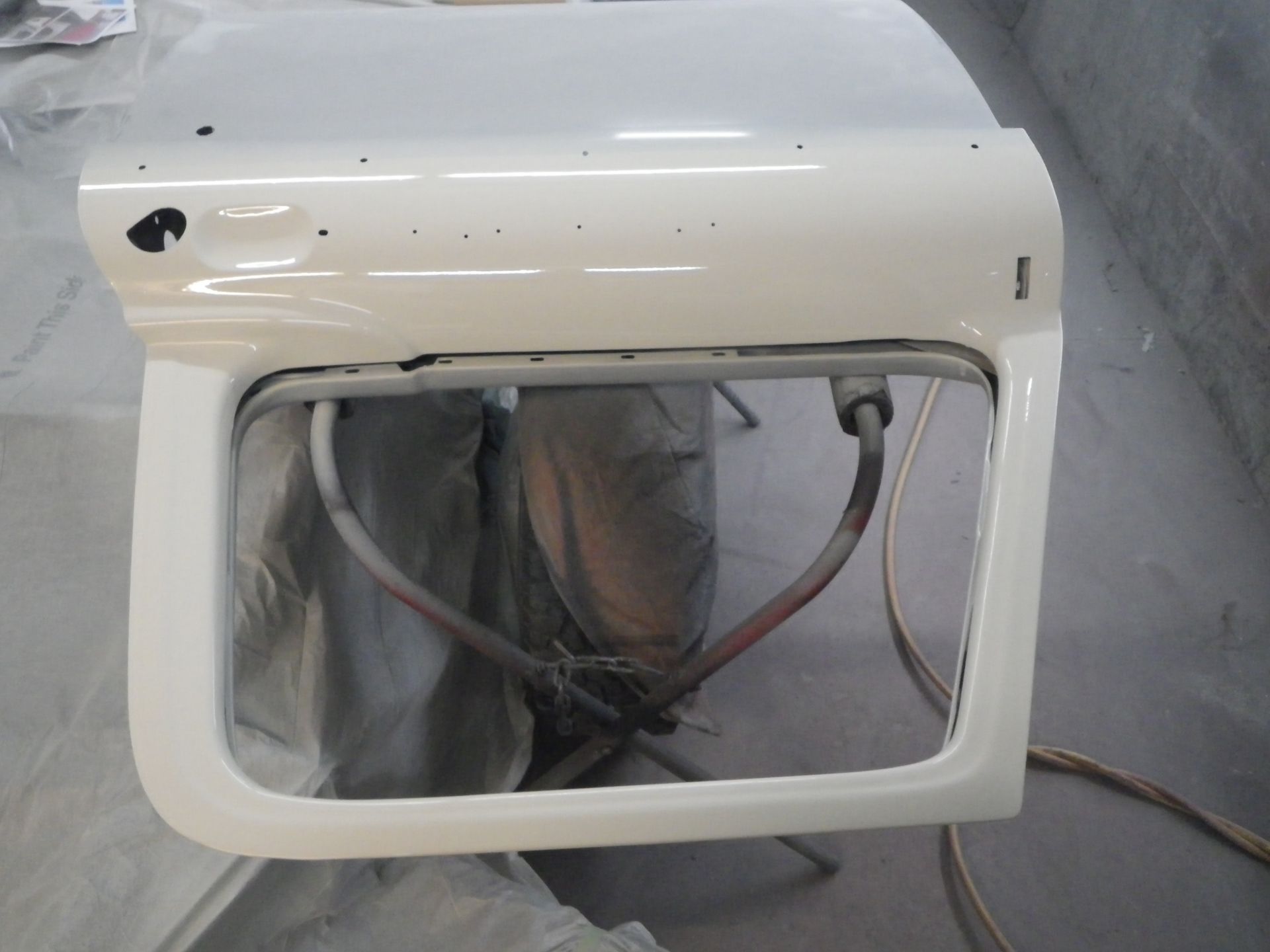

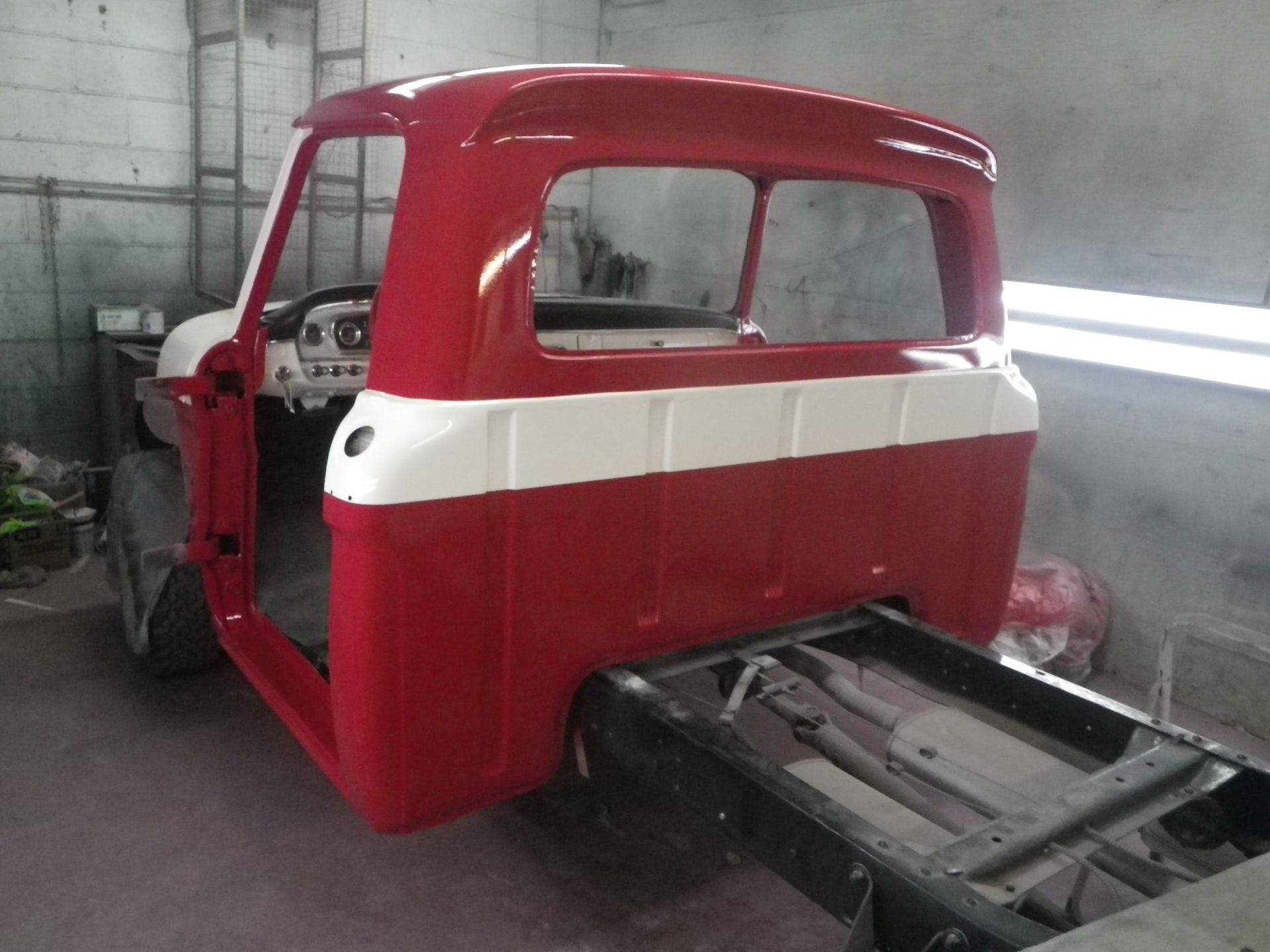

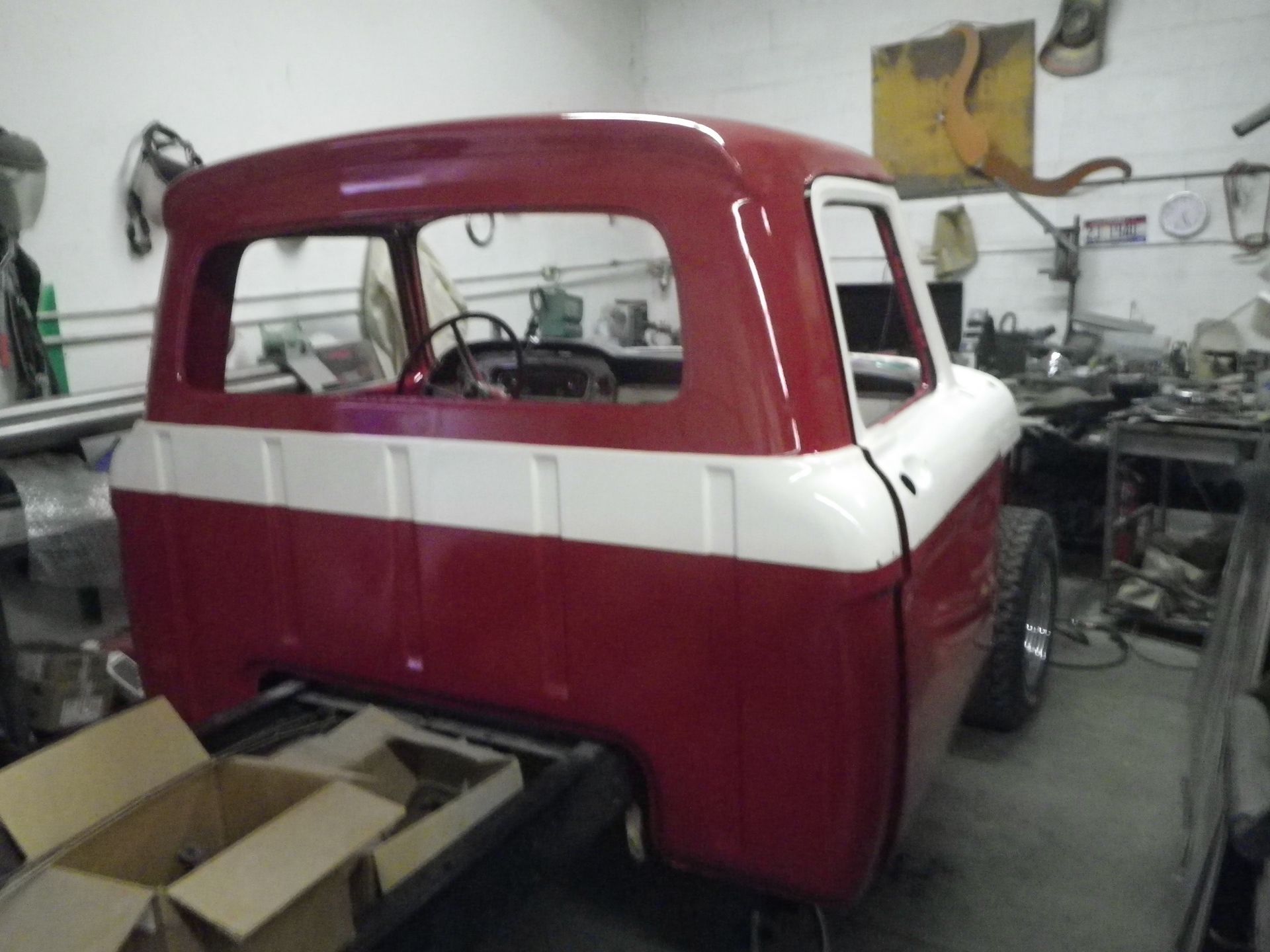

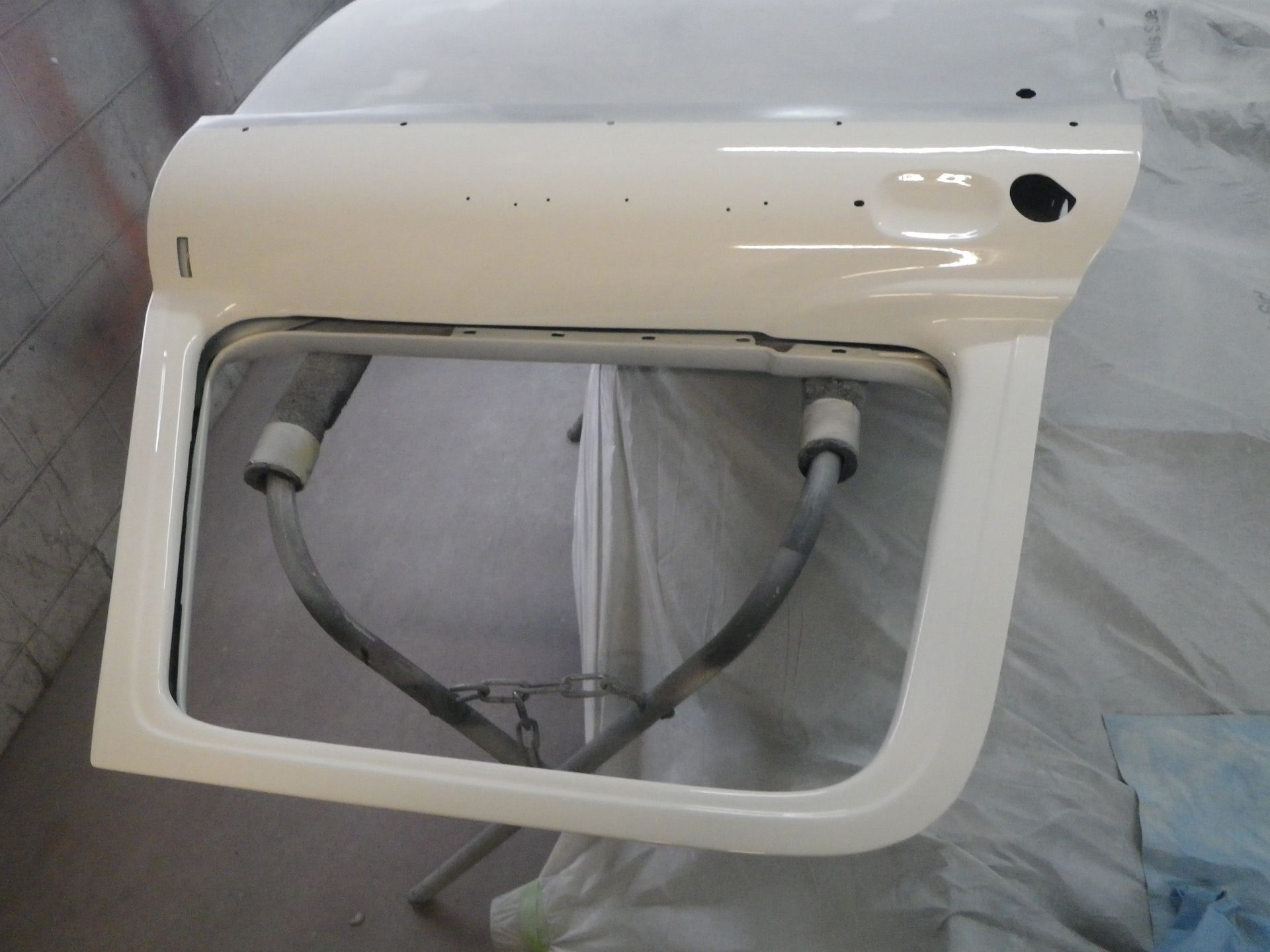

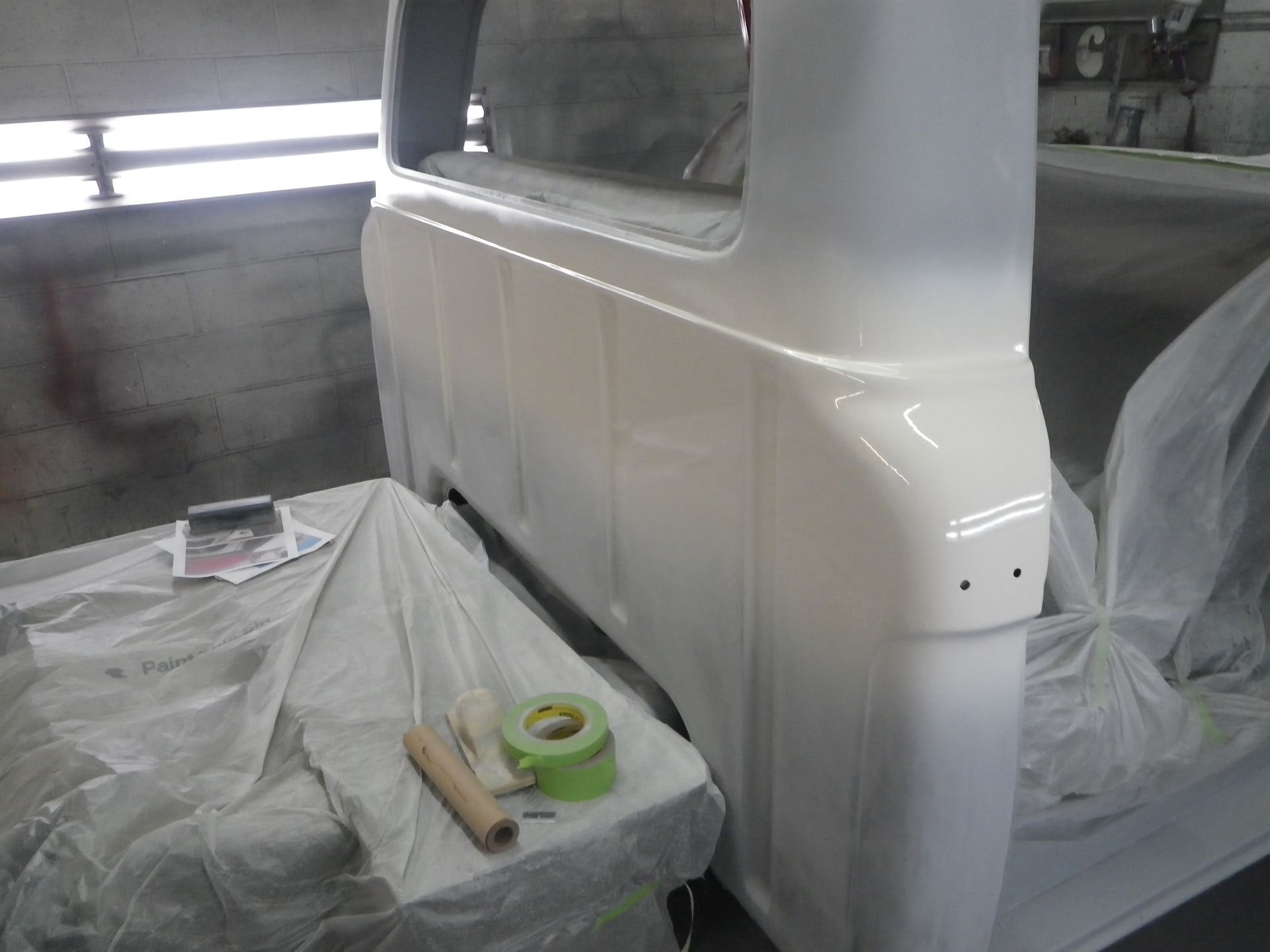

White on the hood, doors and cab, going 2-tone

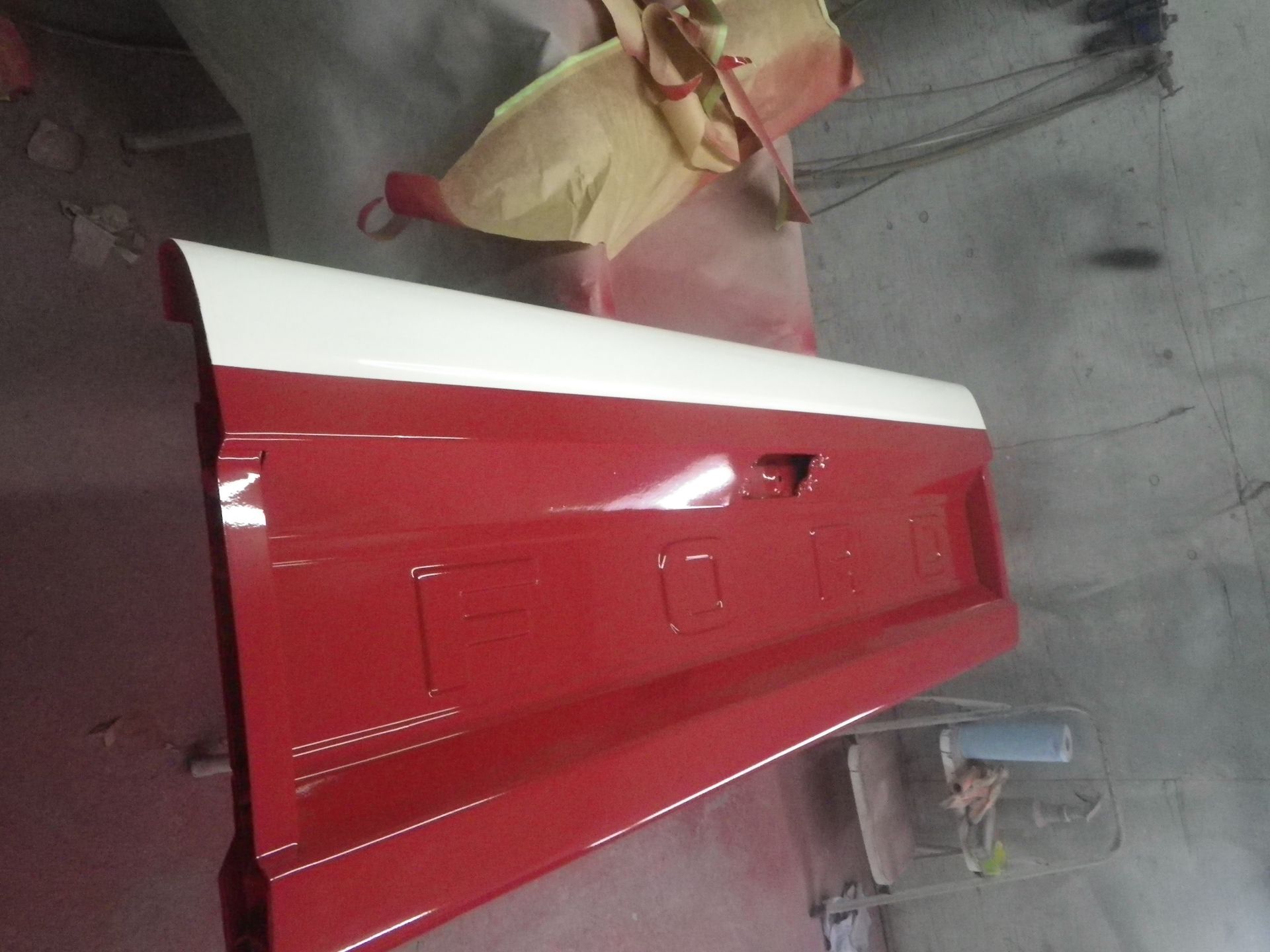

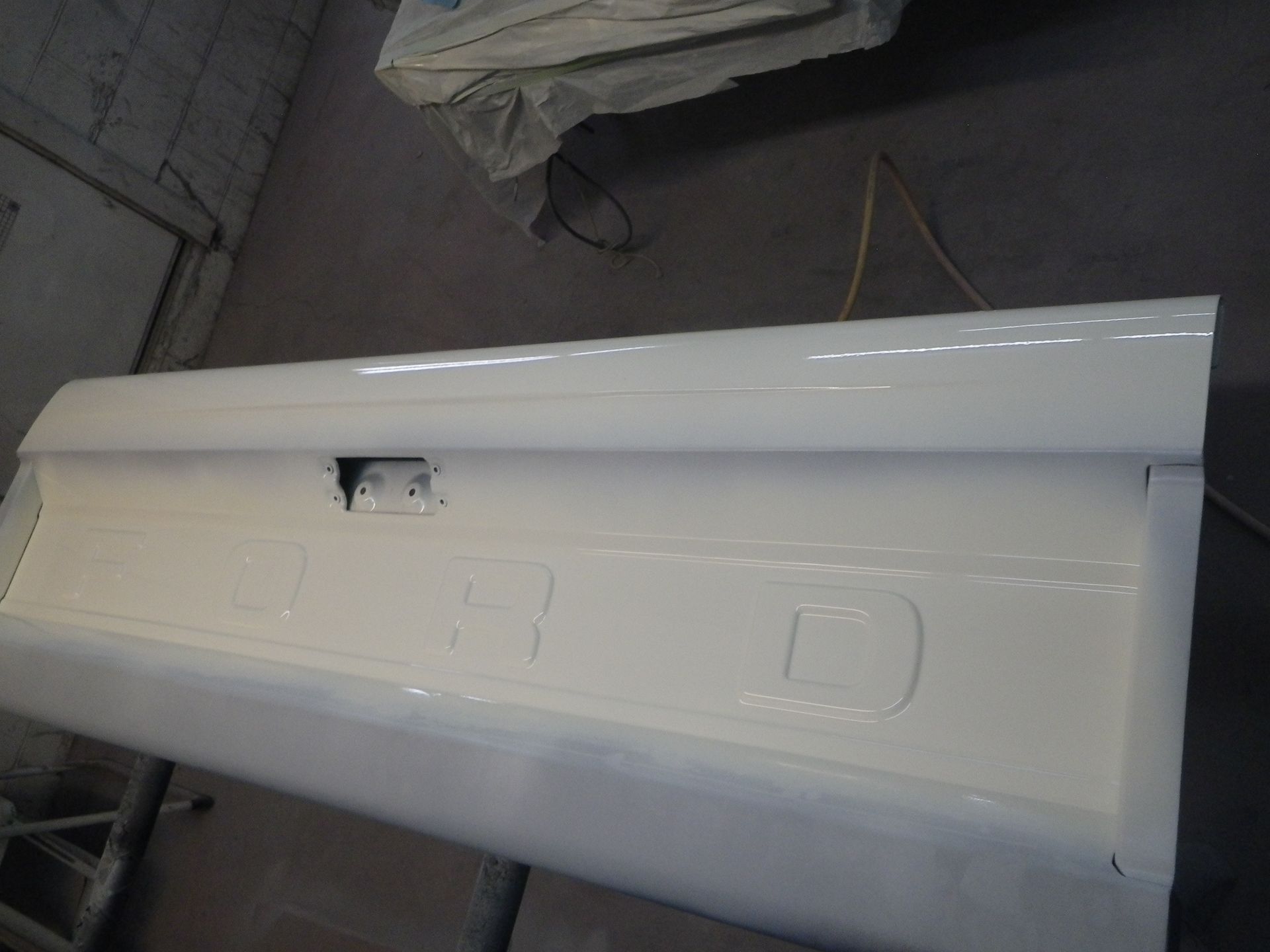

white on the tailgate, a lot of hand sanding around the letters

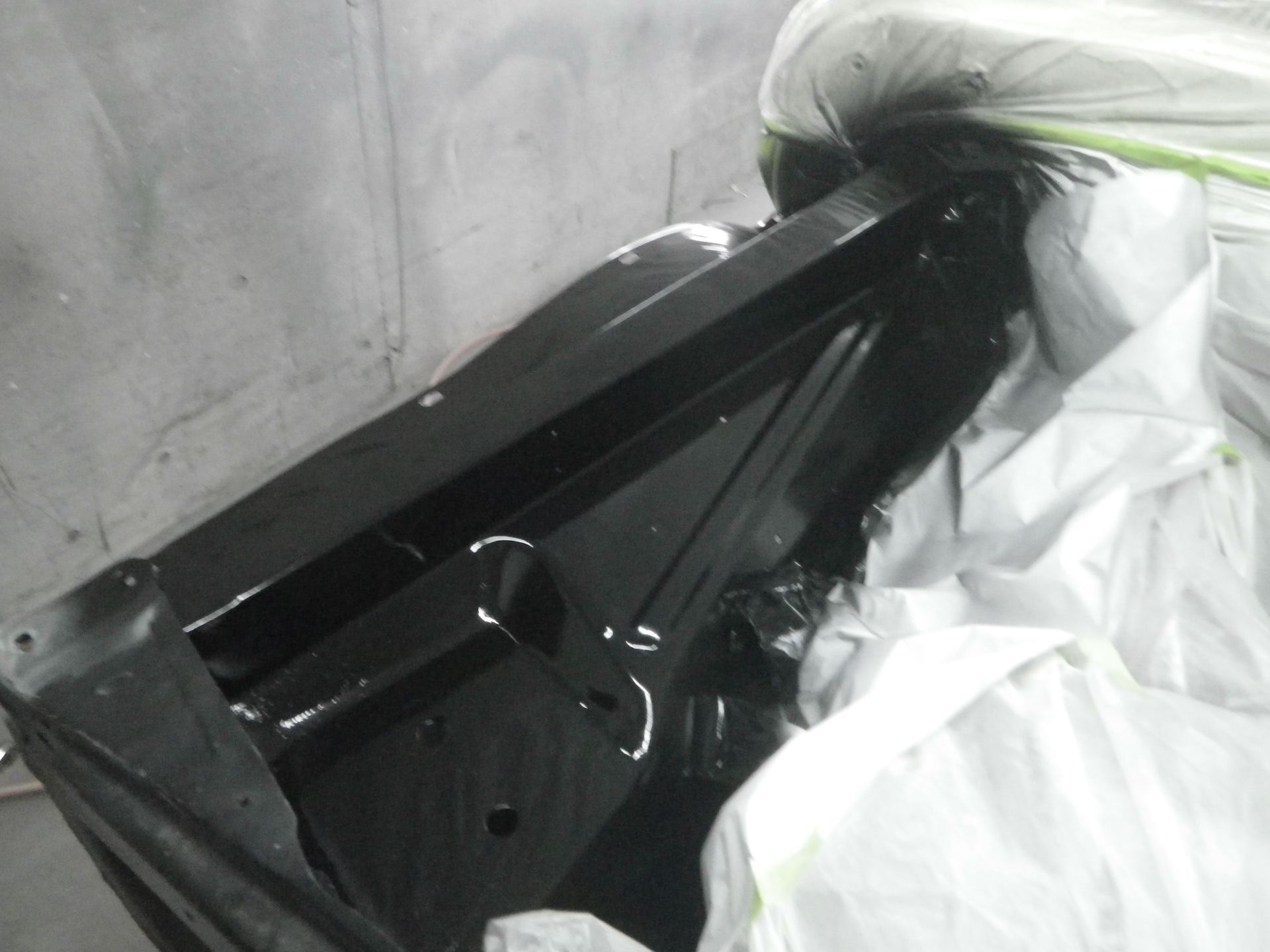

Inner fenders painted black

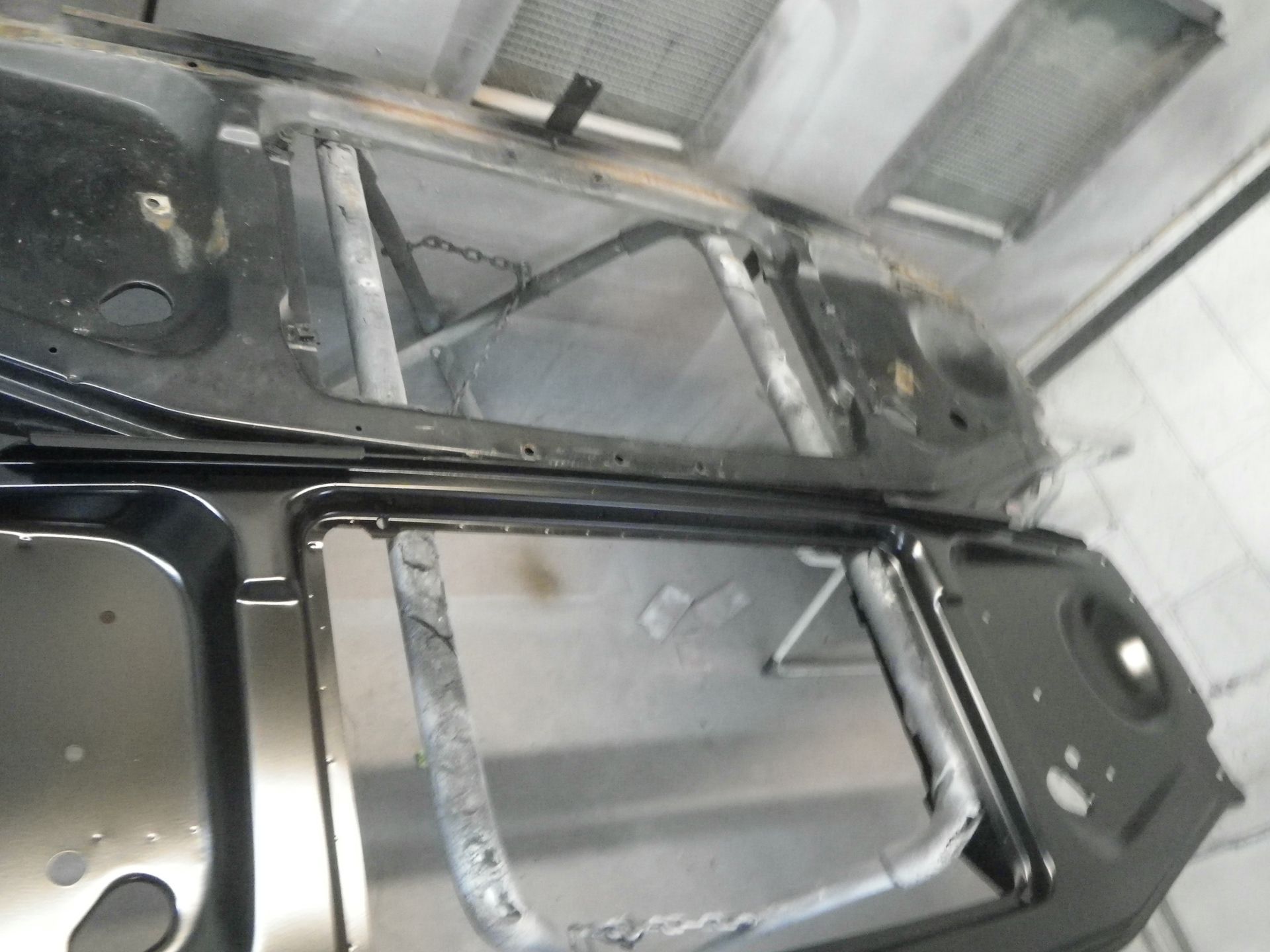

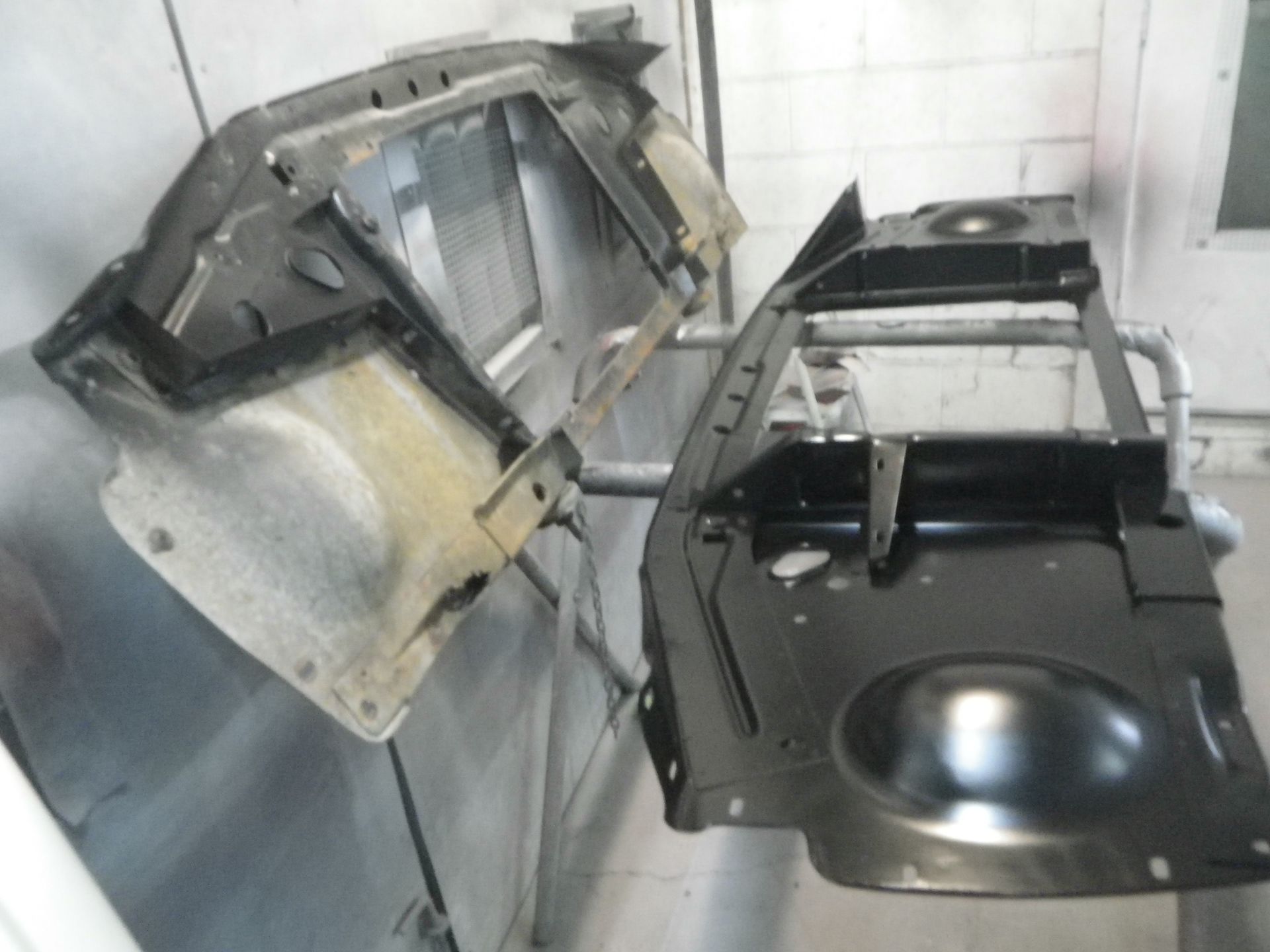

New radiator support does not match the old one, inner fender and radiator mount are totally different

Removed the rusty radiator support and discover the new one doesn't match. 66 is slightly different from the 61-65. Will remove the radiator spacer and weld on the flanges for the inner fenders. Reproduction 66 is not available.

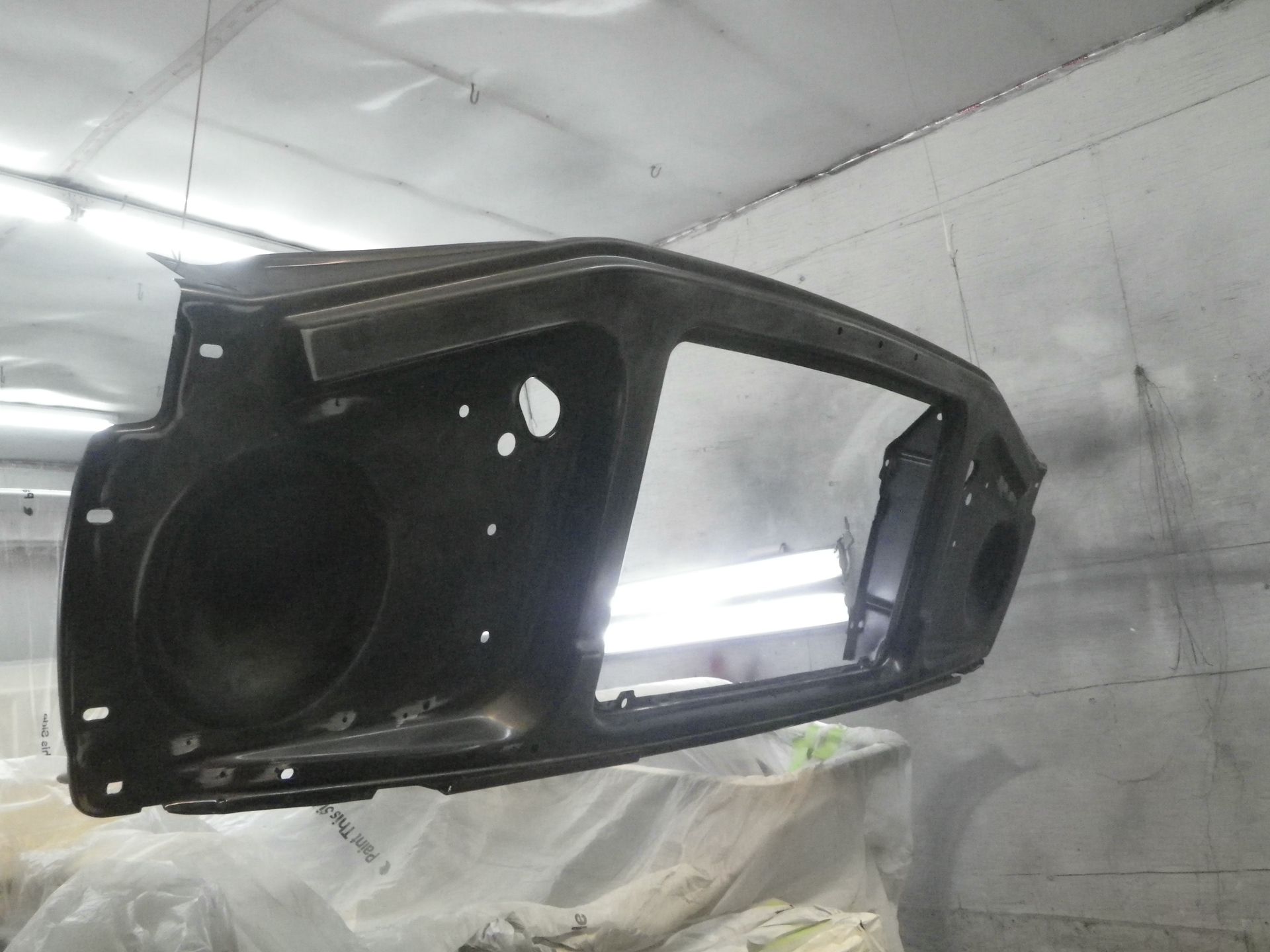

Painted, ready to assemble

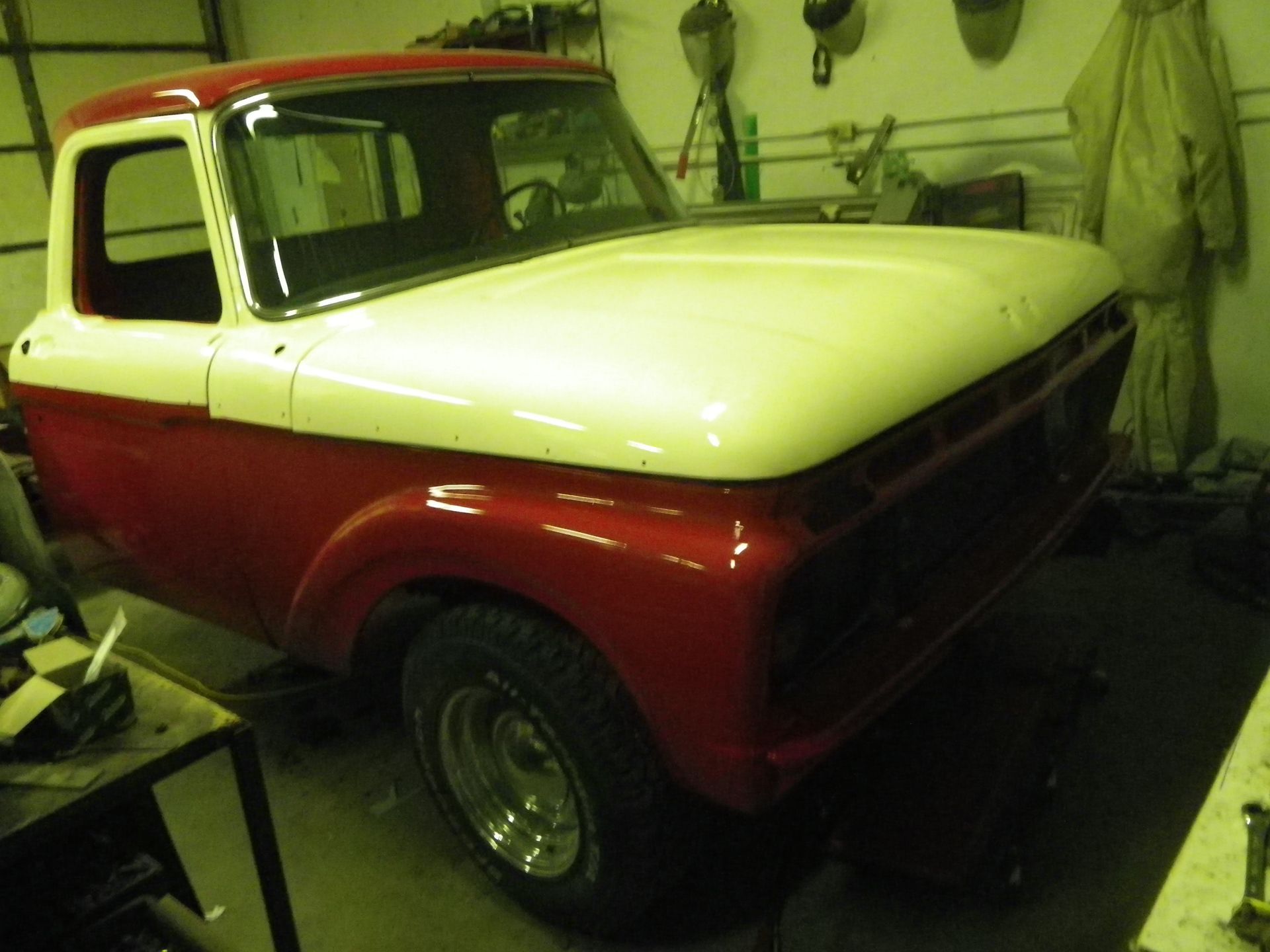

Doors back on and adjusted.

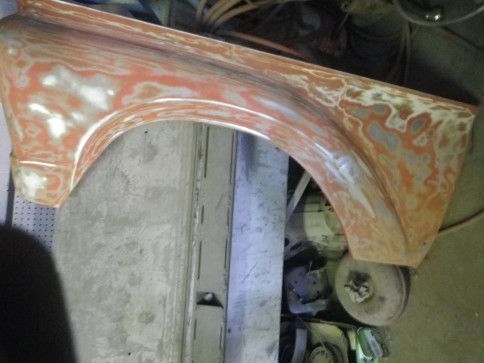

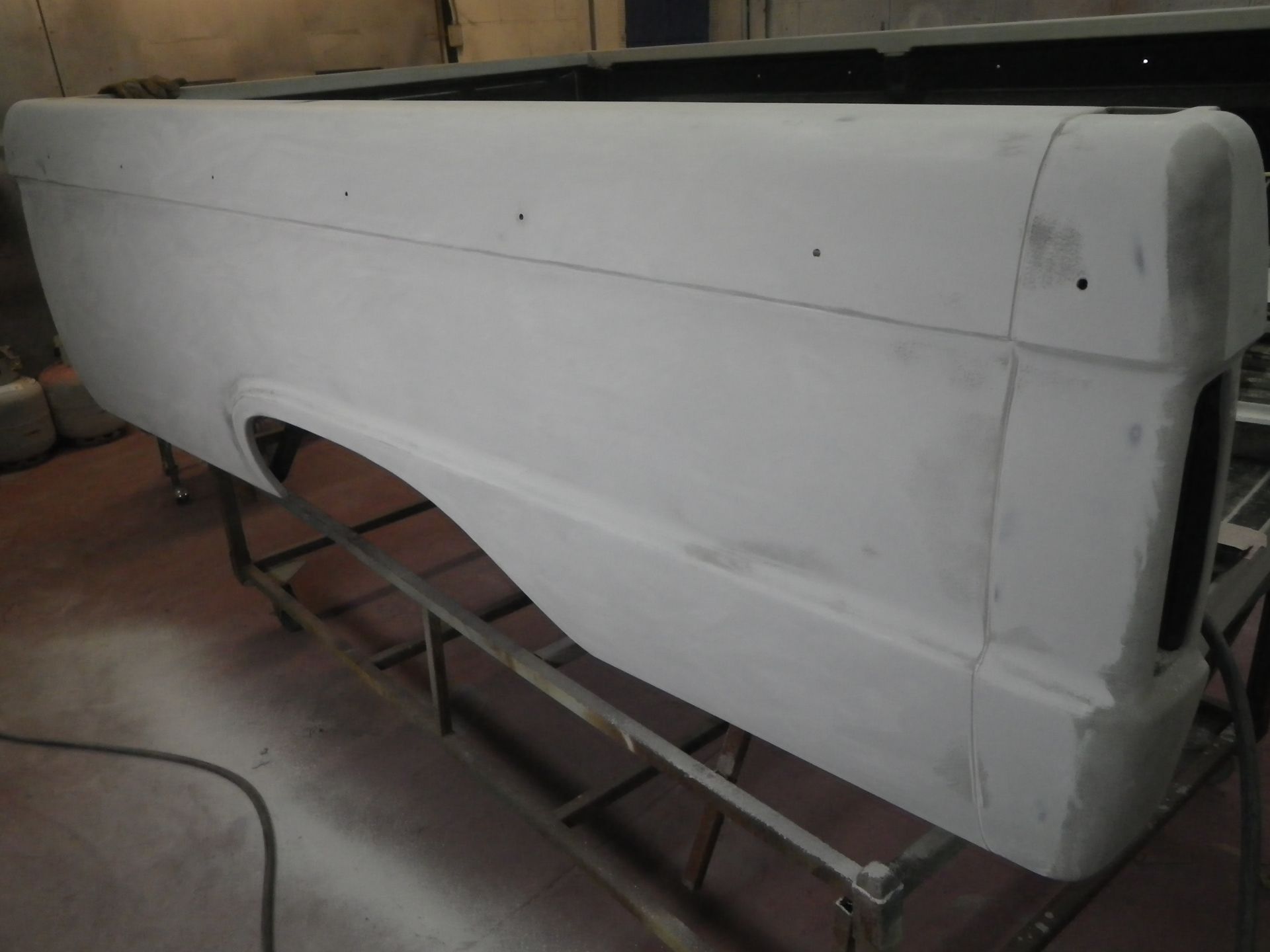

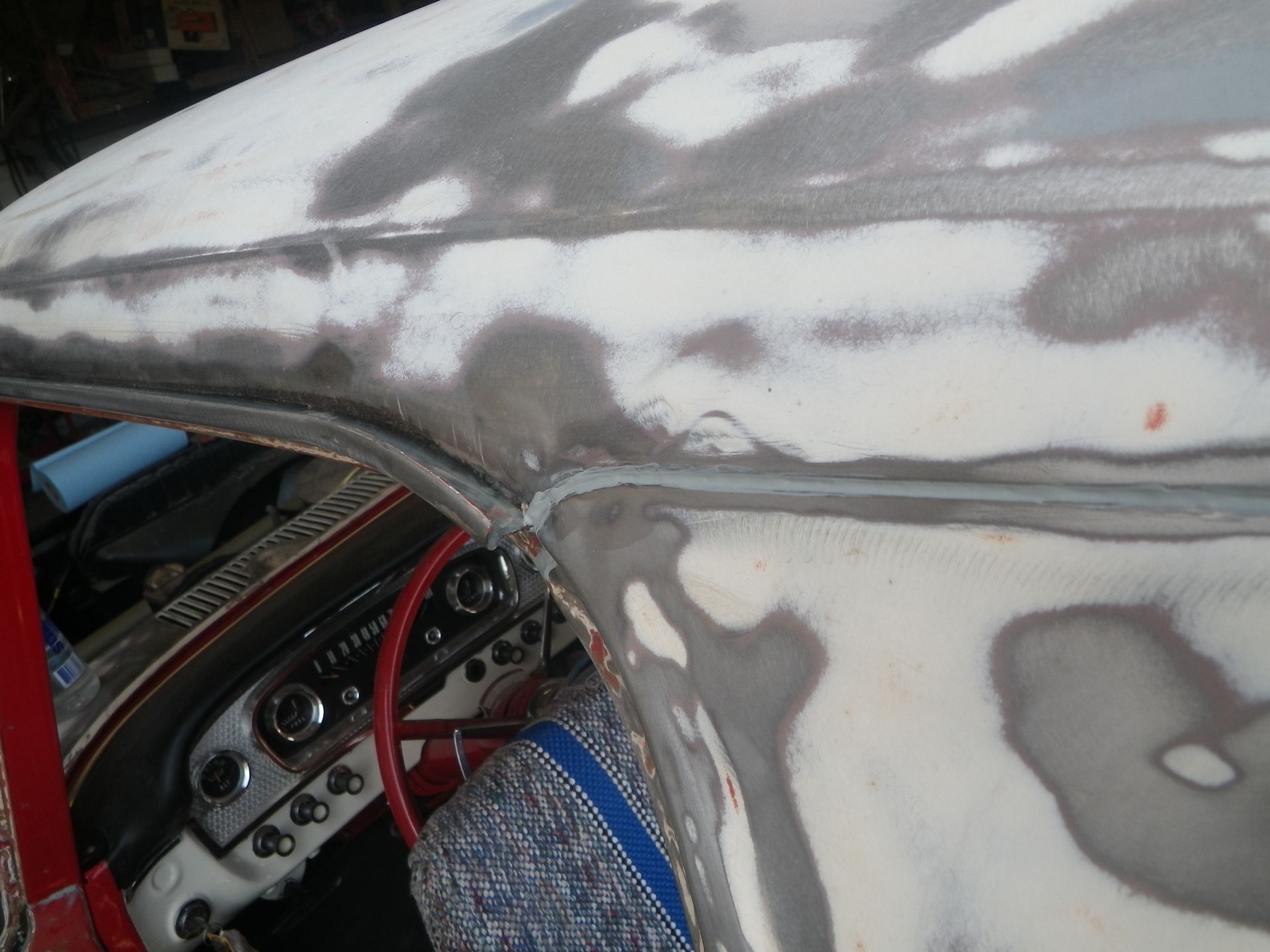

Lots of block sanding , dark spots are still low as metal starts to show, will fill.

Adding glaze to low spots

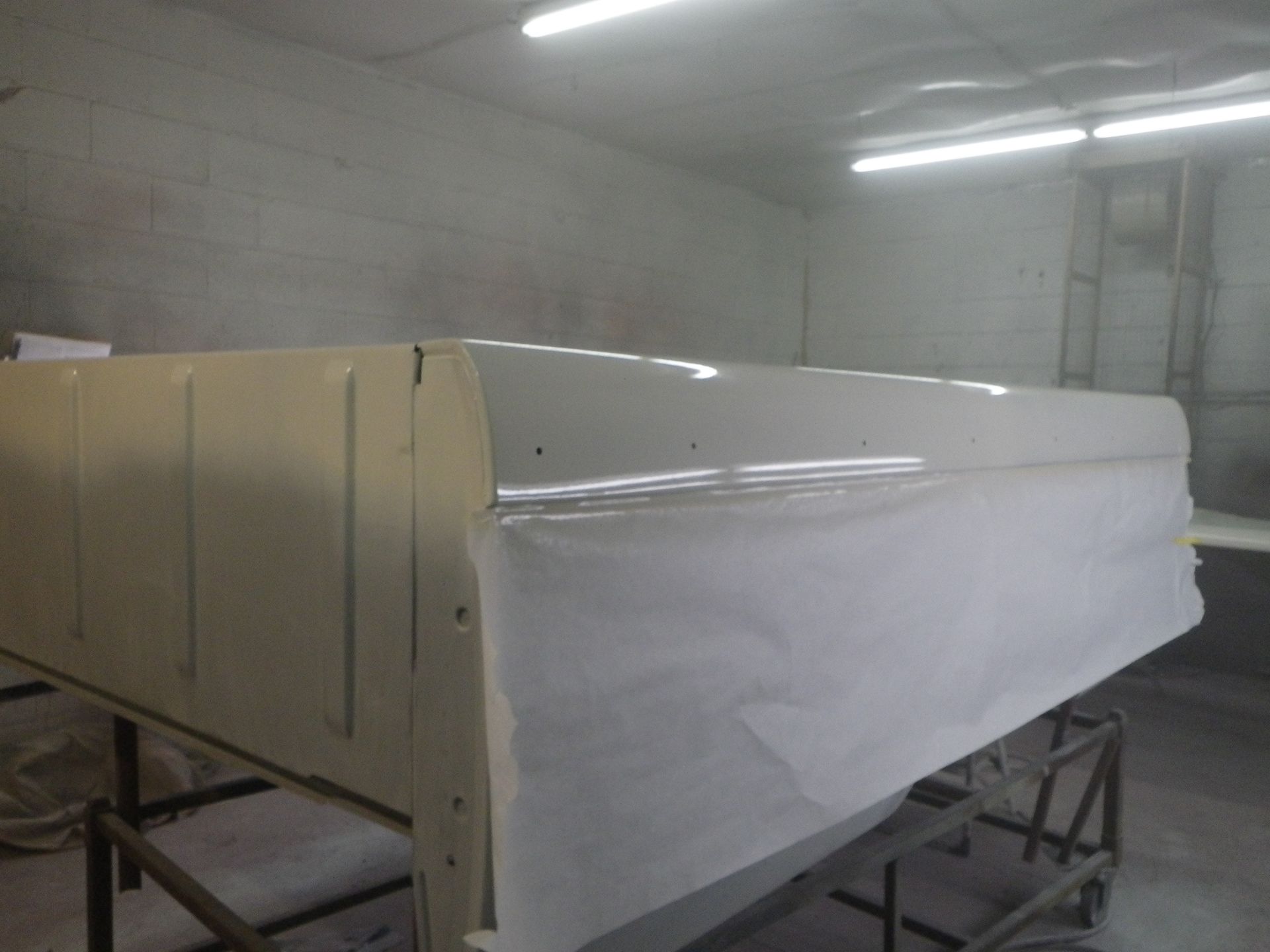

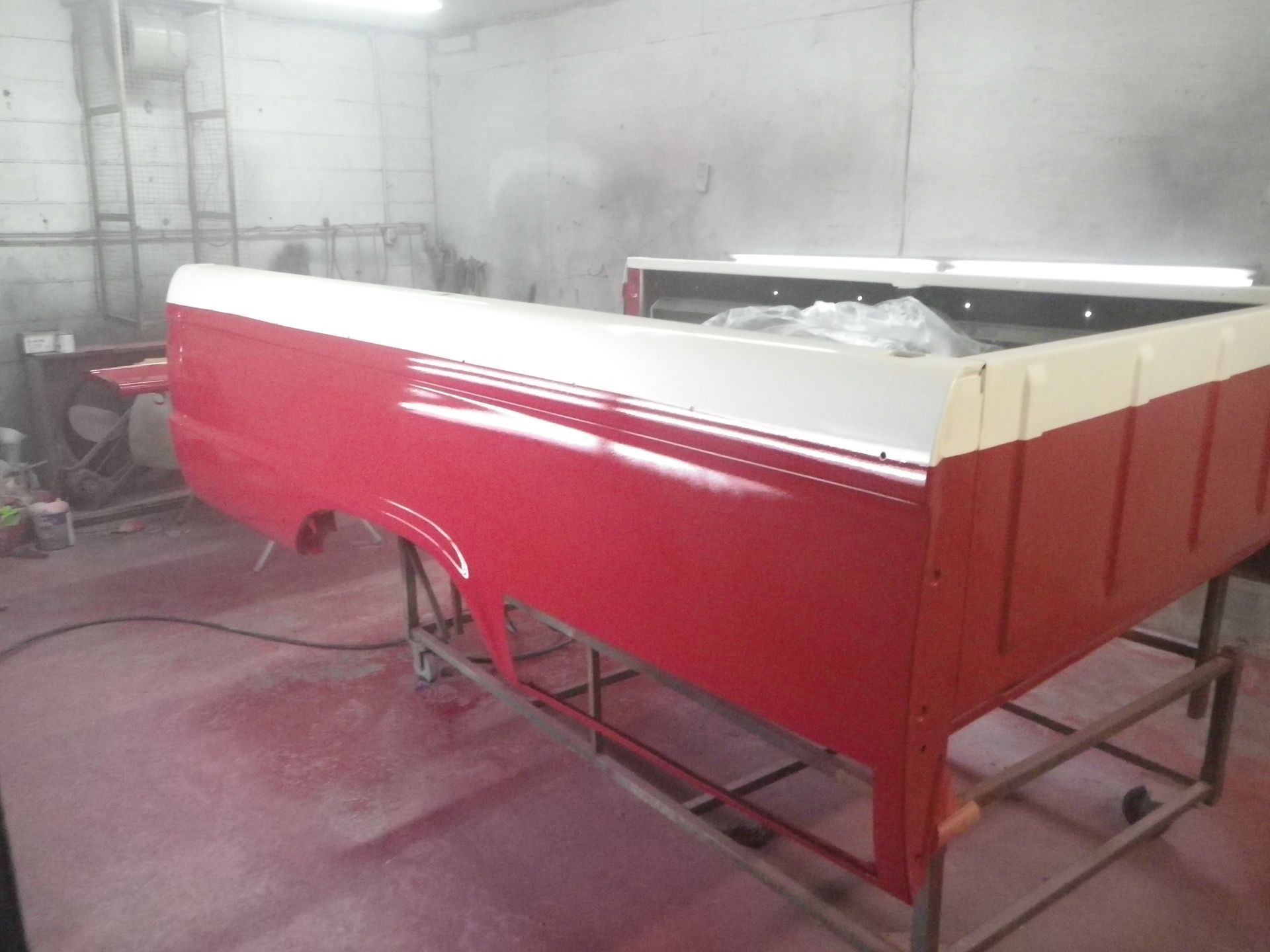

White on the bed.

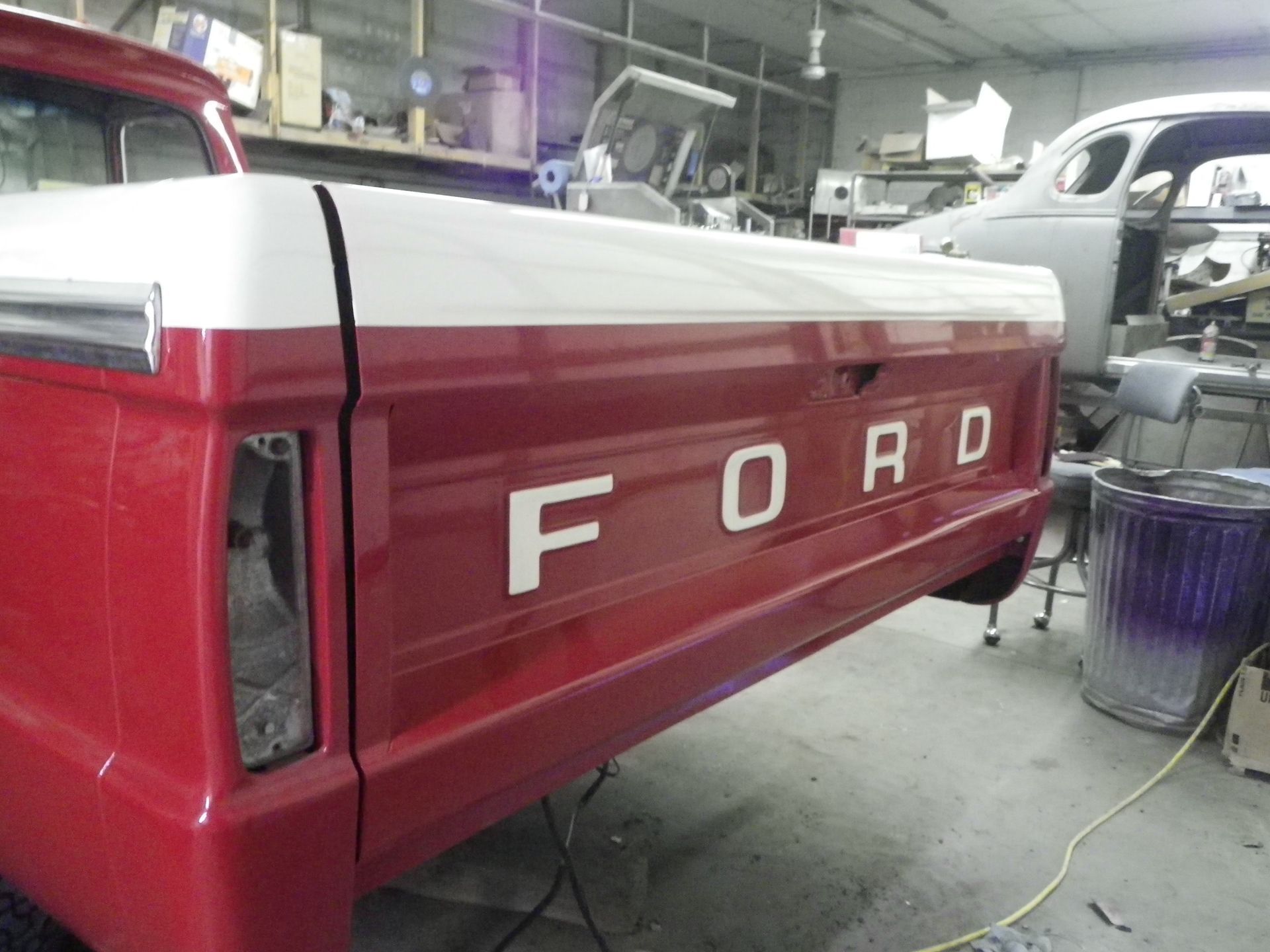

Last of the painting is done.

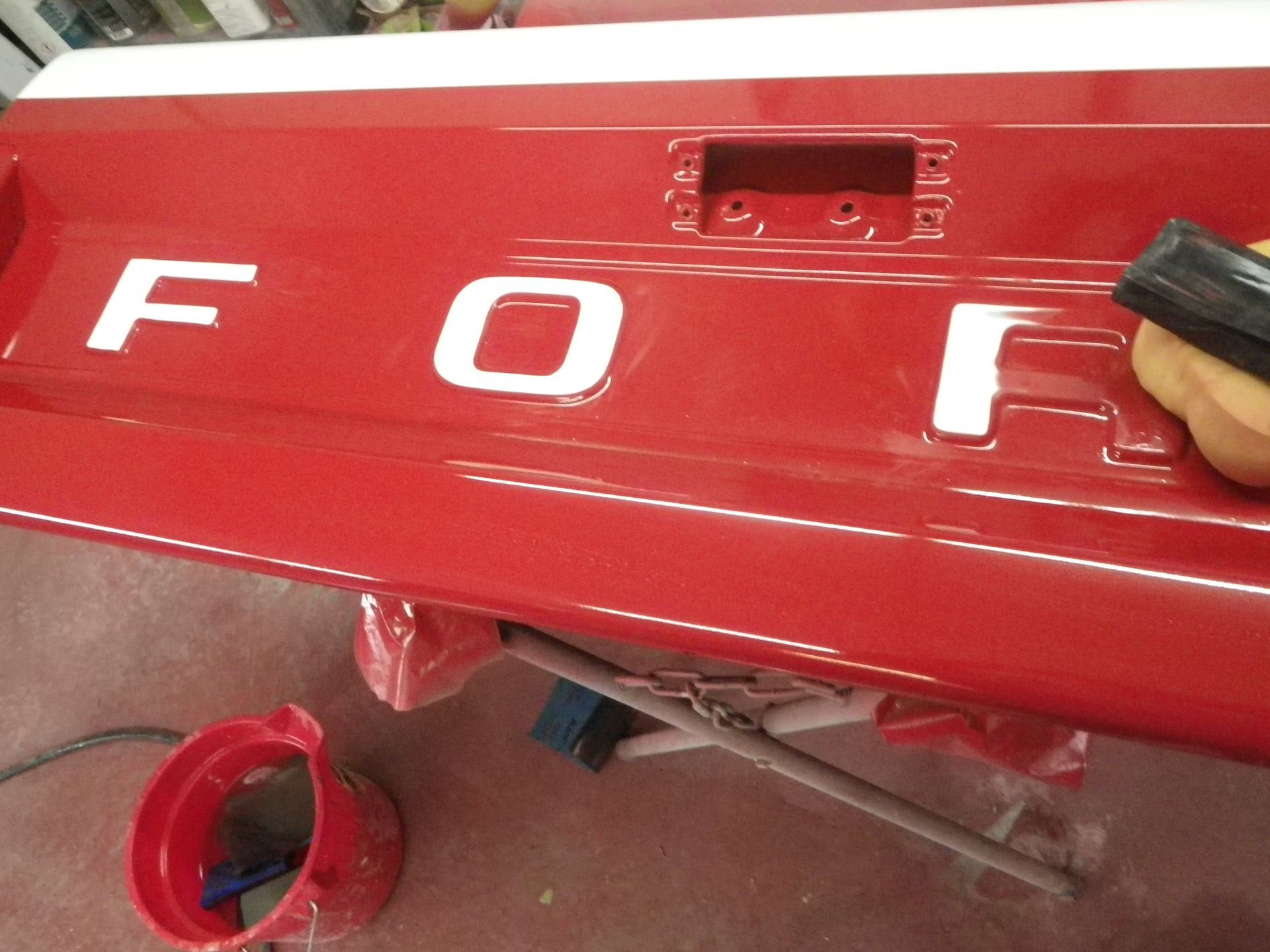

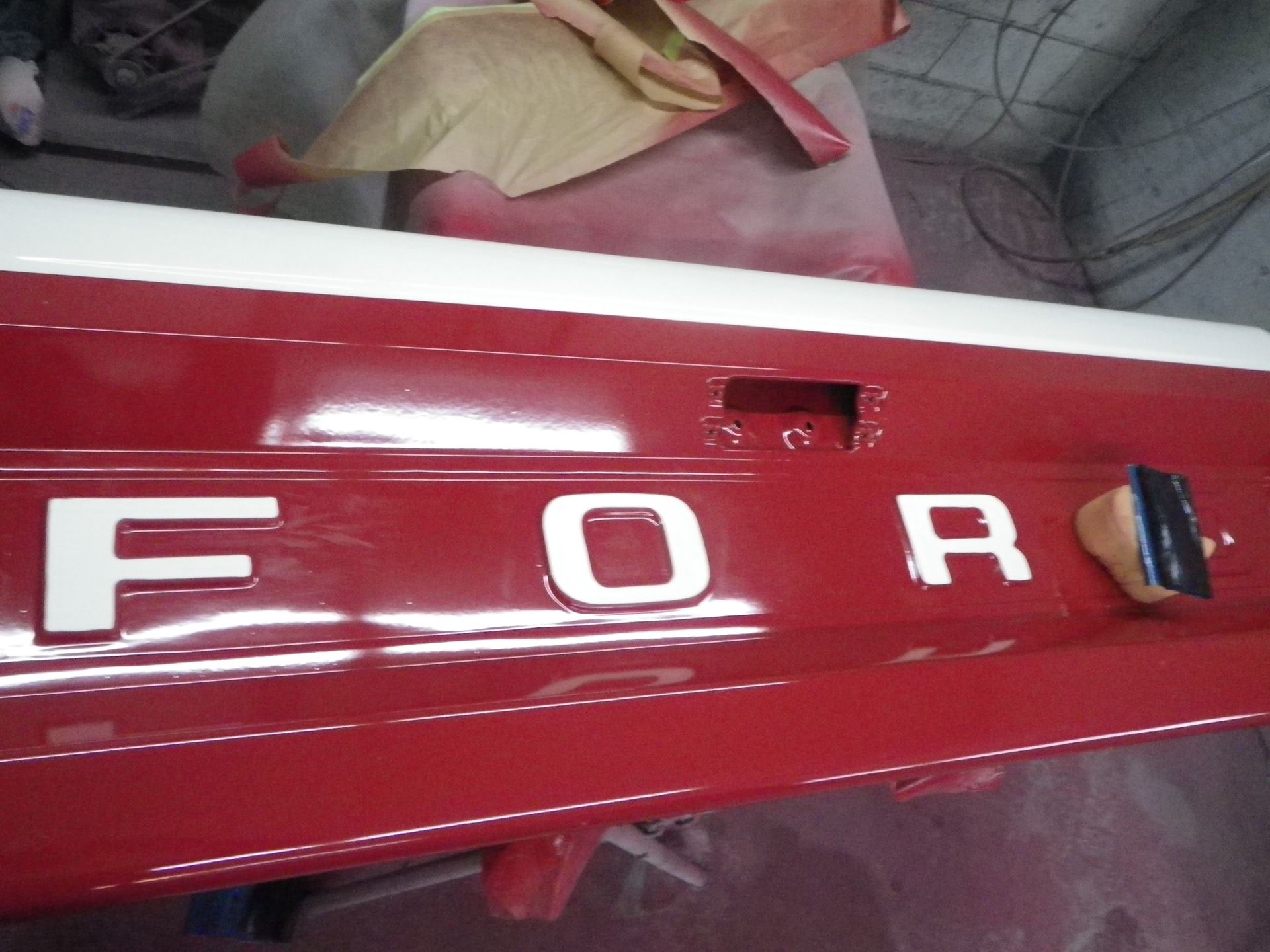

will carefully wet sand the FORD letters down to the white and buff

Careful sanding with 800 grit then up to 1500

Front end assembled, ready for trim

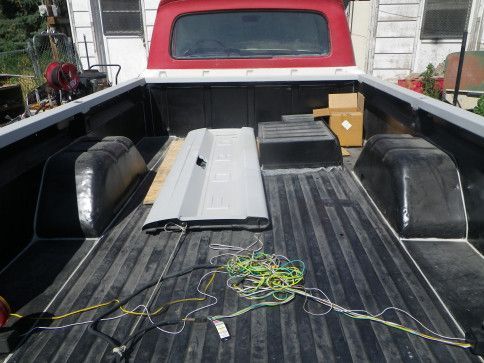

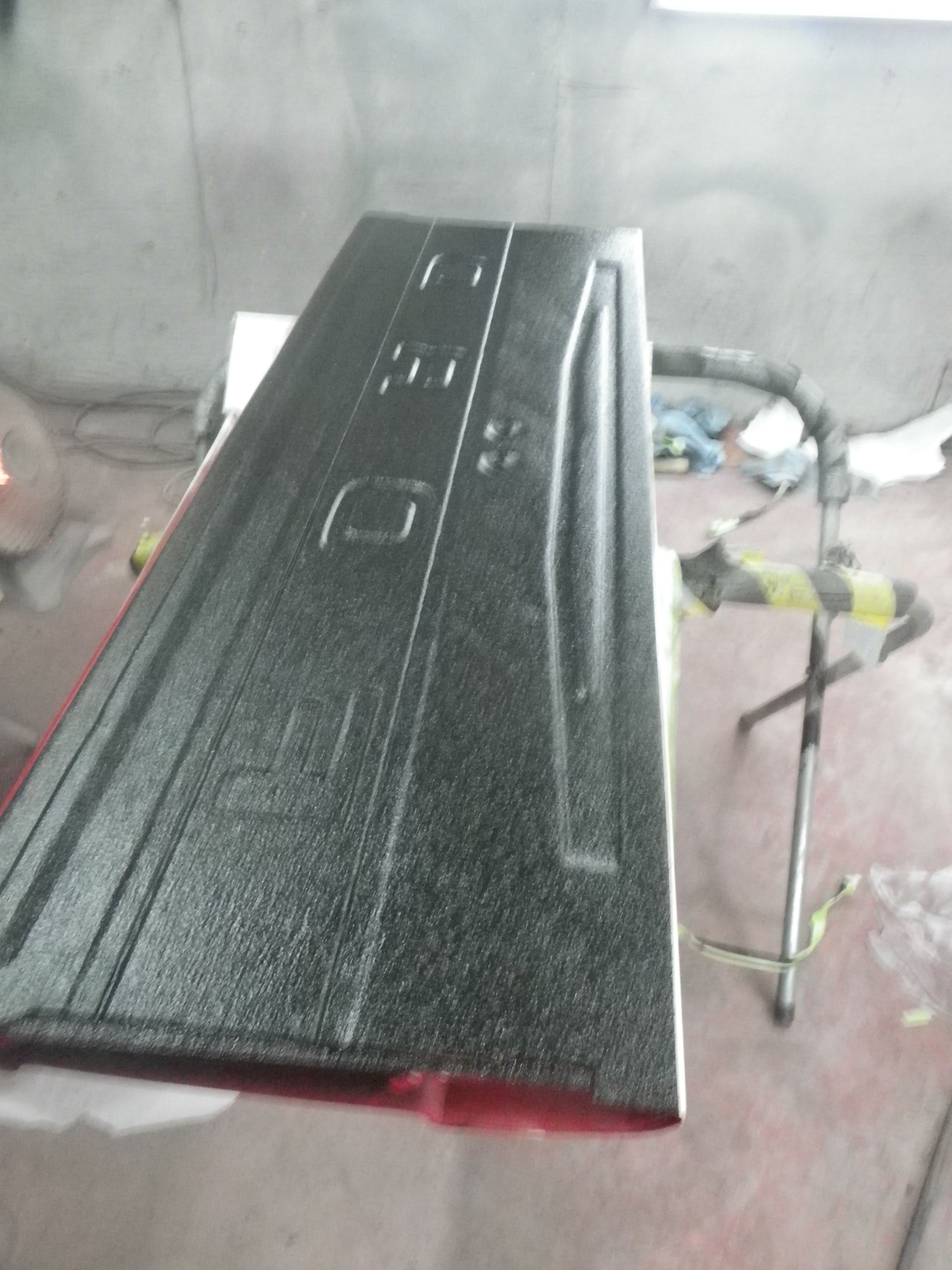

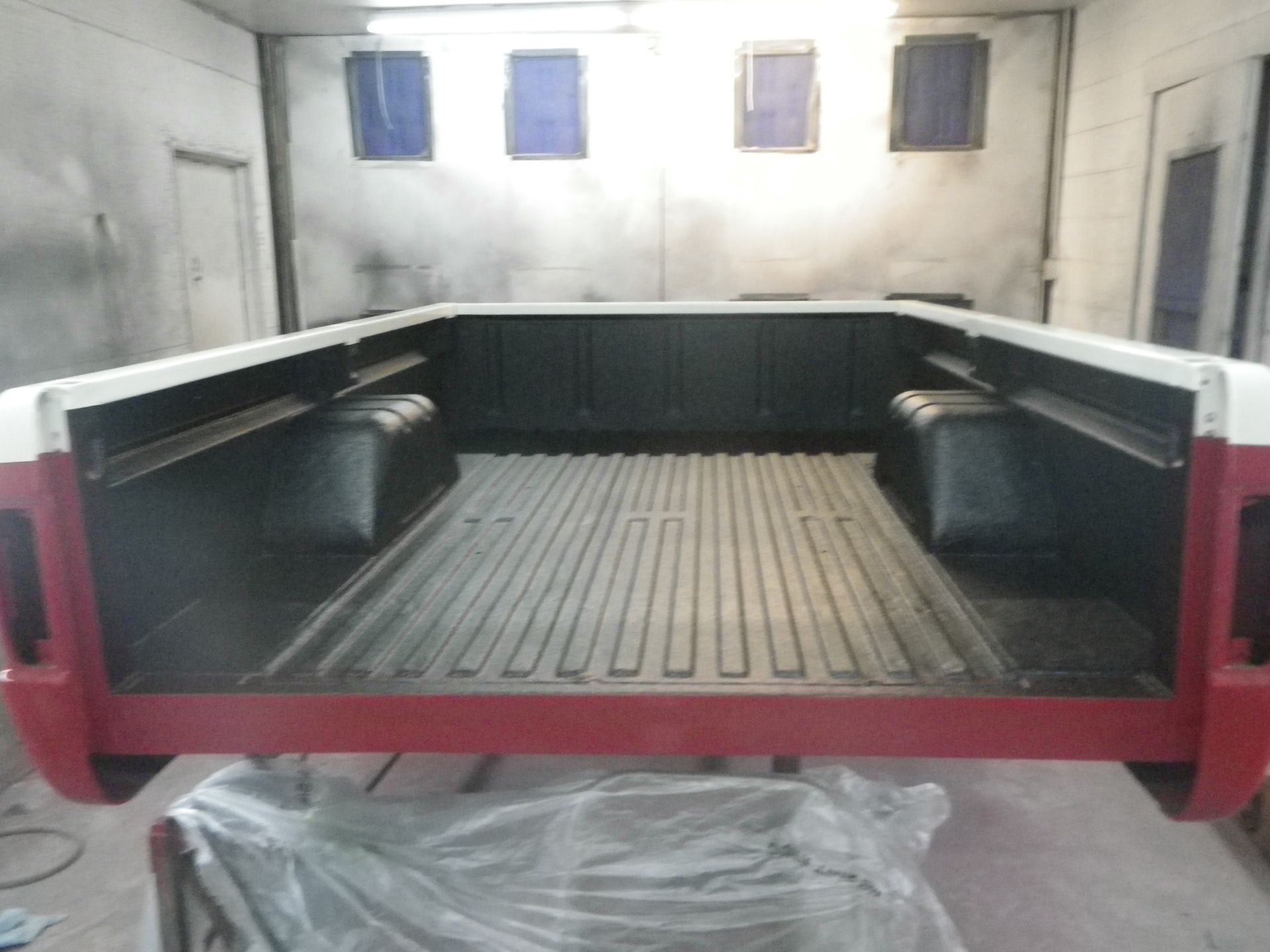

Scorpion bed liner sprayed

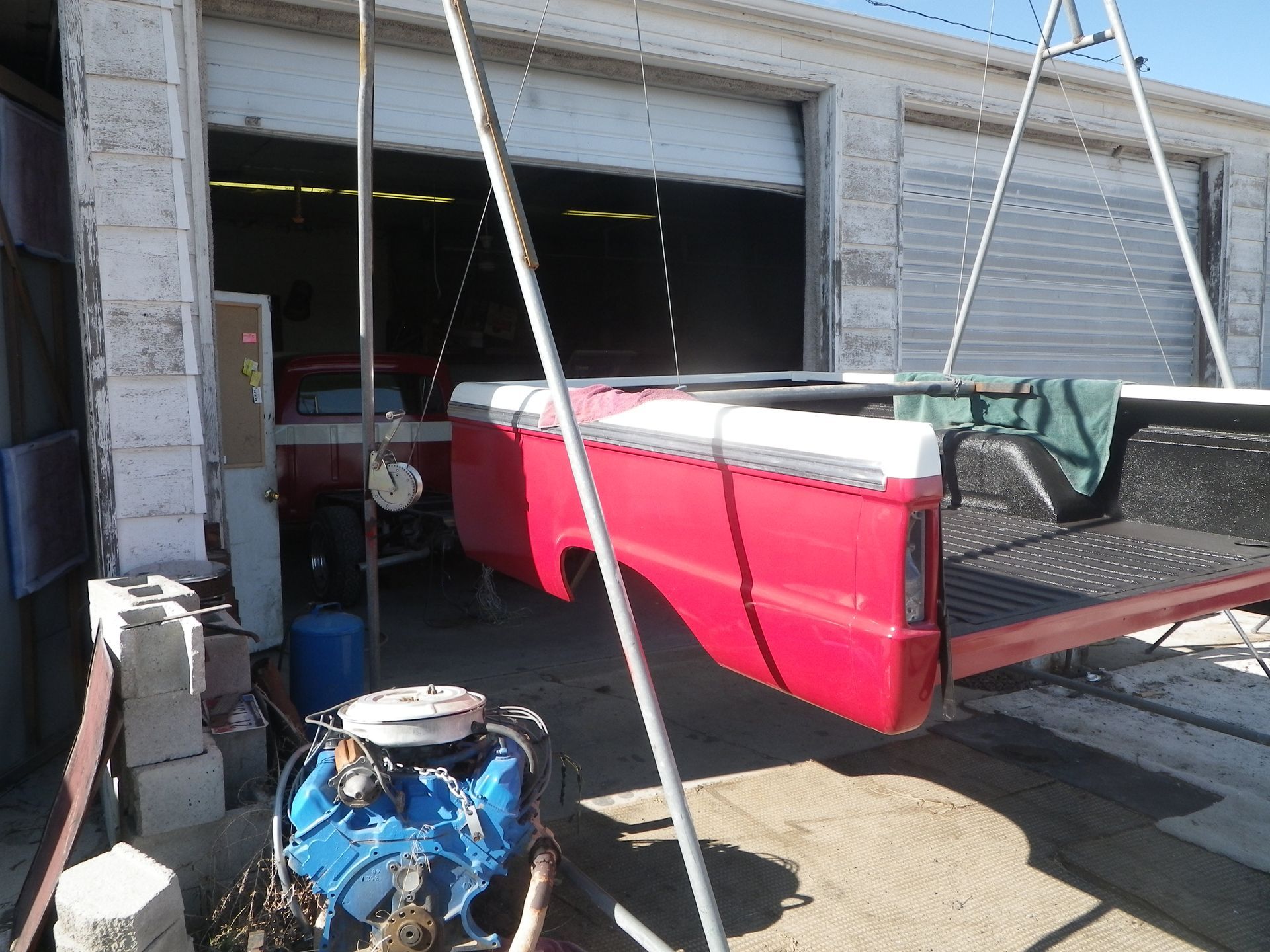

Hanging the bed to roll truck under it.

Aligning the chrome trim.

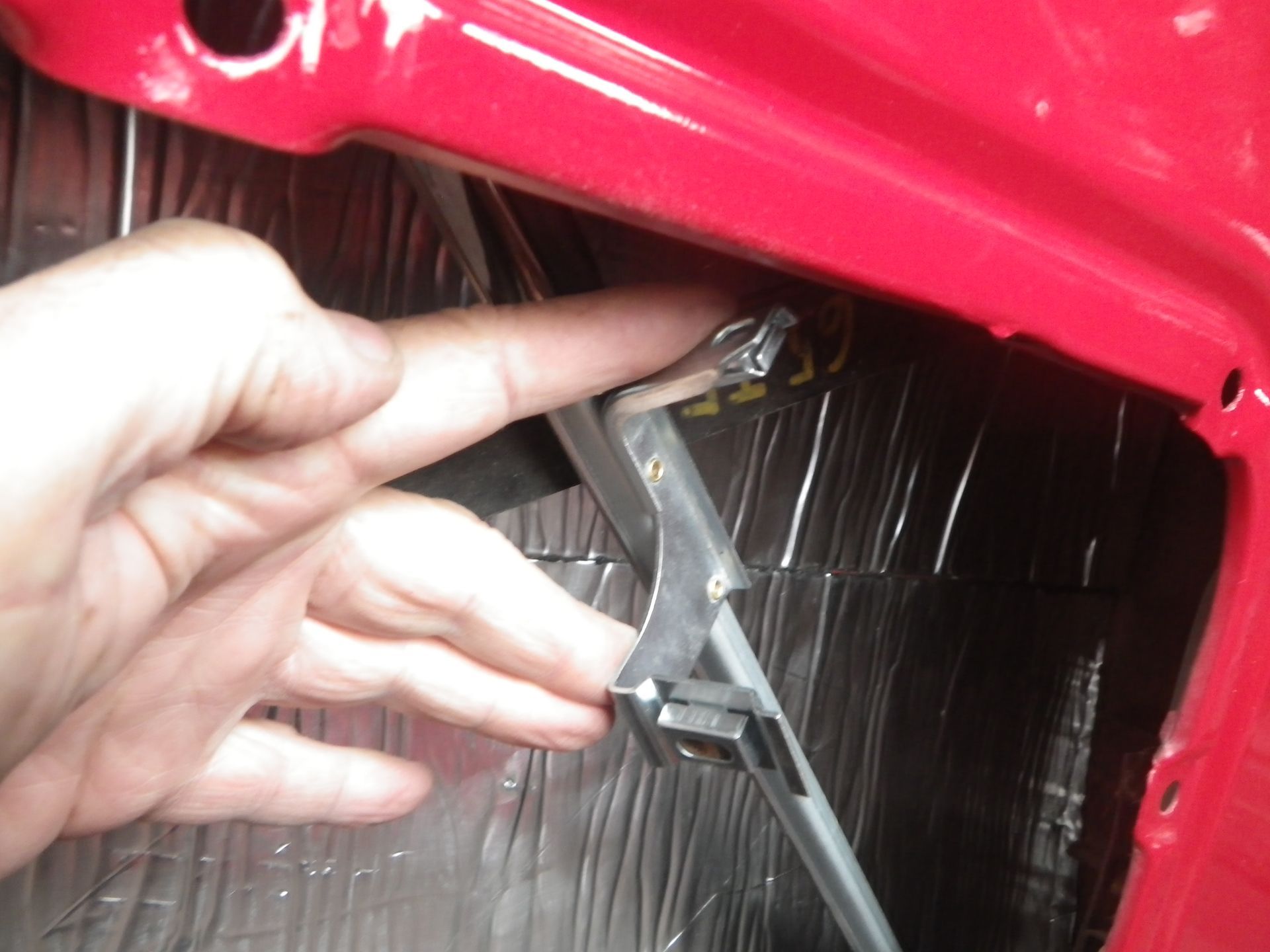

Assembling wing vent/window channel and couldn't get 2 screws in. The cage nuts at my finger tips had been installed wrong, different size threads ( joys of reproduction parts), had to open each and swap nuts and re assemble.

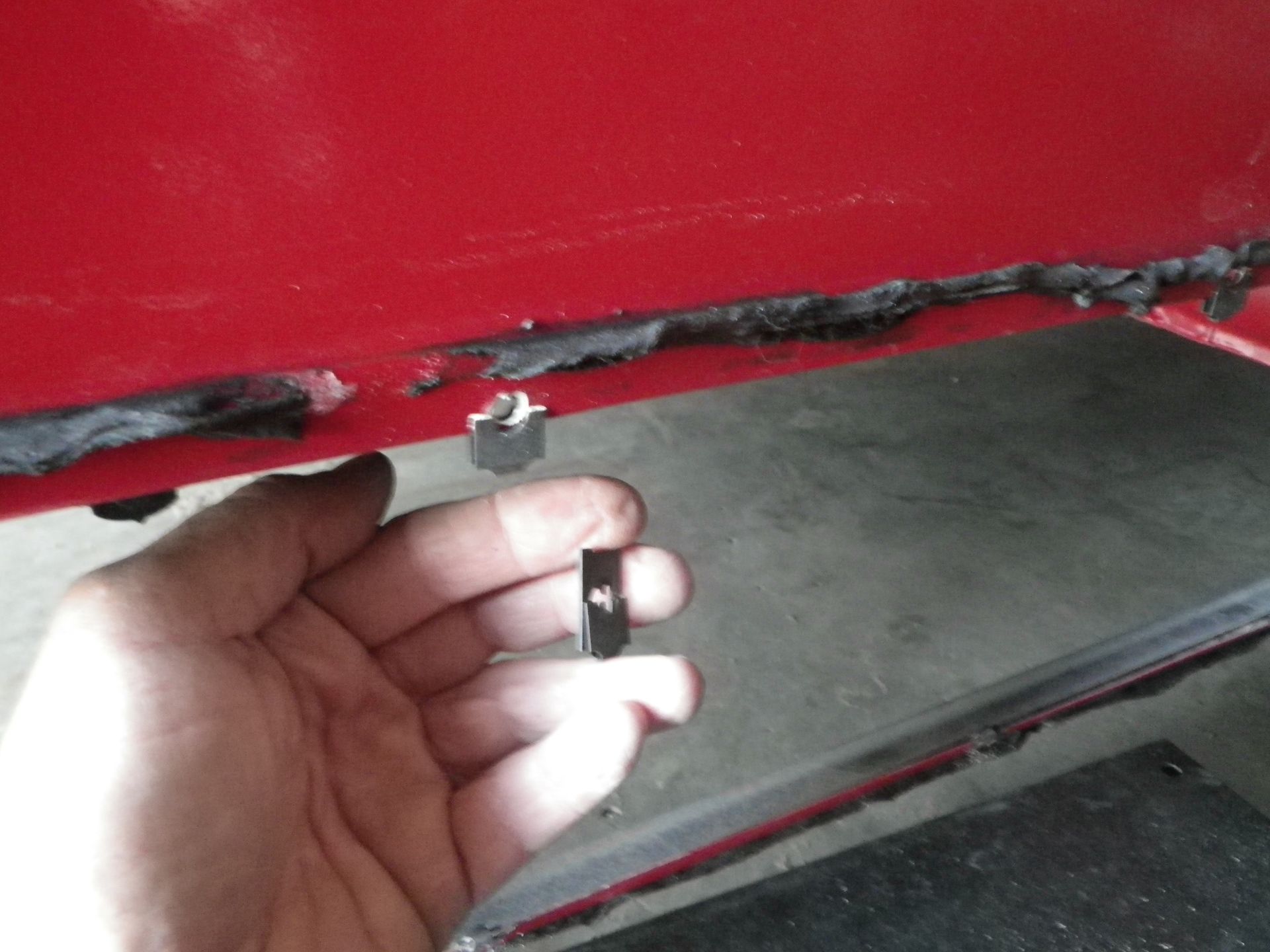

7 of 12 screw holes are stripped

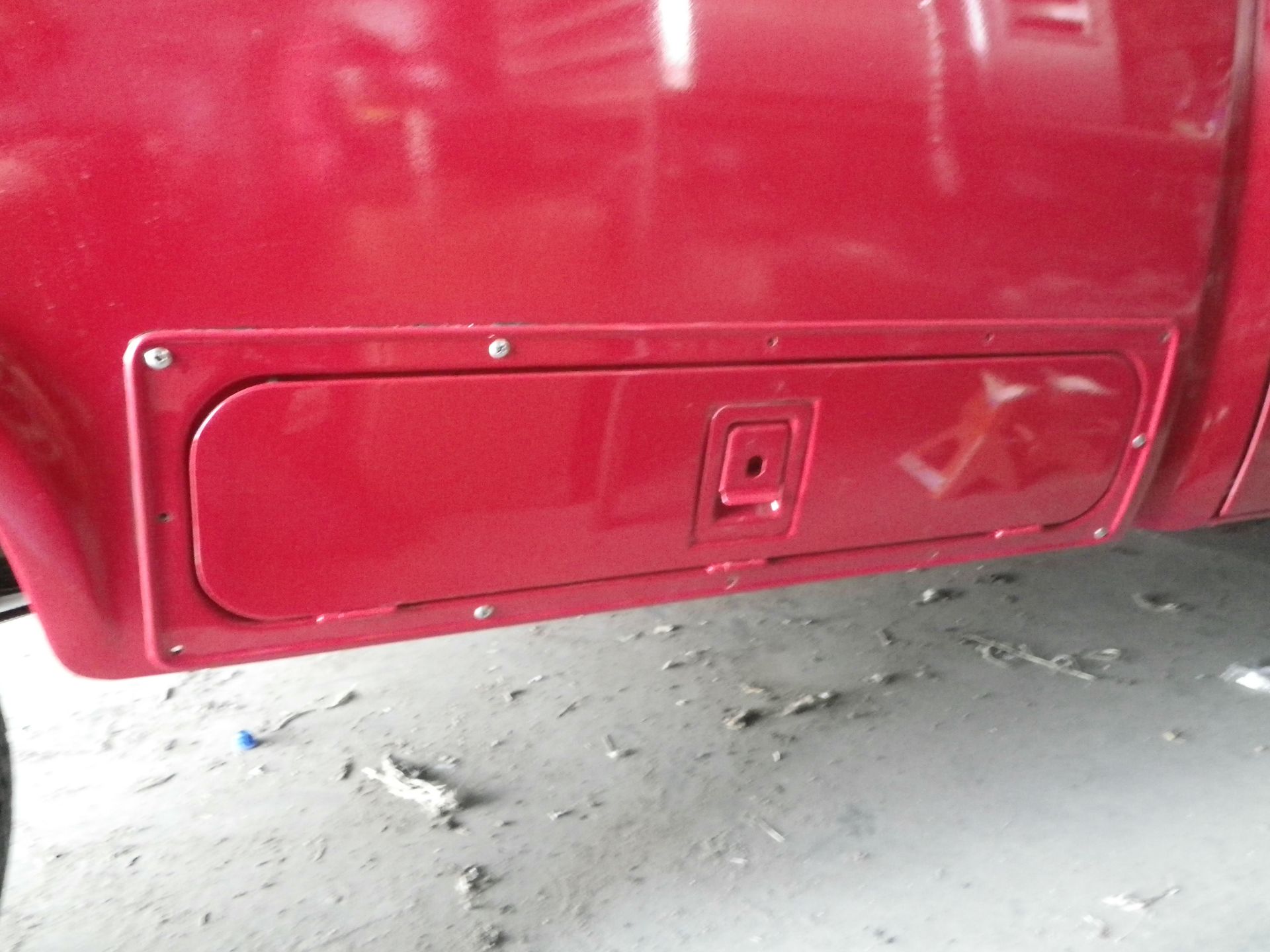

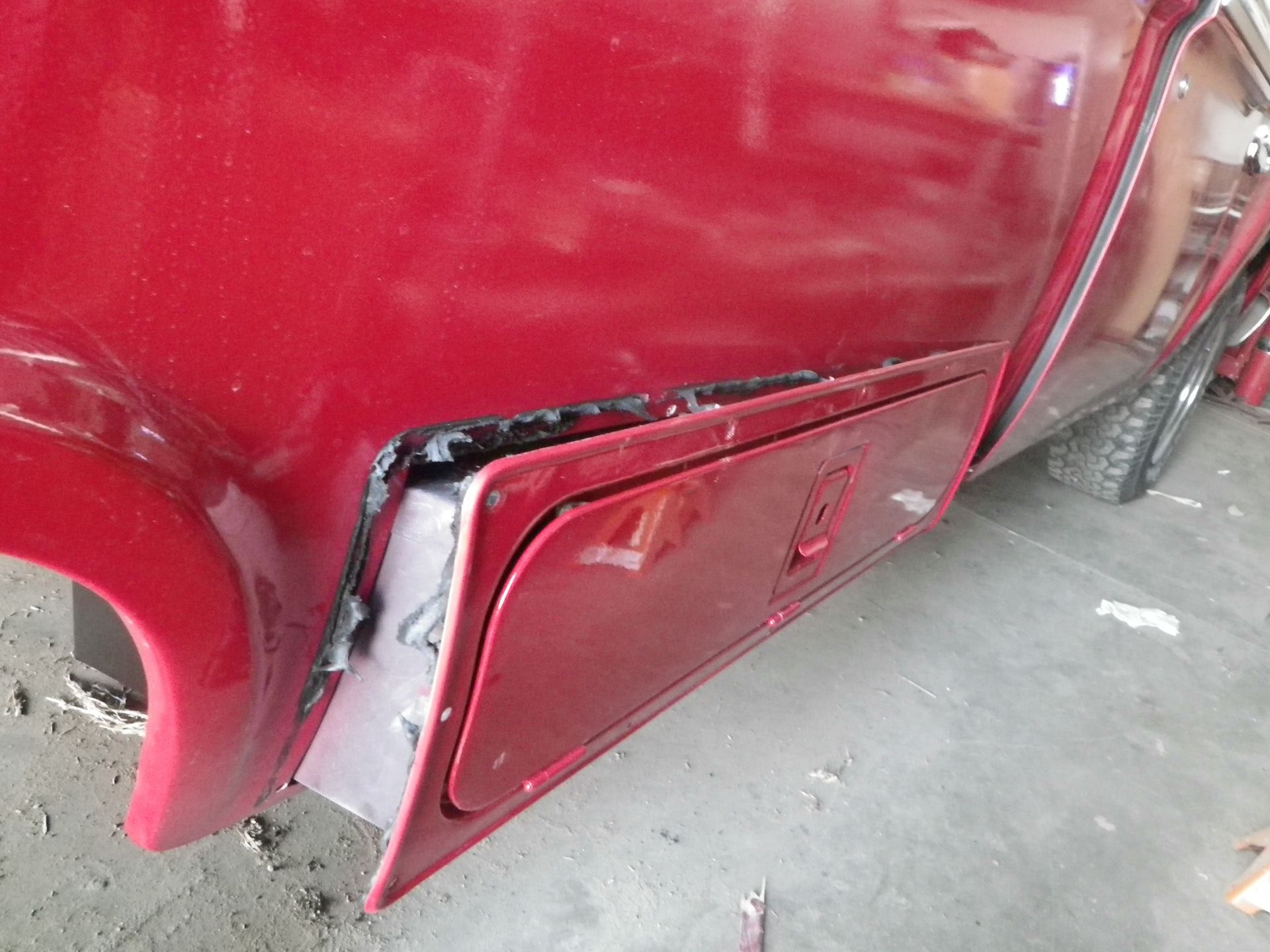

Remove box.

Drilled all holes a little larger and added clips.

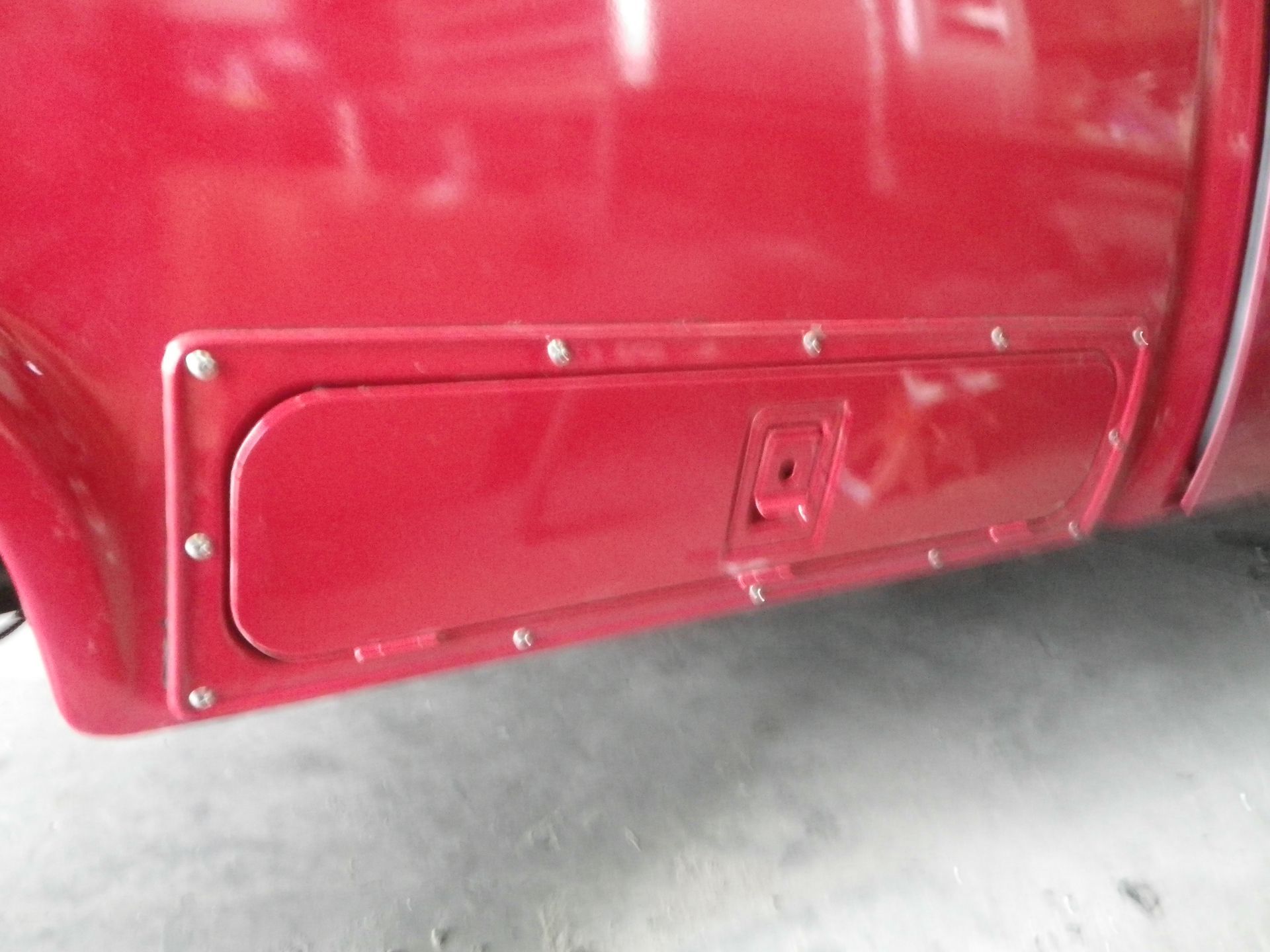

re attached with S.S. steel screws

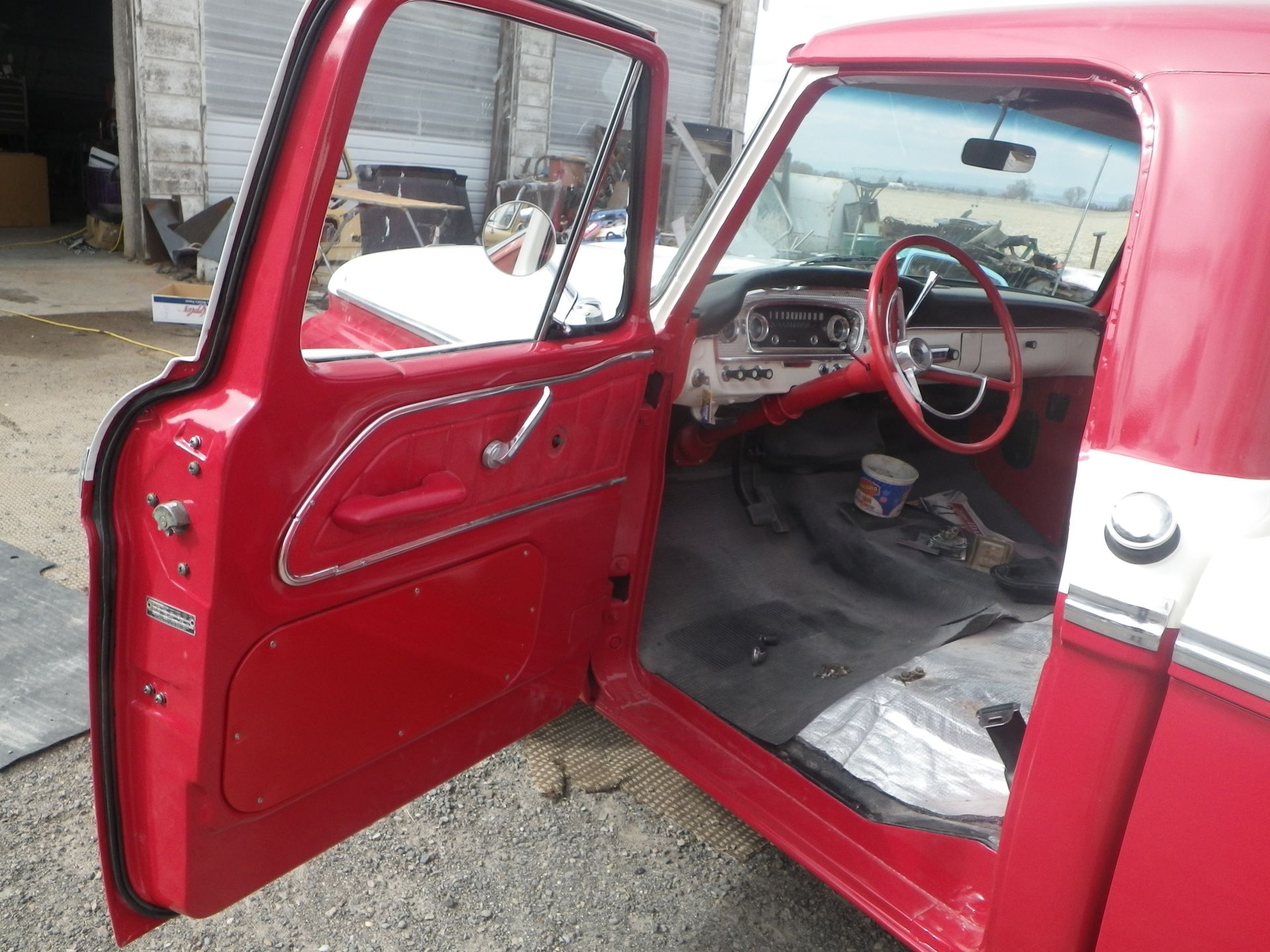

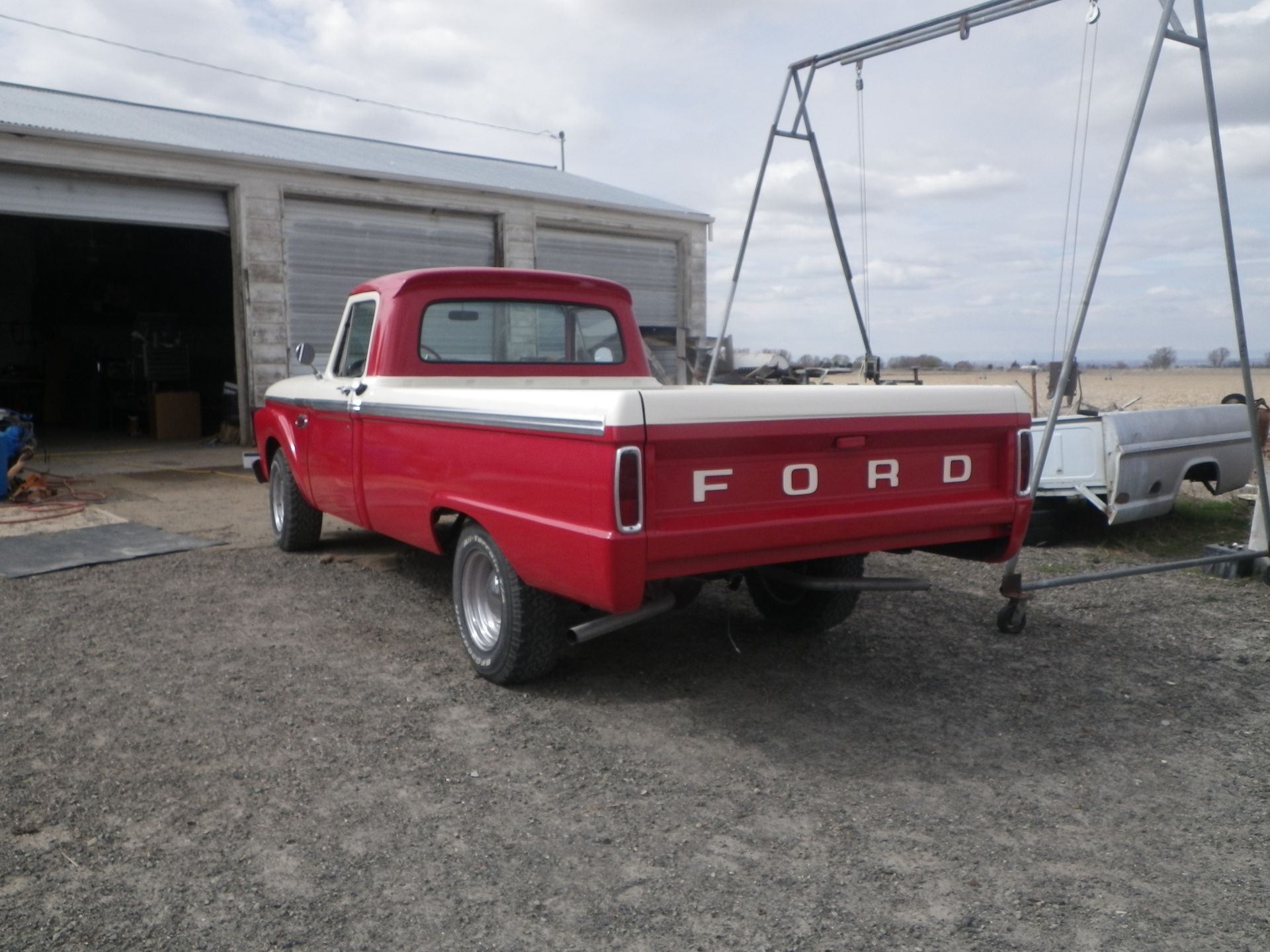

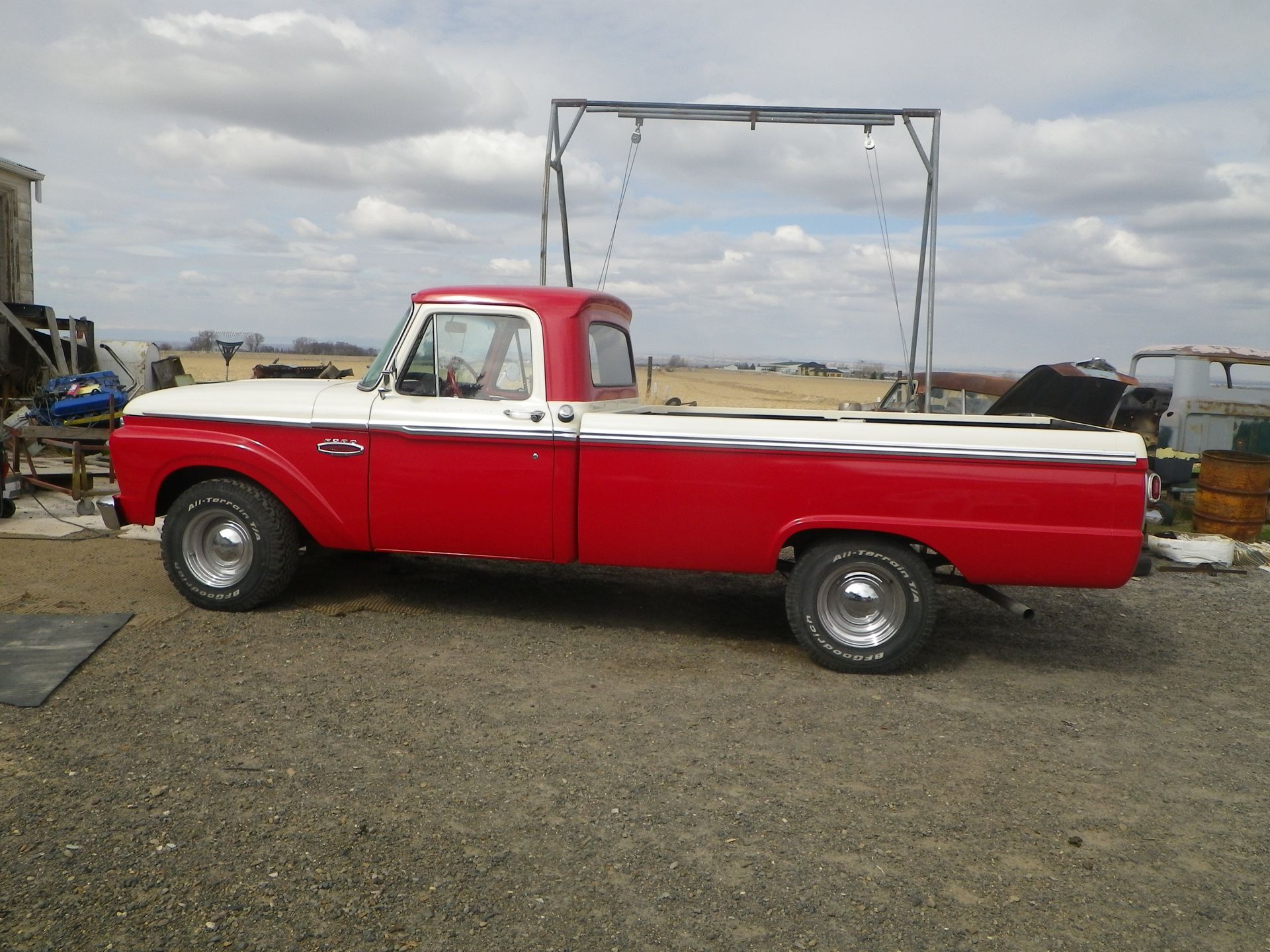

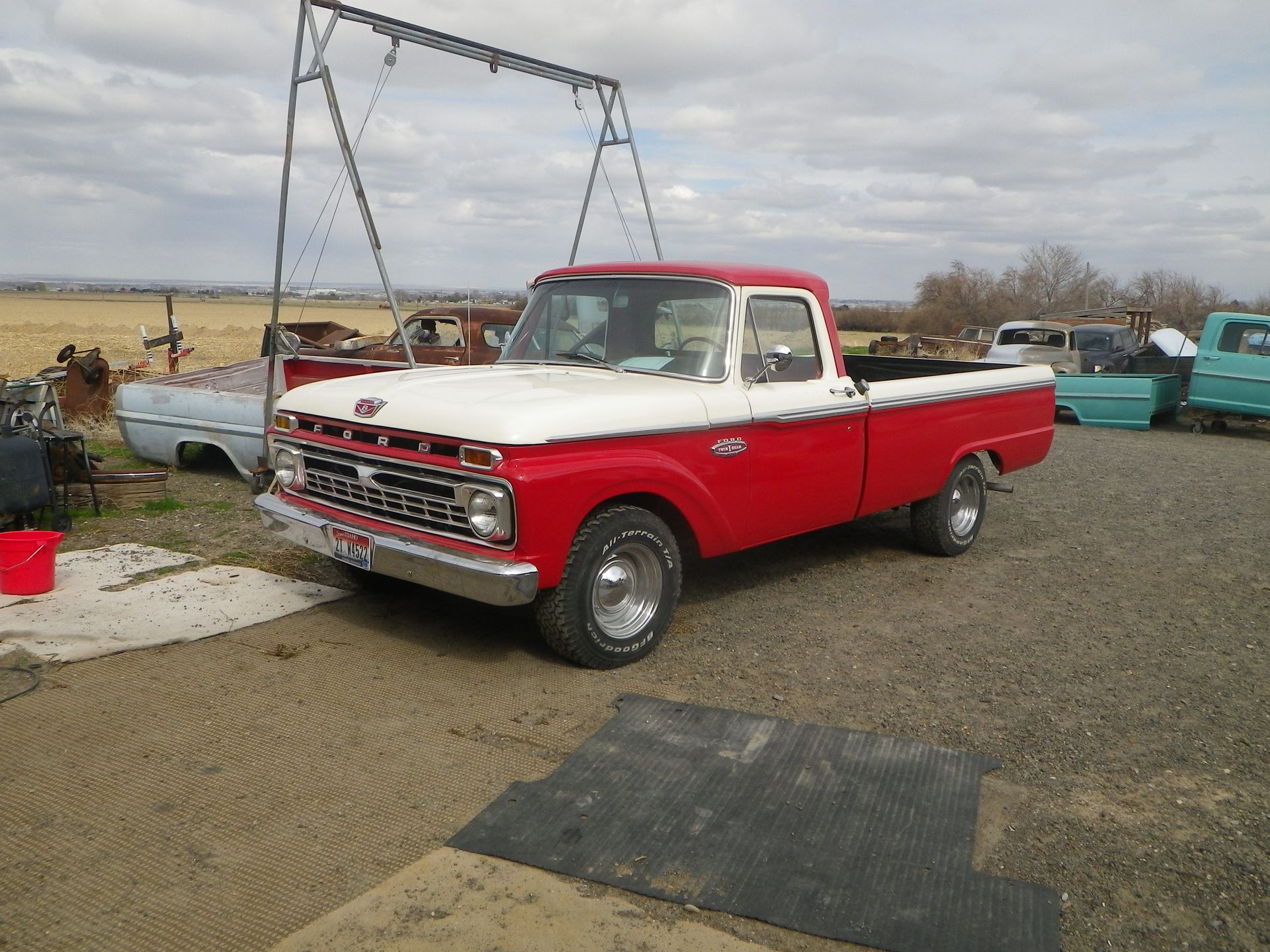

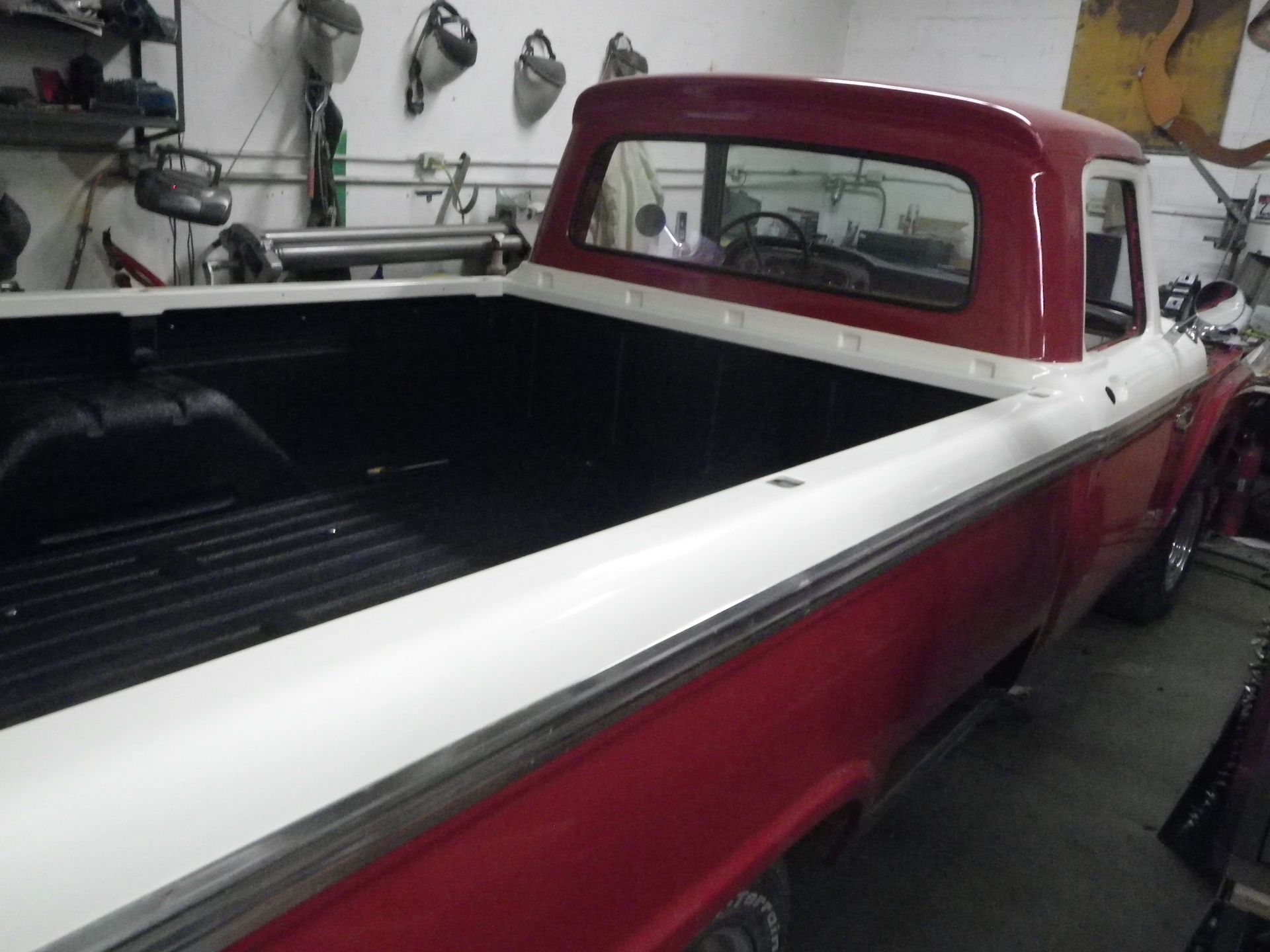

Finished other than the interior.

Also waiting on the "Custom Cab " script to have the outside done.
