1957 Nash Ambassador

Get in touch

555-555-5555

mymail@mailservice.com

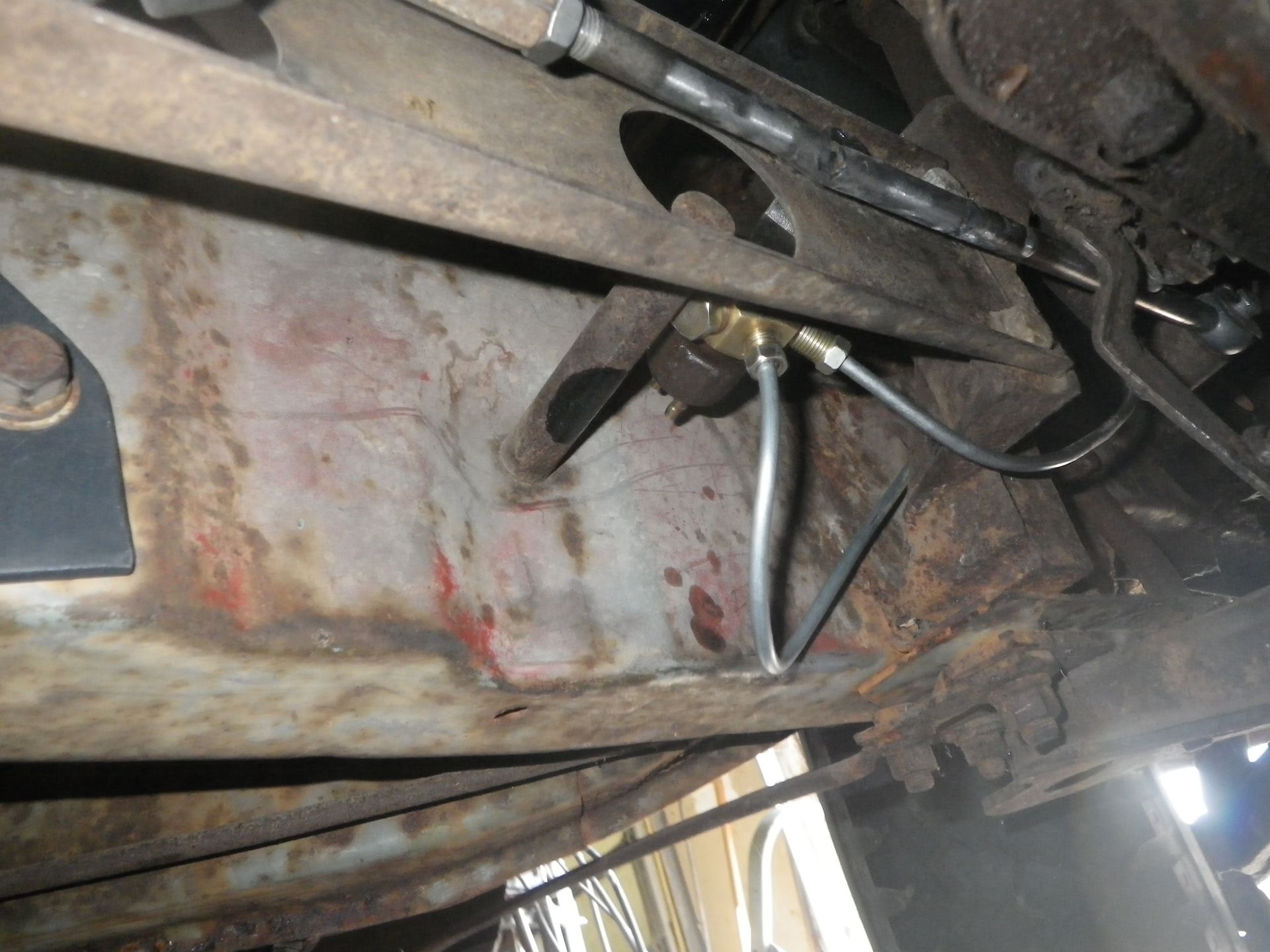

Moved brake line block/switch to an easier location to service
Button

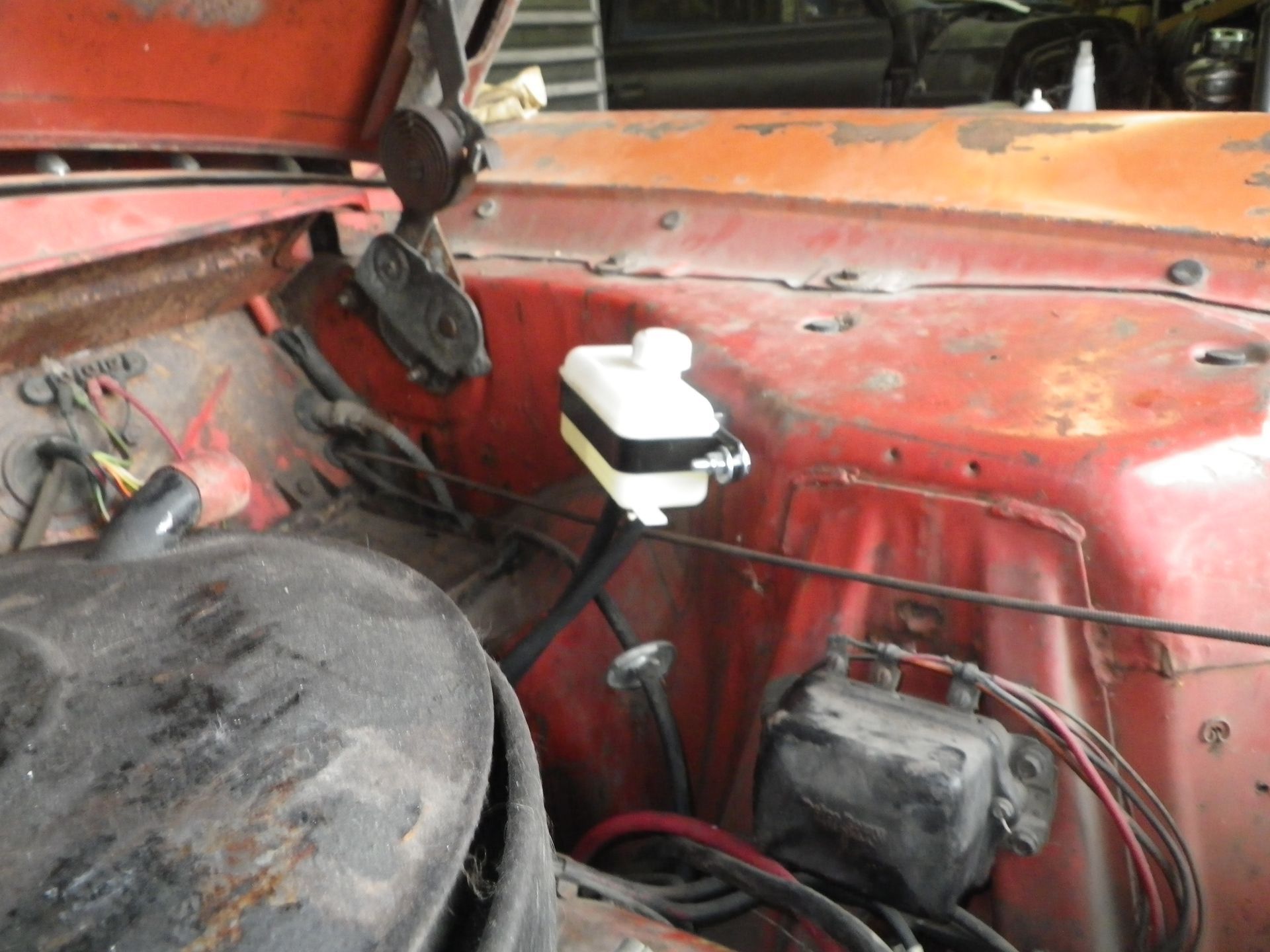

easy to fill brakes now
Button

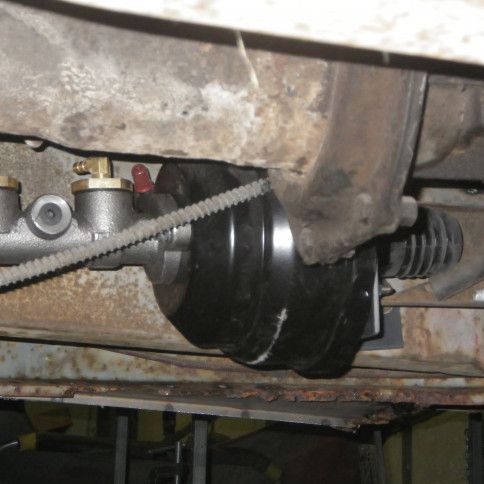

new power booster and dual reservoir with remote fill under floor
Button

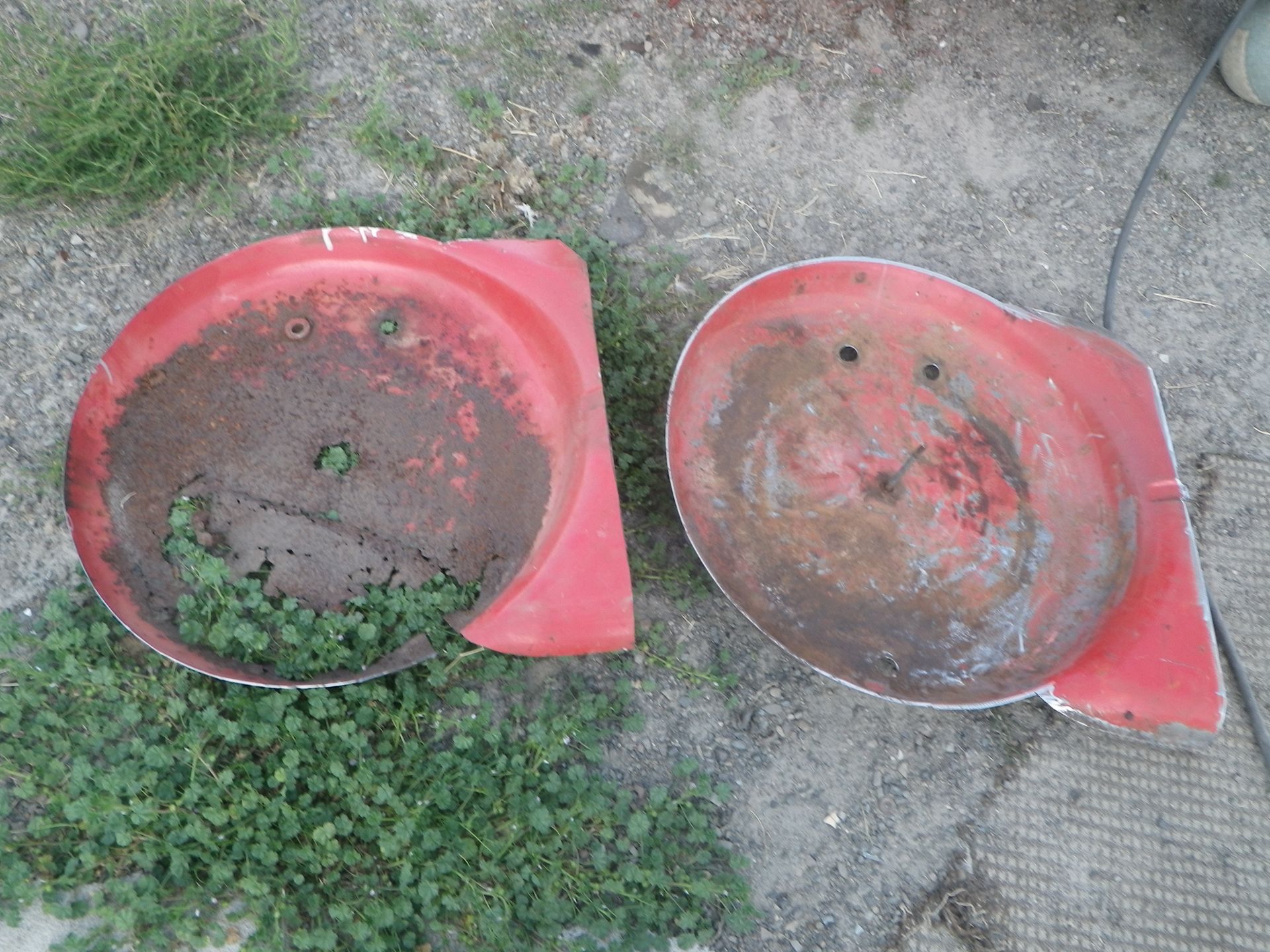

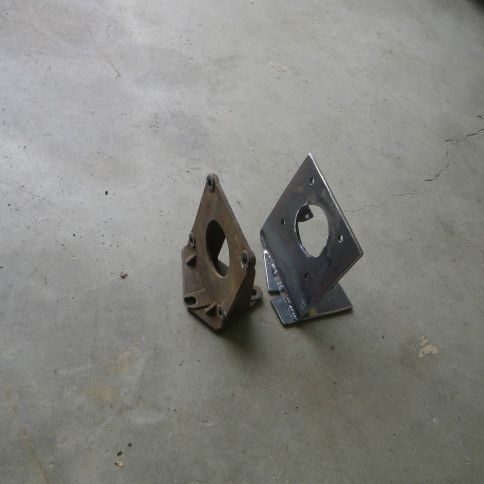

rusty original and replacement
Button
Button
Final fitting and edges ground bar
Button

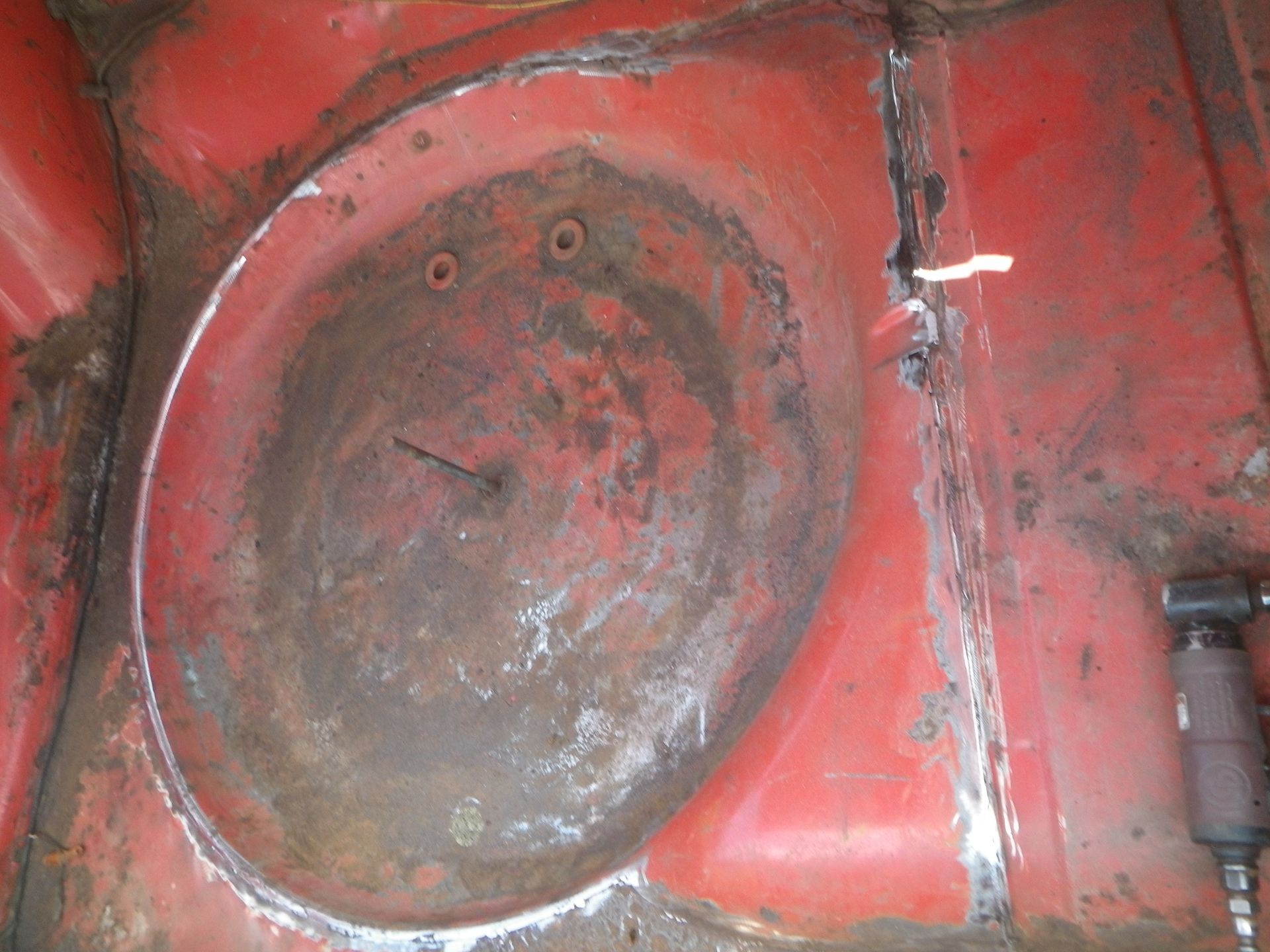

Welded in and ground smooth
Button

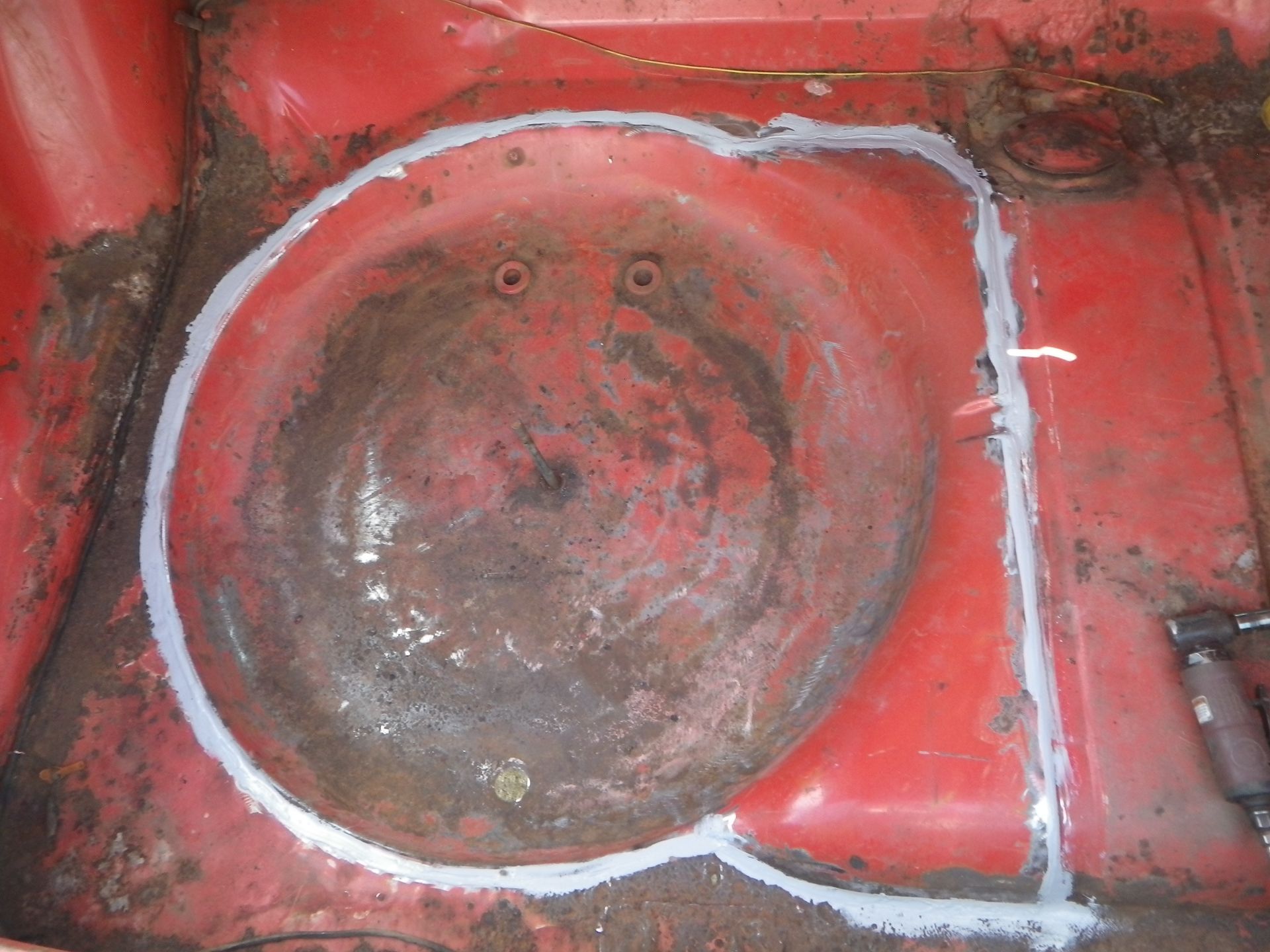

sealed
Button
Button

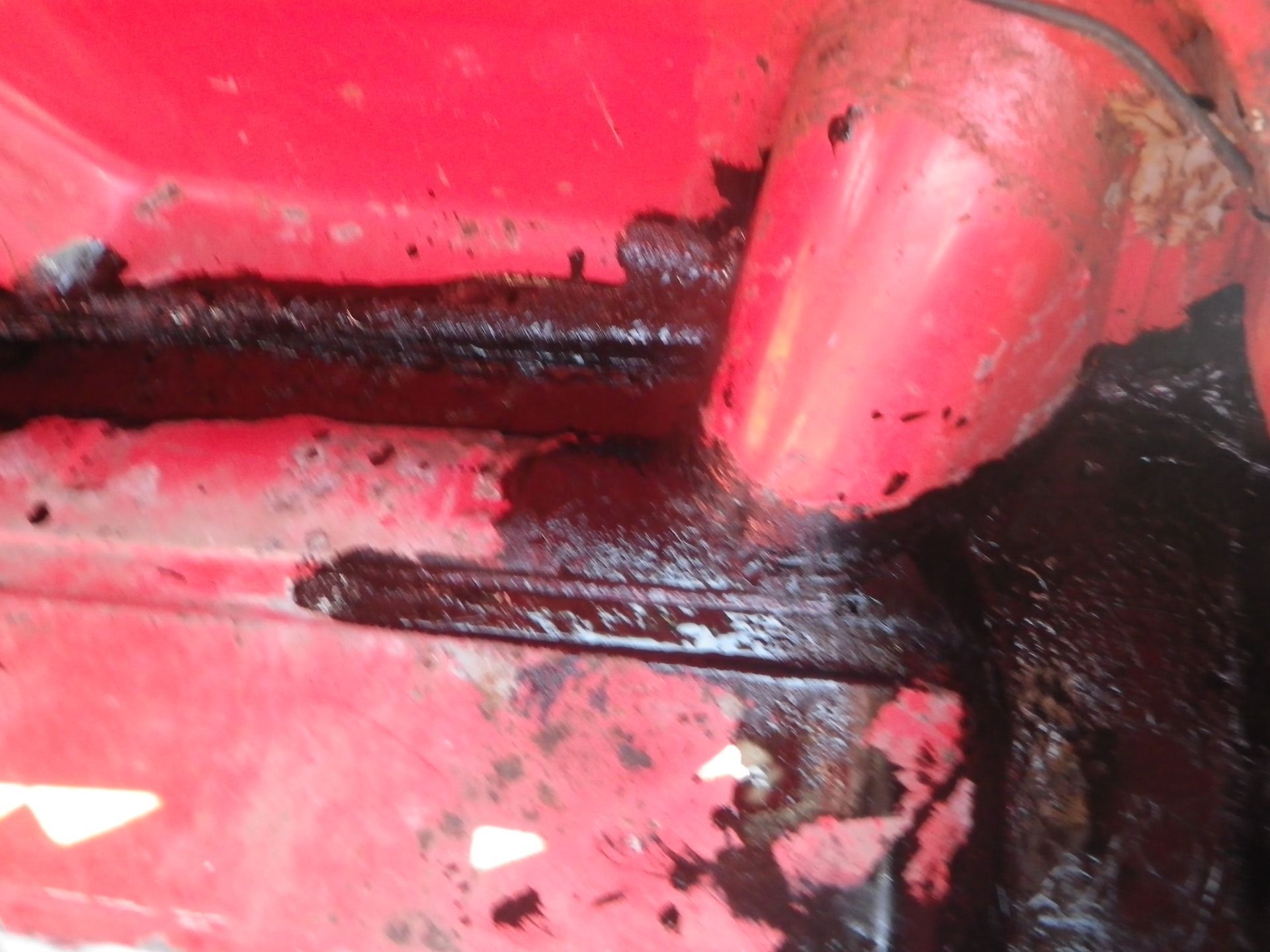

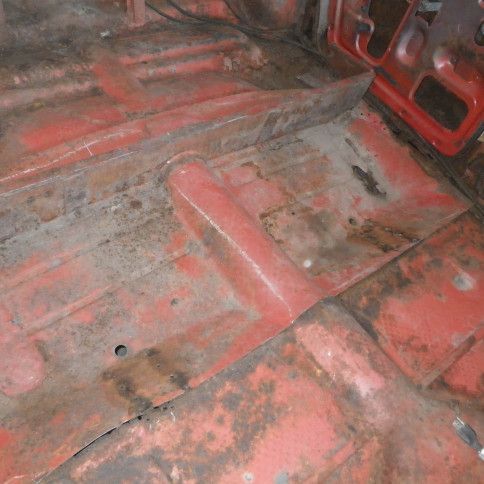

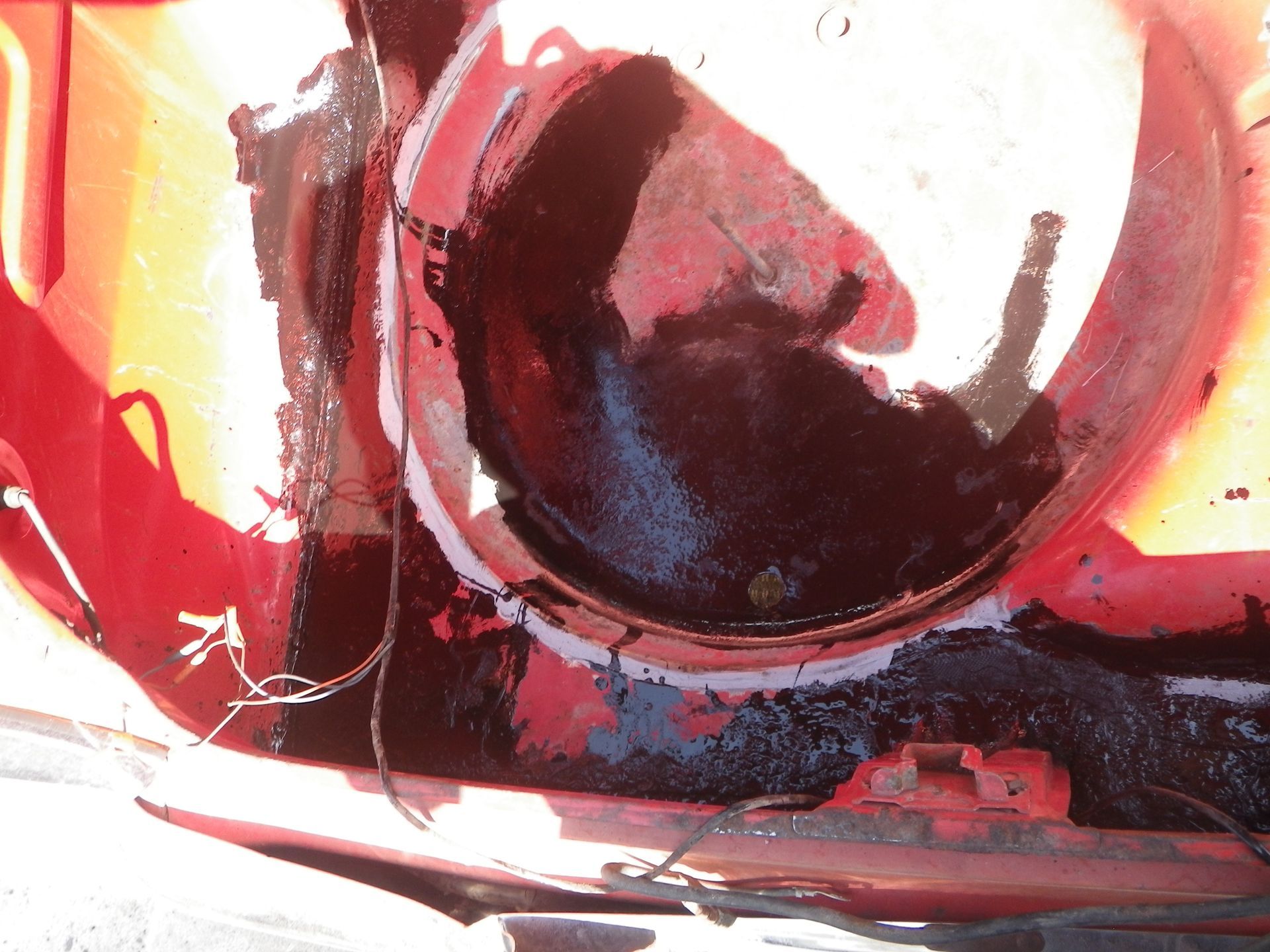

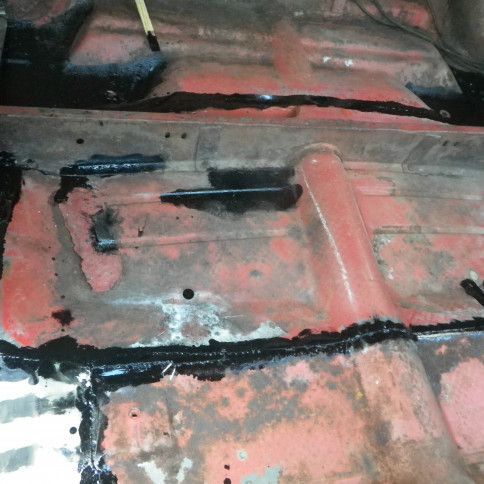

Sealed the major rust with POR-15
Button

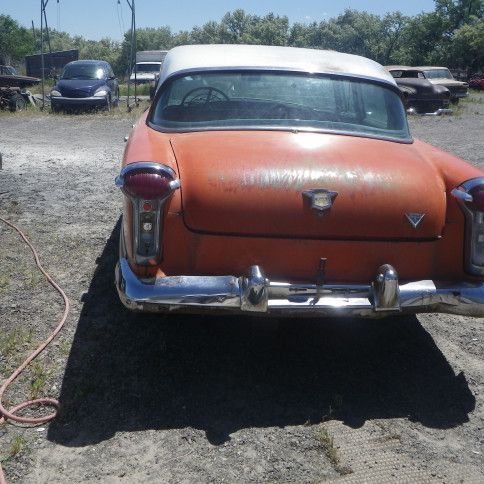

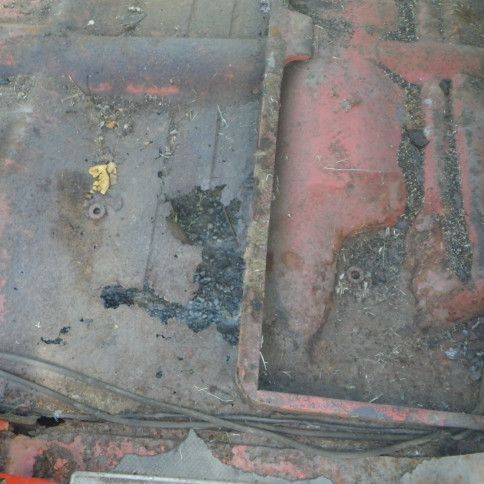

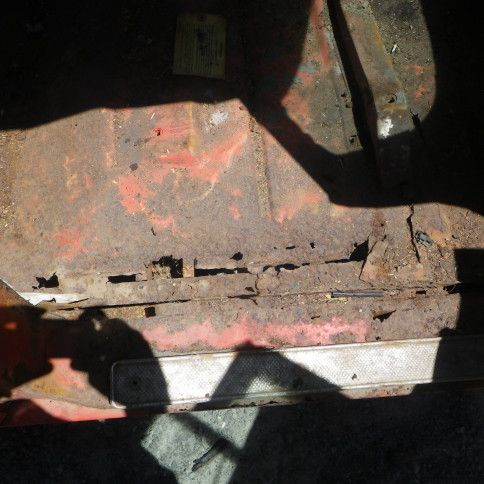

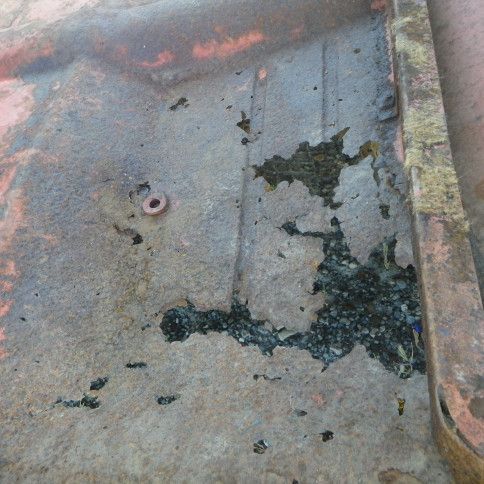

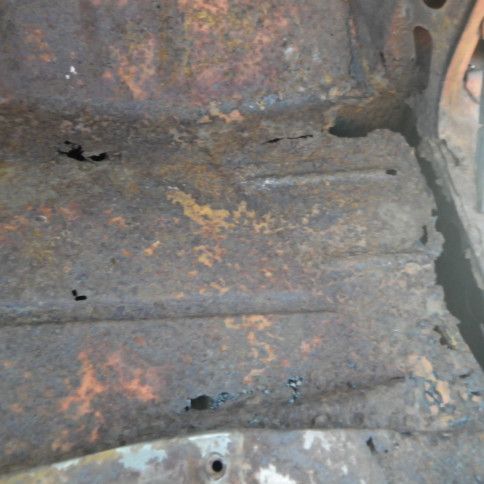

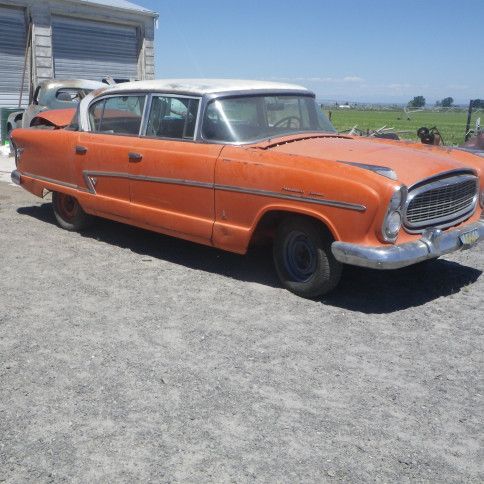

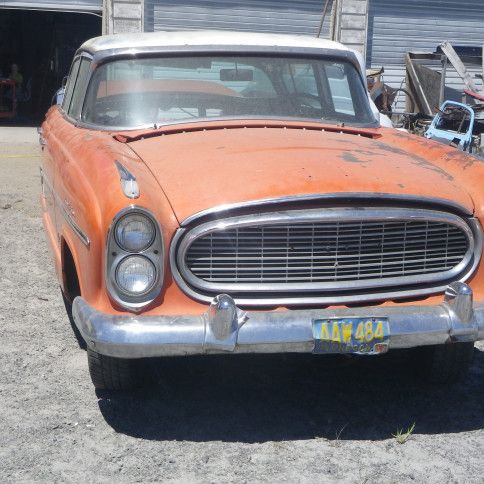

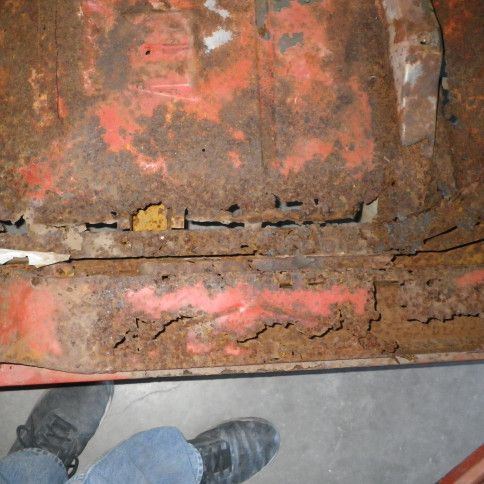

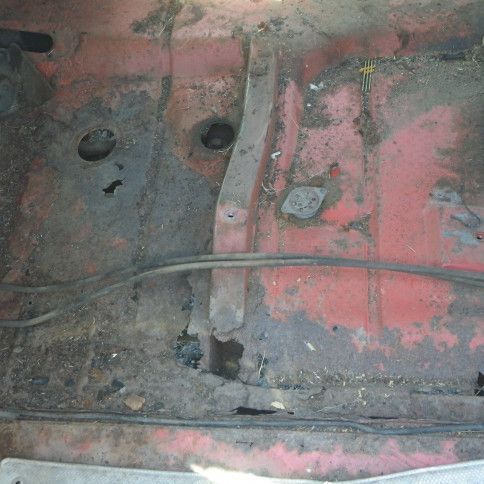

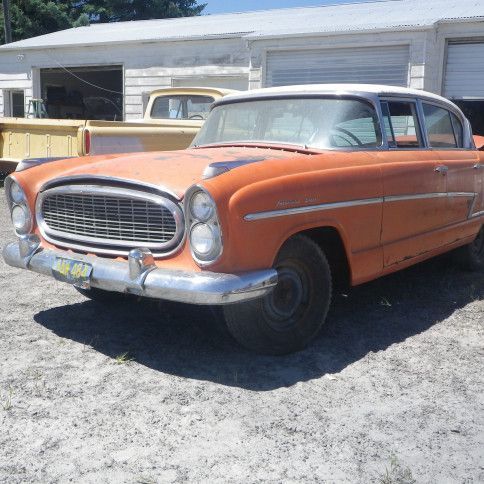

Very complete, few dents, very good other than rusty floors.
Button
Button
Button
Button
Button
Button
Button
Button
Button
Button
Button
Button
Button
Button
Button
Button
Button
Button
Button
Button
Button

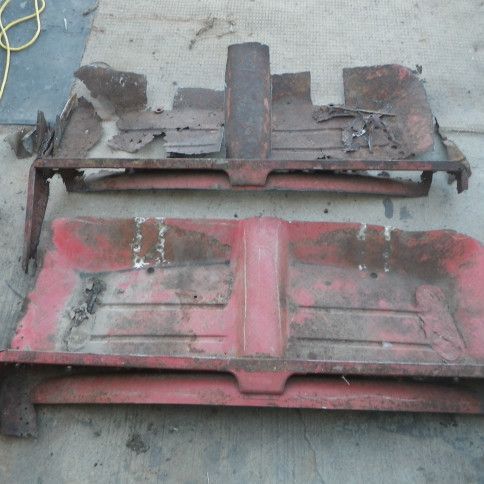

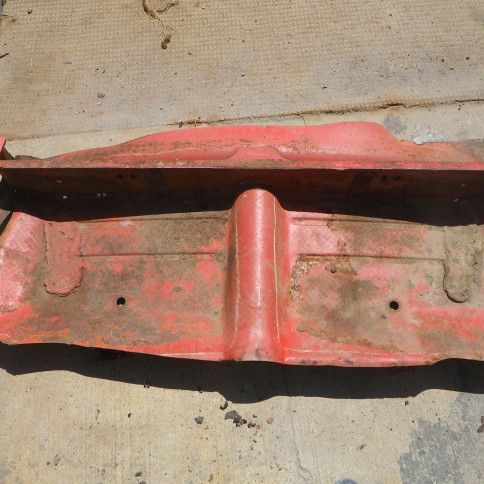

First trial fit of donor floor.
Button
Donor floor is too narrow, need 3-4 inches each side.
Button
Button
Make filler pieces for each side, get welded to top of frame.
Button
Button
Button
Side pieces welded to frame after lots of grinding rust off. Trim to let floor set flat on frame pieces.
Button
Button

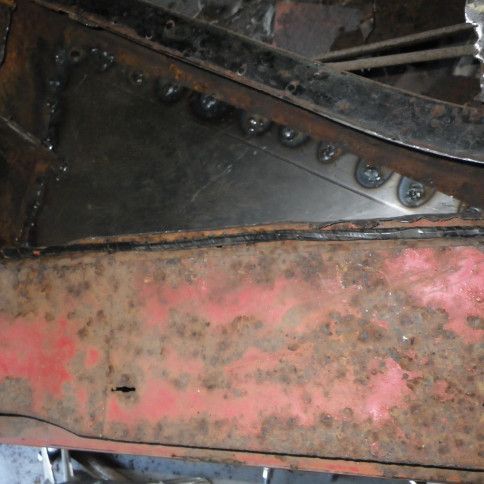

Floor spot welded in place.
Button
Button
Button
Button
Button
Button
Button

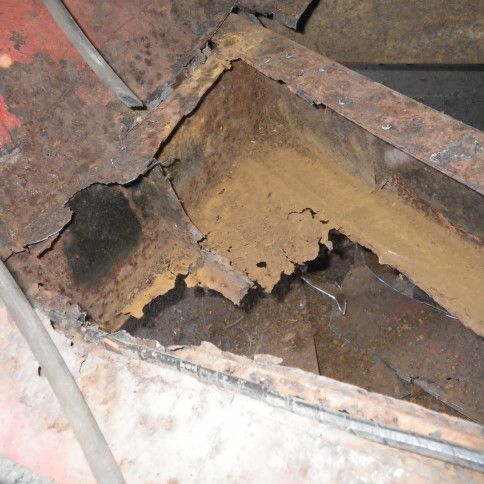

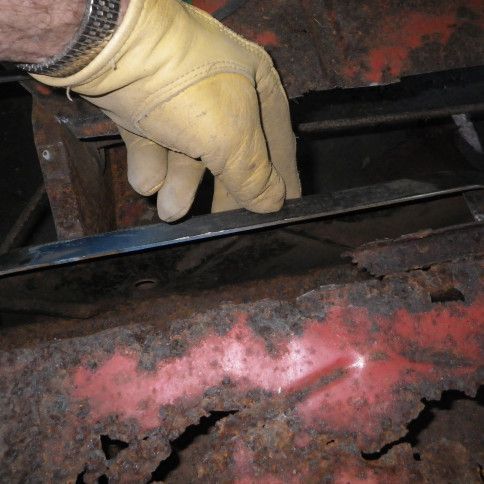

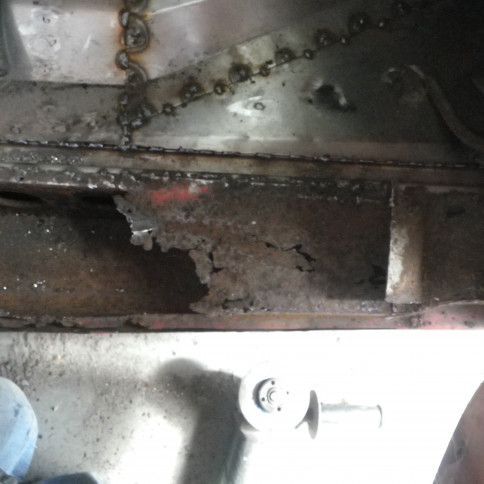

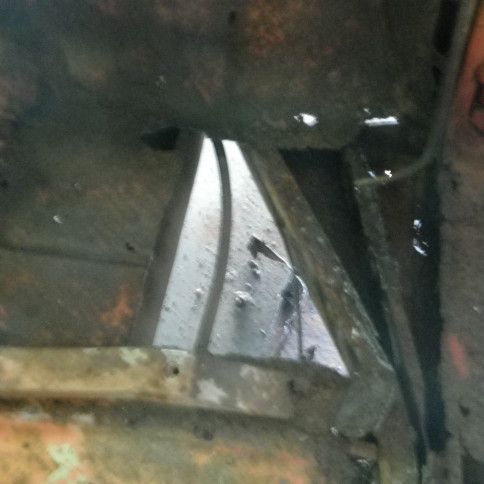

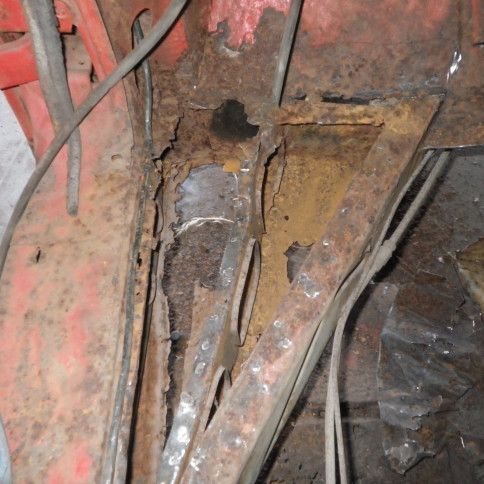

One section of top of frame has lots rust holes, will replace with 1/8 inch steel plate, .
Button
Button
Button

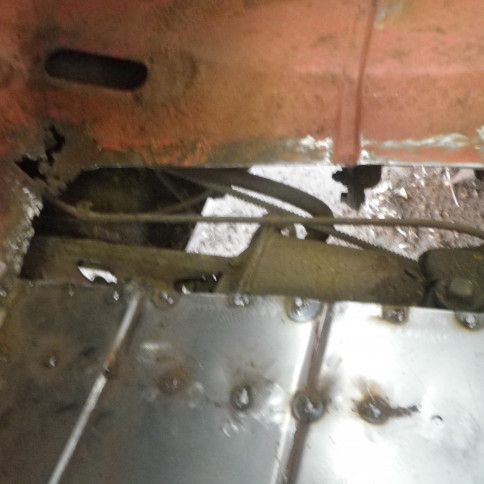

Will also be replacing the power brake unit with a modern booster and dual cylinder with remote fill. Easy to get to with floor cut.
Button
lower panel clamped on place
Button
Button

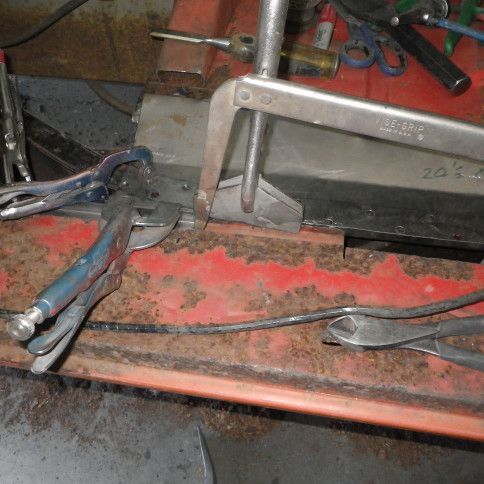

Can't have too many clamps
Button
Button

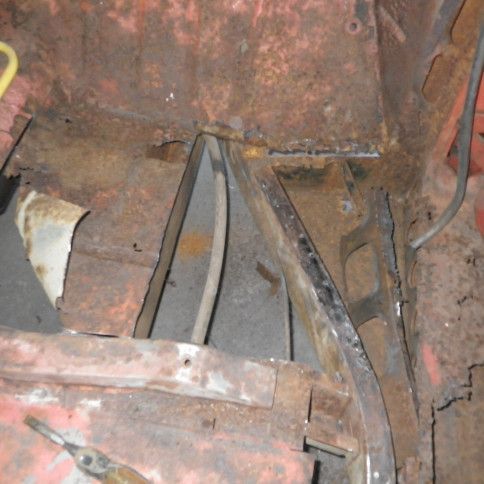

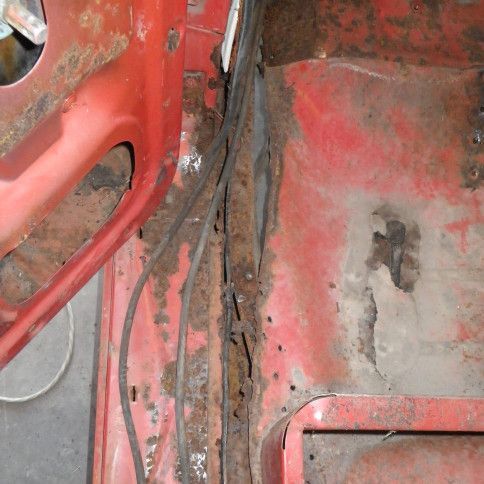

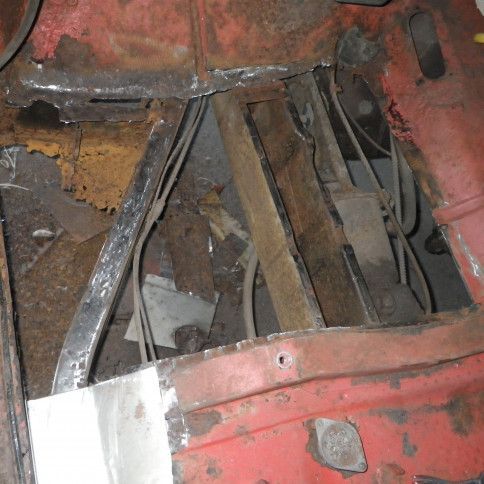

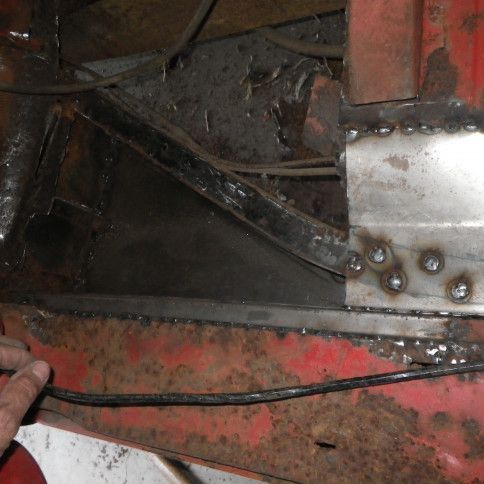

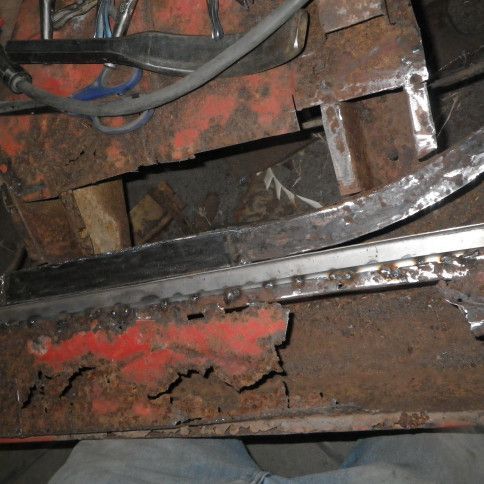

Replaced most of channel for wires, a little more welding to do.
Button

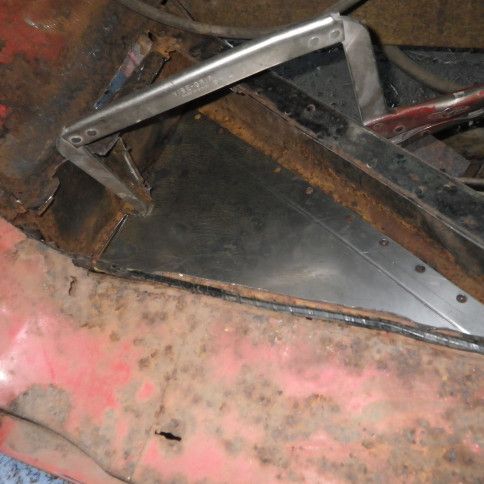

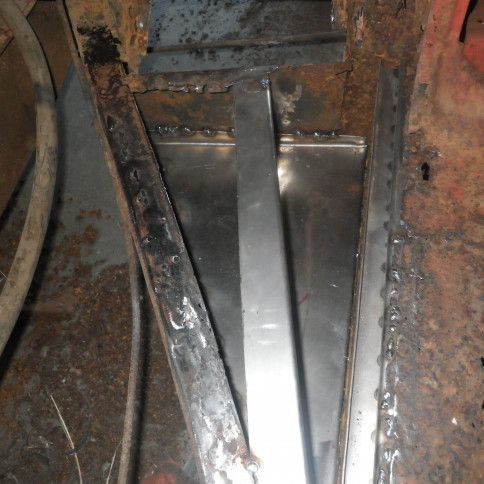

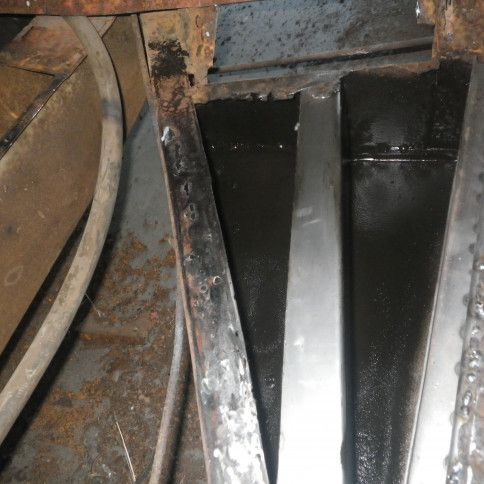

Added inner brace and under coated before top floor panel gets welded on
Button

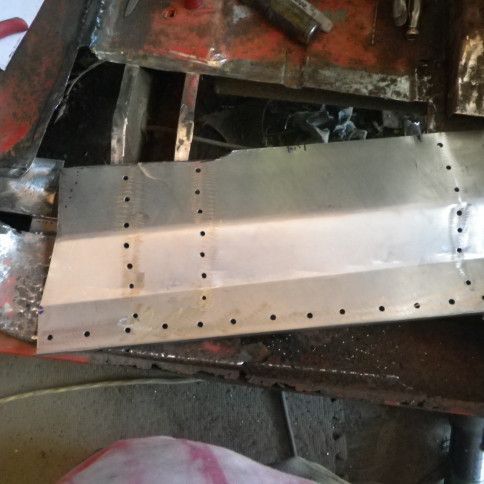

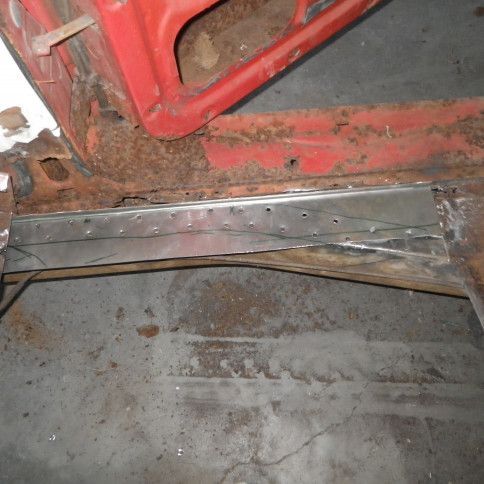

Trial fitting floor panel, holes drilled for welding.
Button

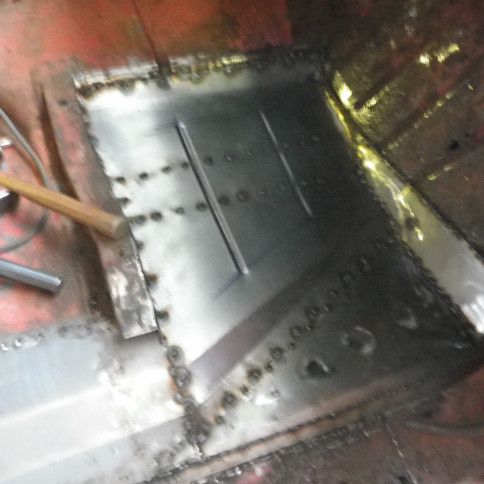

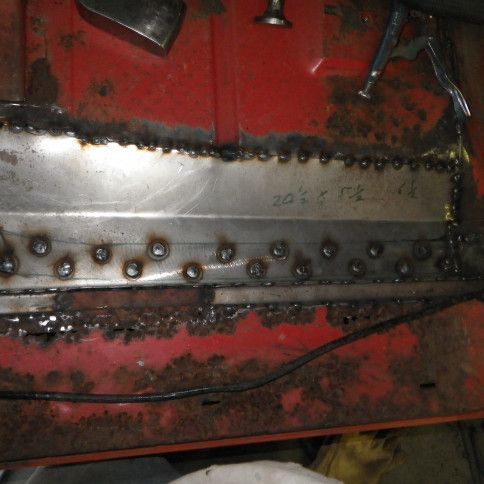

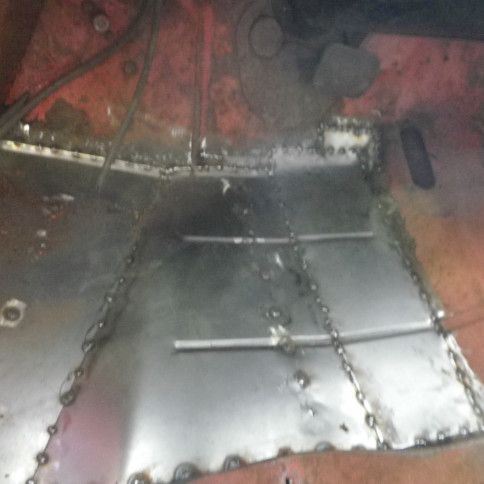

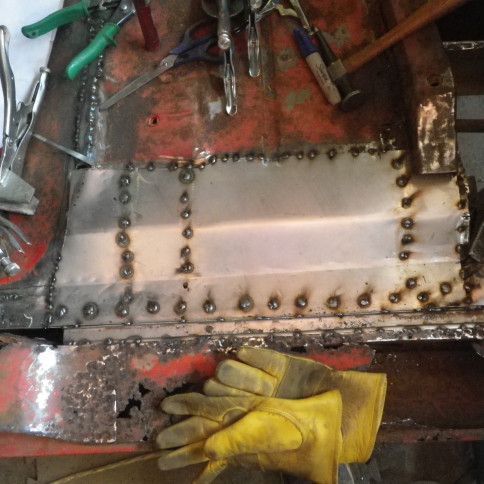

welded in place.
Button
Next panel.
Button

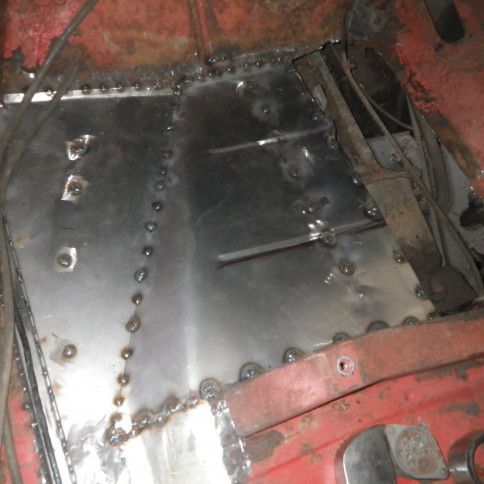

Another panel welded in, hole above brake cylinder will be done last, after booster and cylinder is replaced.
Button

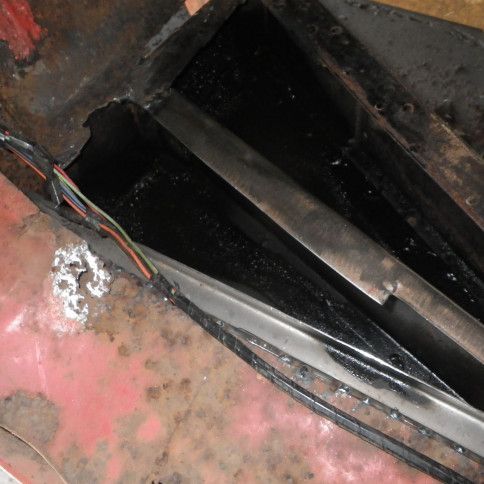

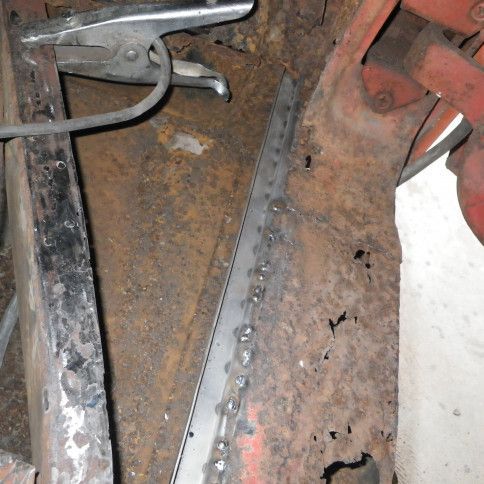

New channel on passenger side.
Button

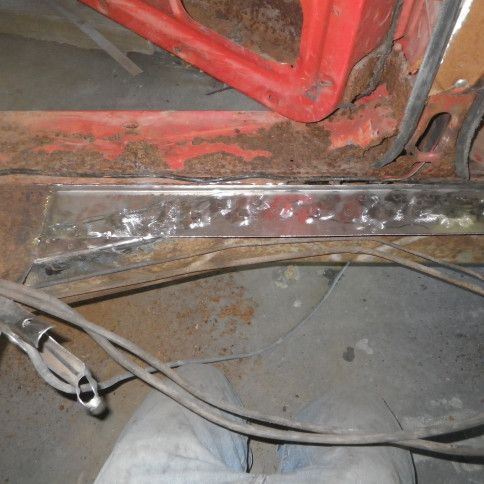

Passenger side channel welded in first.
Button
new lower panel and brace welded in.
Button
undercoating sprayed in bottom
Button
Button

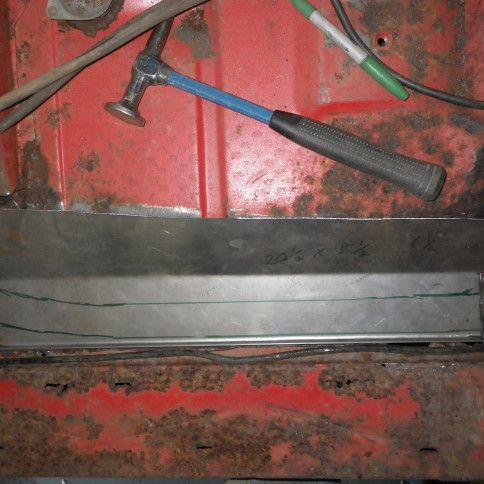

formed and drilled, ready to weld in.
Button

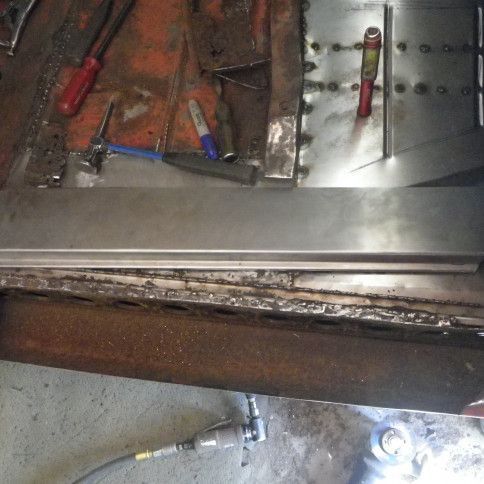

Side panel almost done
Button
Front passenger floor installed
Button
Rear channel welded in
Button

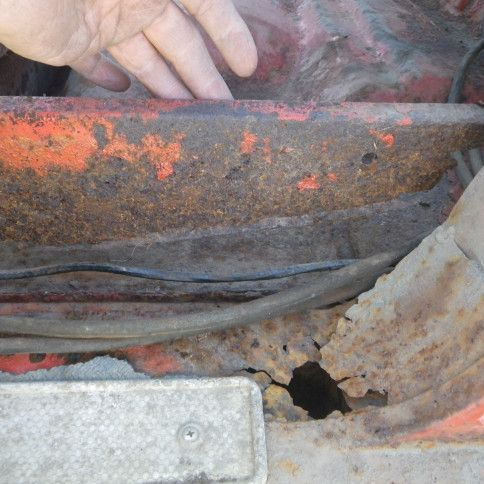

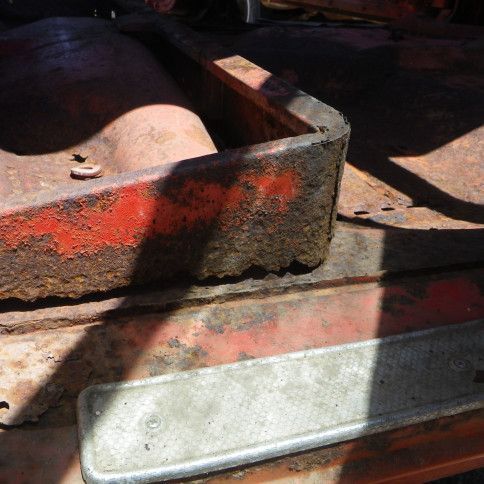

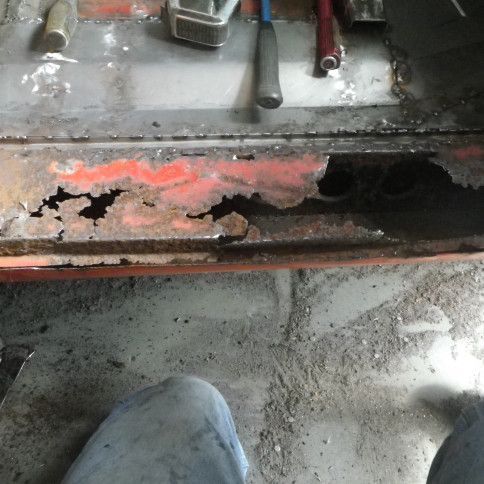

Bottom of rear door jamb rusted away
Button
Removed, clean under
Button
Weld in new piece and new seat riser.
Button
Button
Drivers side had hole thru inner steel, welded patch in, ready for outer patch. Also built new seat riser section
Button

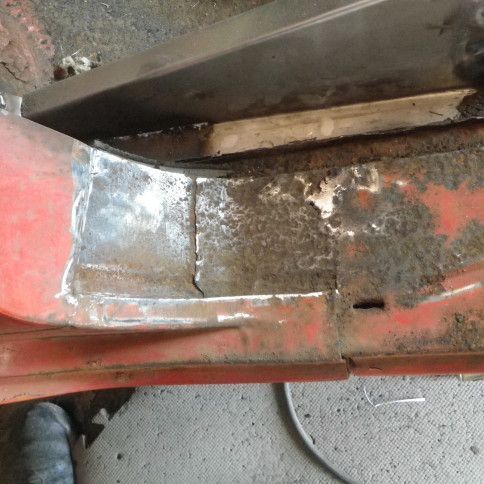

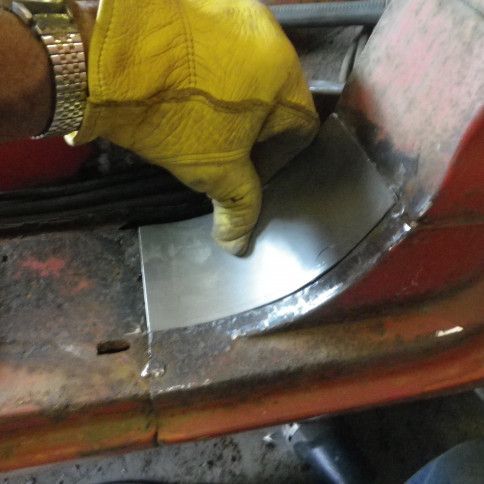

Test fit
Button

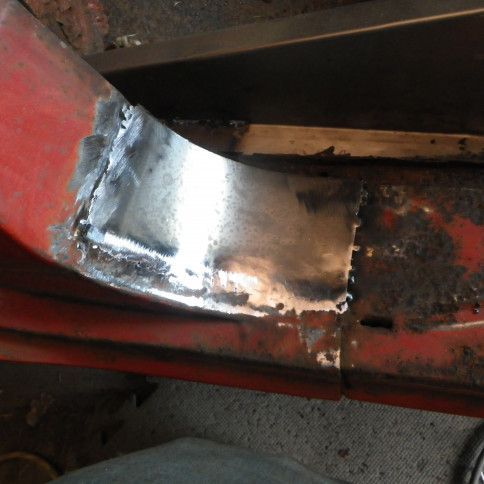

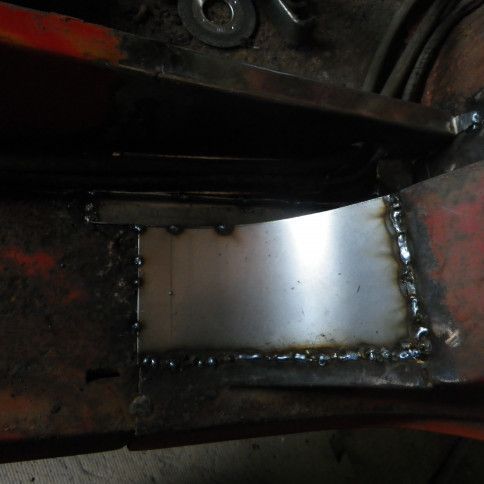

Welded in place
Button
Final hole to cover
Button
Last floor panel in.
Button

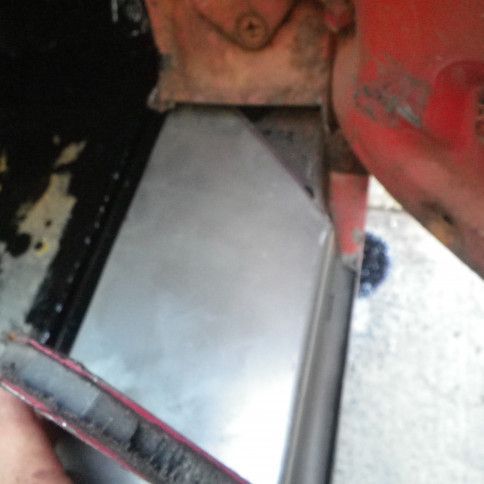

New piece bent to shape
Button

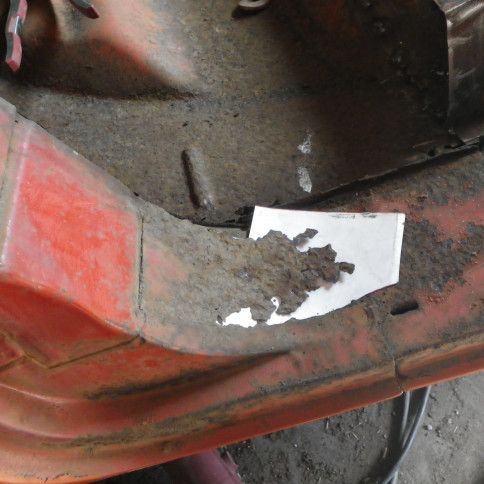

Right front door sill
Button
Button
Button

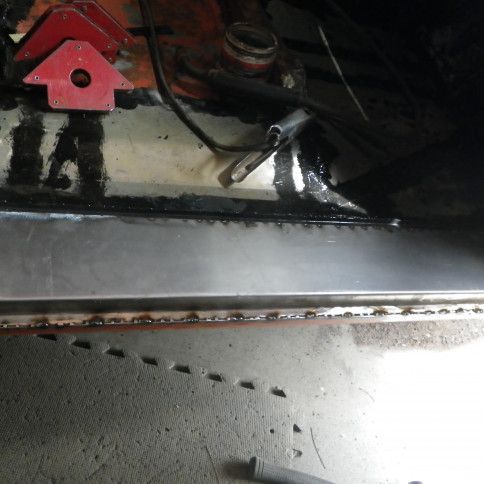

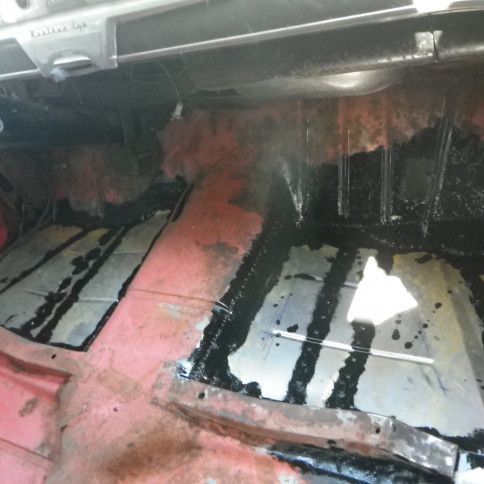

Sealed inside rocker before welding top piece on. Also sealed all seams of new floor panels.
Button
Button
Button
Button

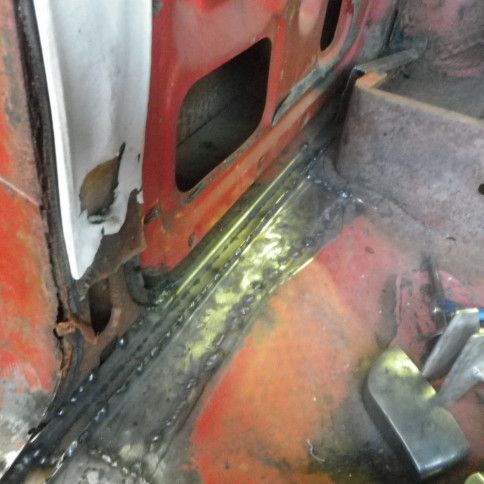

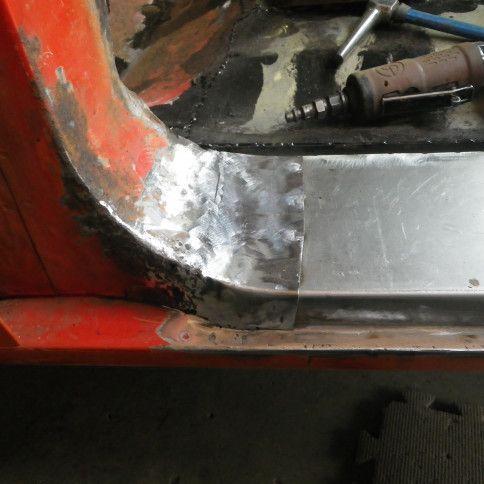

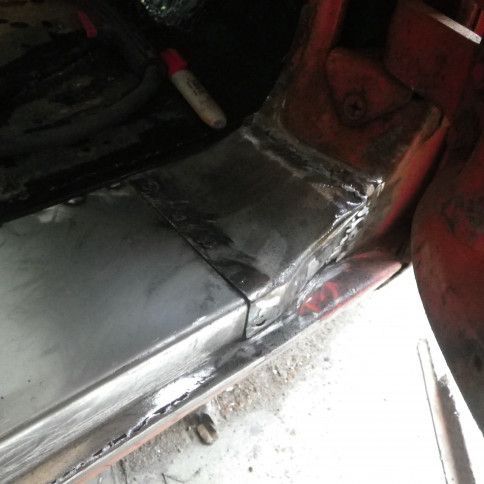

Final welding and grinding done.
Button
Button
Button

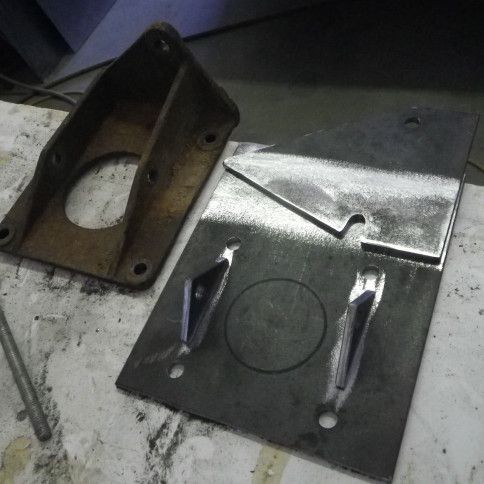

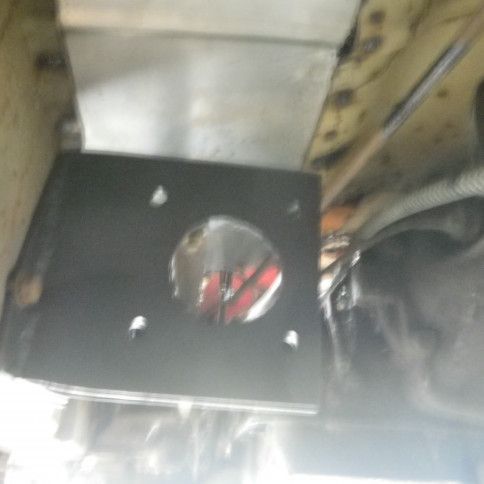

While waiting for brake booster and master cylinder, made pieces for bracket.
Button
Slightly bigger bracket with closer hole spacing
Button
Button
Button

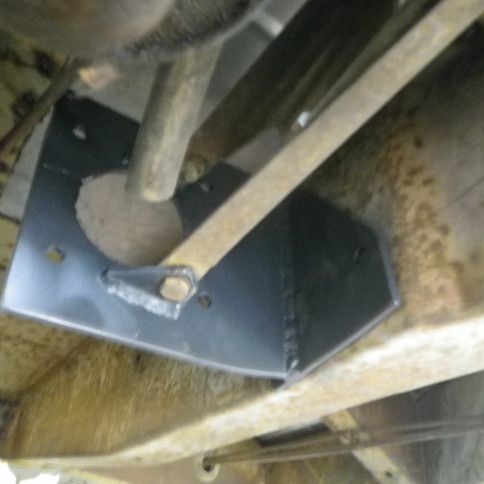

Bolts in just like the original
Button

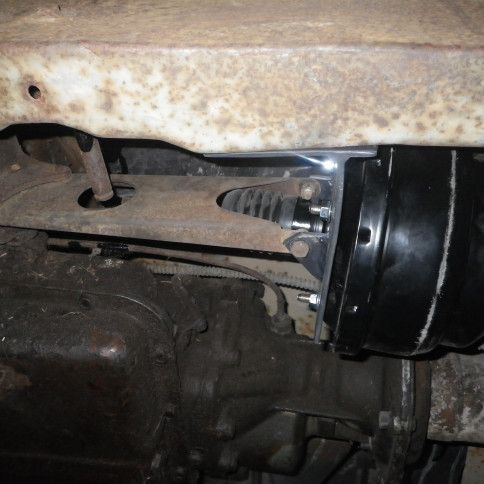

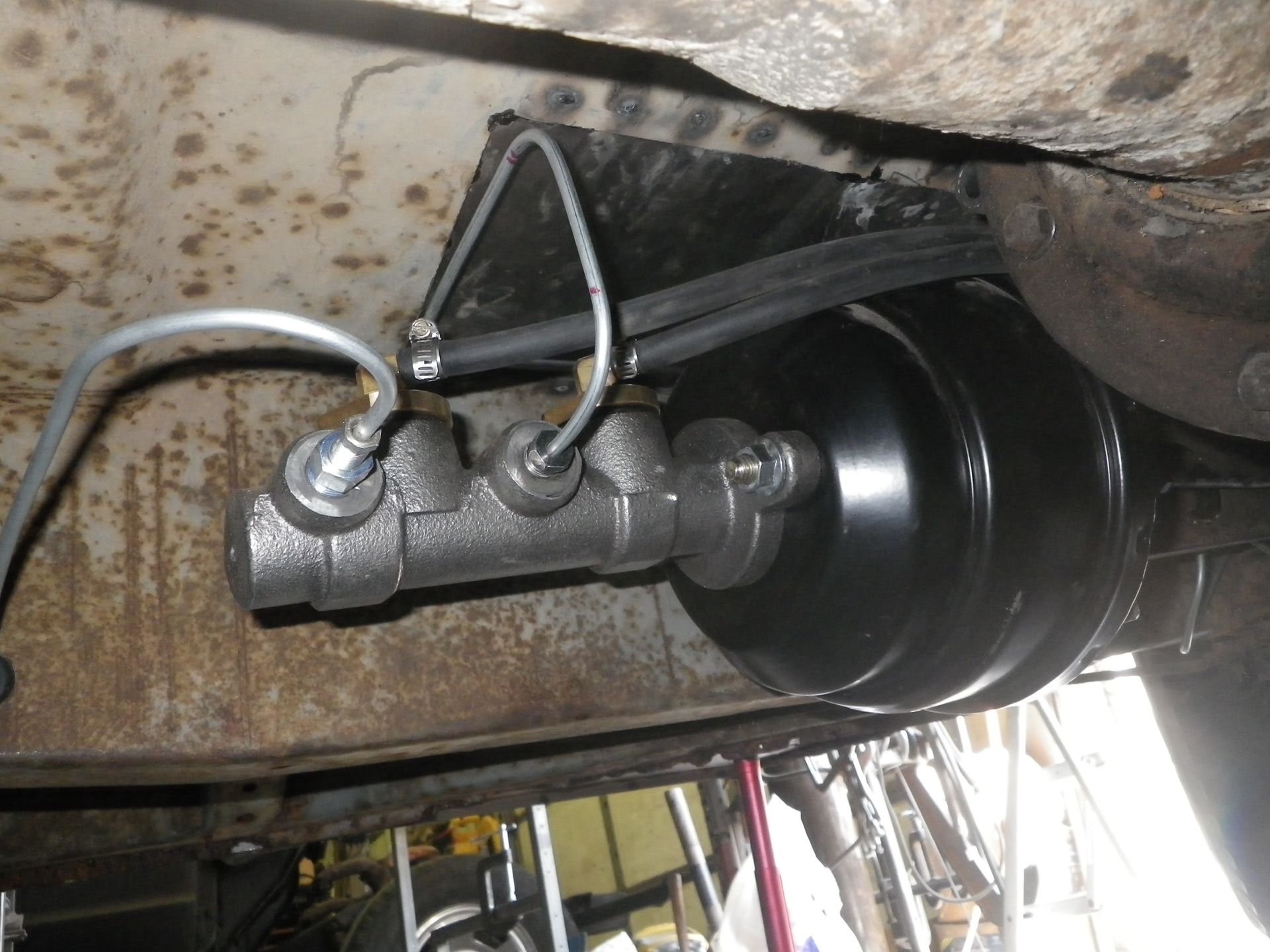

Booster and cylinder mounted.
Button
Button

Moved brake line block/switch to an easier location to service

easy to fill brakes now

new power booster and dual reservoir with remote fill under floor

rusty original and replacement

Final fitting and edges ground bar

Welded in and ground smooth

sealed

Sealed the major rust with POR-15

Very complete, few dents, very good other than rusty floors.

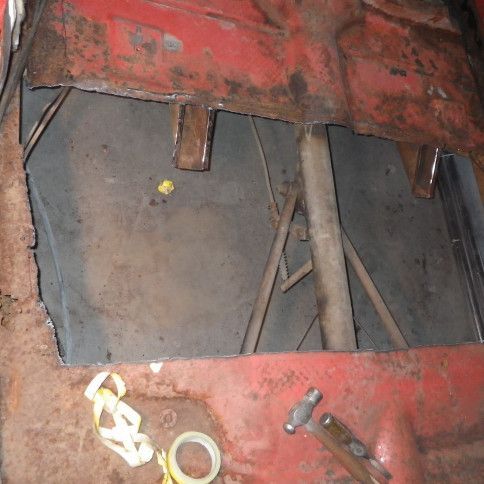

First trial fit of donor floor.

Donor floor is too narrow, need 3-4 inches each side.

Make filler pieces for each side, get welded to top of frame.

Side pieces welded to frame after lots of grinding rust off. Trim to let floor set flat on frame pieces.

Floor spot welded in place.

One section of top of frame has lots rust holes, will replace with 1/8 inch steel plate, .

Will also be replacing the power brake unit with a modern booster and dual cylinder with remote fill. Easy to get to with floor cut.

lower panel clamped on place

Can't have too many clamps

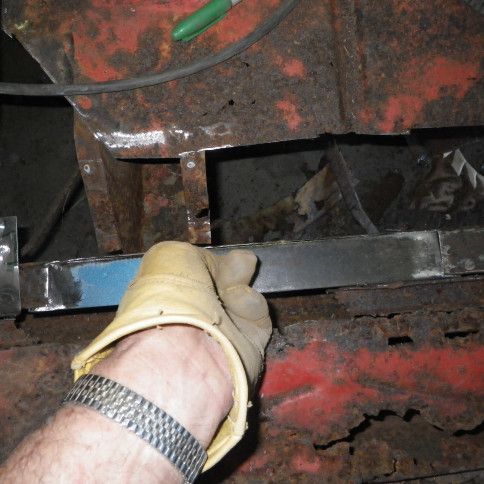

Replaced most of channel for wires, a little more welding to do.

Added inner brace and under coated before top floor panel gets welded on

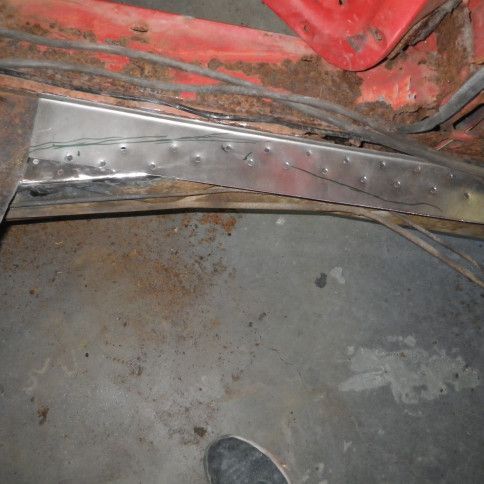

Trial fitting floor panel, holes drilled for welding.

welded in place.

Next panel.

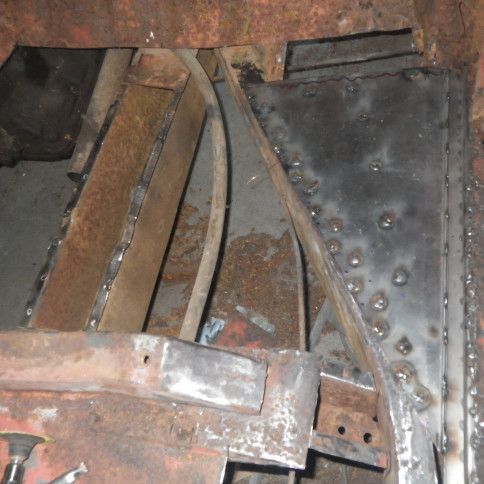

Another panel welded in, hole above brake cylinder will be done last, after booster and cylinder is replaced.

New channel on passenger side.

Passenger side channel welded in first.

new lower panel and brace welded in.

undercoating sprayed in bottom

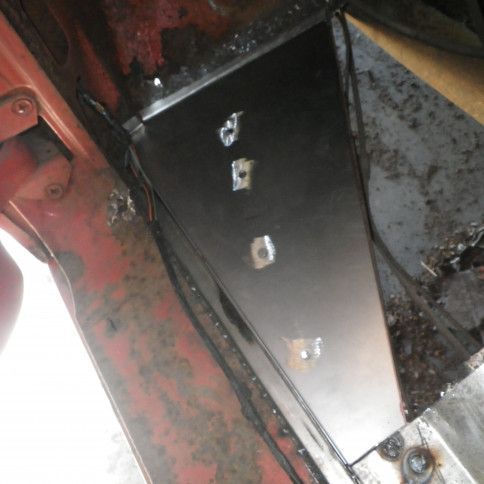

formed and drilled, ready to weld in.

Side panel almost done

Front passenger floor installed

Rear channel welded in

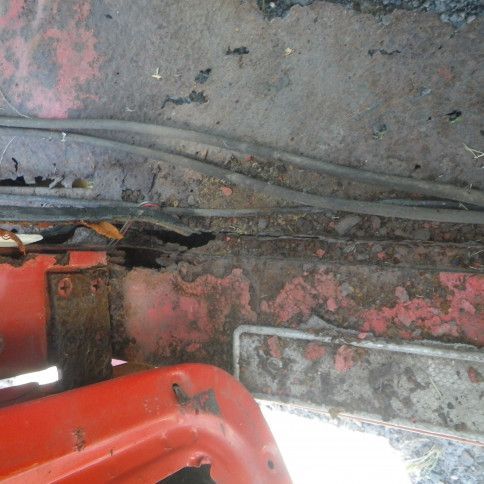

Bottom of rear door jamb rusted away

Removed, clean under

Weld in new piece and new seat riser.

Drivers side had hole thru inner steel, welded patch in, ready for outer patch. Also built new seat riser section

Test fit

Welded in place

Final hole to cover

Last floor panel in.

New piece bent to shape

Right front door sill

Sealed inside rocker before welding top piece on. Also sealed all seams of new floor panels.

Final welding and grinding done.

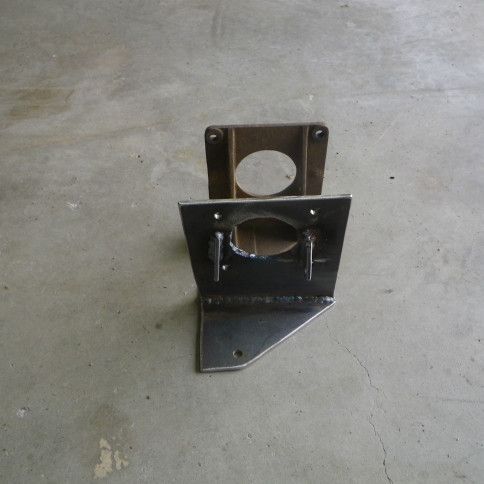

While waiting for brake booster and master cylinder, made pieces for bracket.
