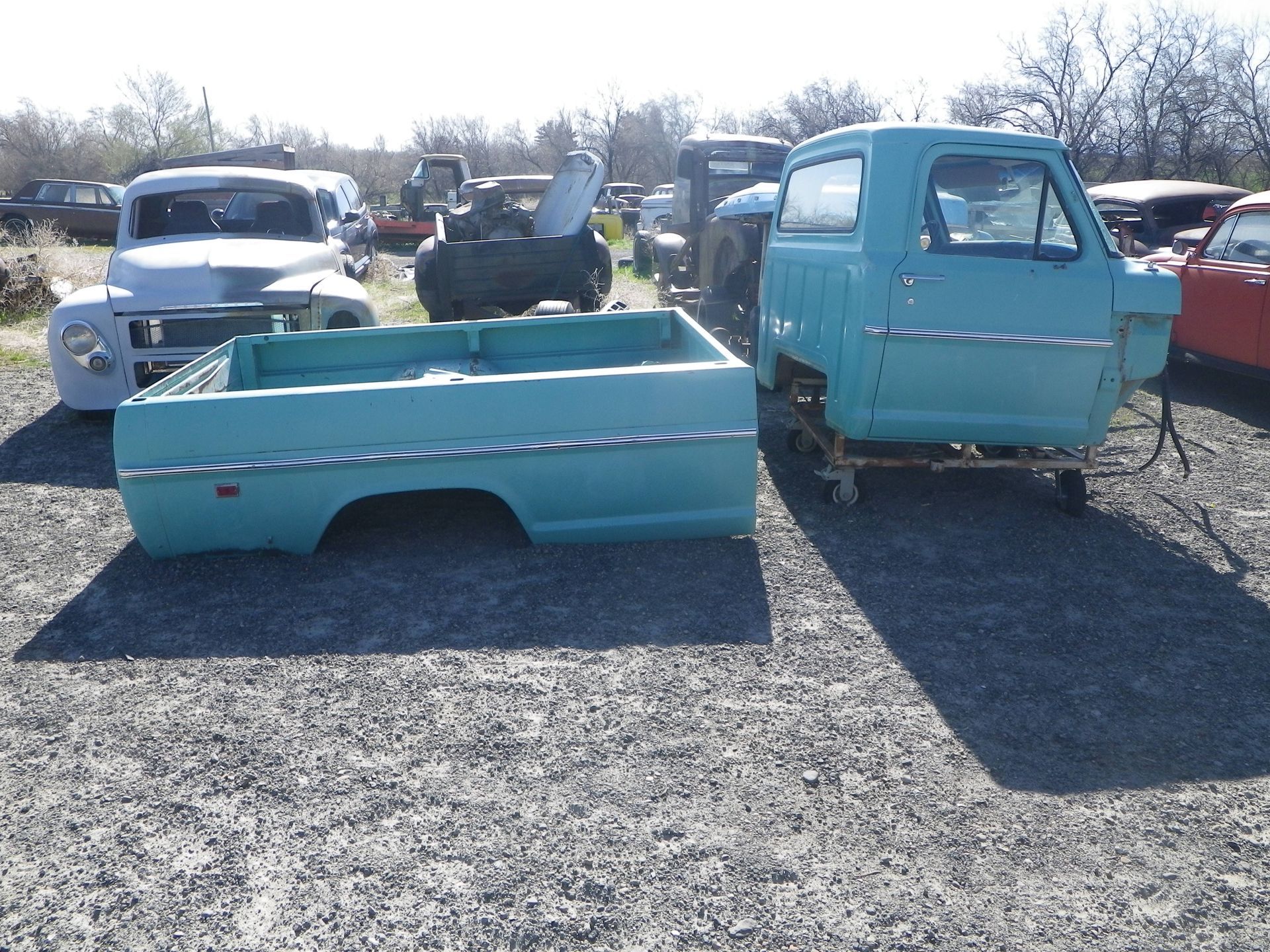

67 Ford F-100, owner is rebuilding the chassis, I will do the body

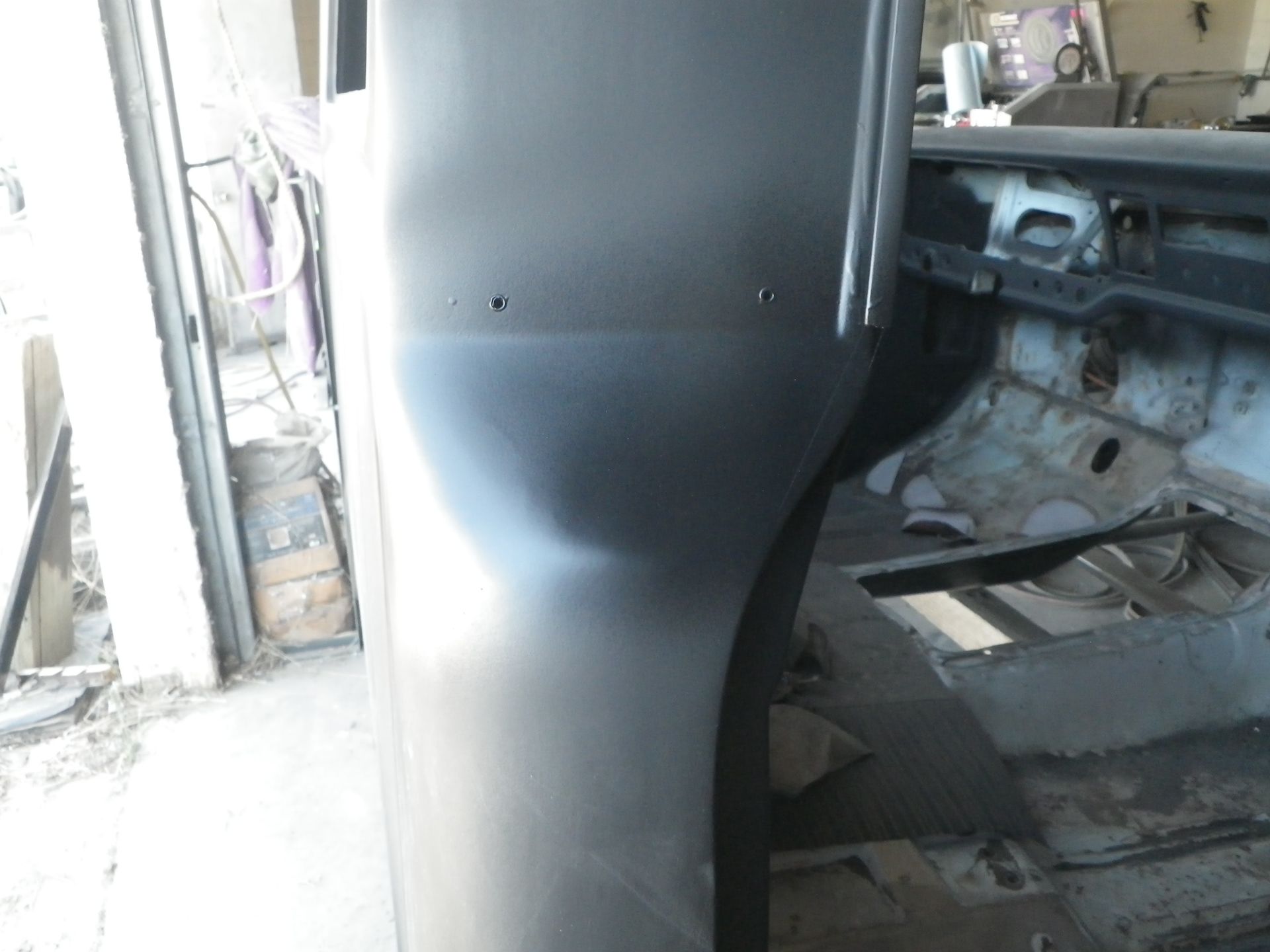

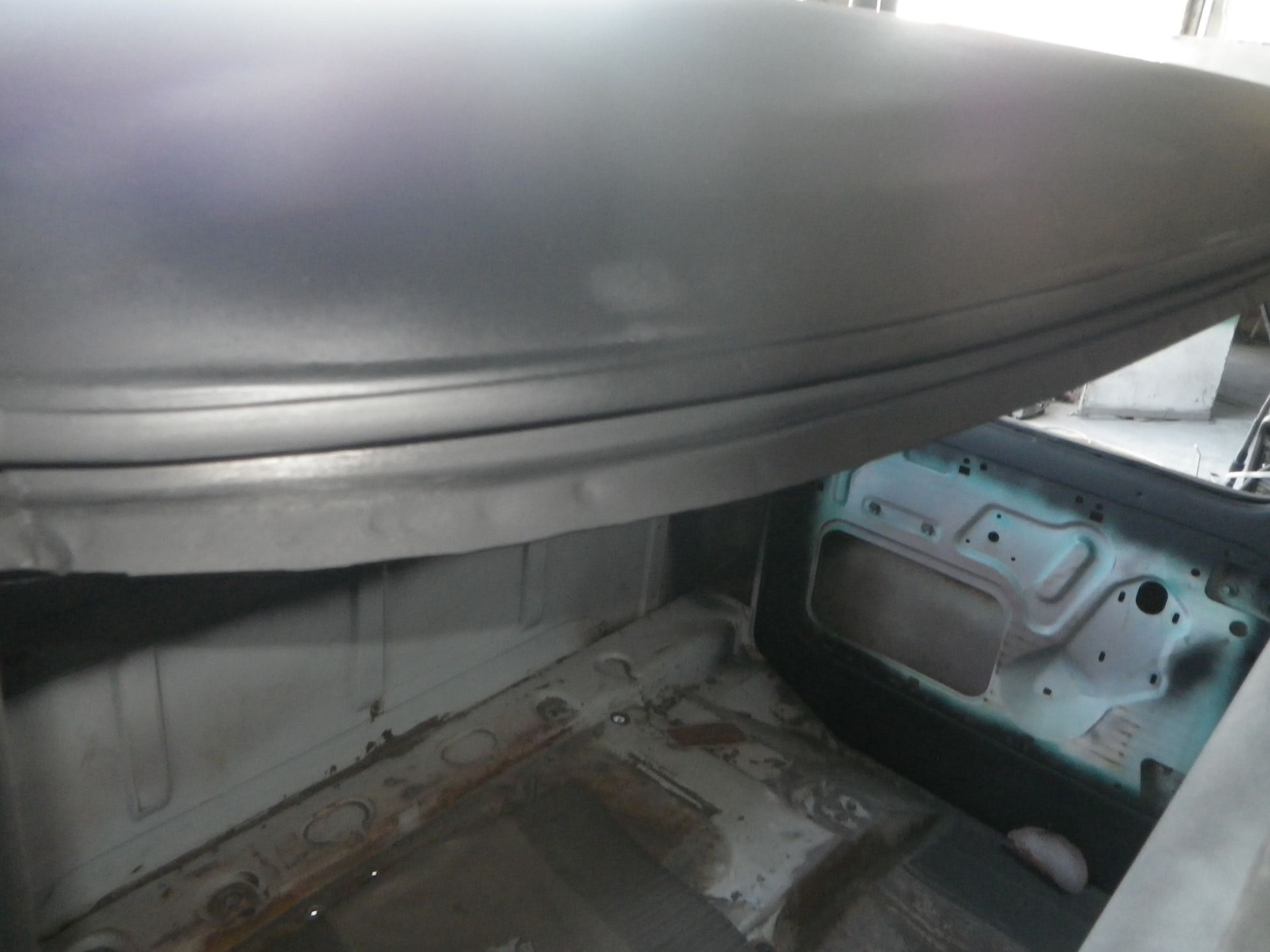

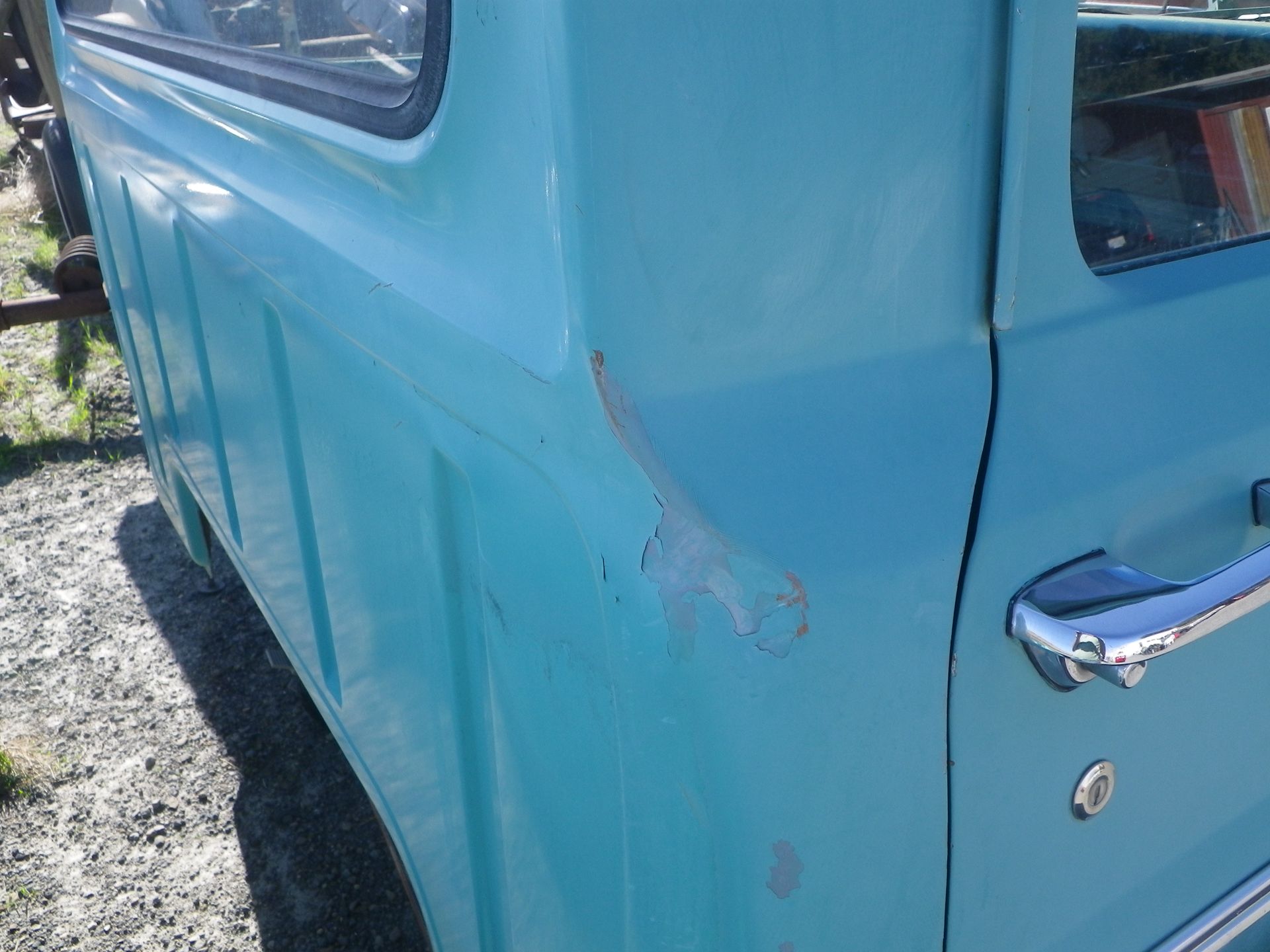

Cab was hit hard, back of cab is pushed forward and has a wrinkle above drivers door, and hood hinge mount is pushed in 1/4 inch.

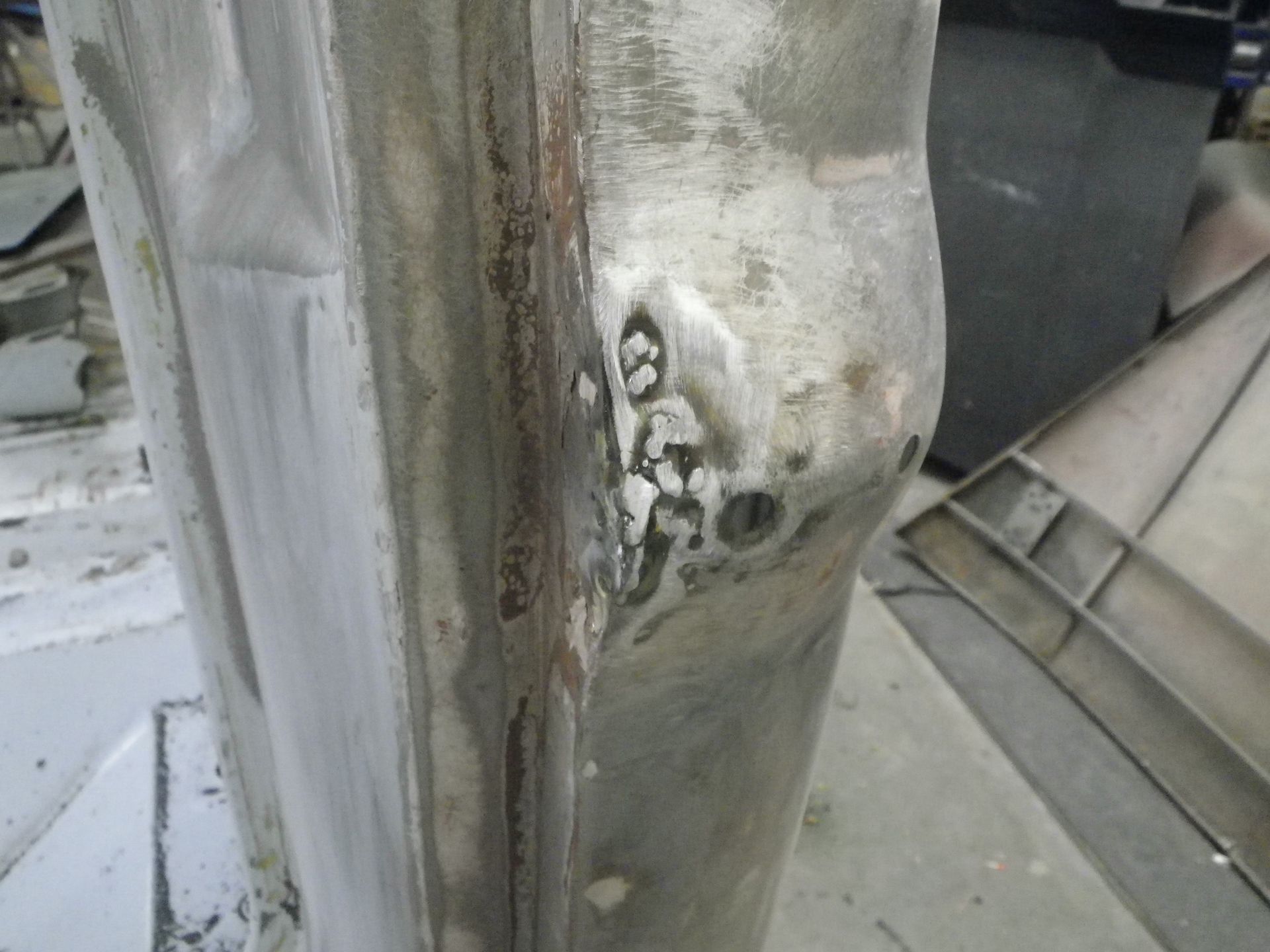

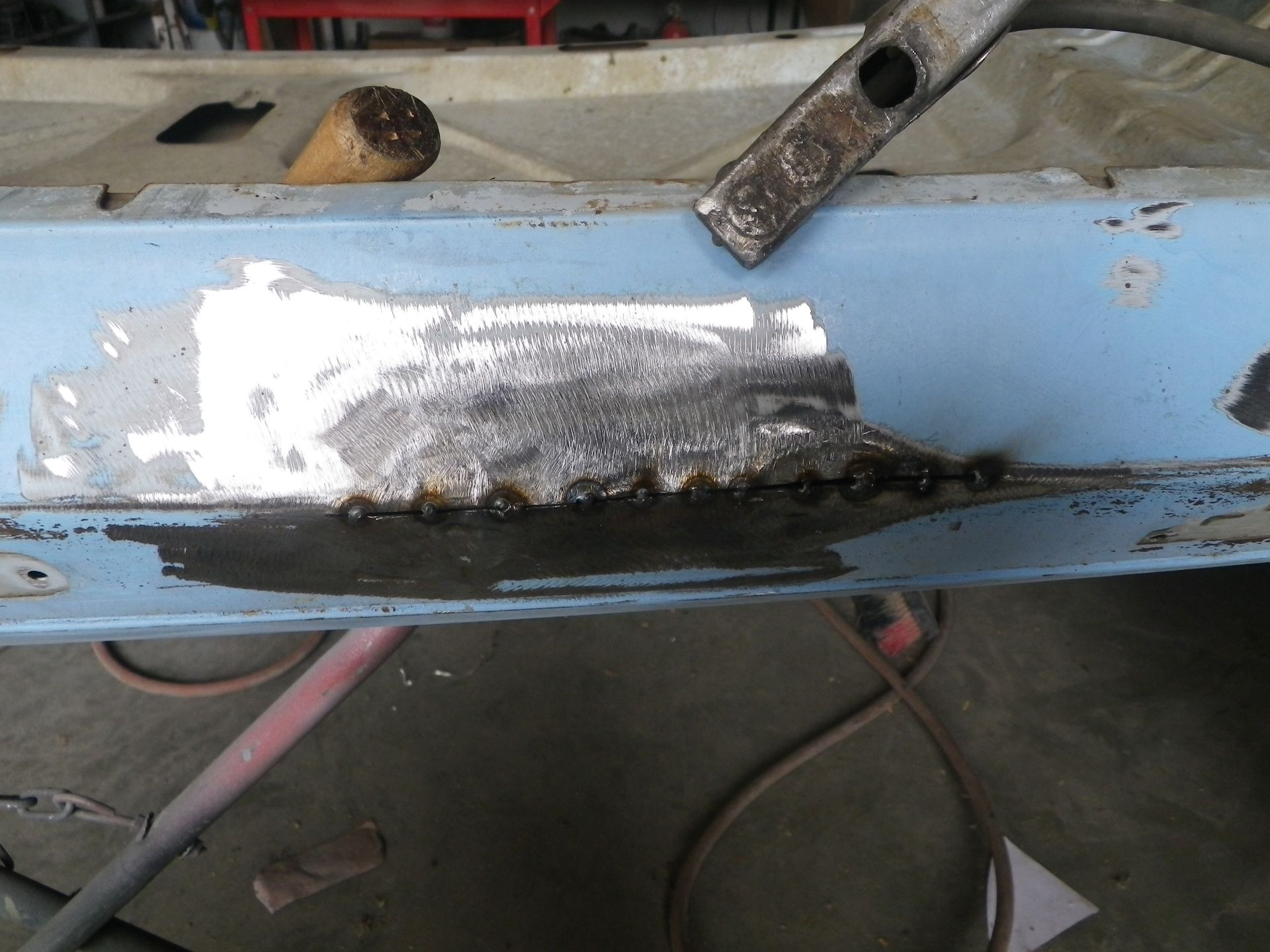

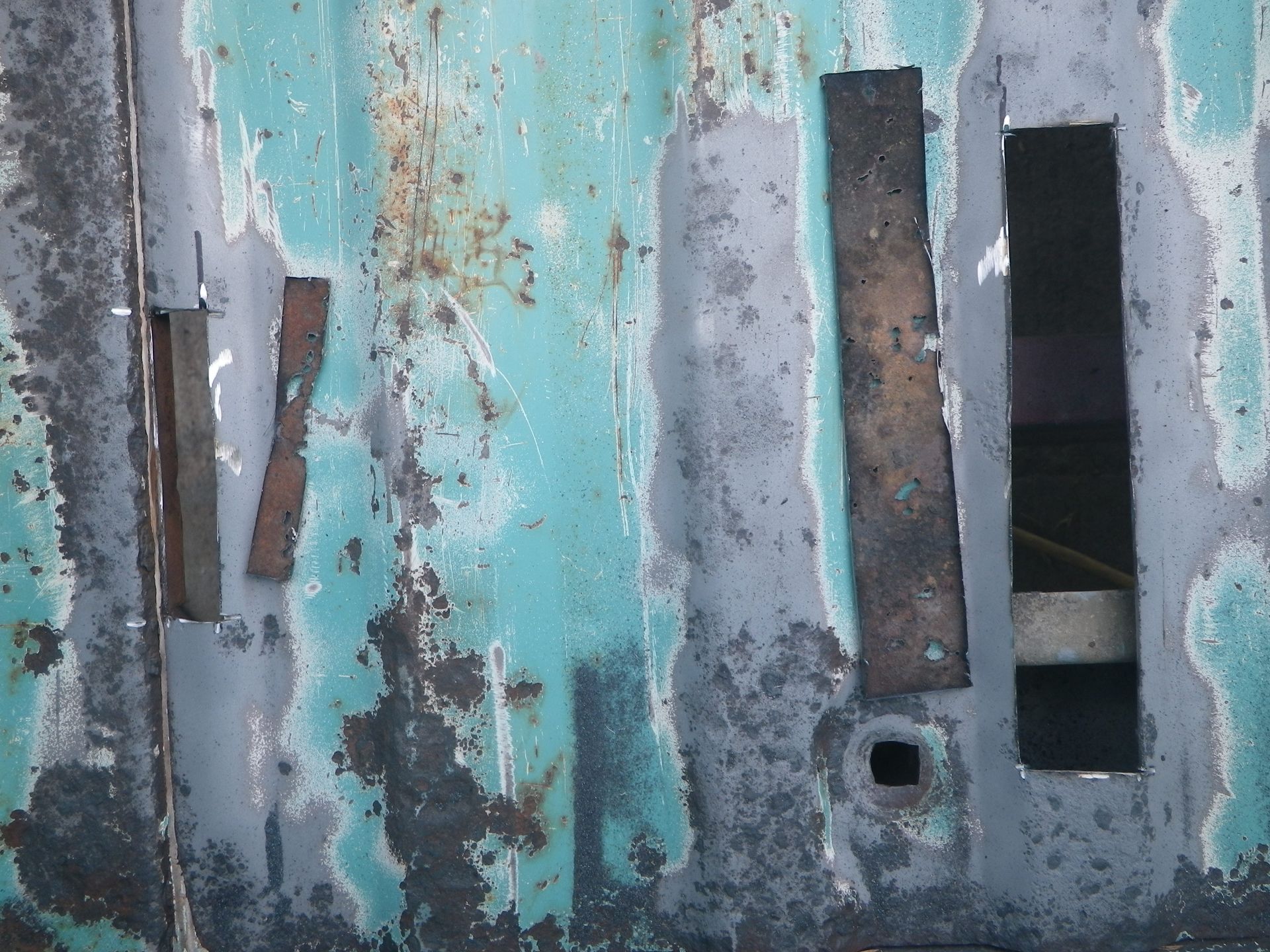

Cut the large dents, insert thin spoon dolly to straighten then weld back together.

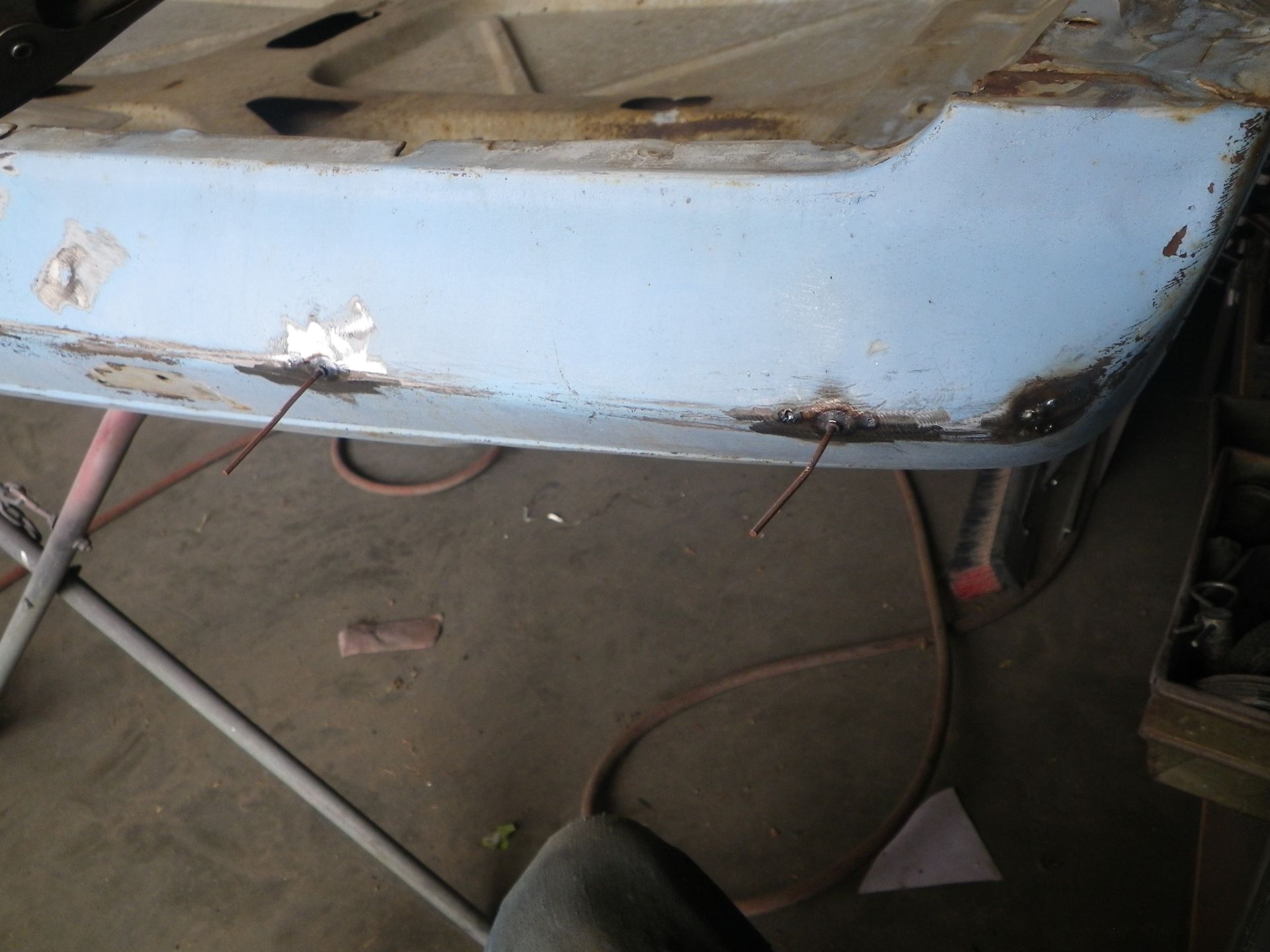

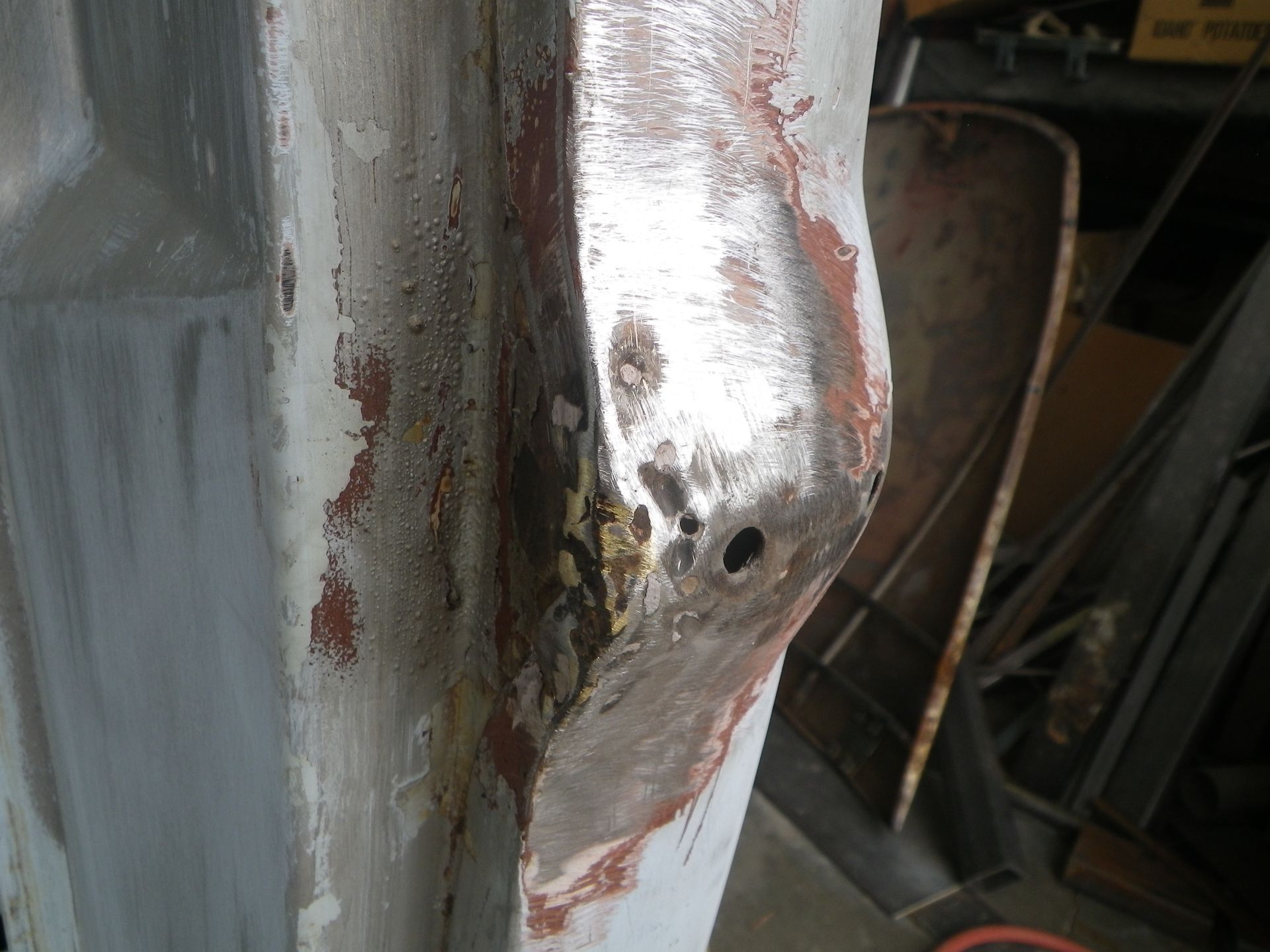

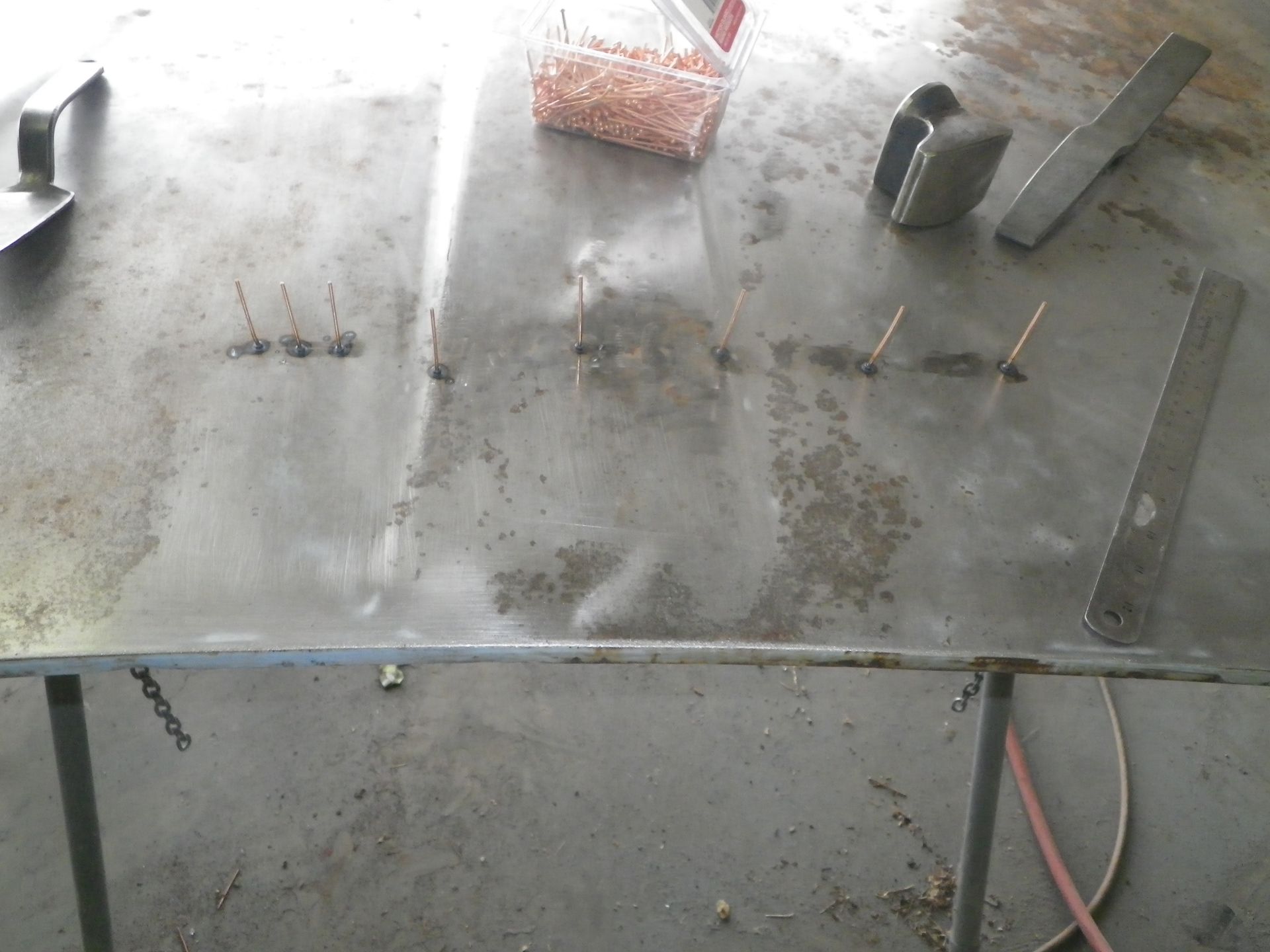

Stud welds to pull dents

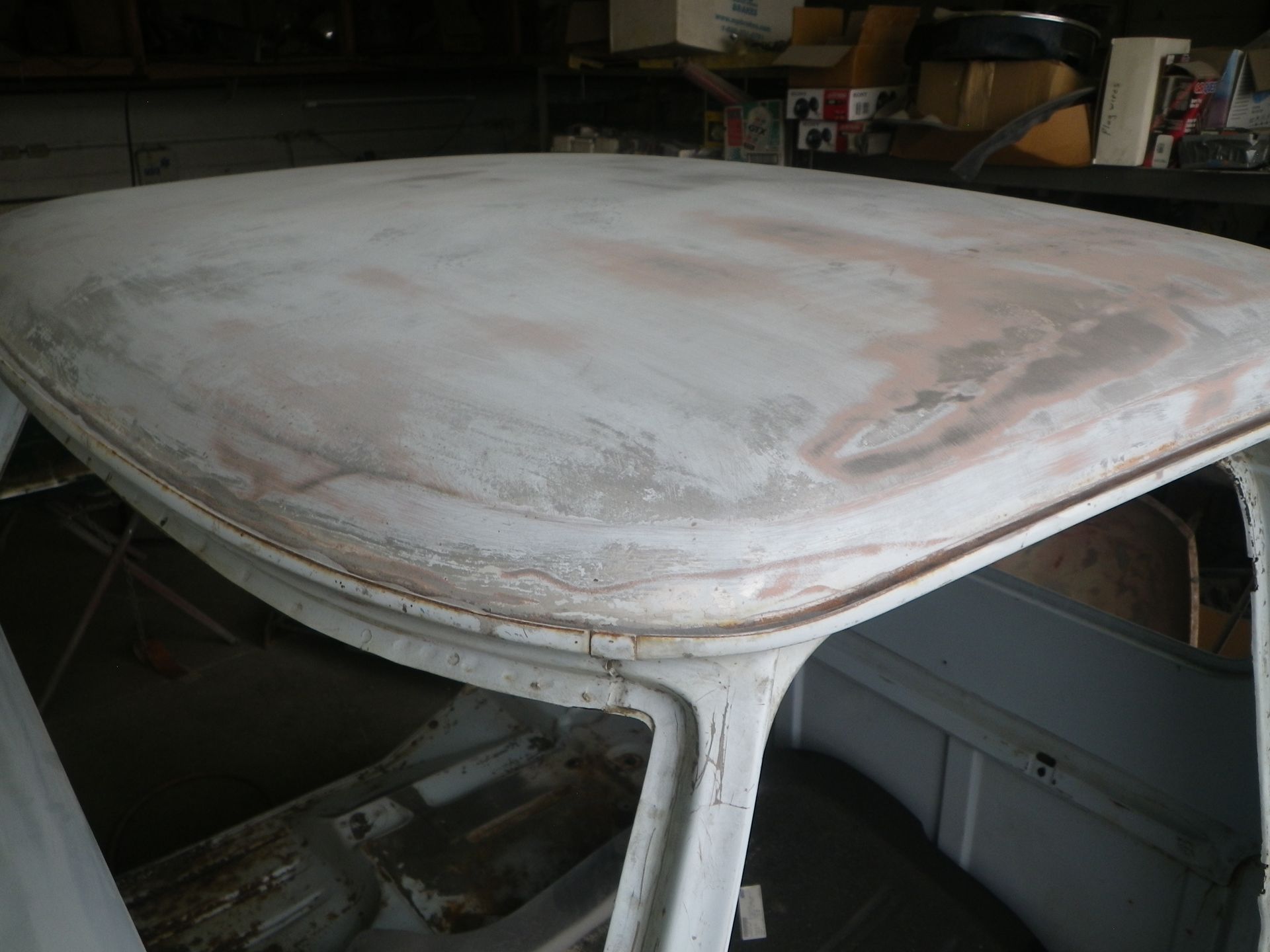

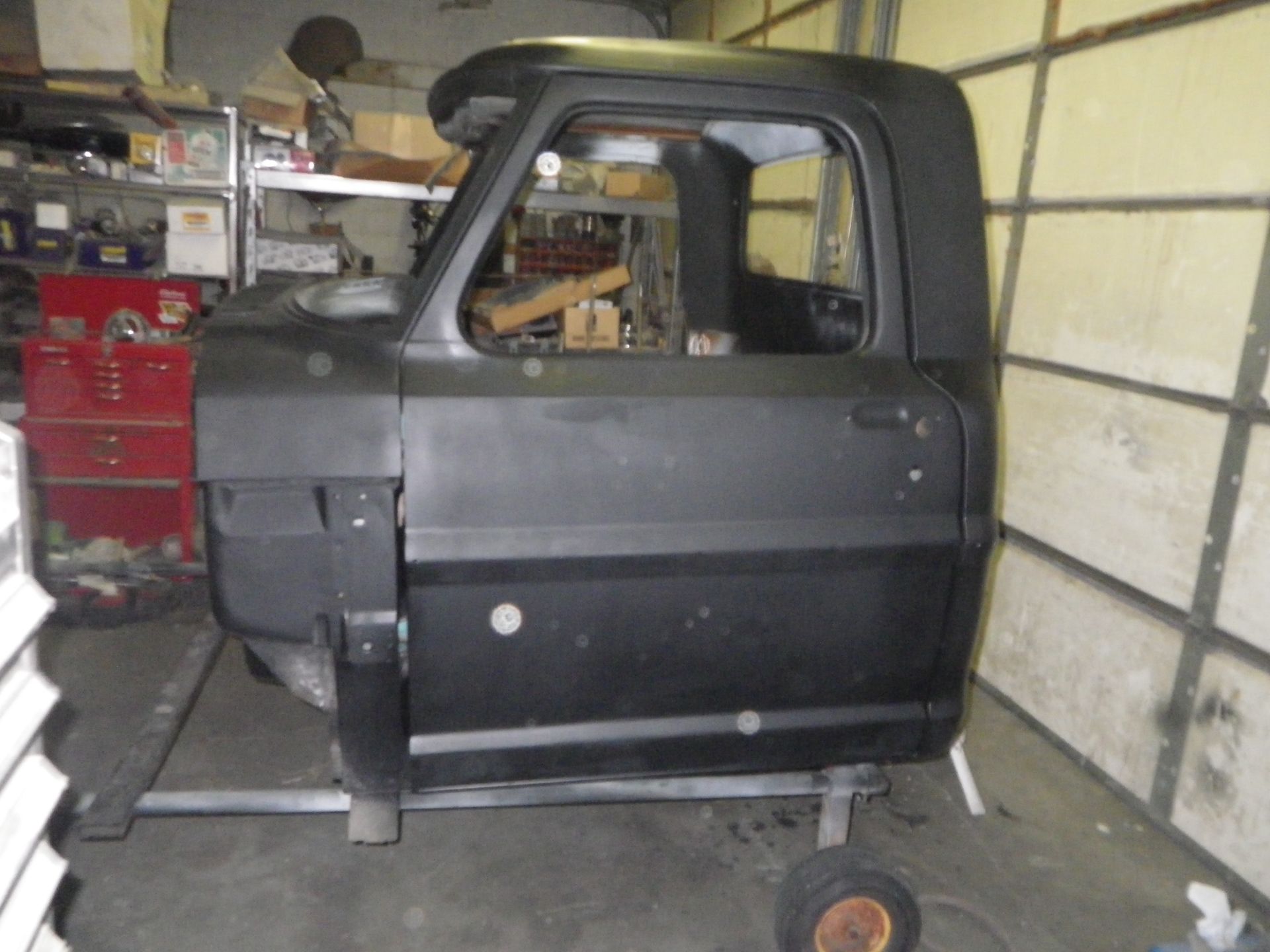

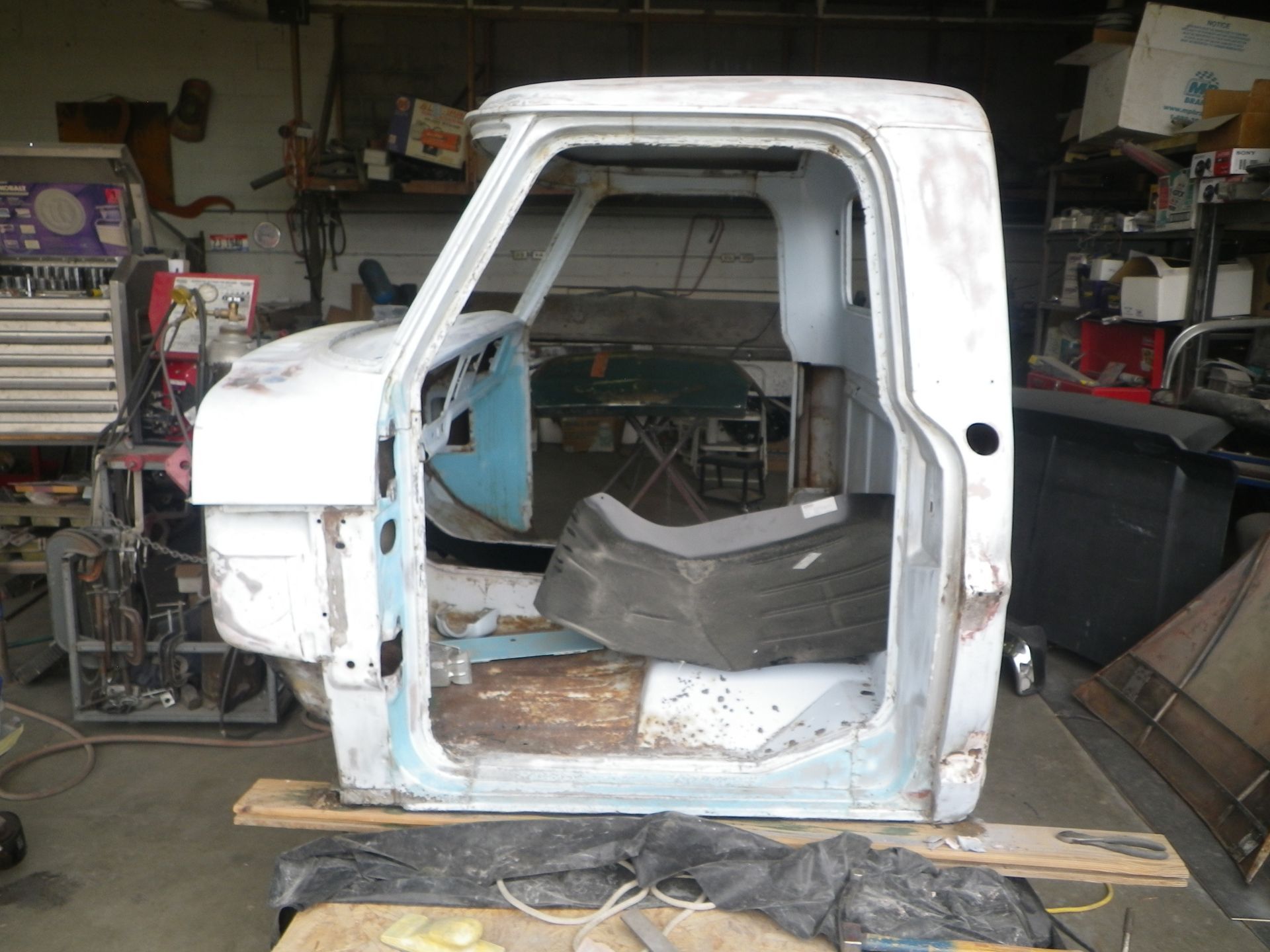

Replacement cab

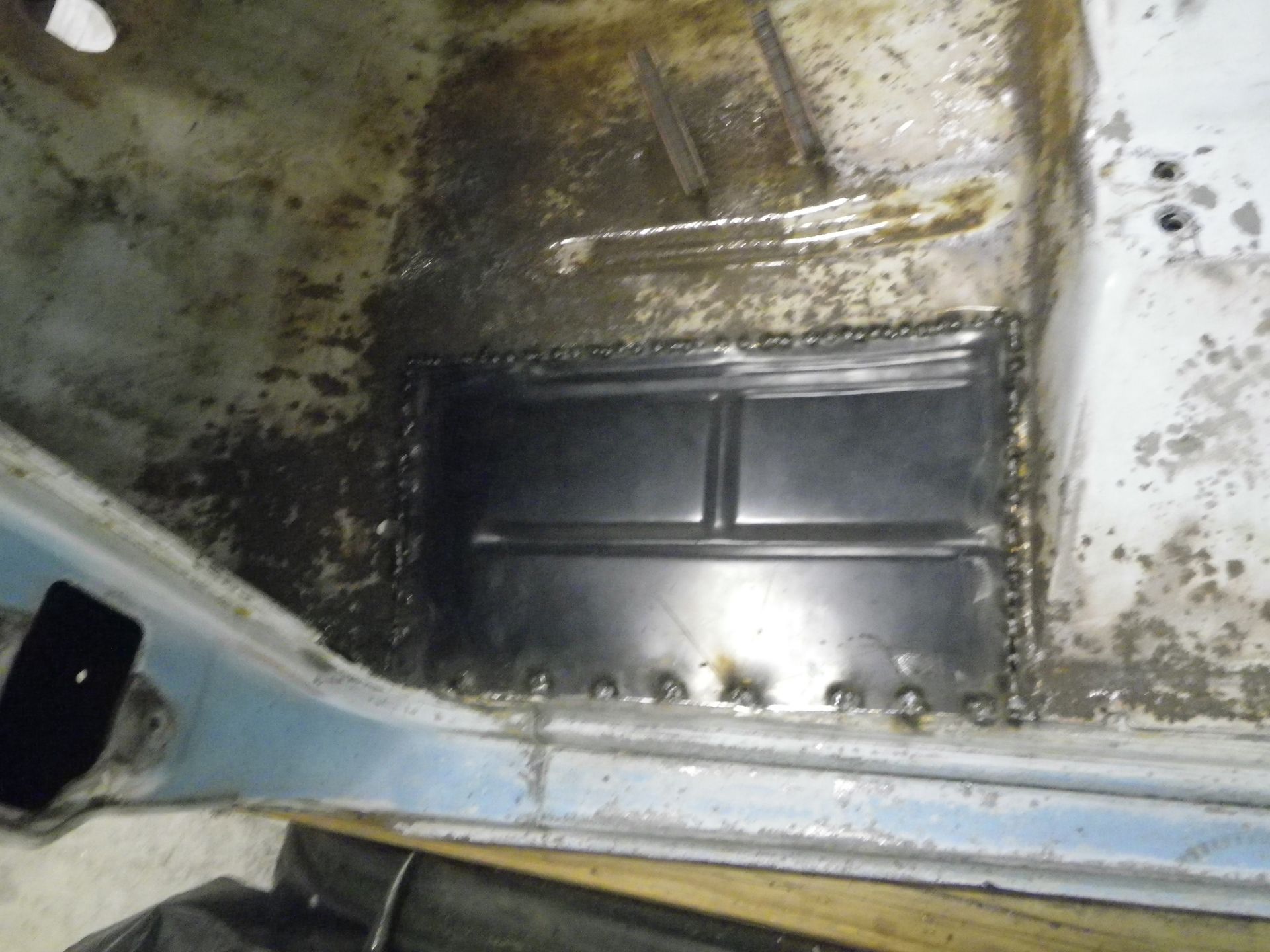

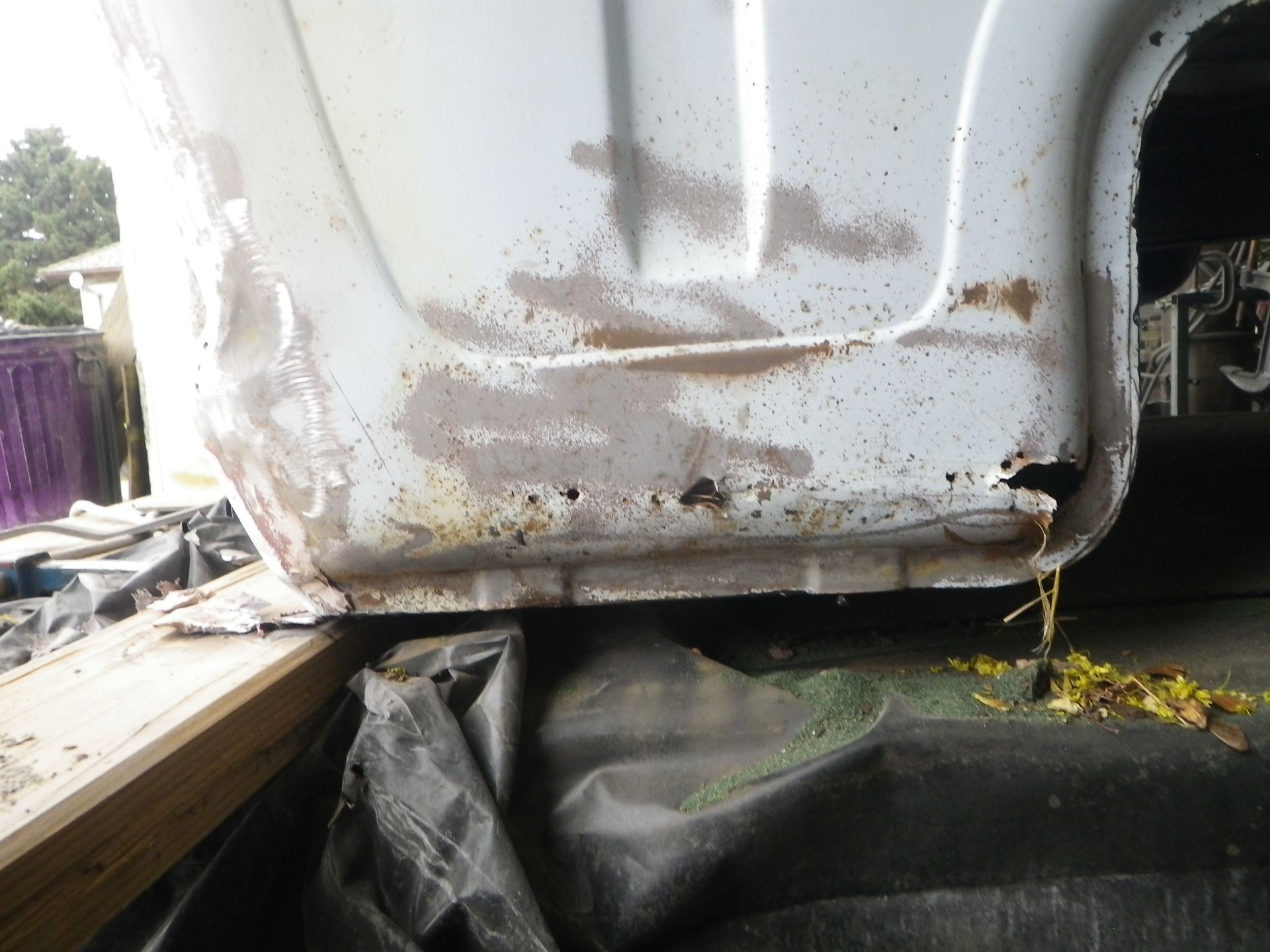

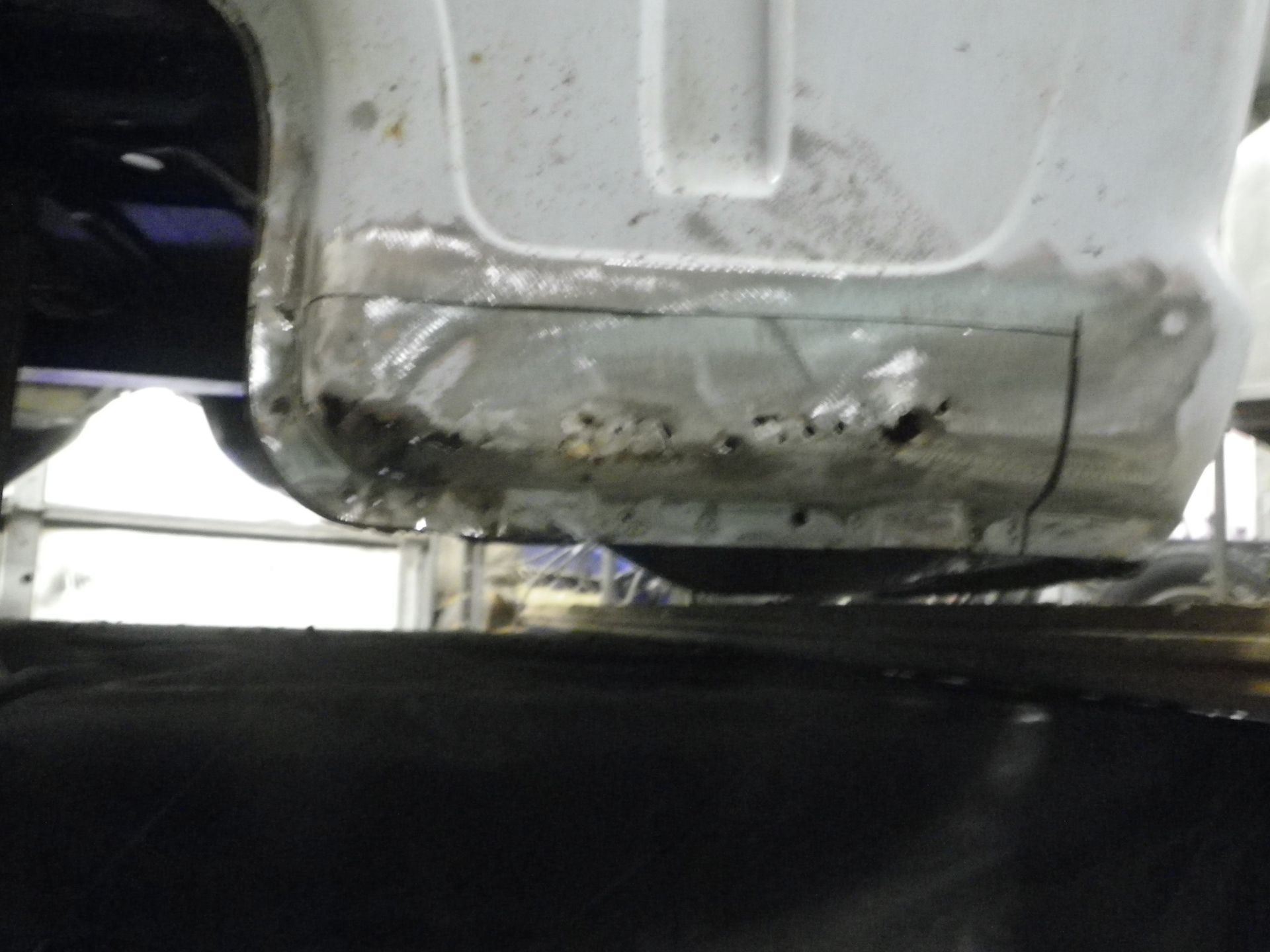

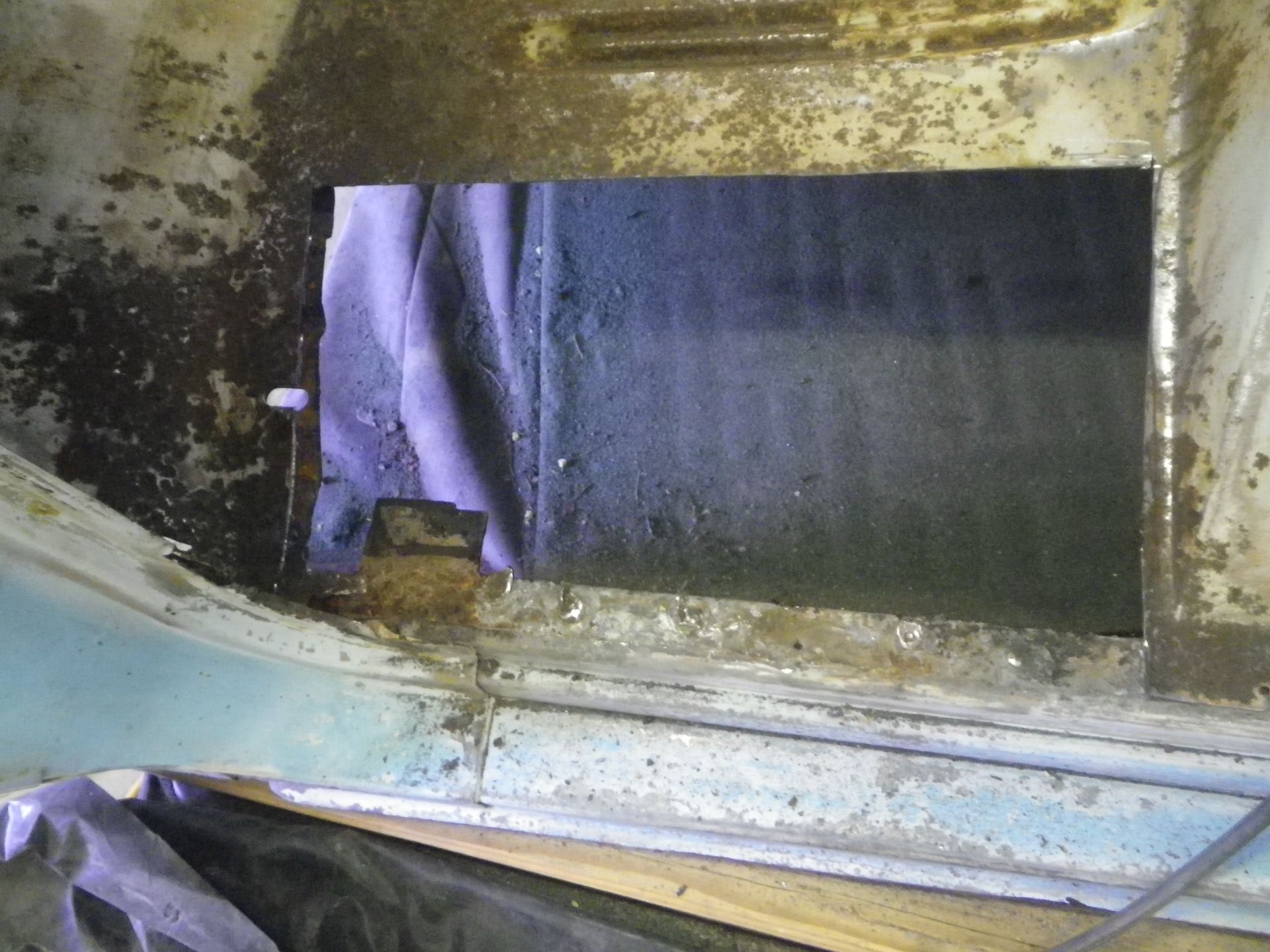

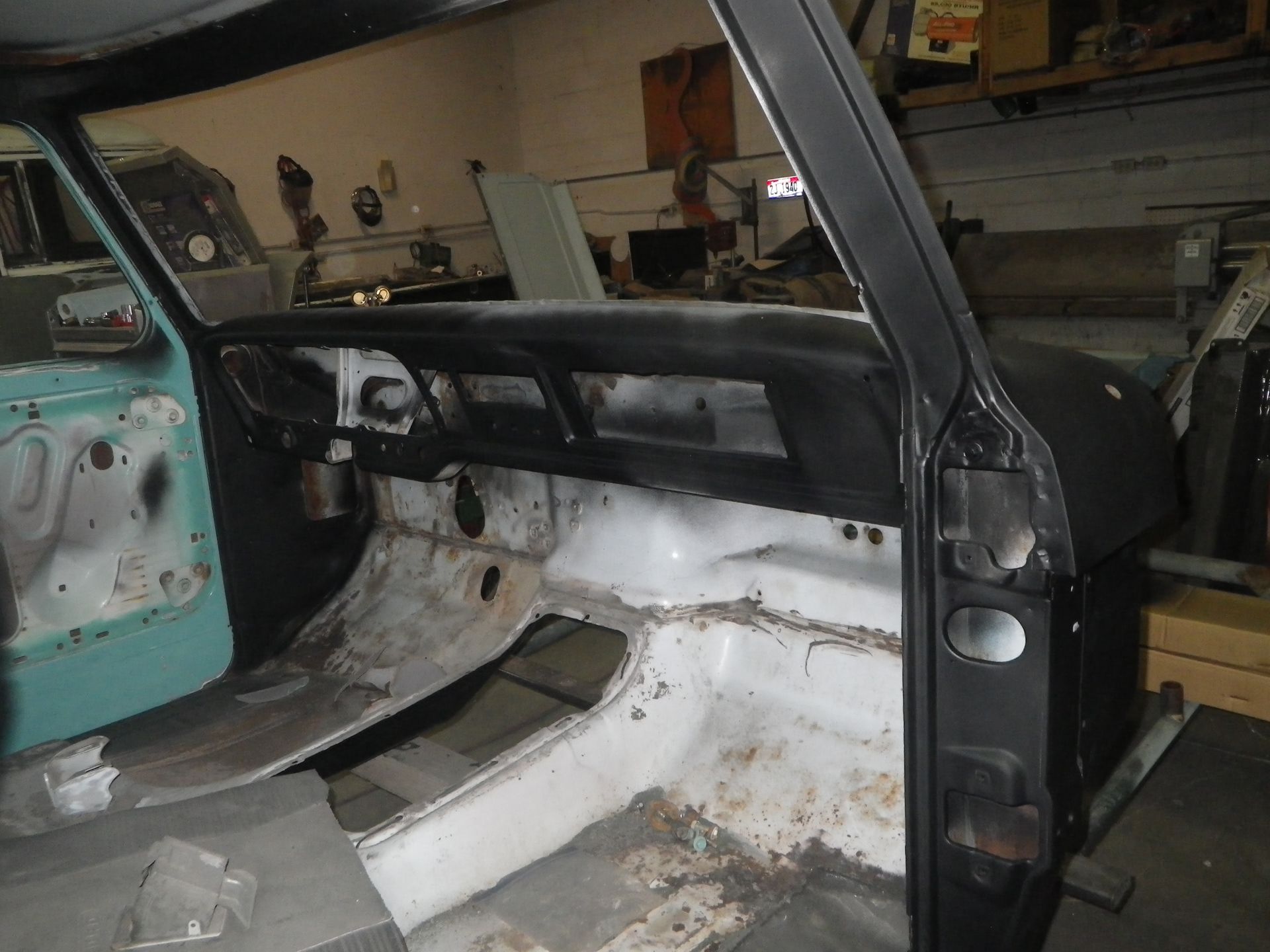

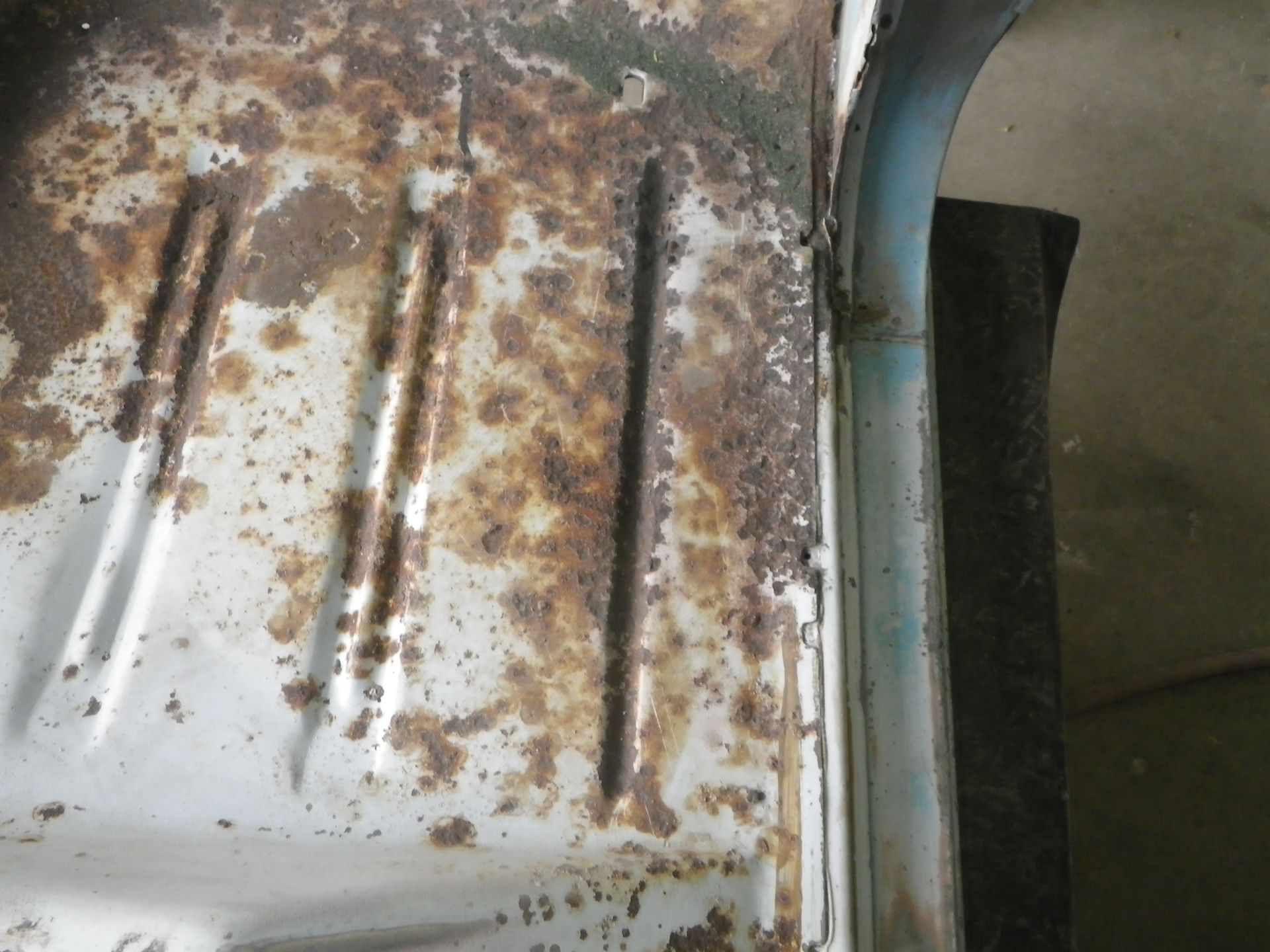

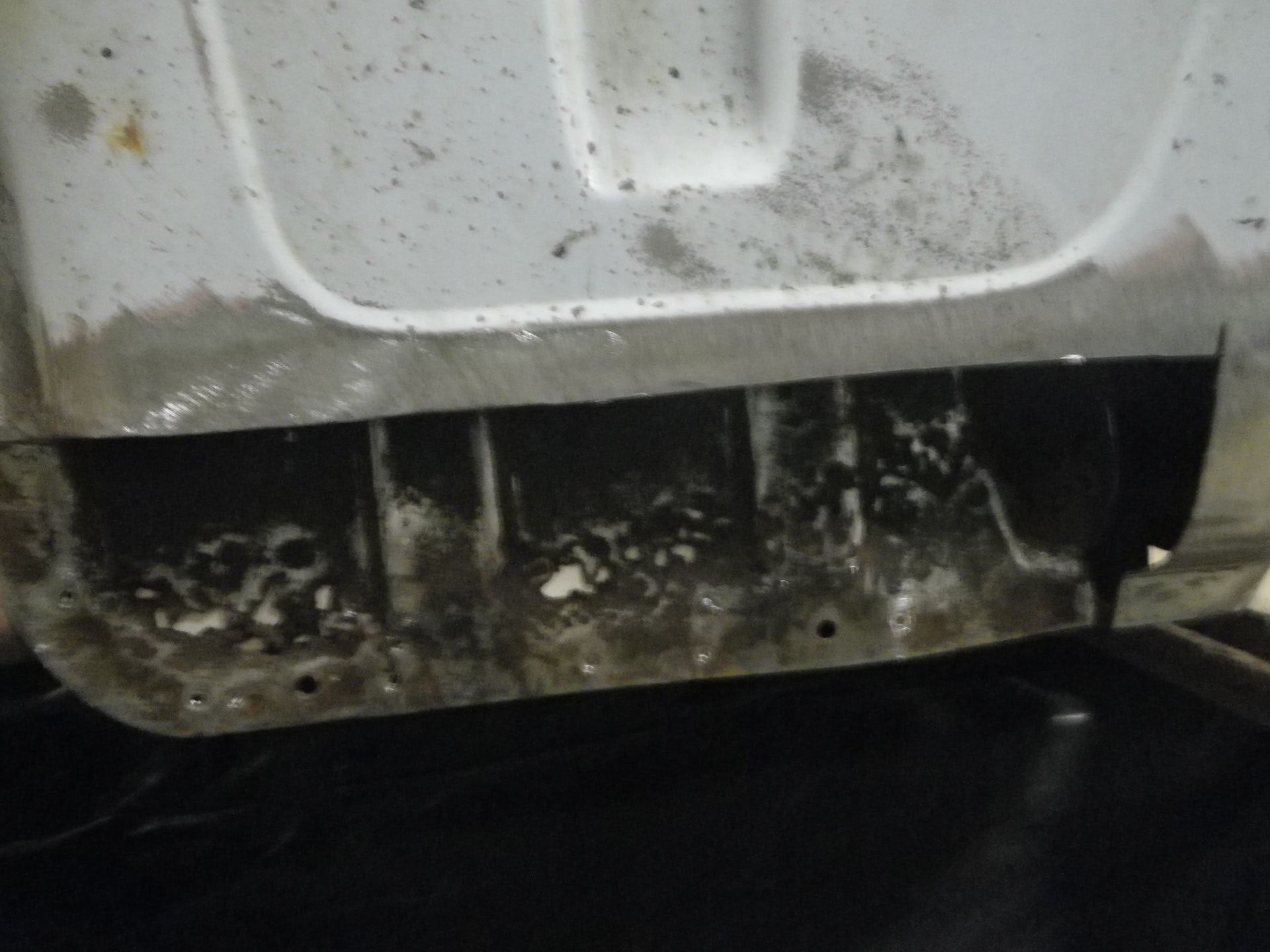

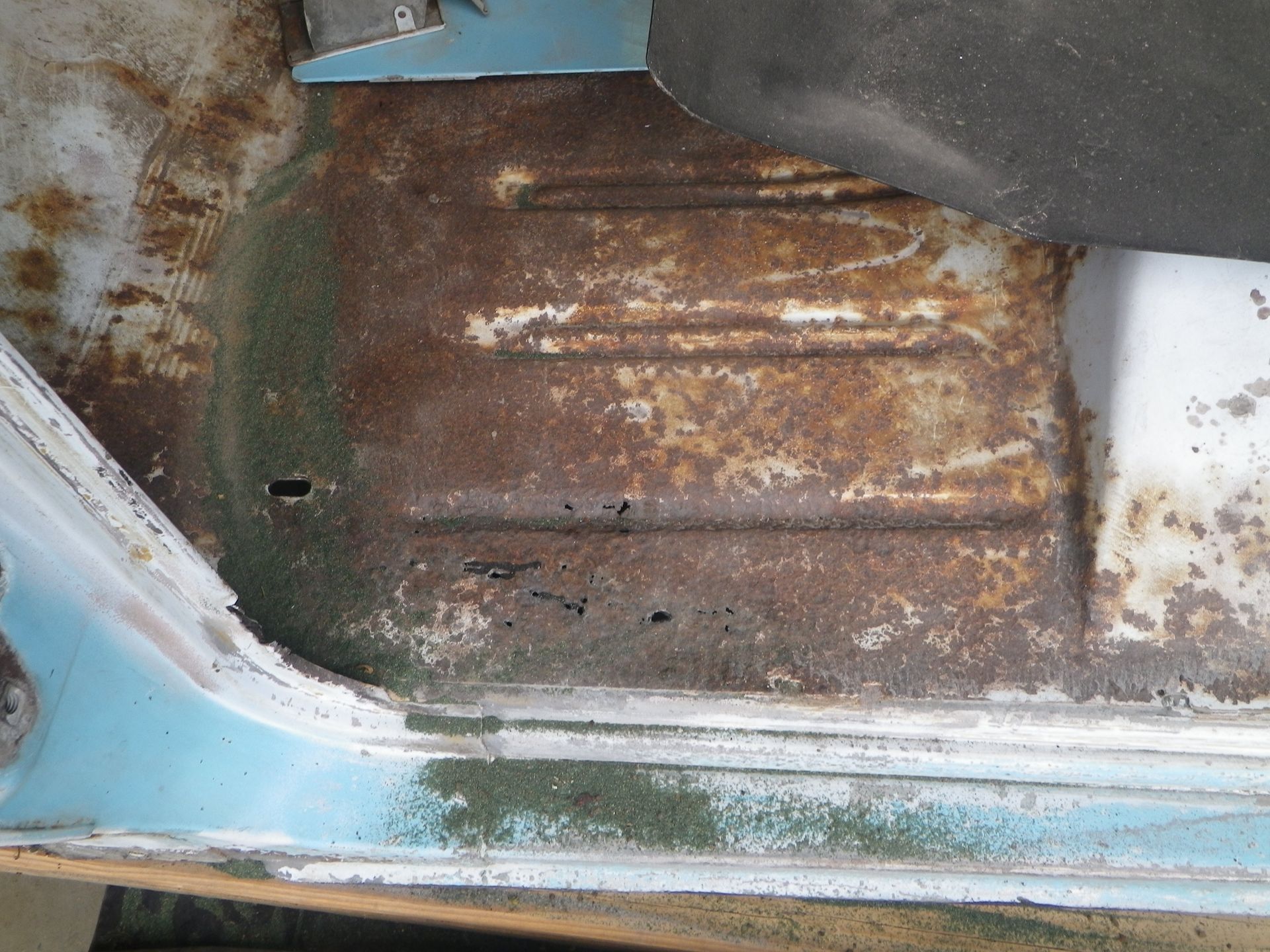

Rusty floor just like other cab, already have replacement panel.

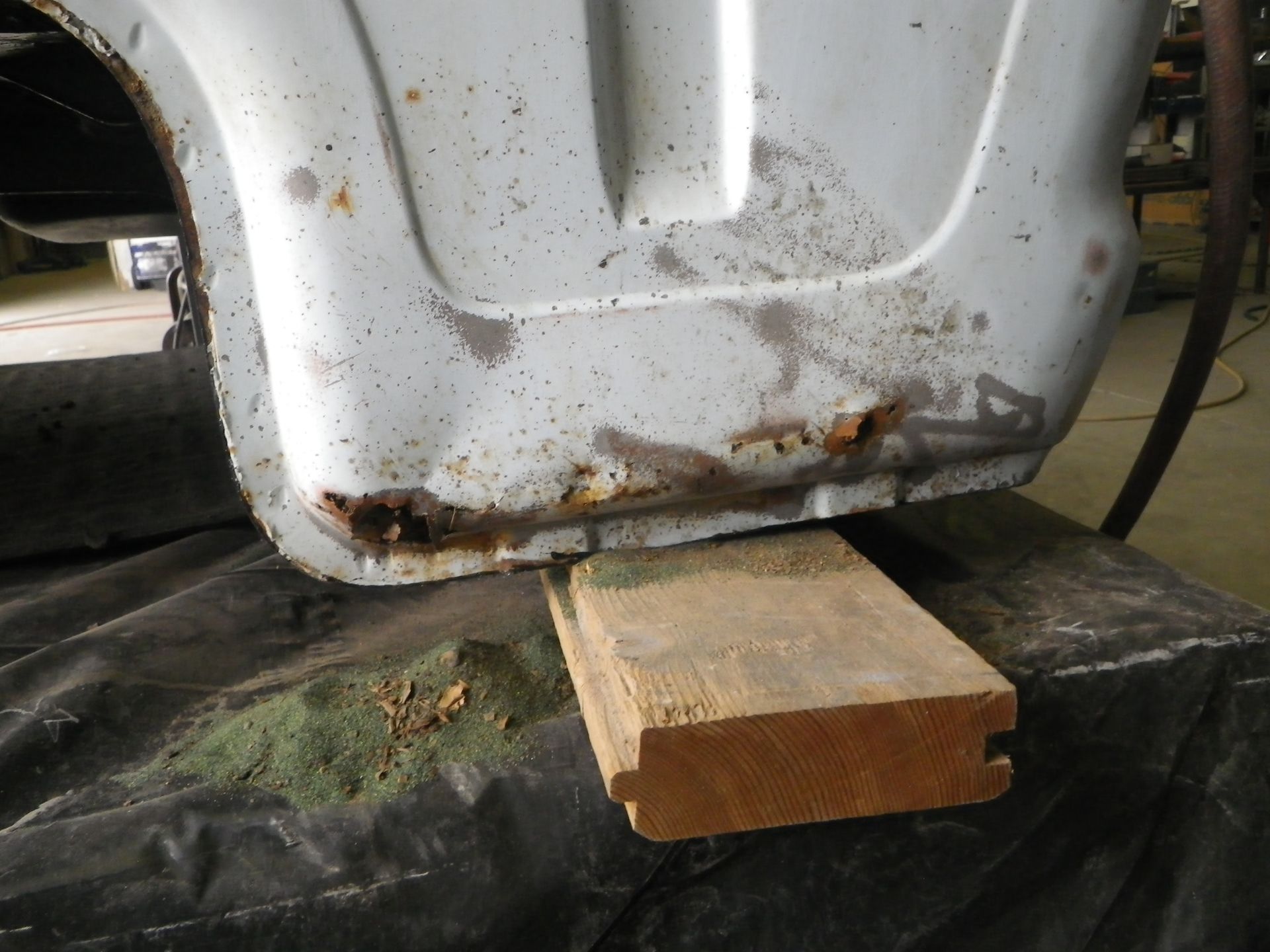

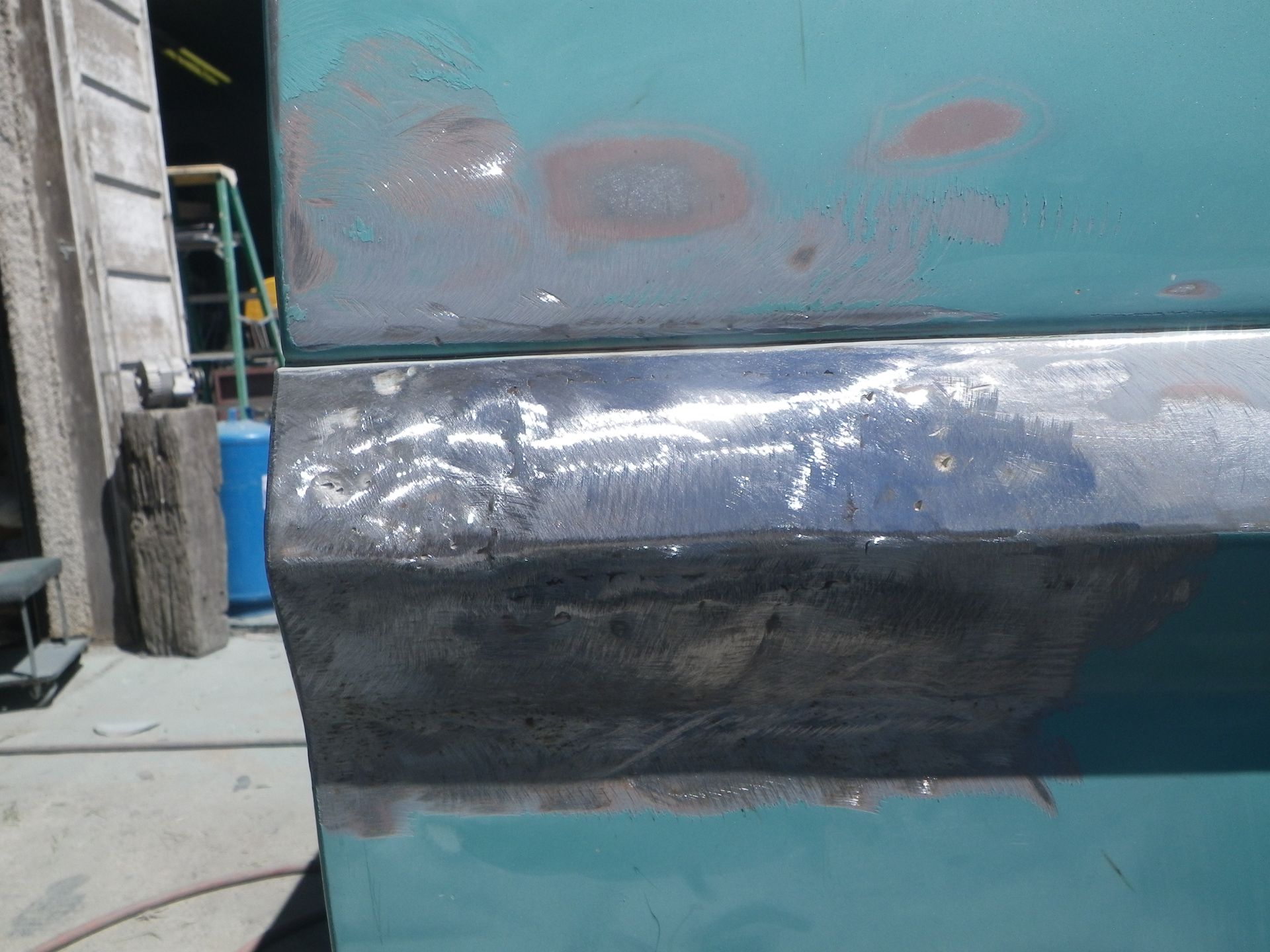

Removed filler to find previous damage, will repair correctly and weld holes.

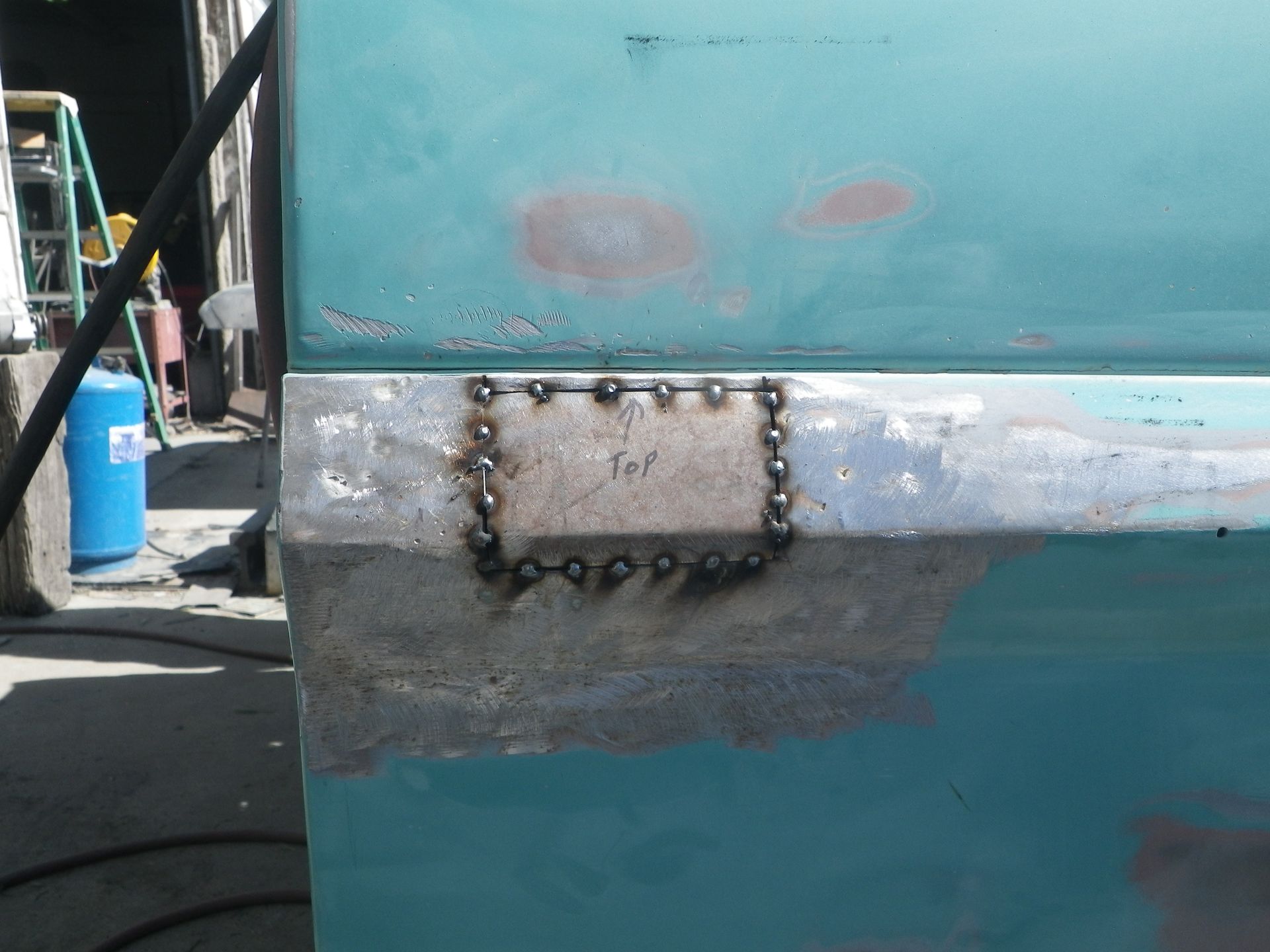

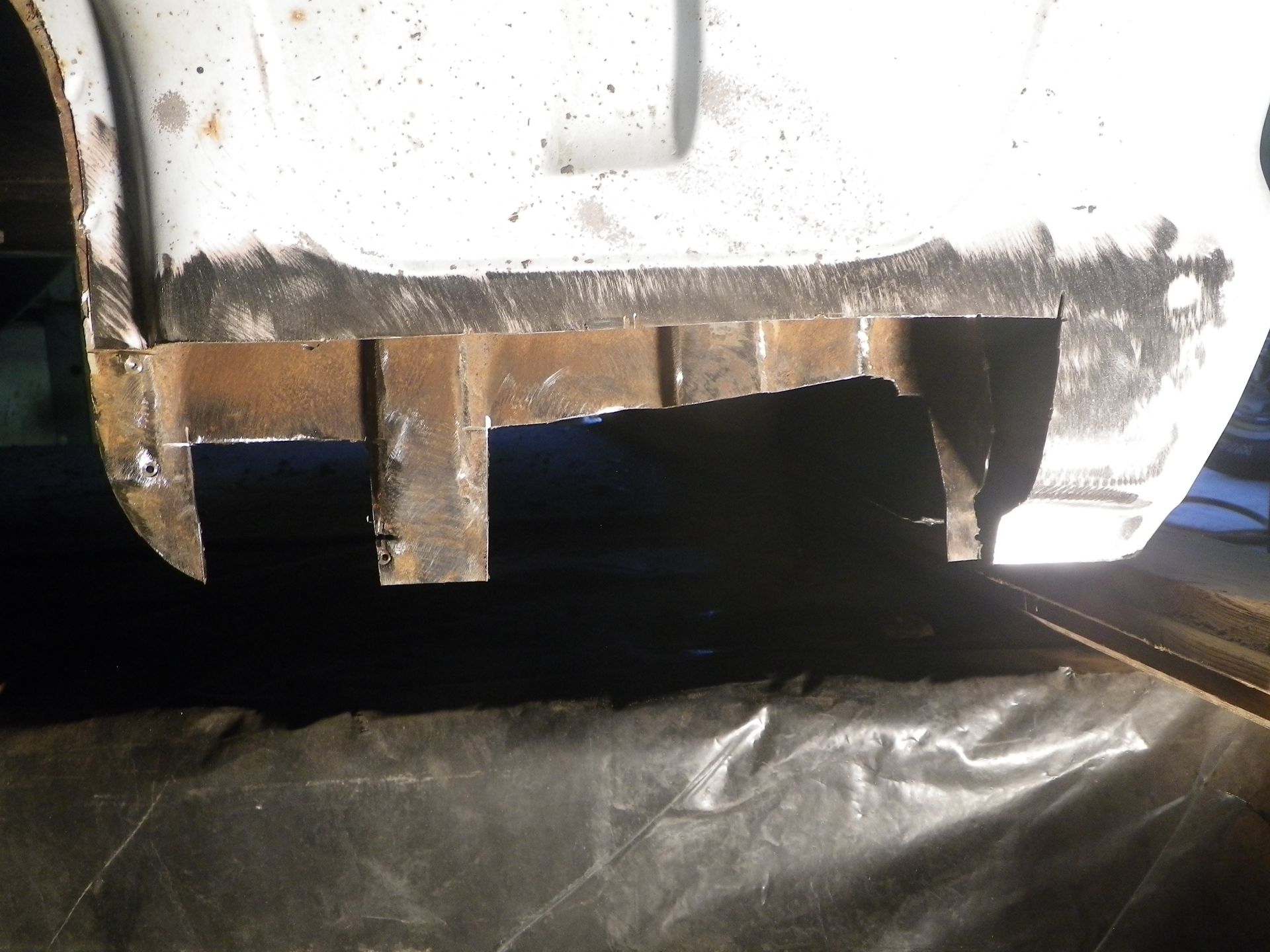

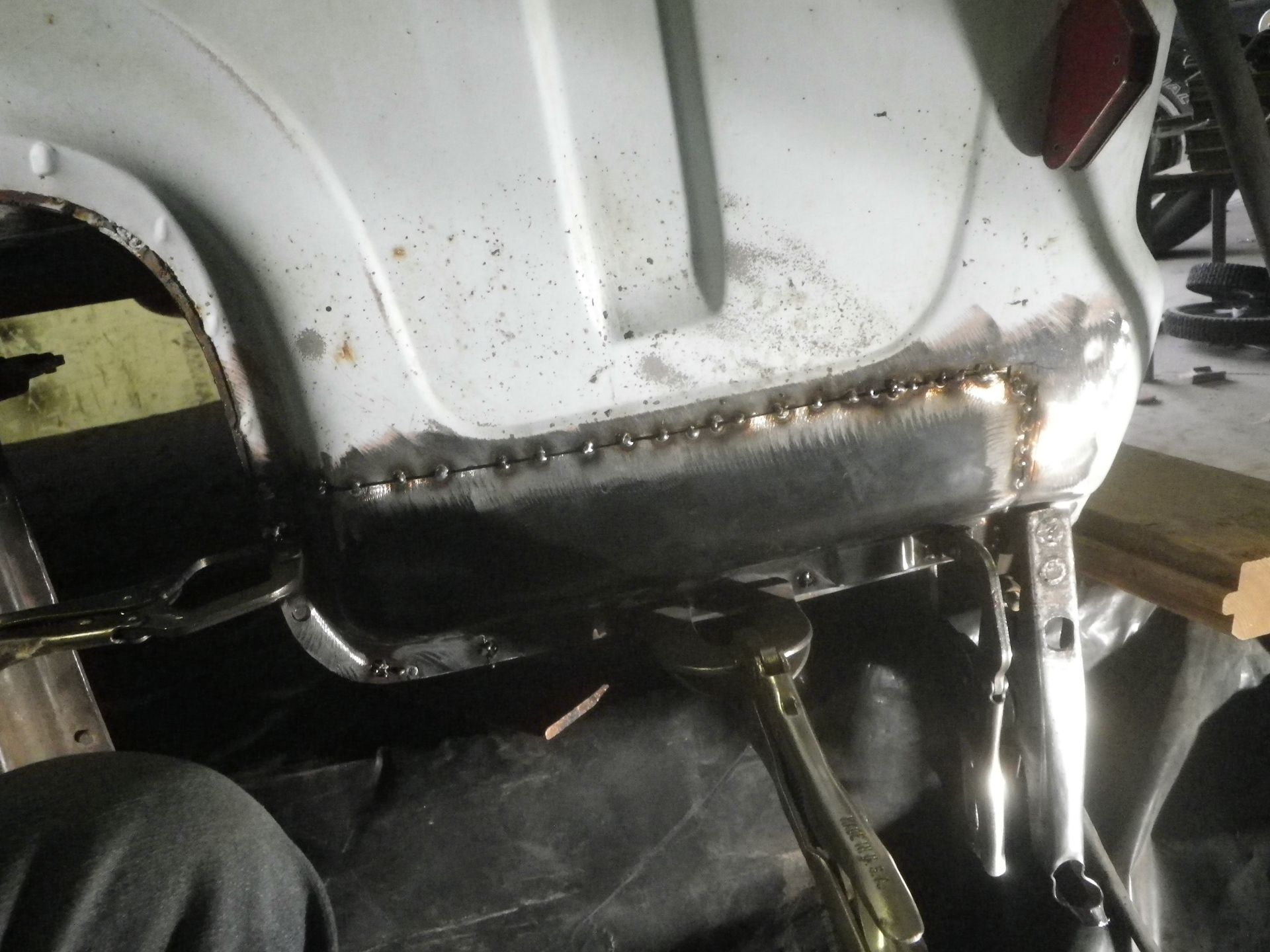

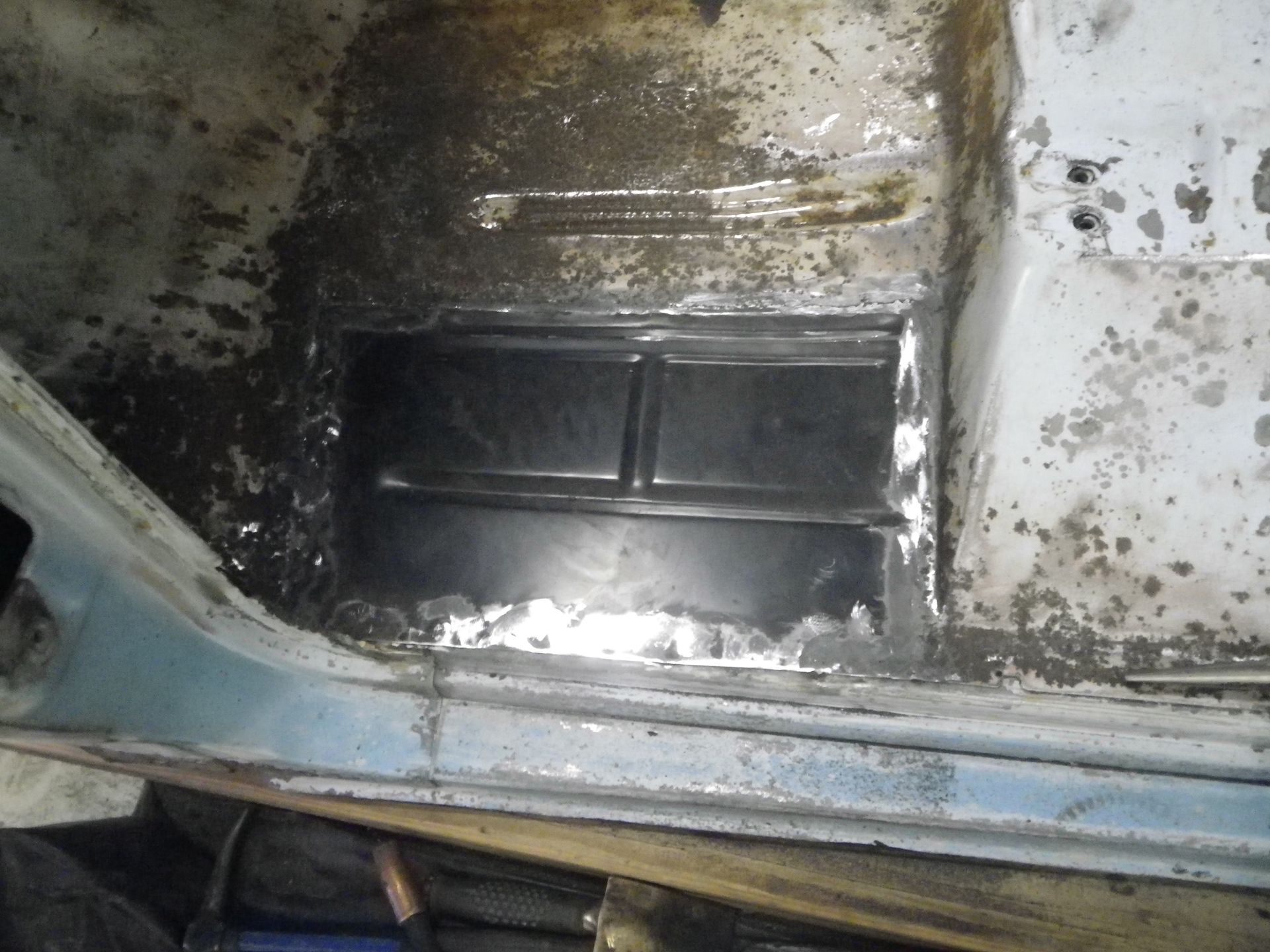

Tack welded in place.

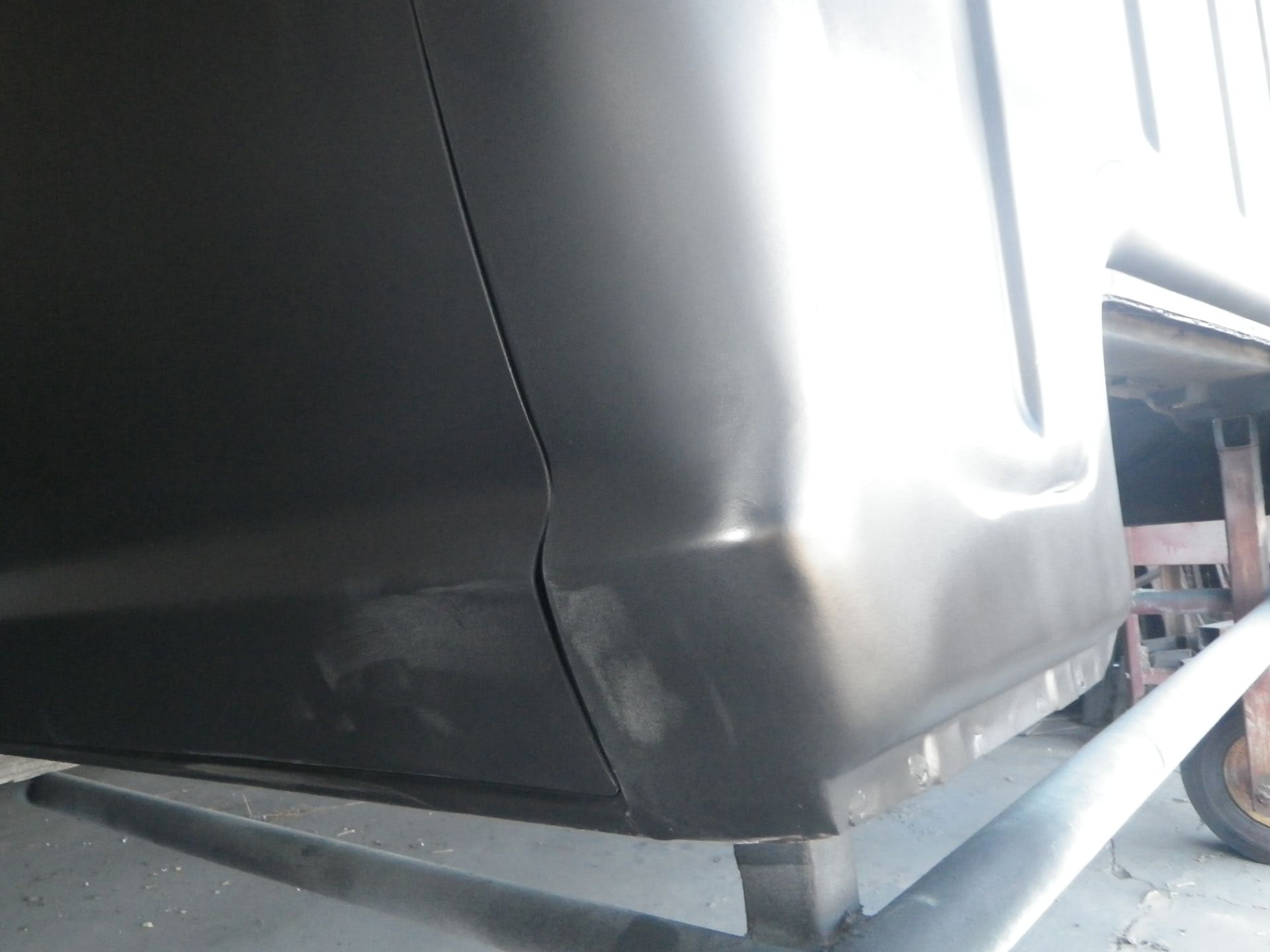

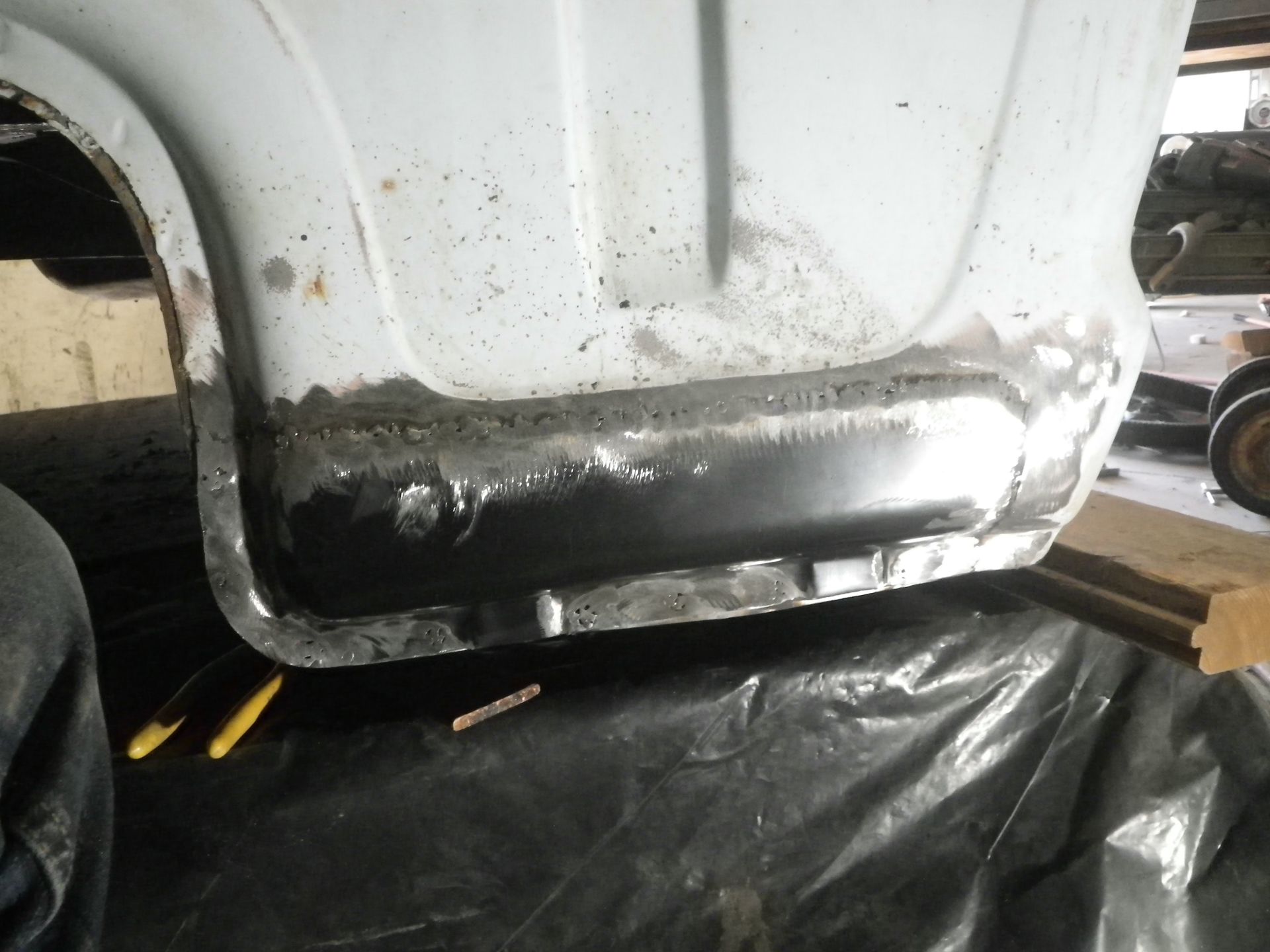

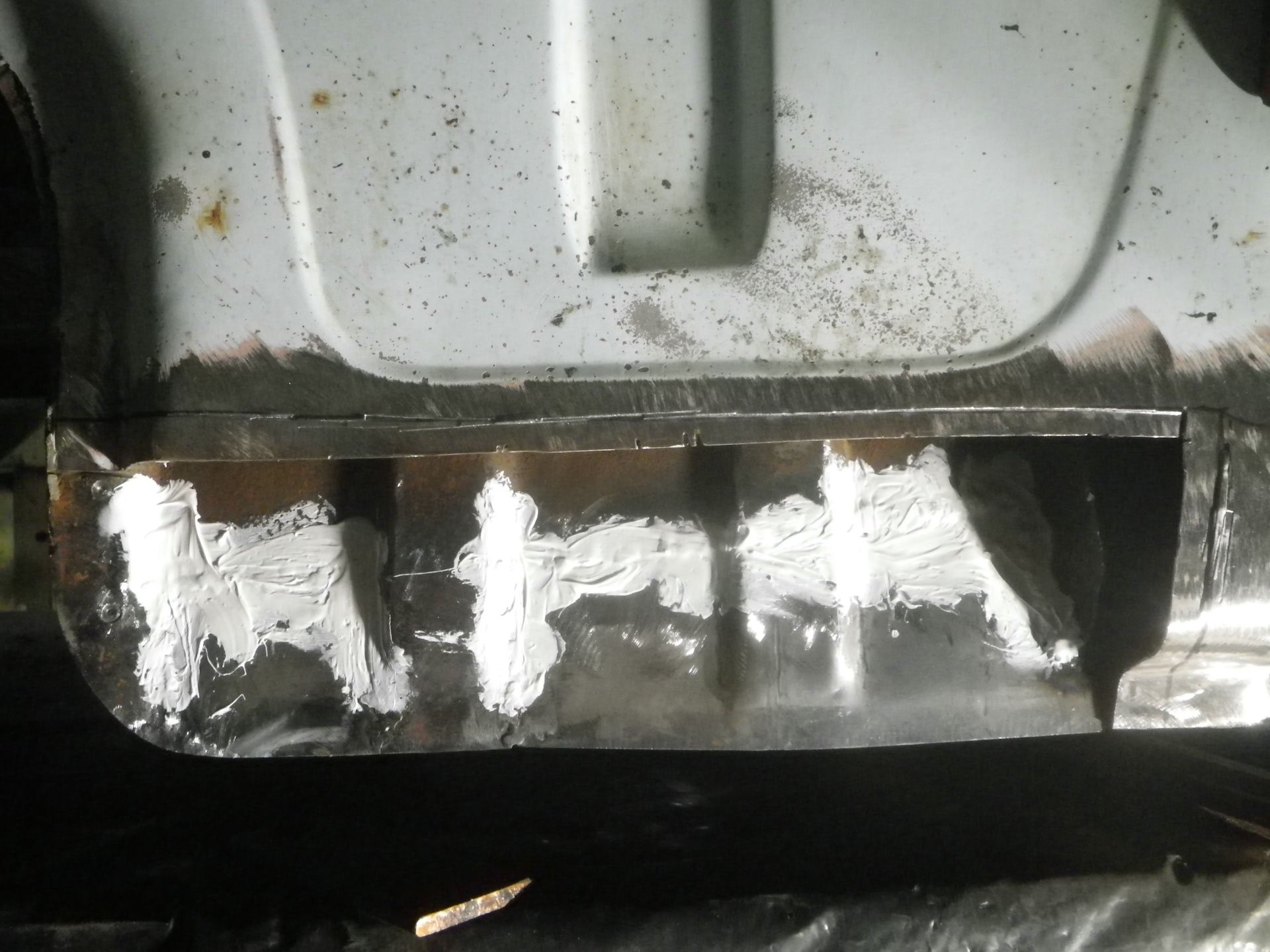

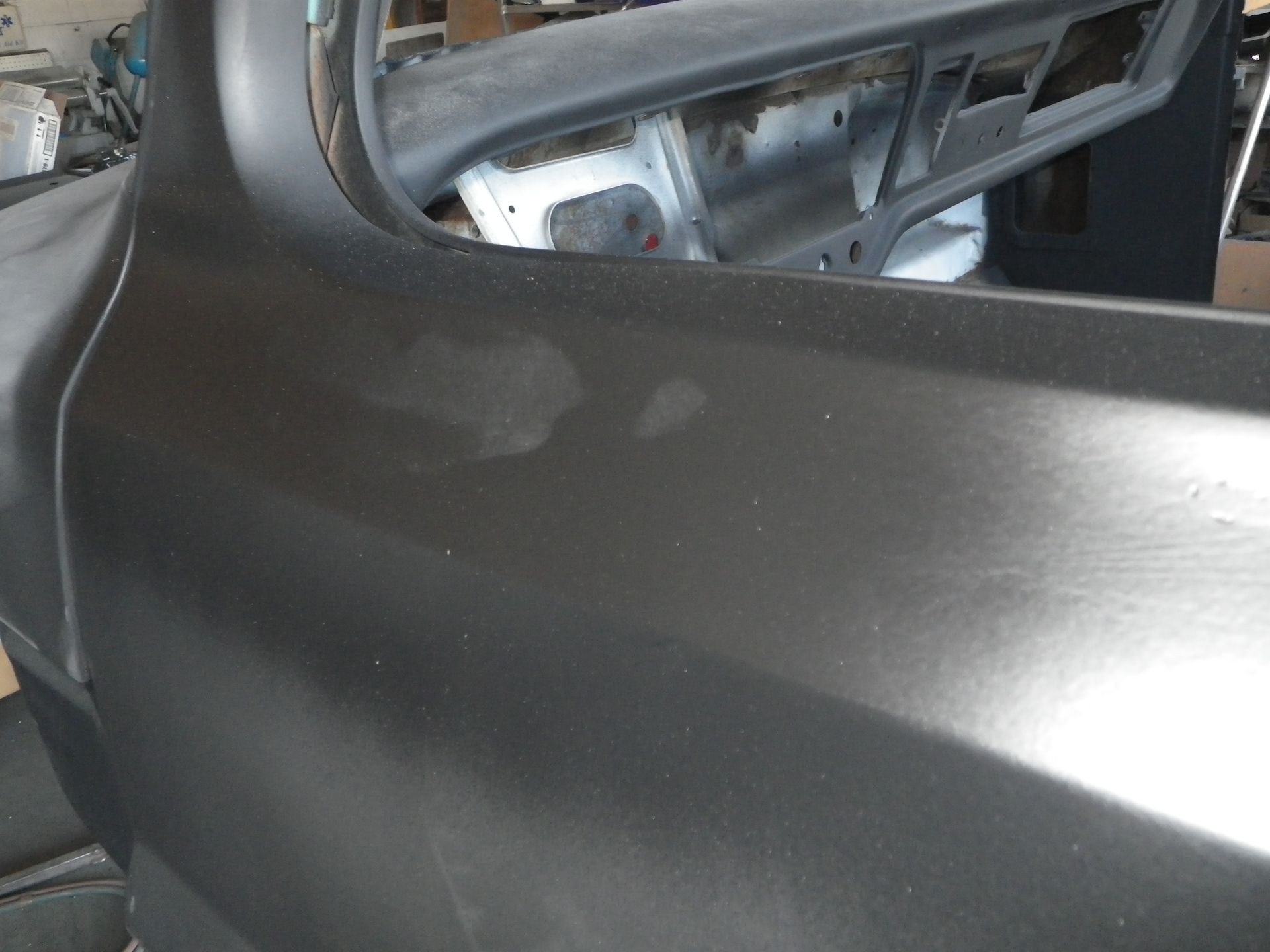

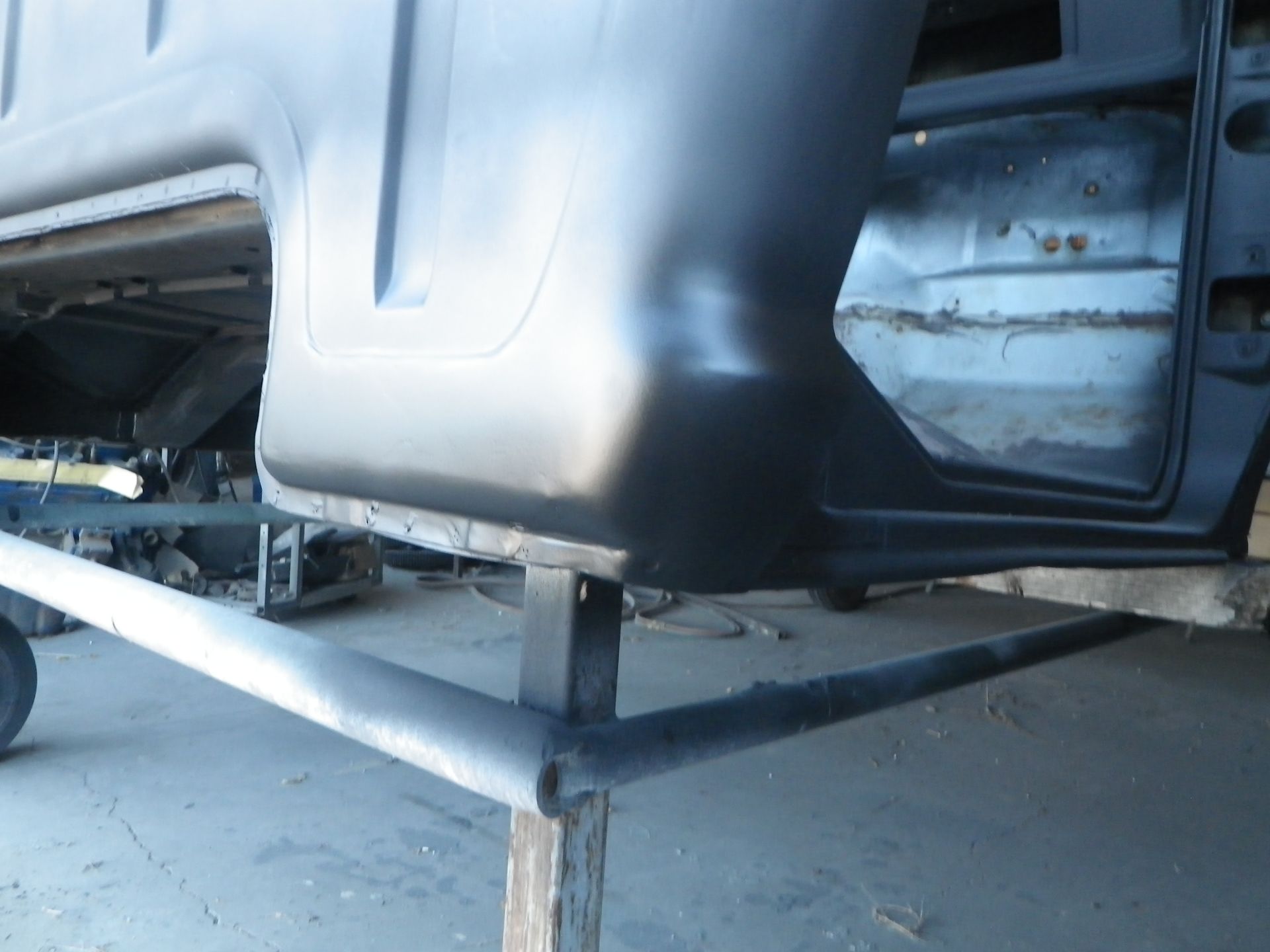

Smoothed all the welds

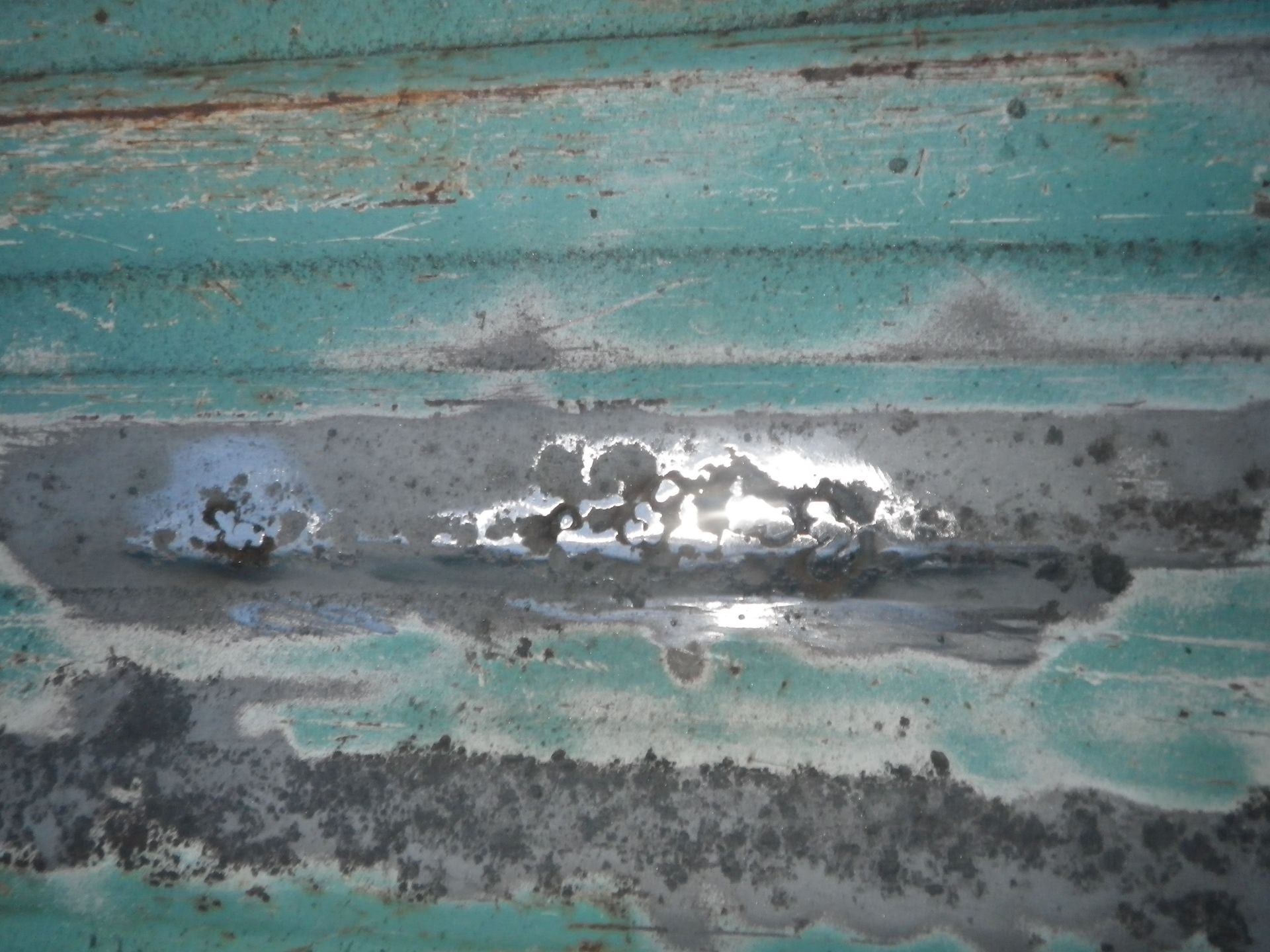

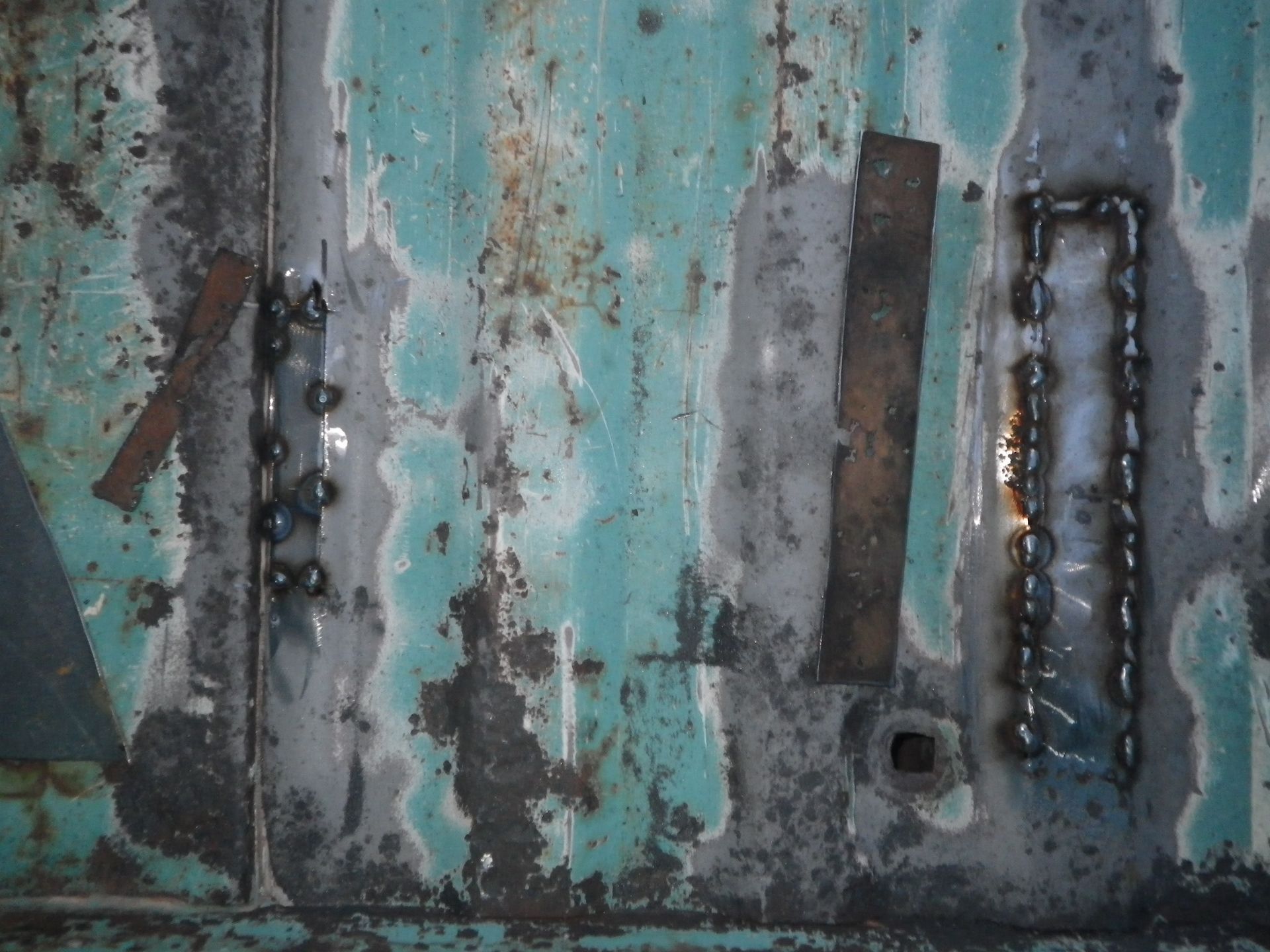

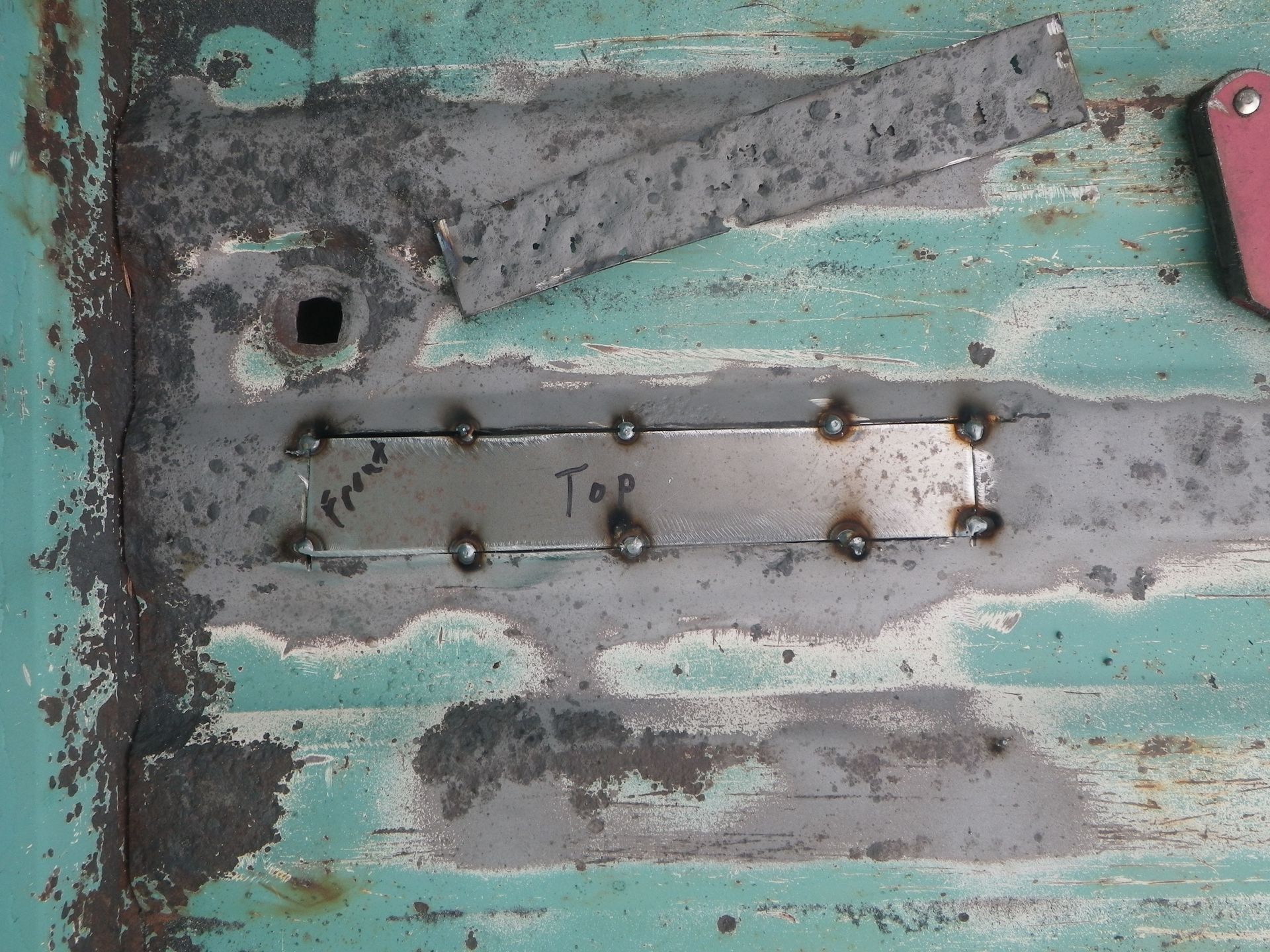

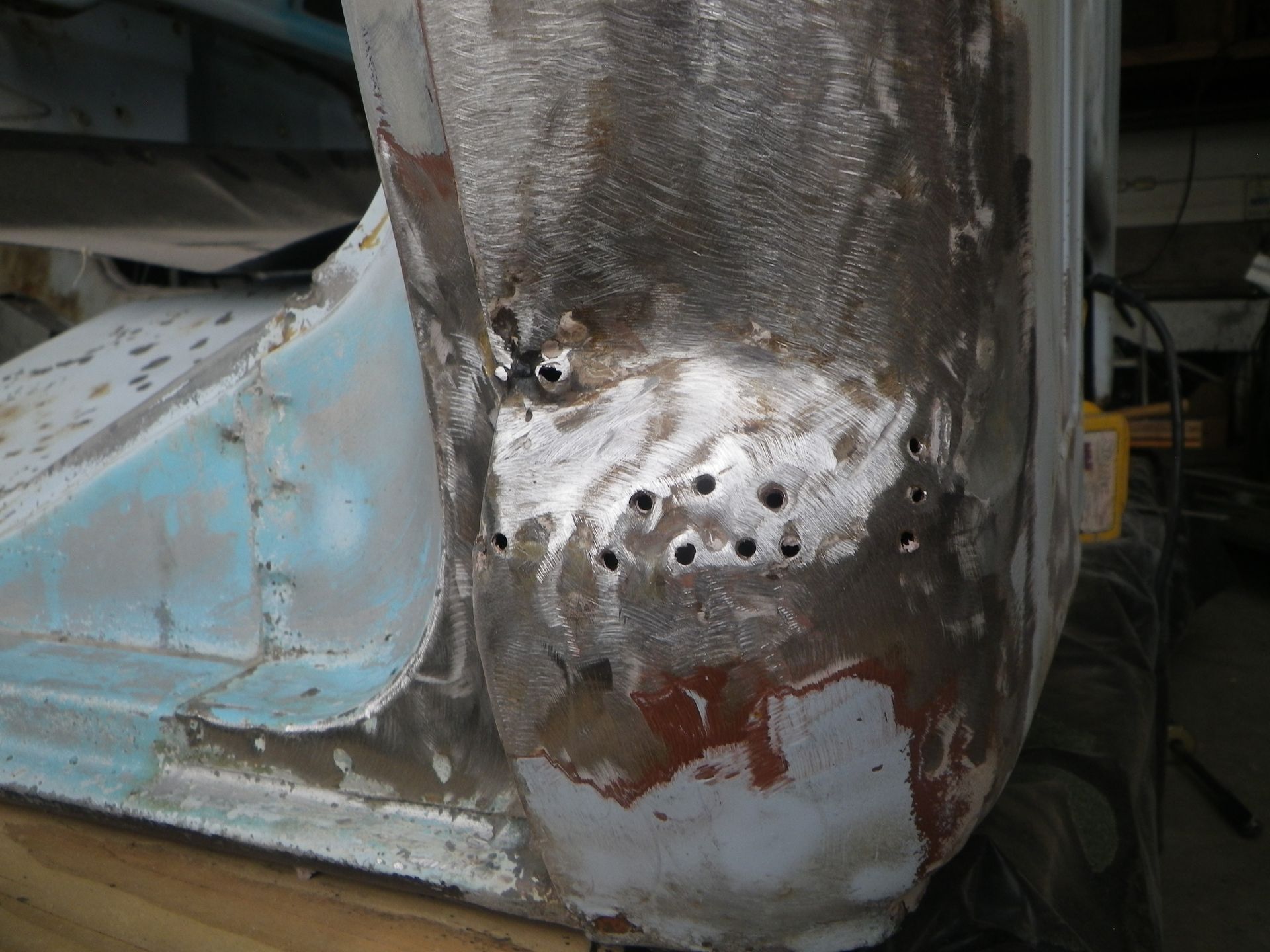

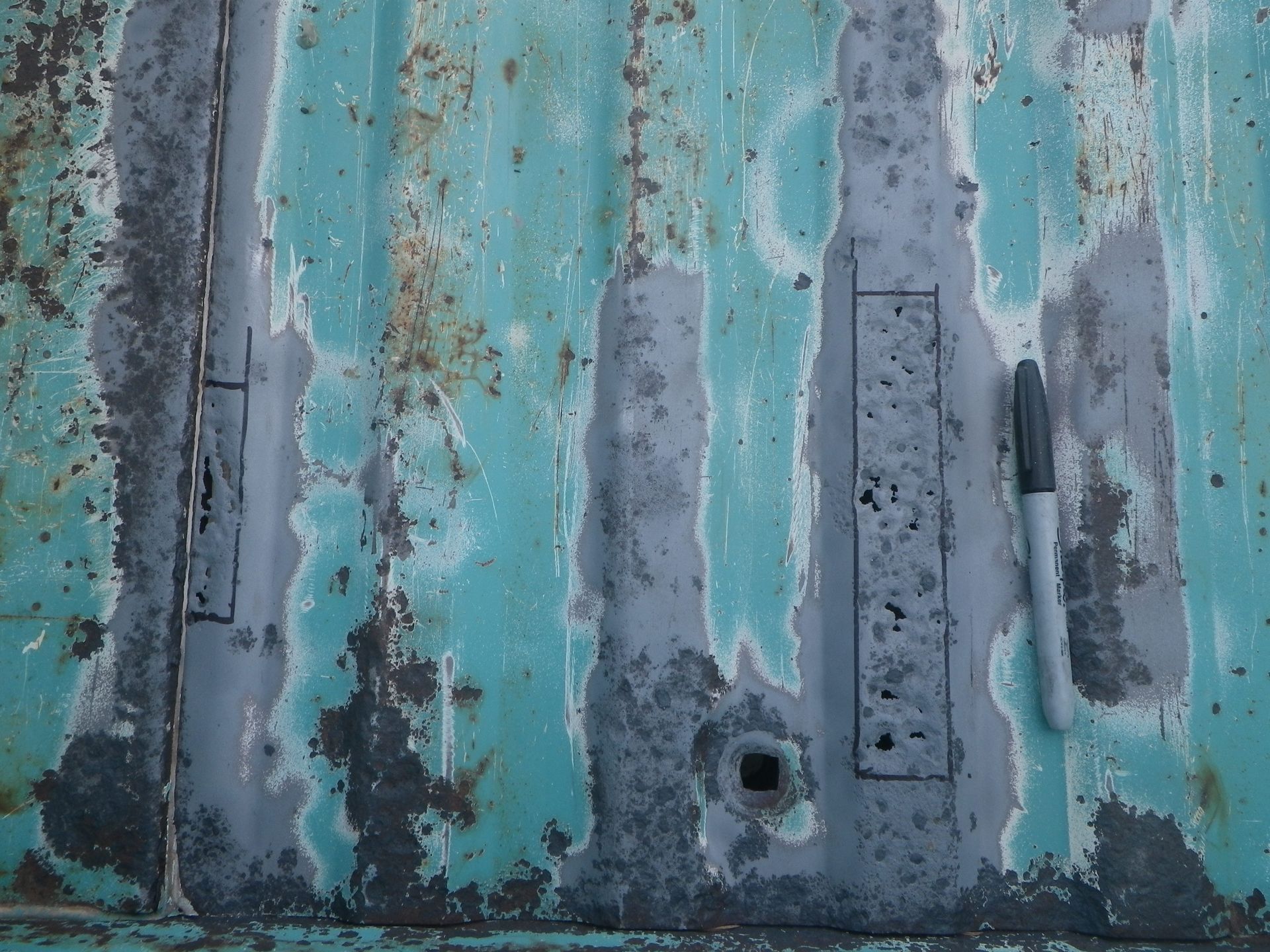

Straightened a little and welded the extra holes.

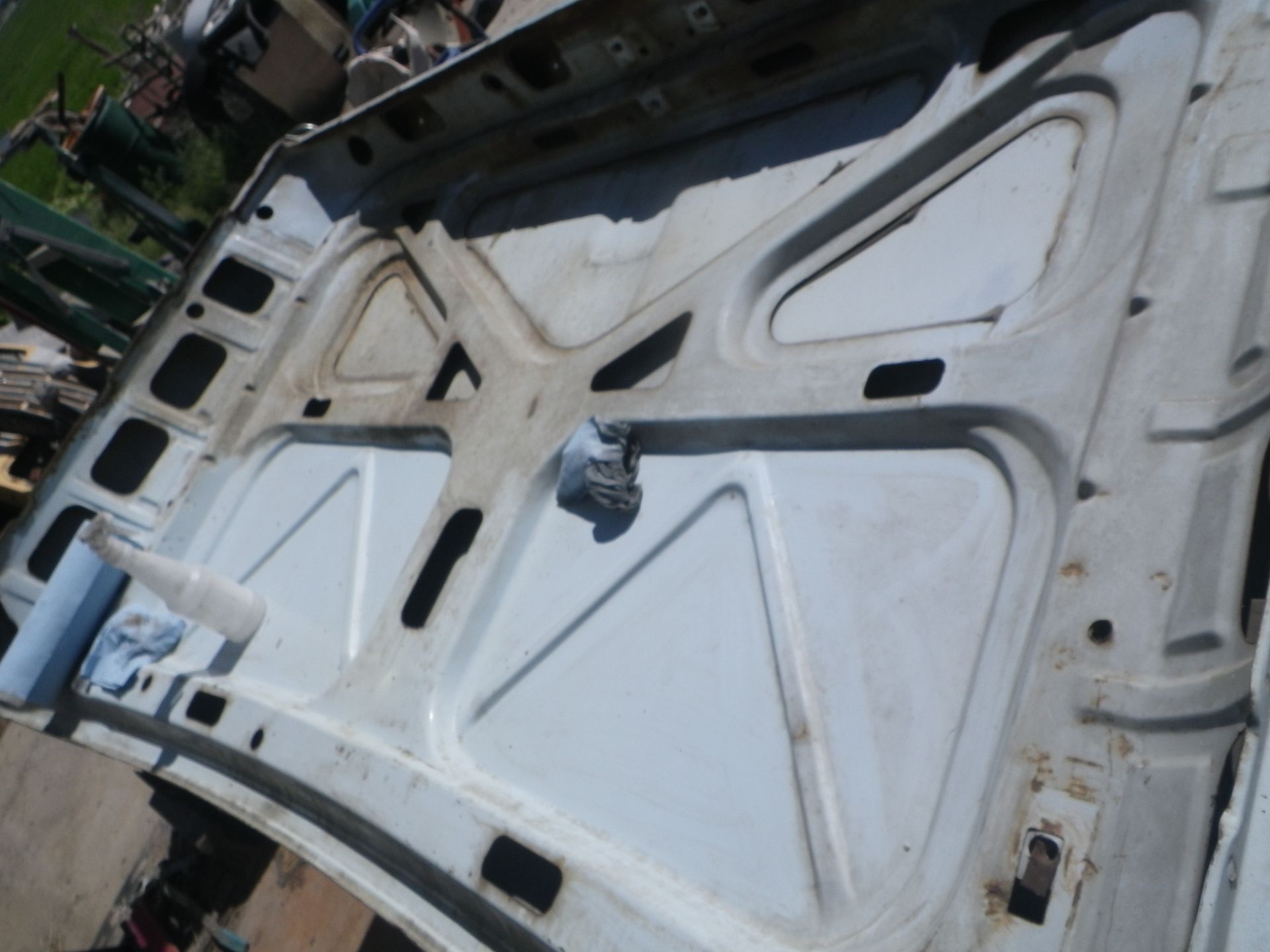

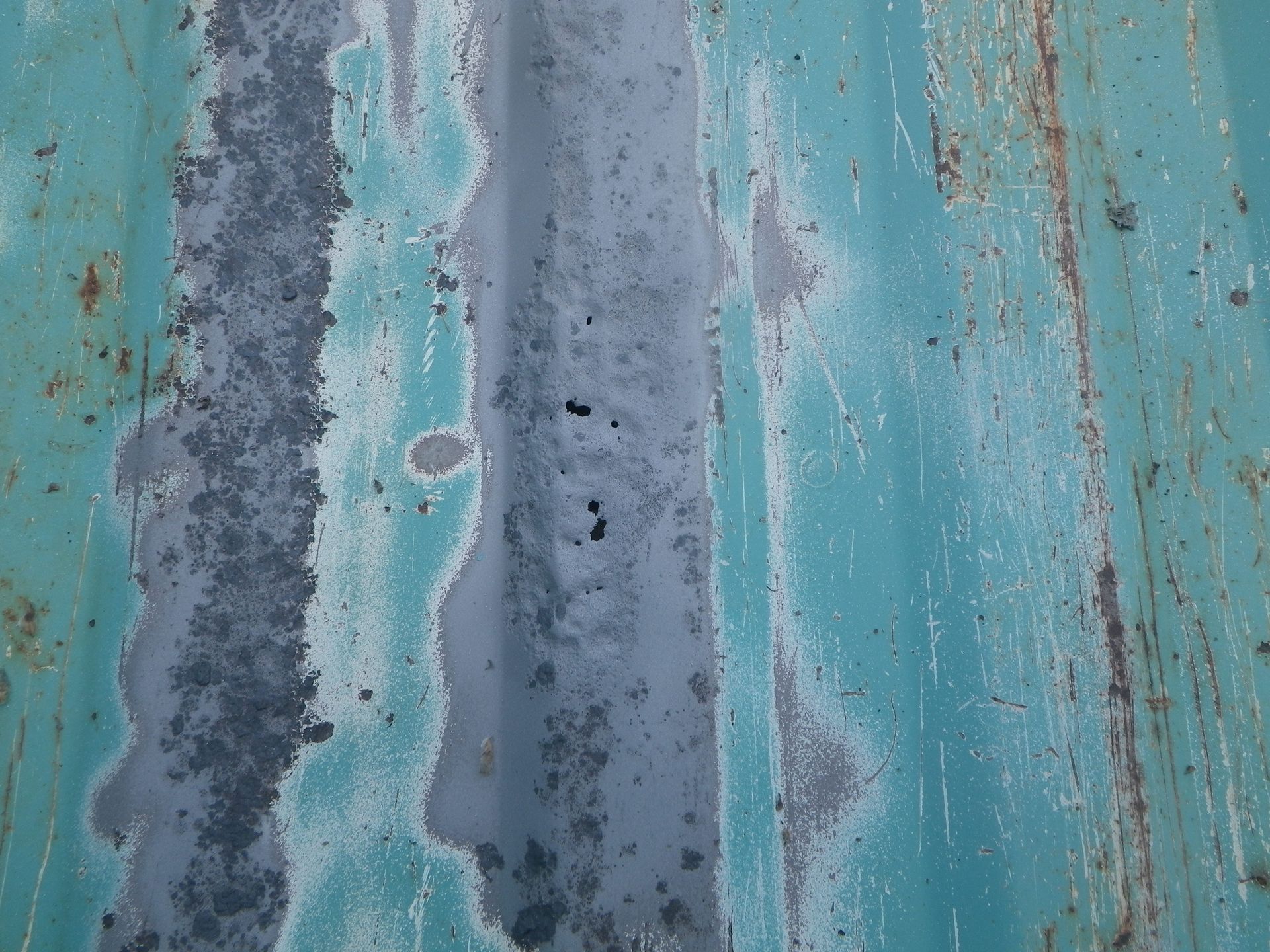

cleaning the inside of hood before sanding

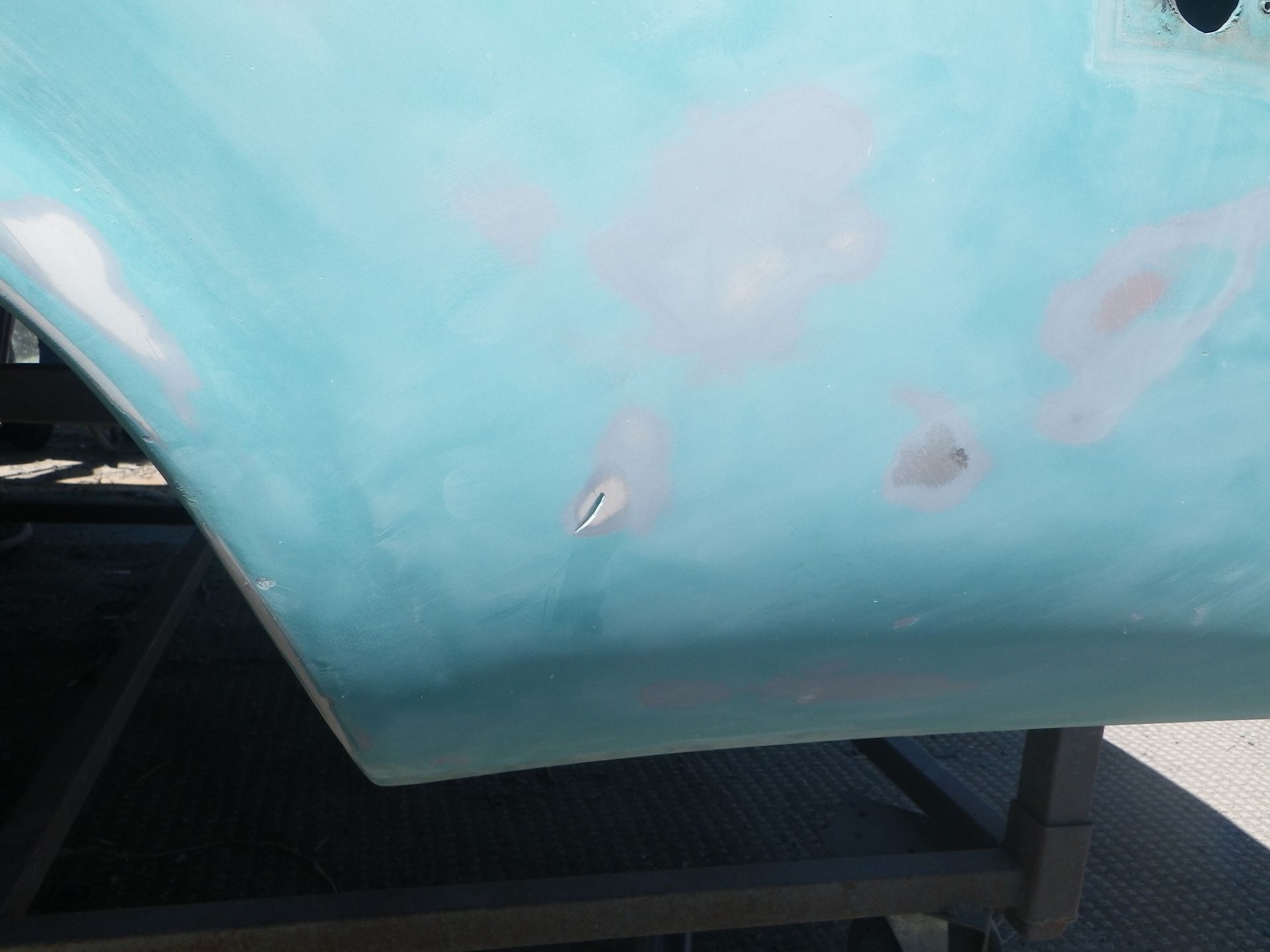

deep gouge and crack

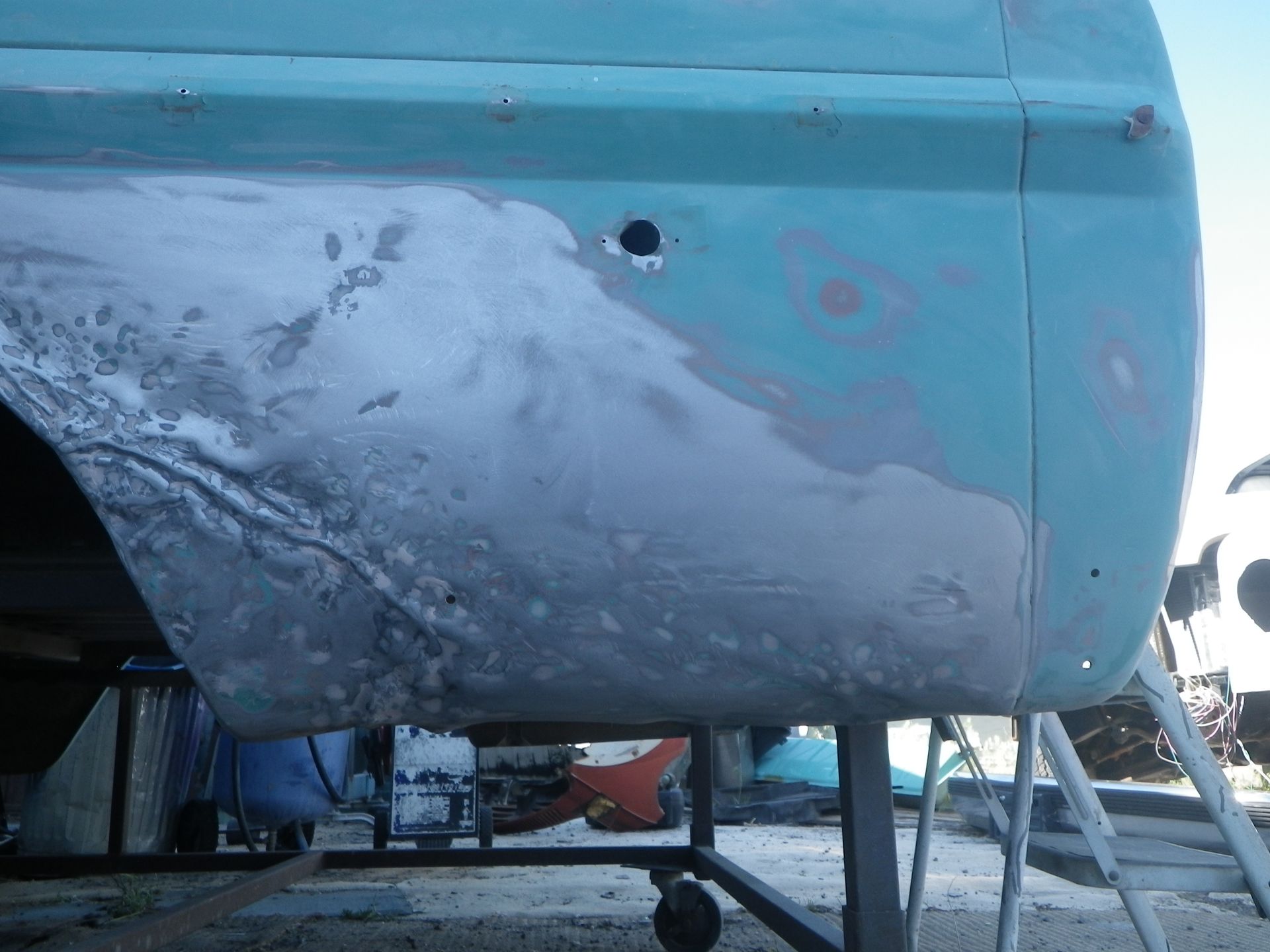

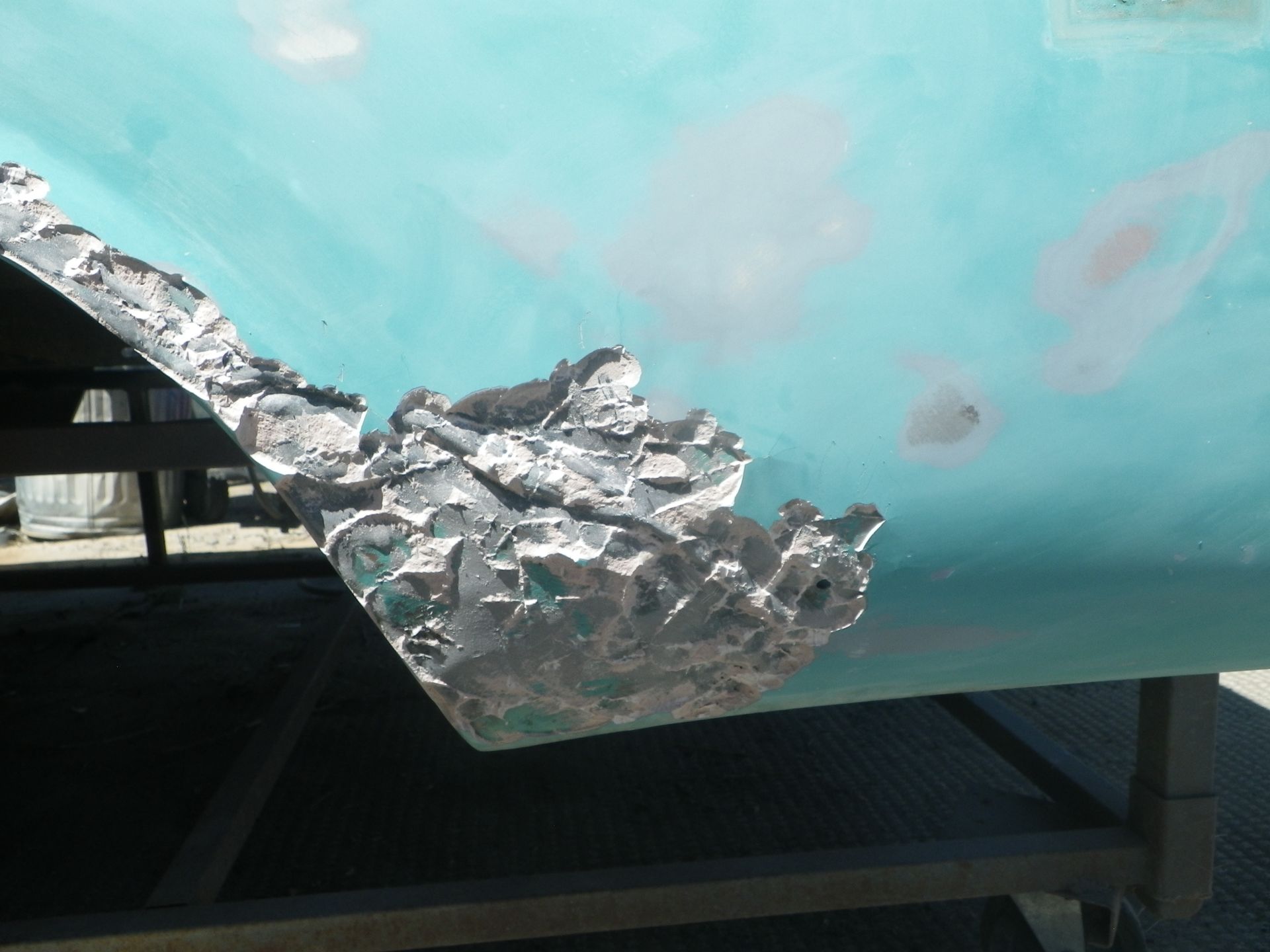

chiseled away, some 1/2 inch thick

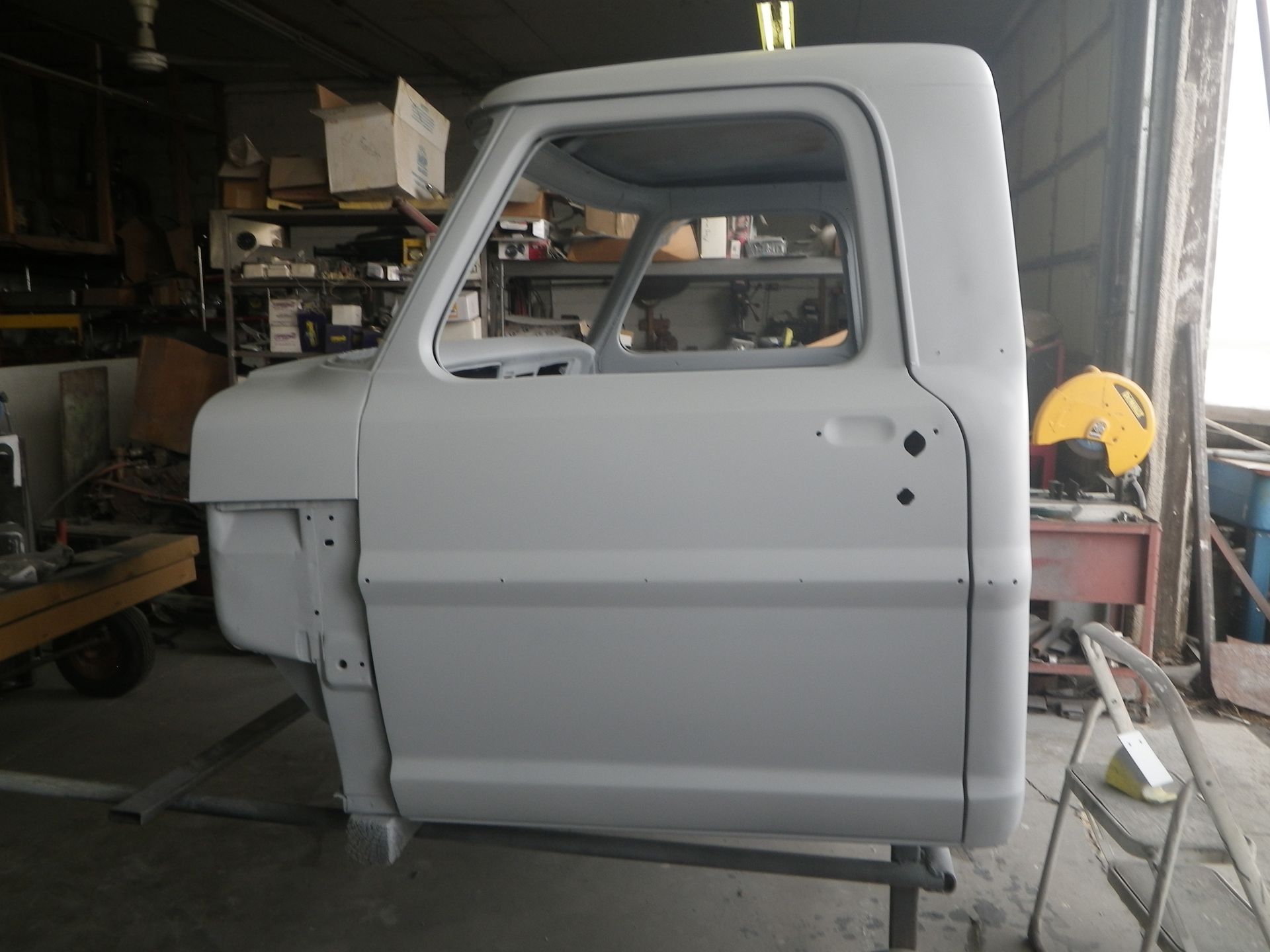

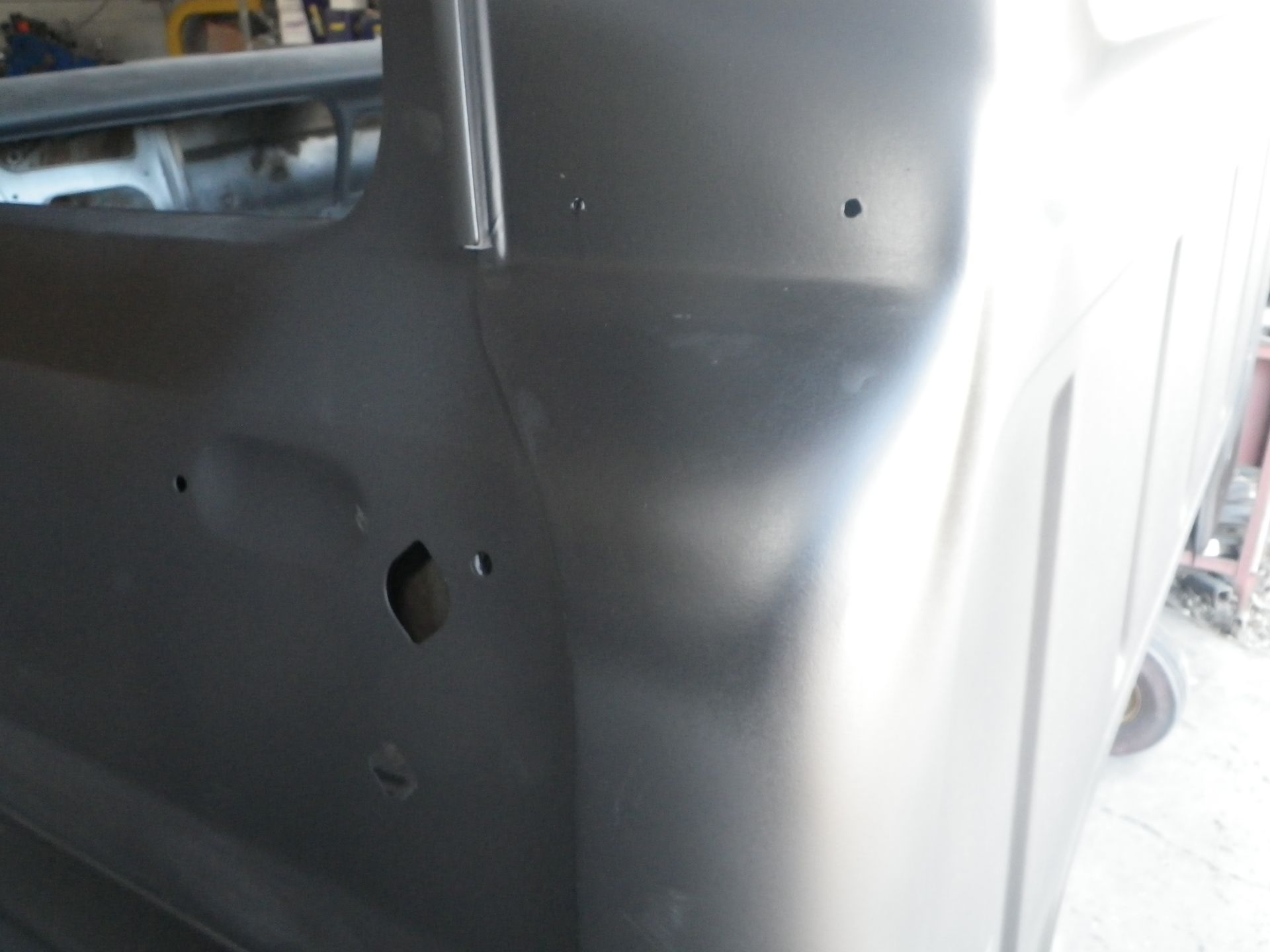

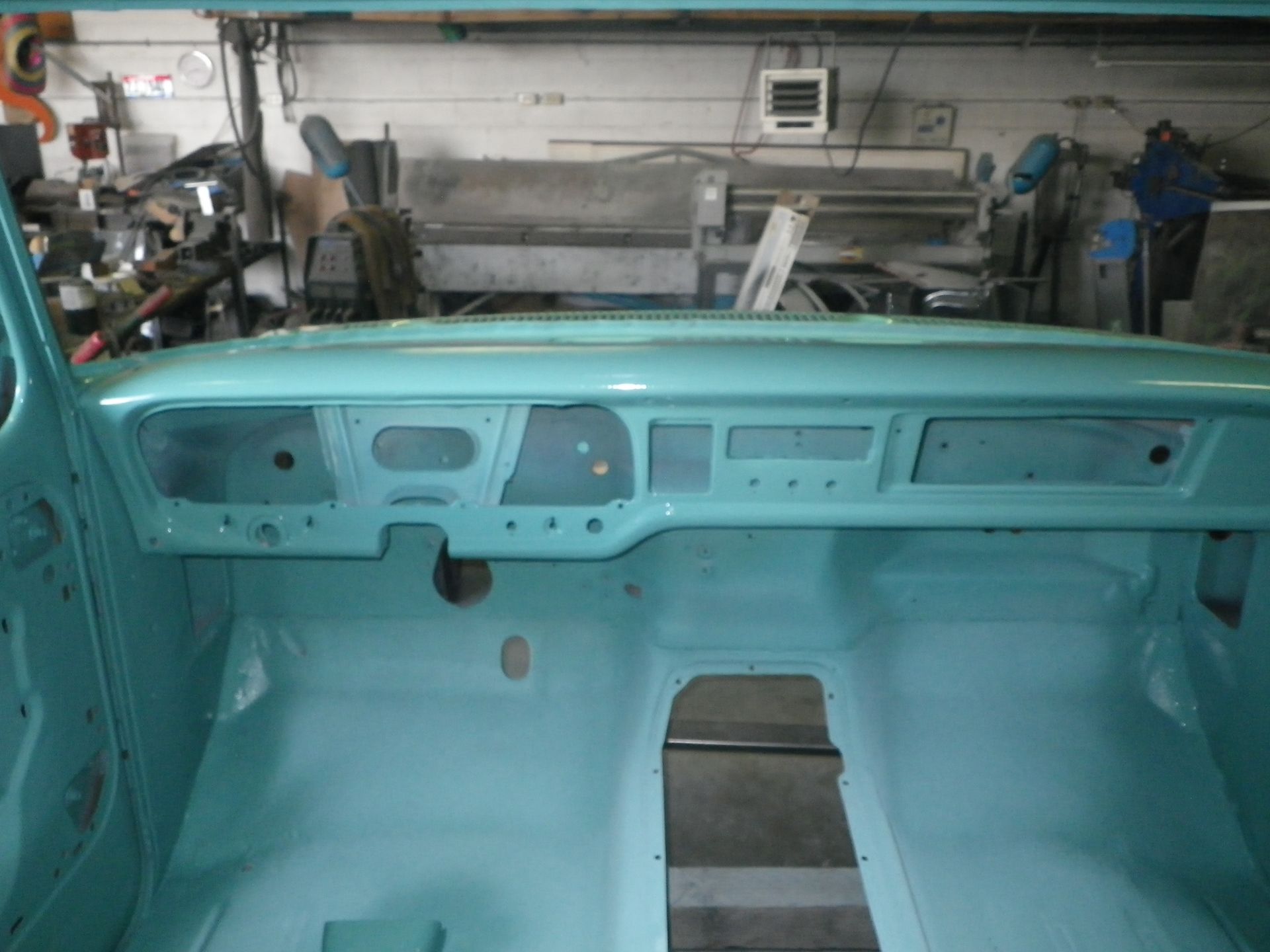

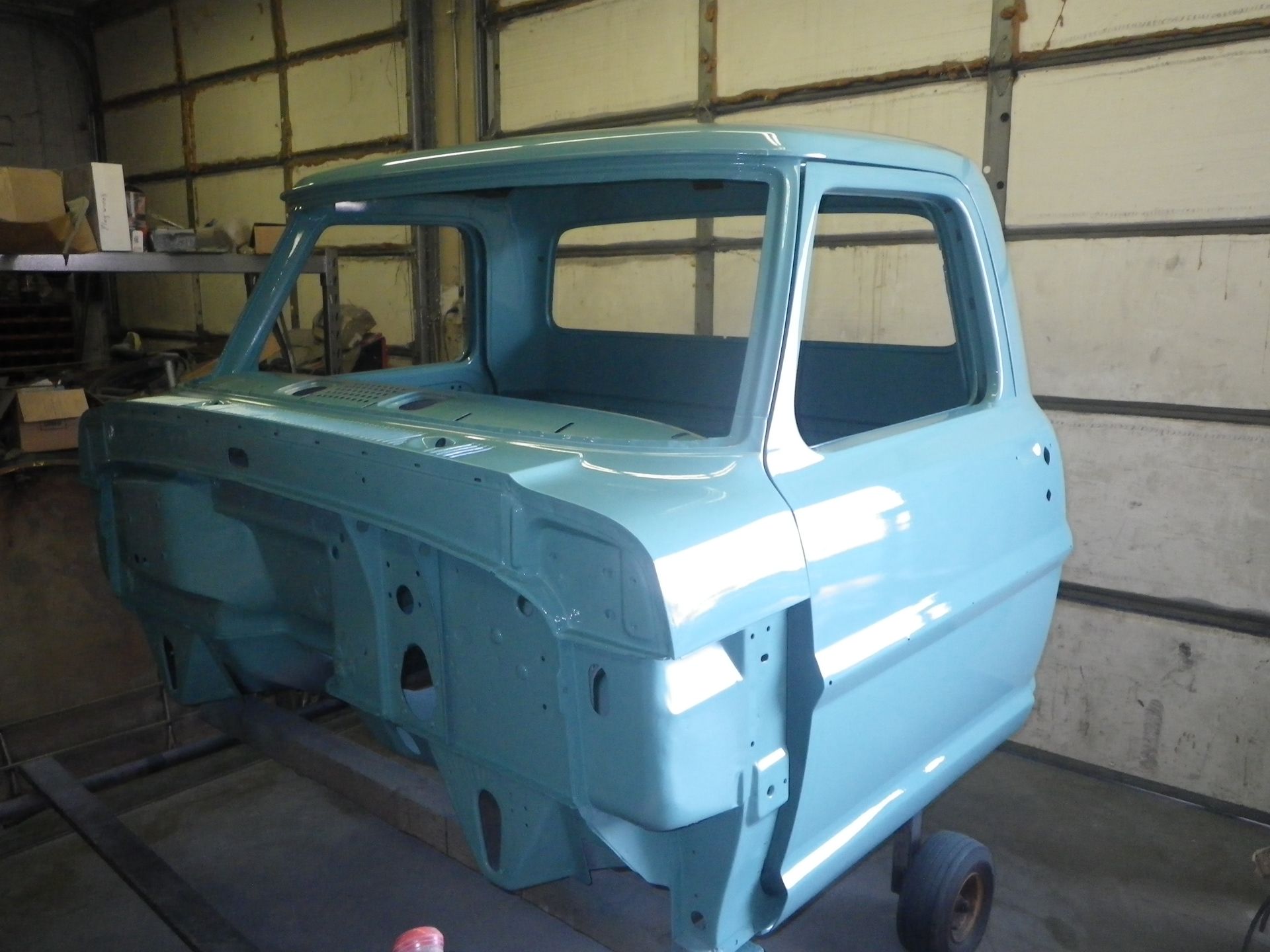

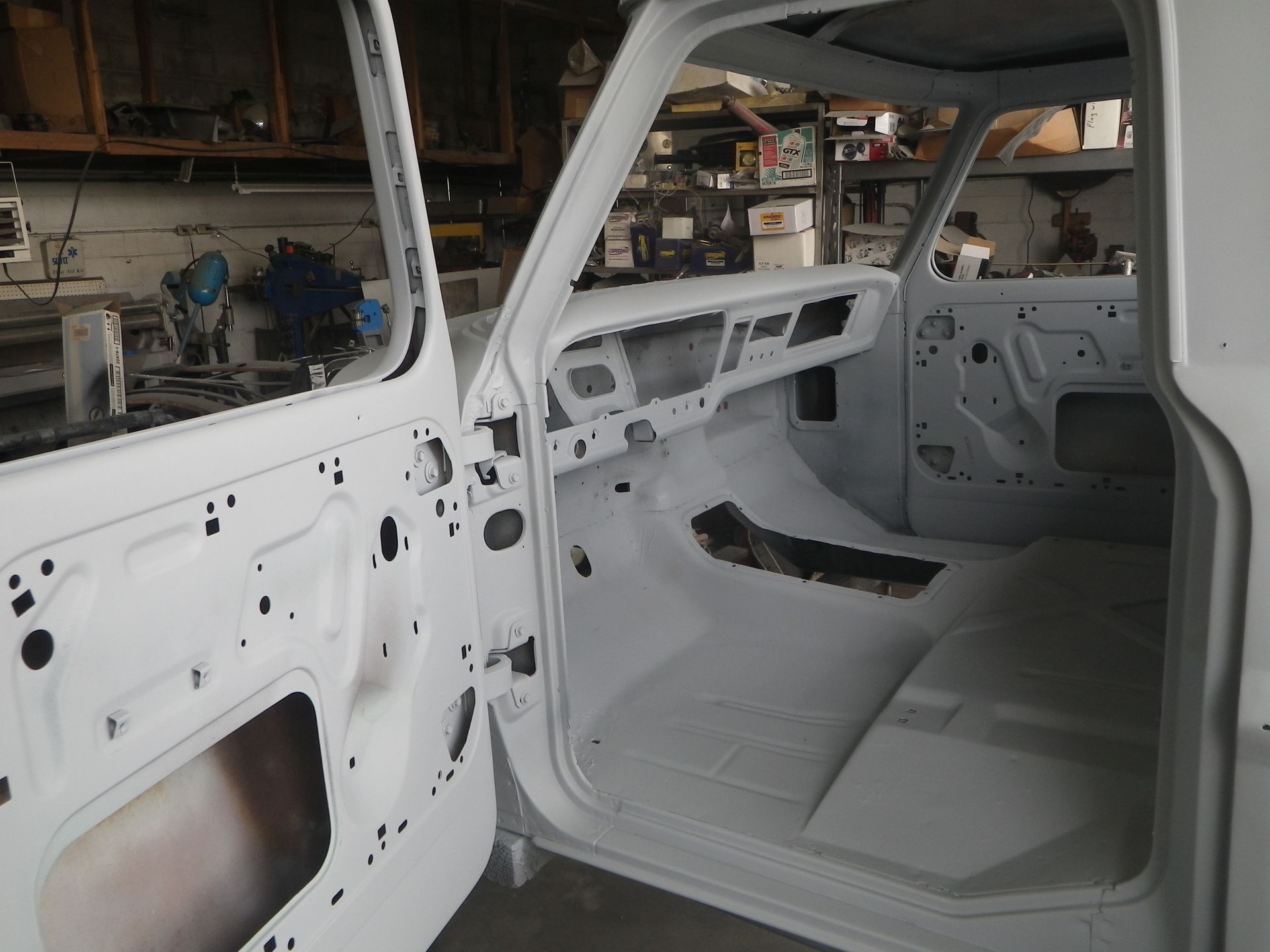

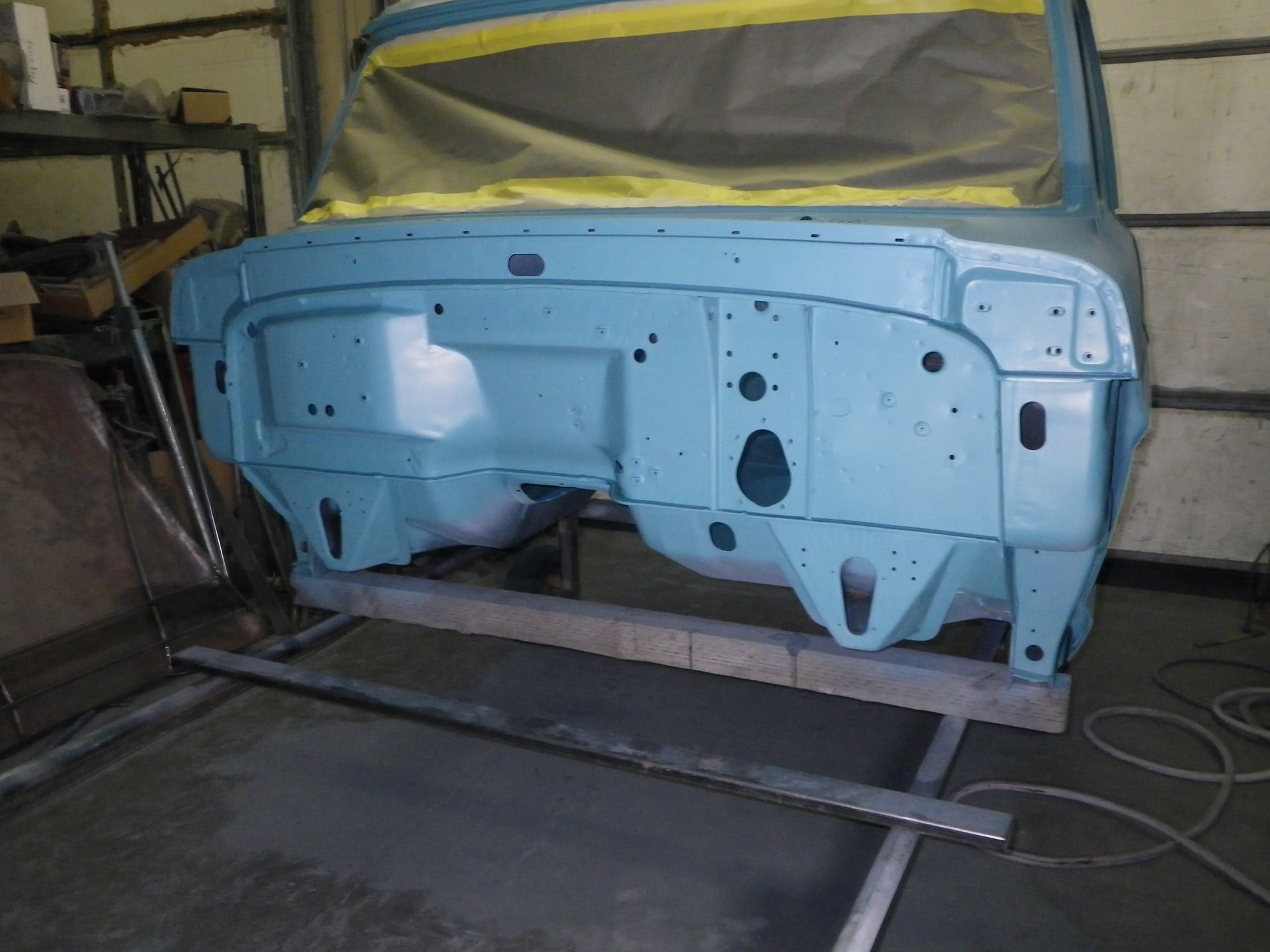

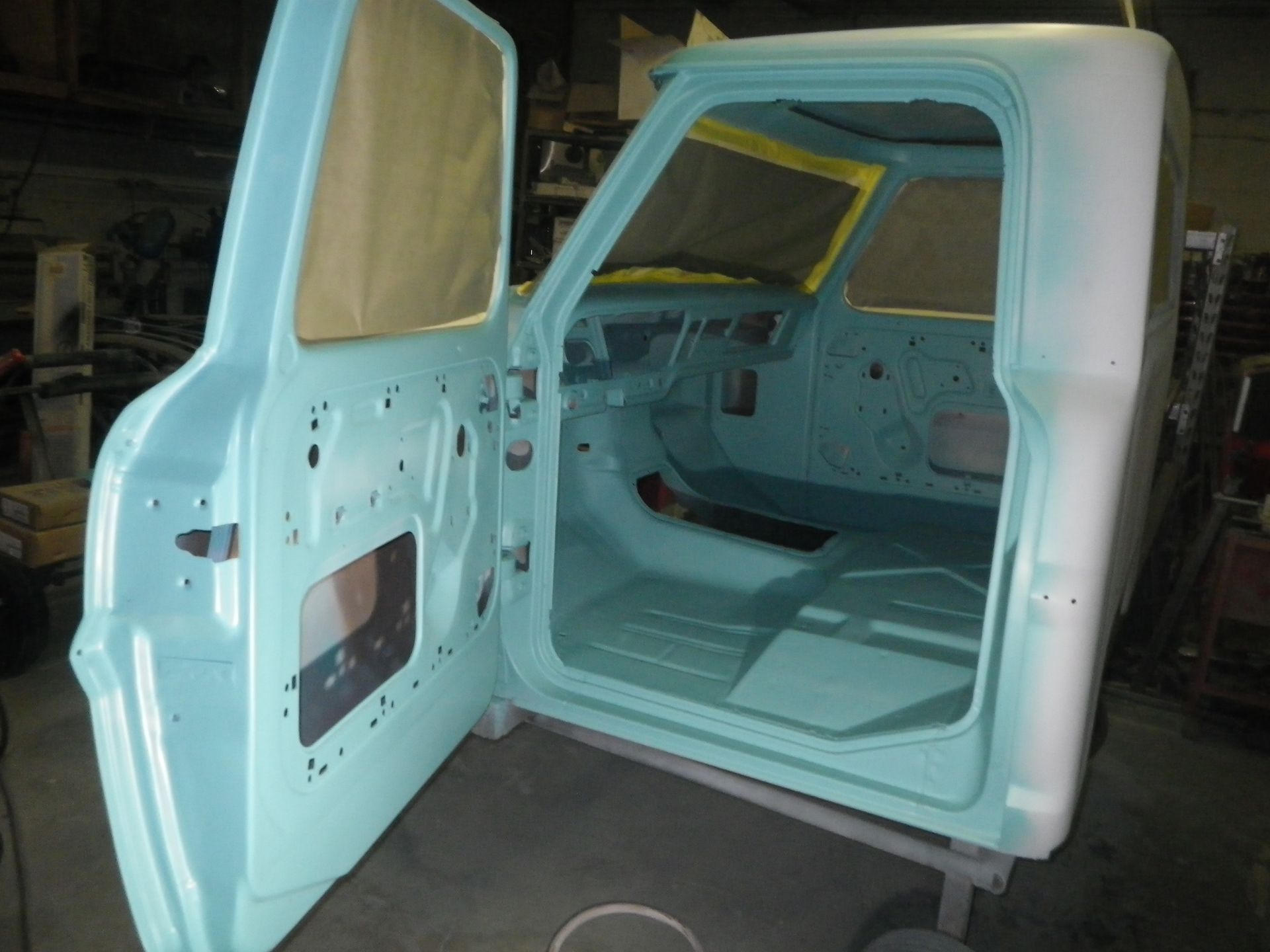

cab painted, inside and out, including ashtray and glove box door

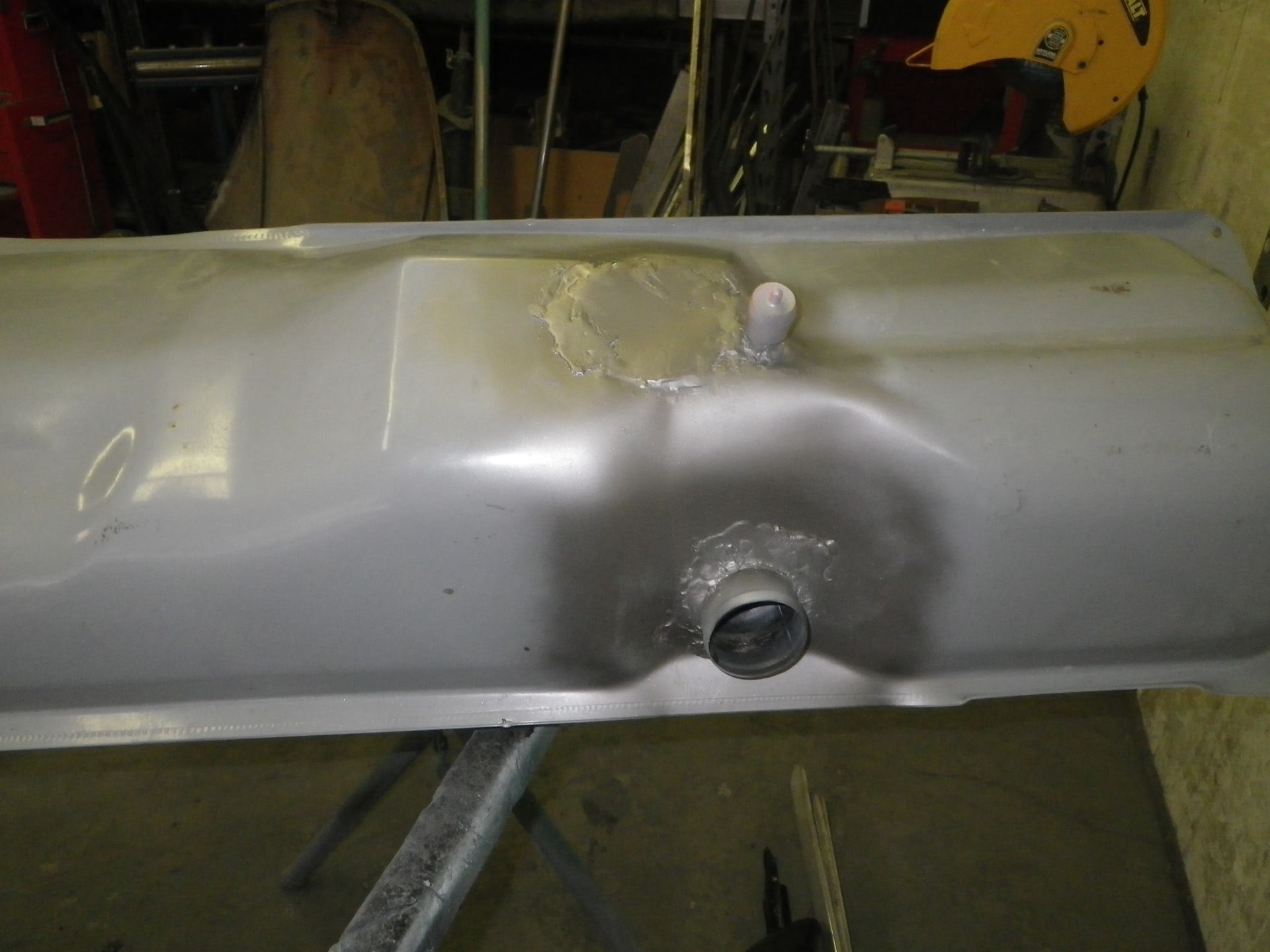

modified gas tank to match factory accecory side tank.

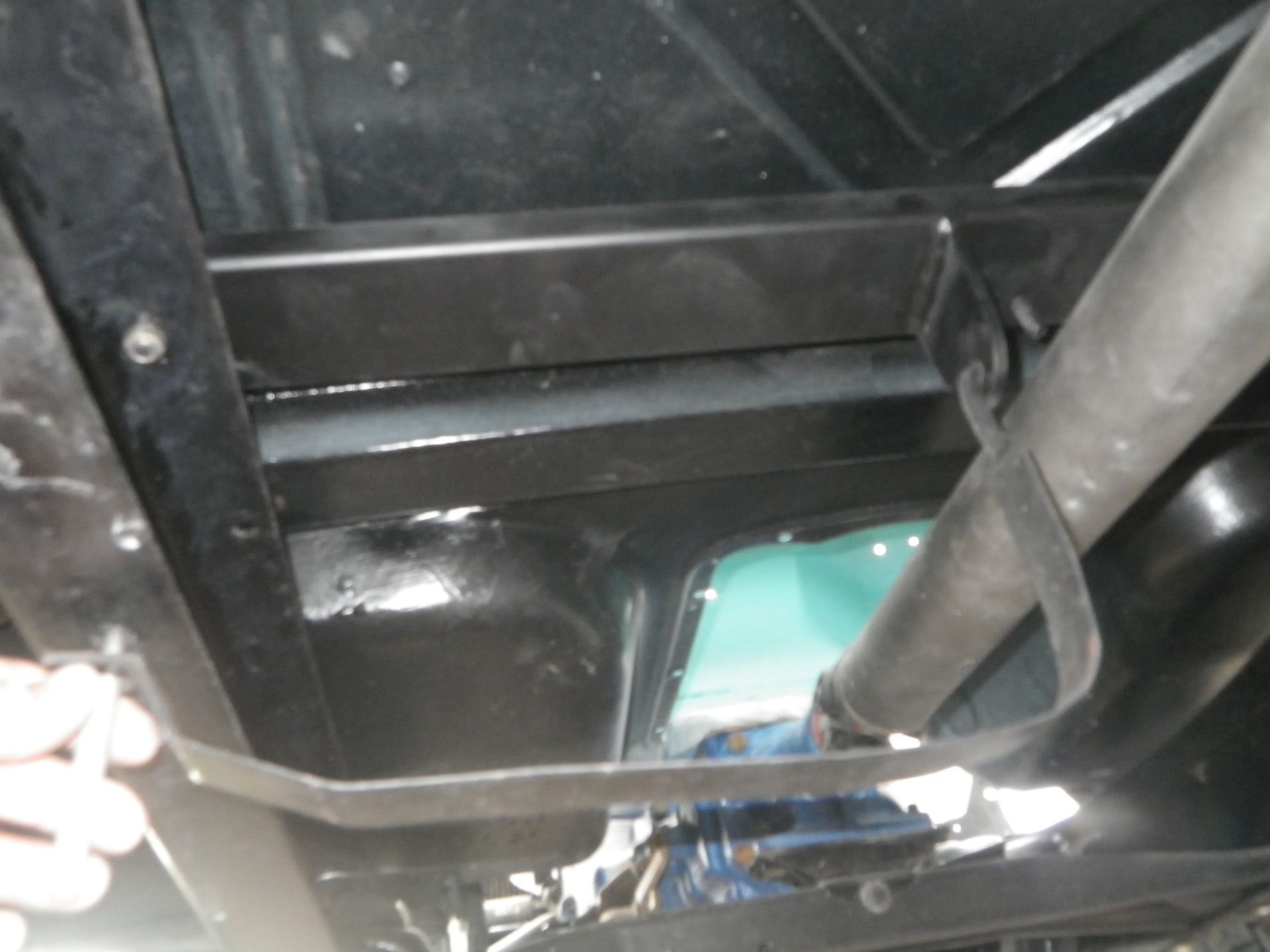

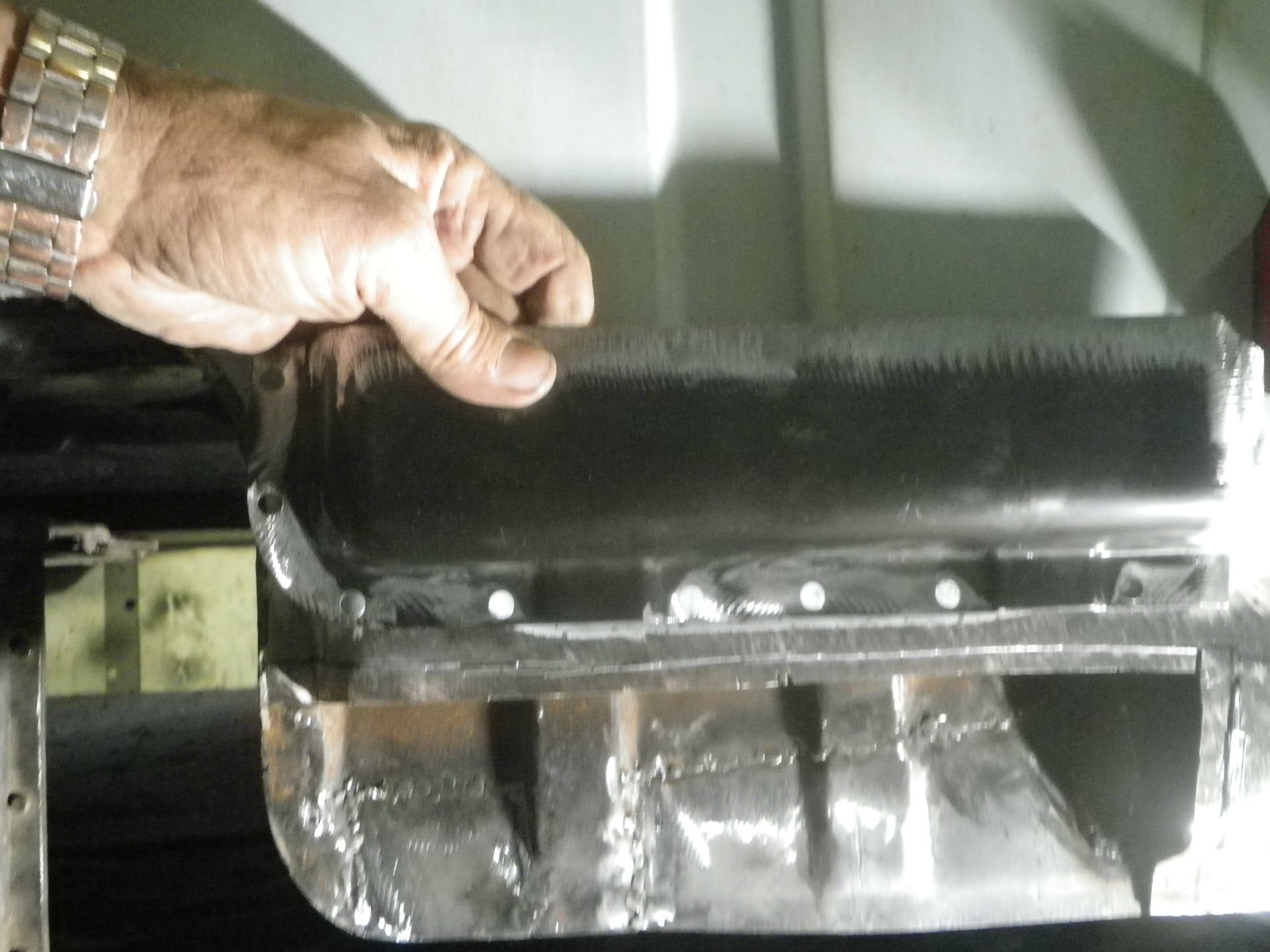

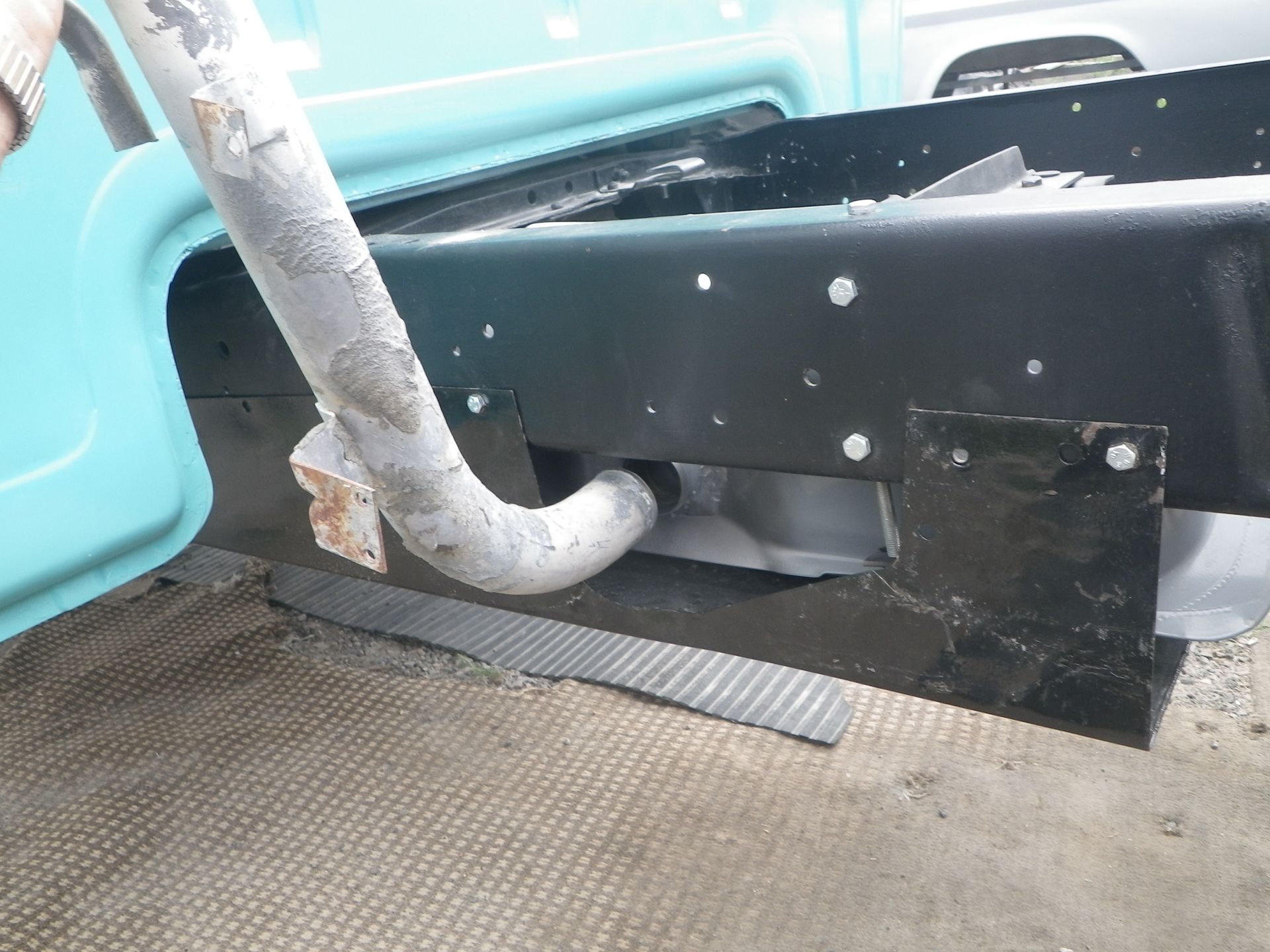

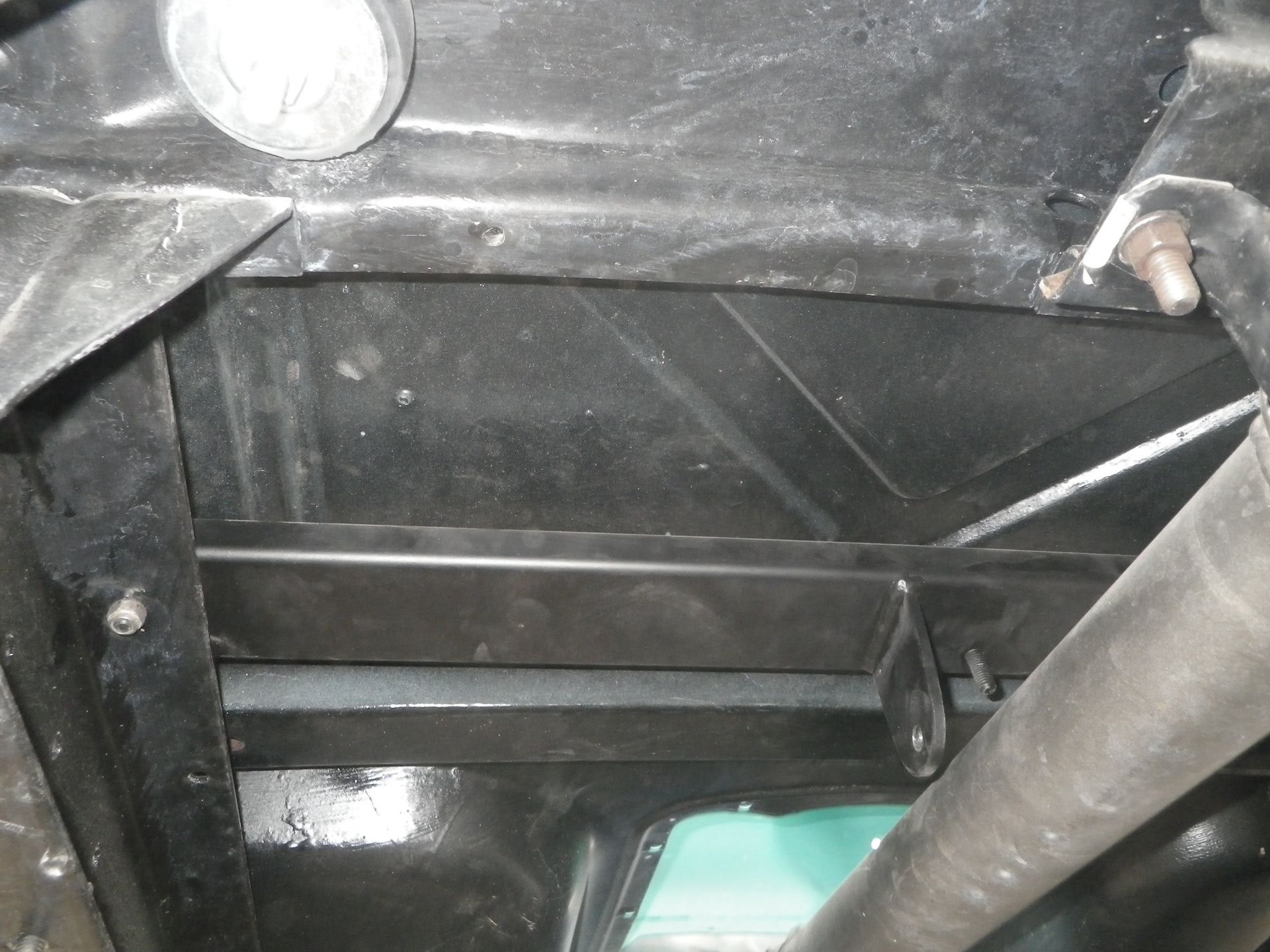

Made crossmember to hold front of tank, tab to use factory strap

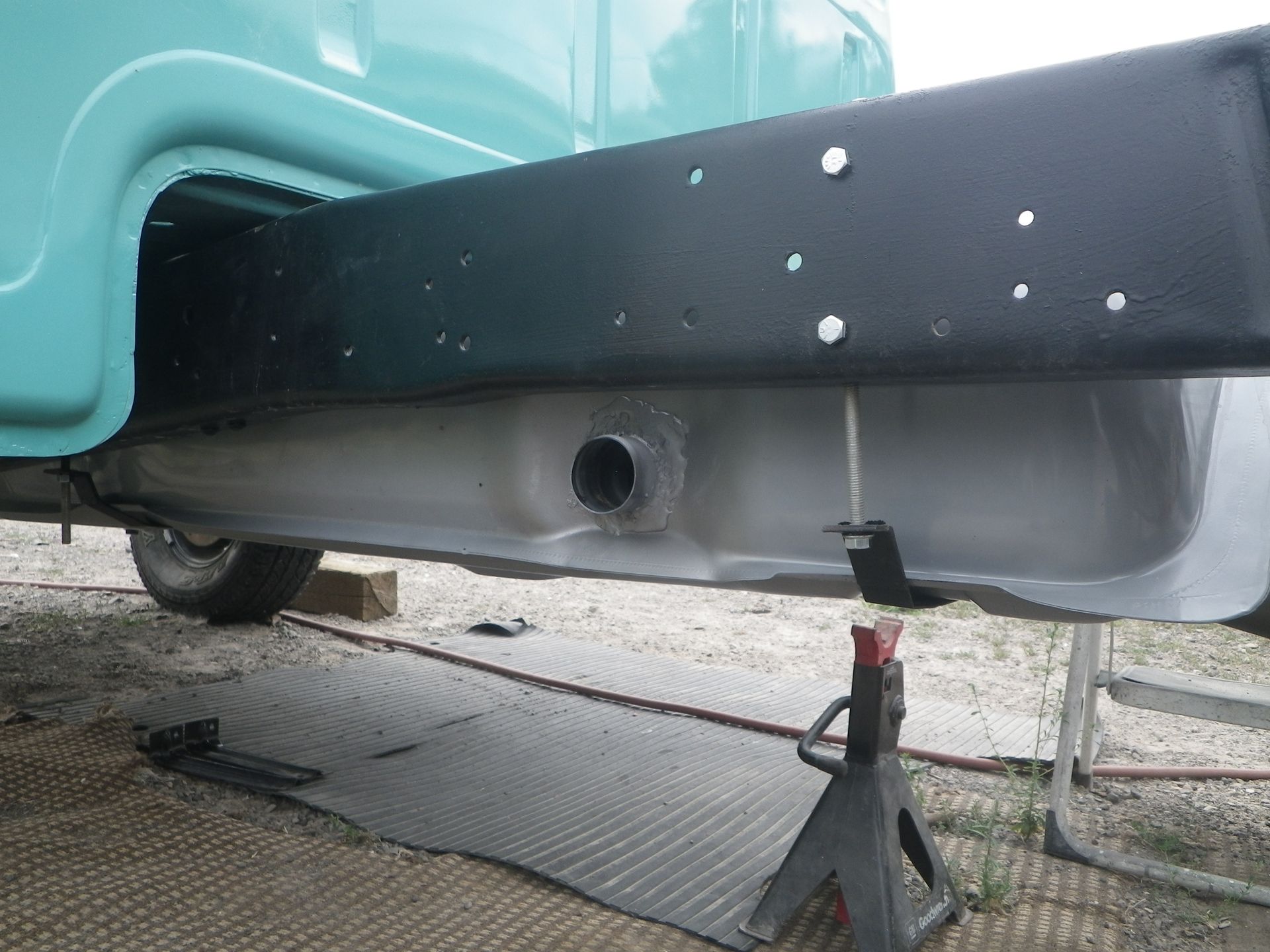

mounted in factory location

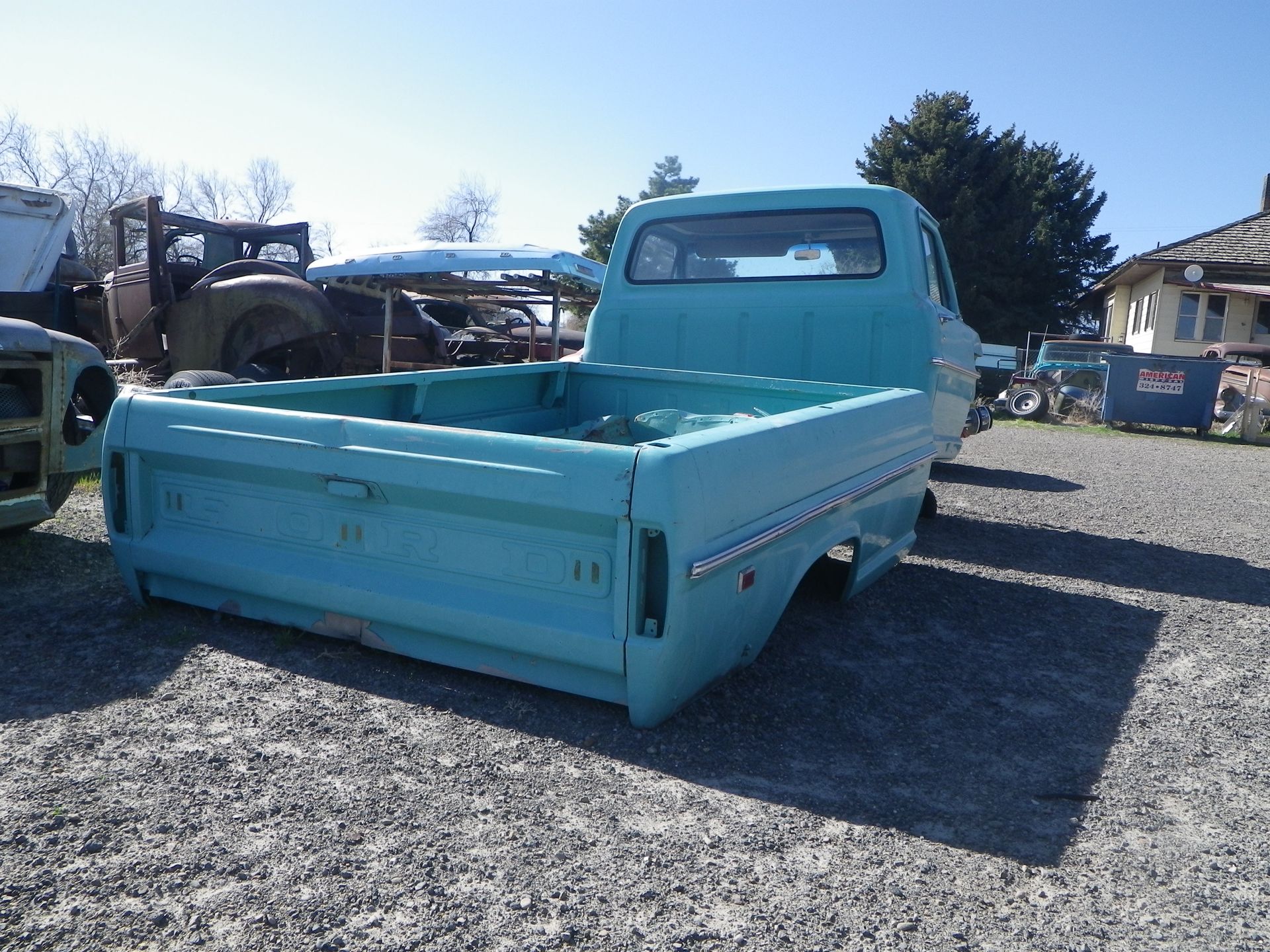

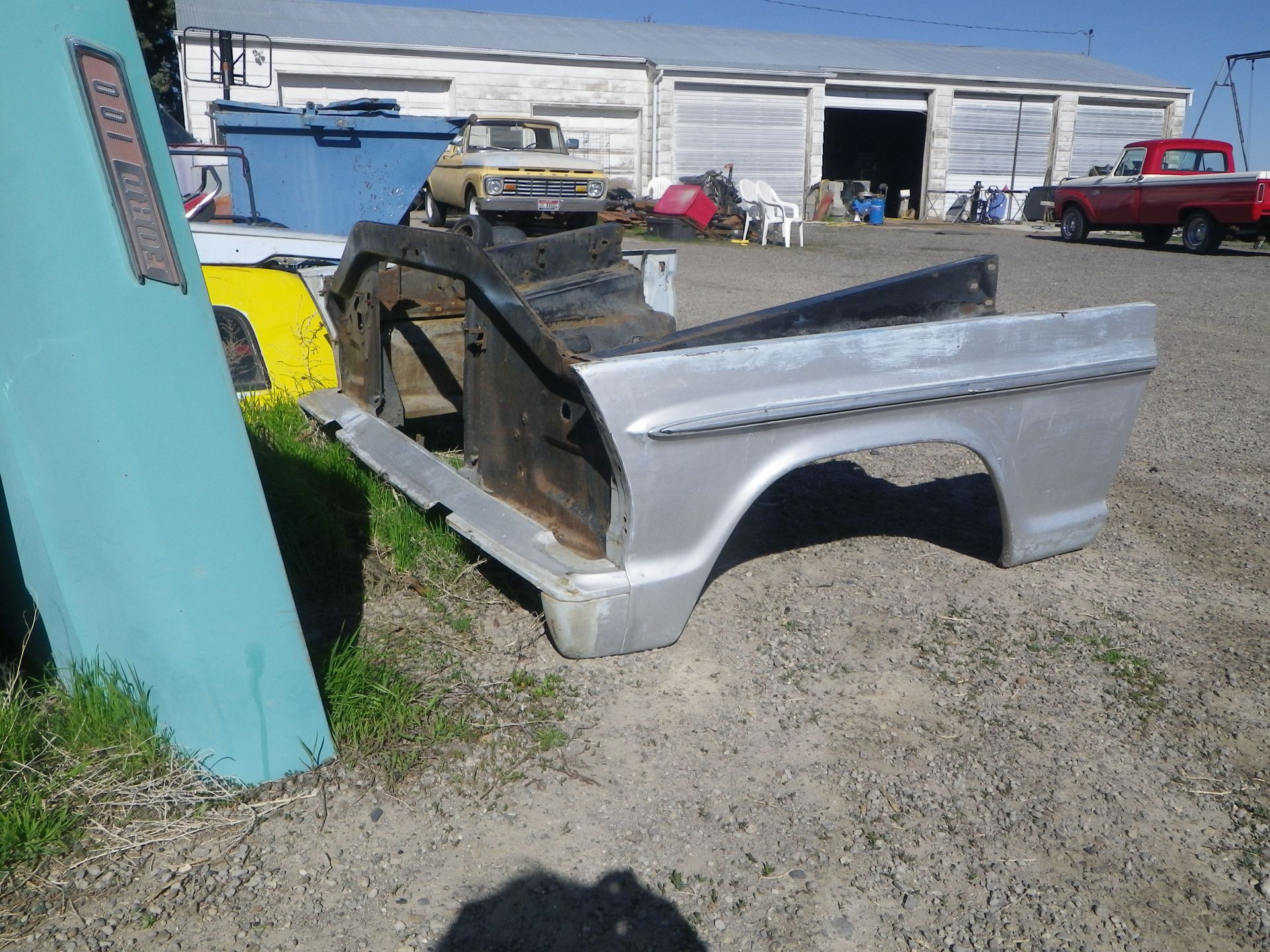

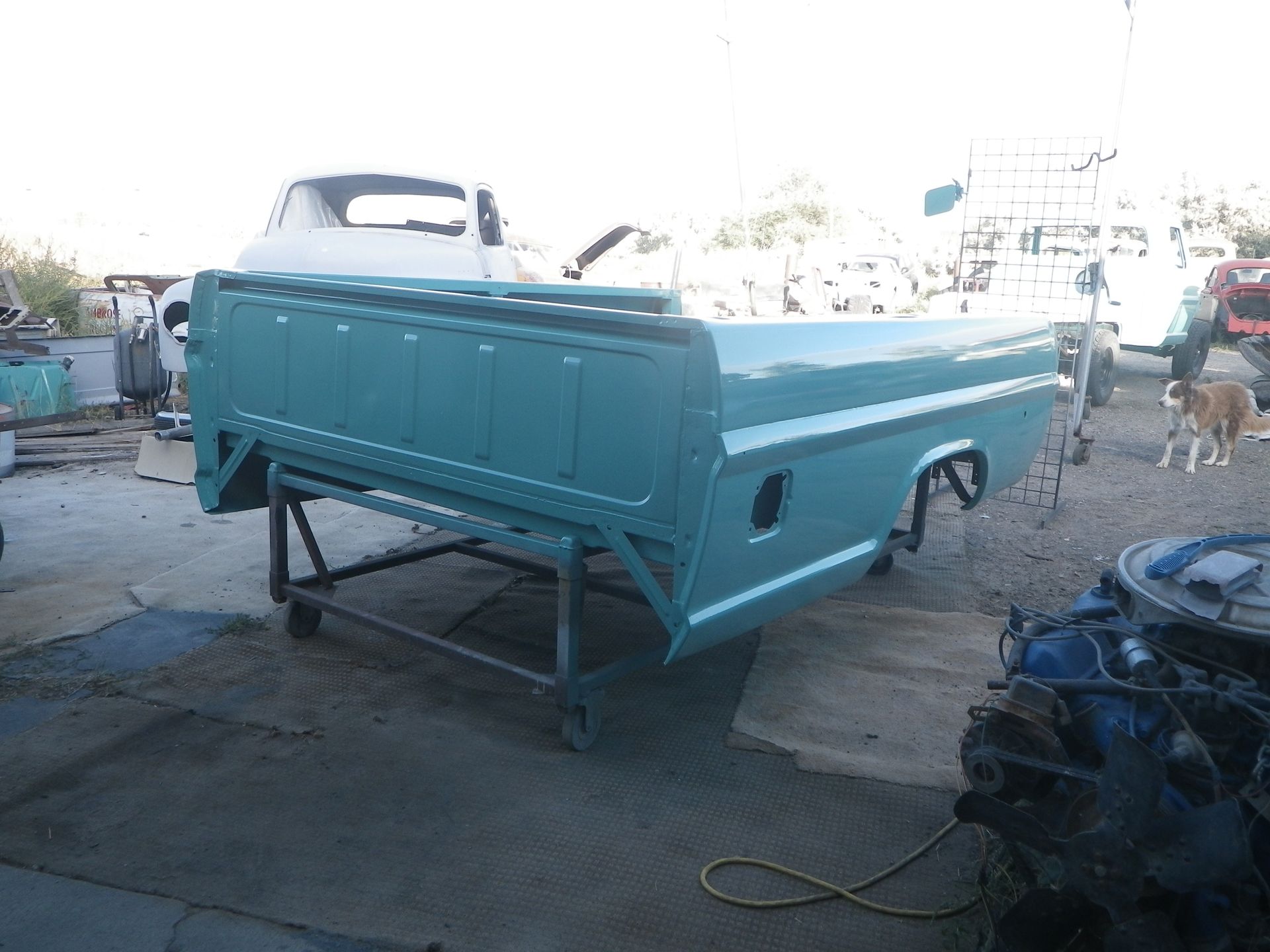

will determine hose length and gas door placement after bed is installed

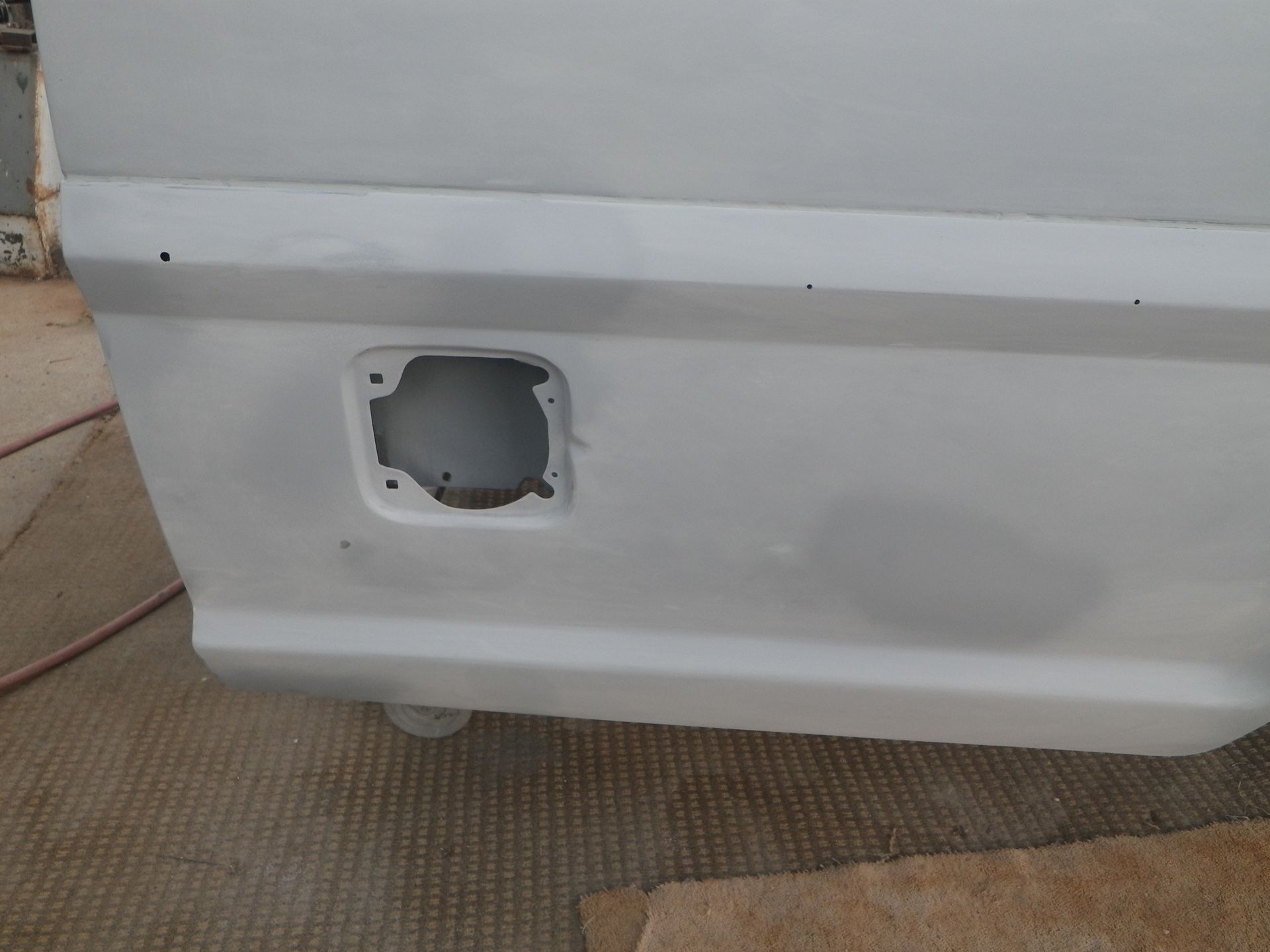

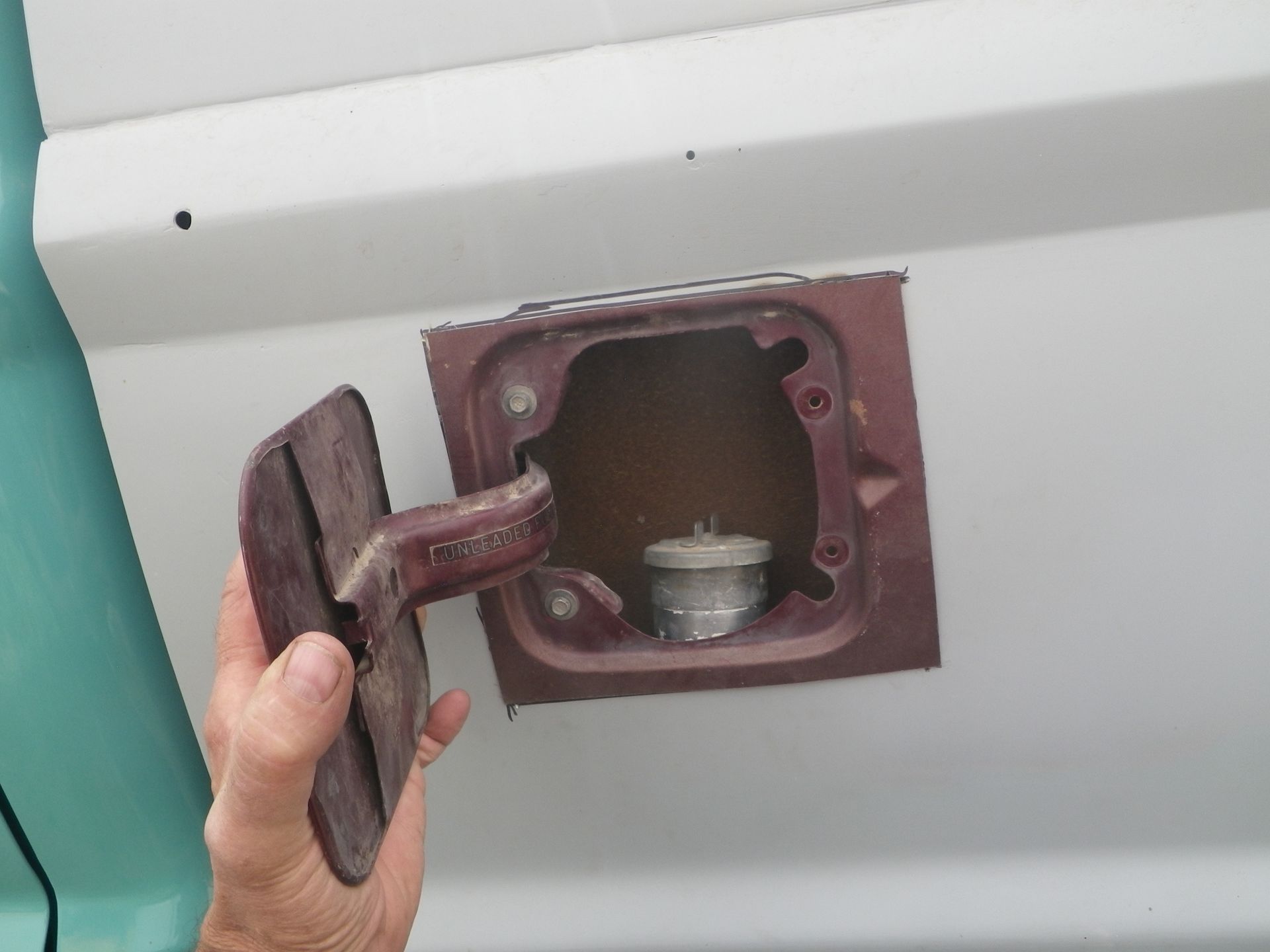

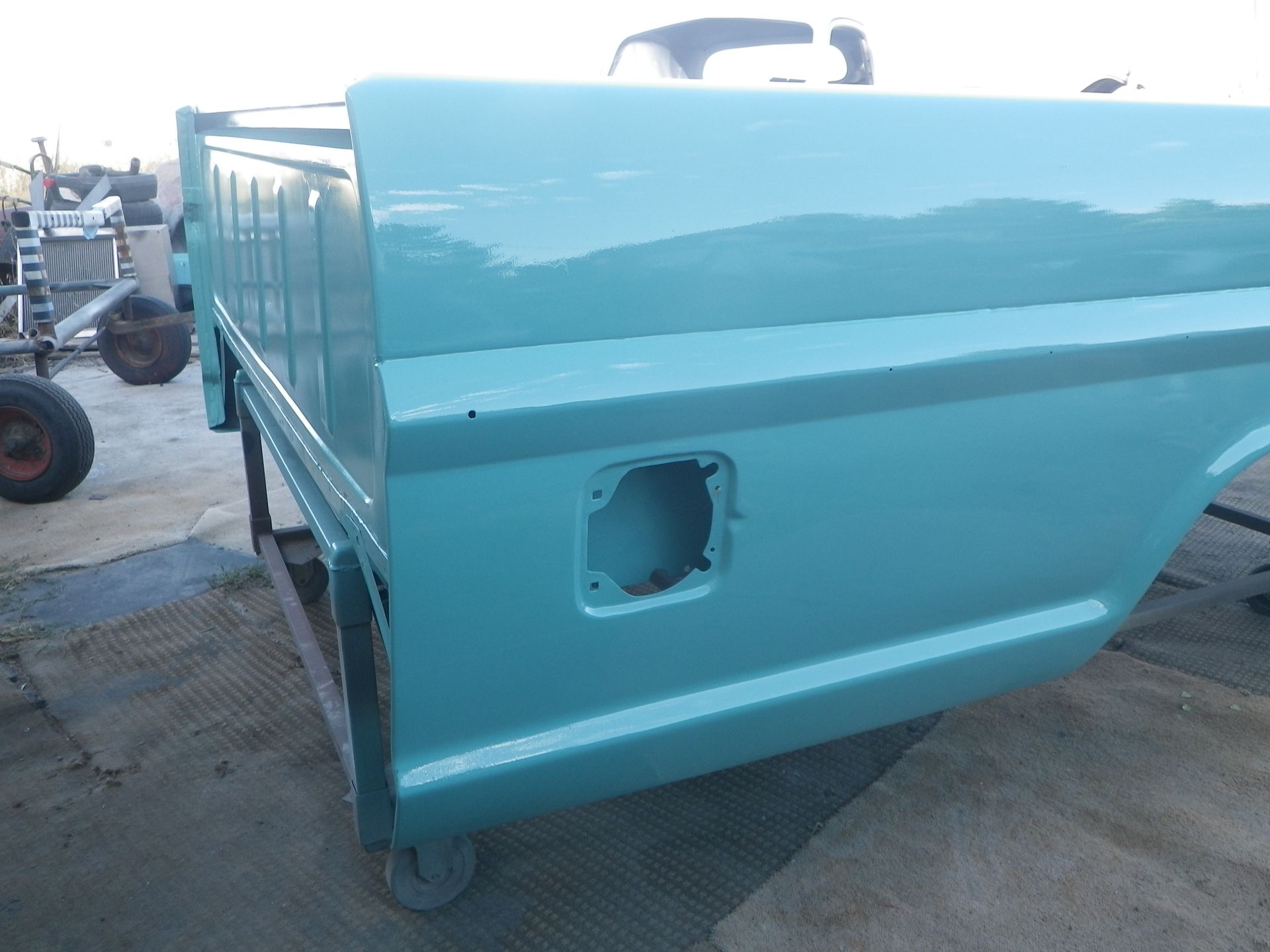

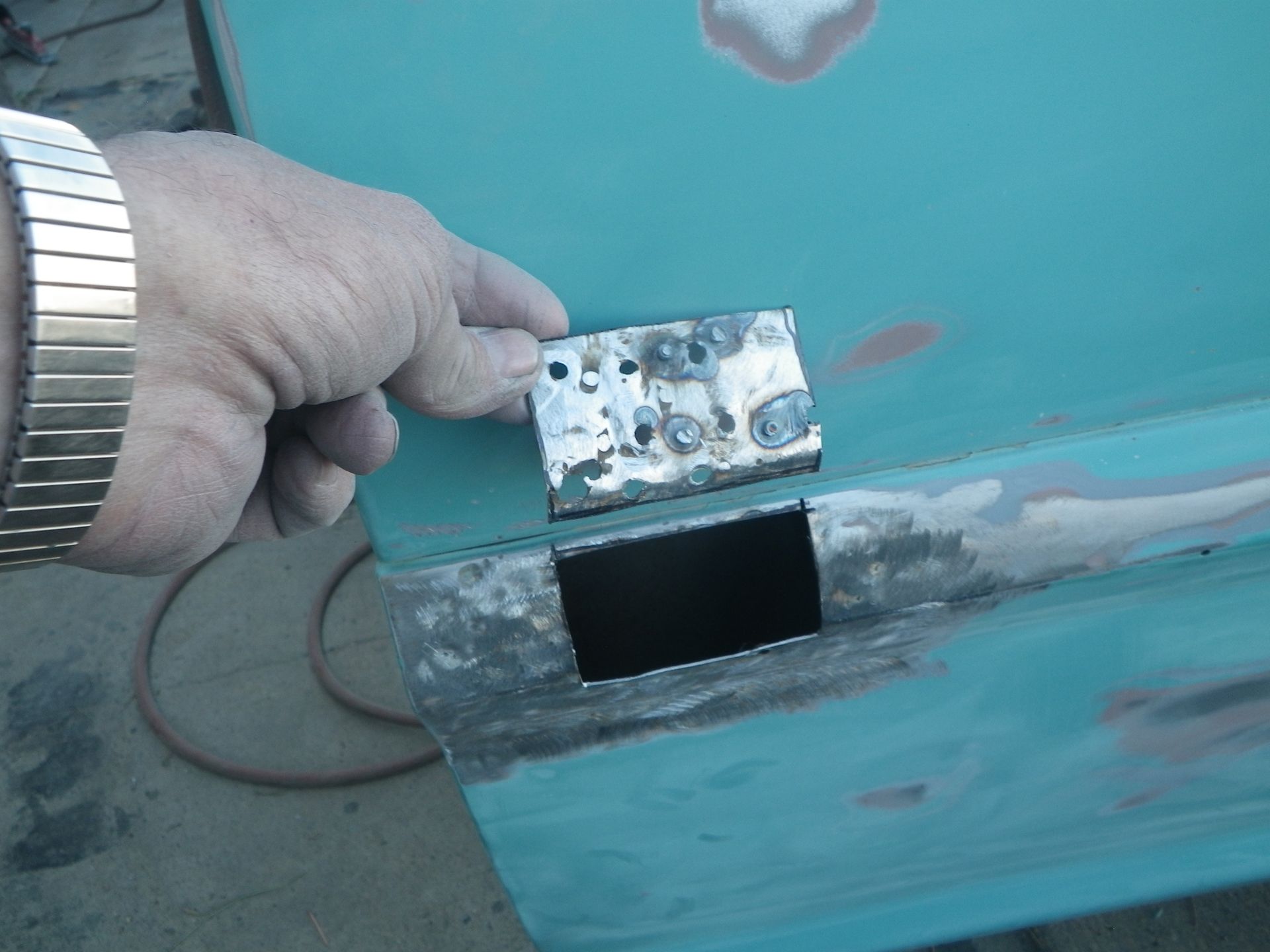

Owner wants a hidden gas cap, using a chevy door assembly

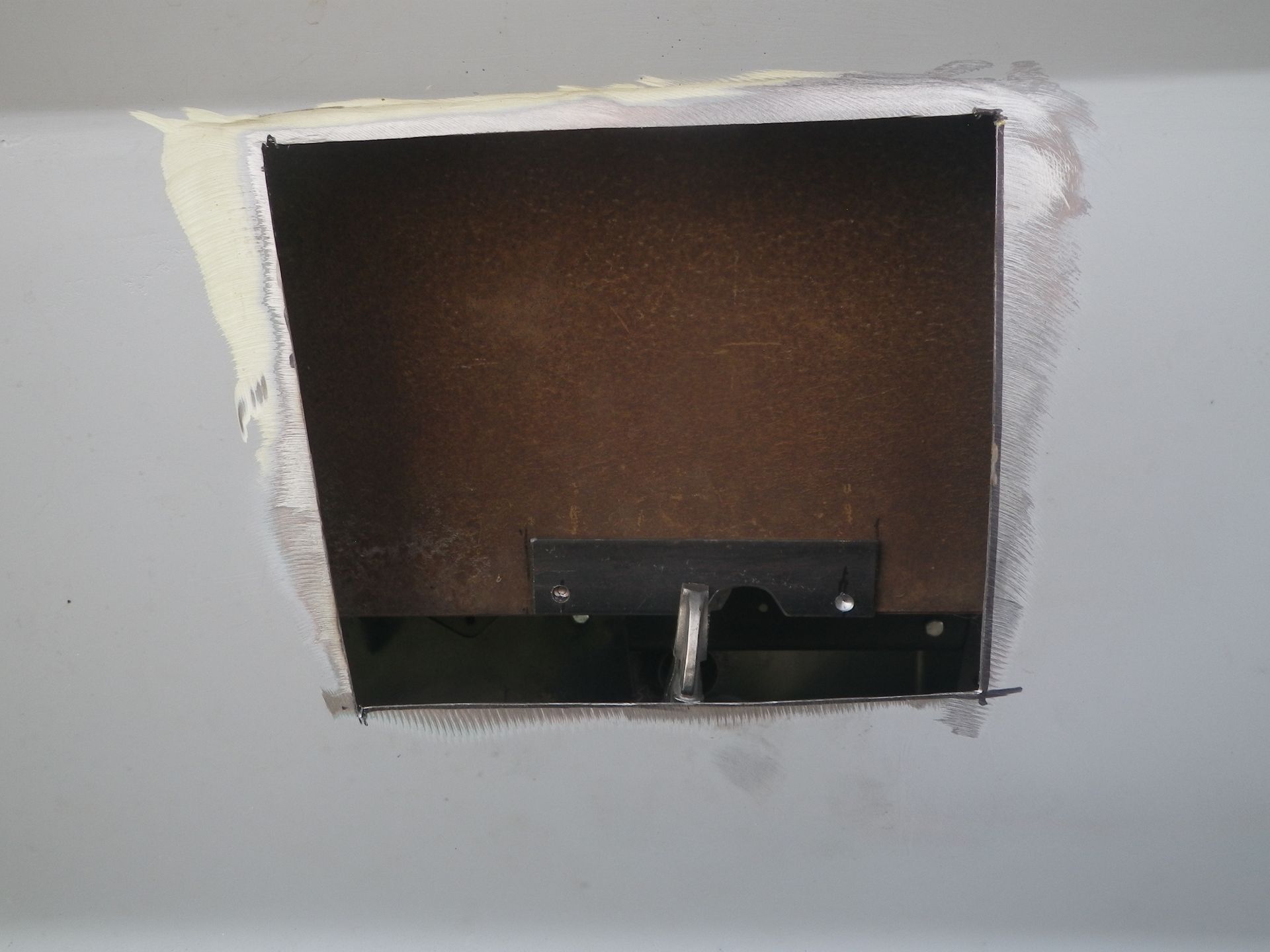

careful measuring then cut

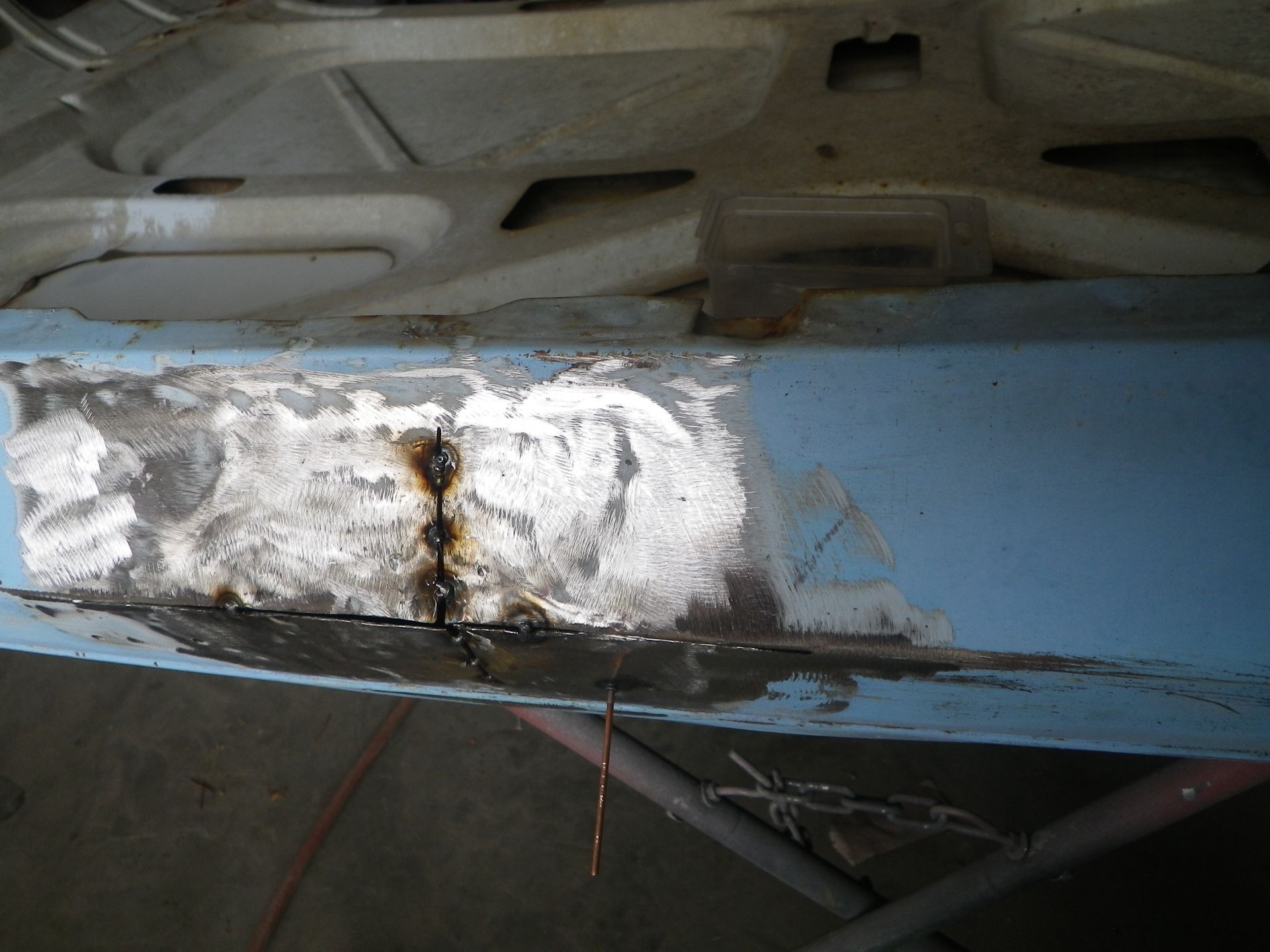

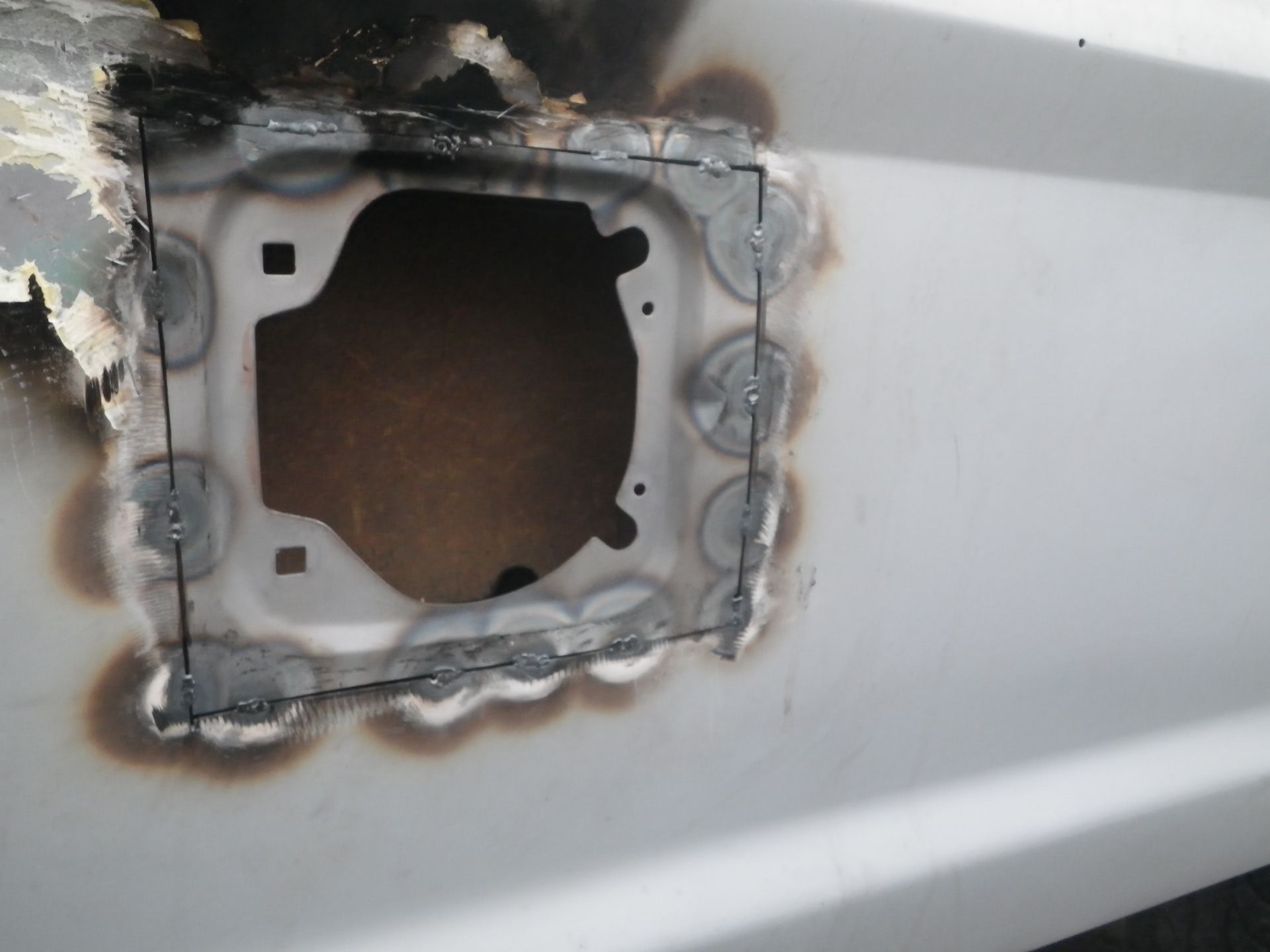

weld in place

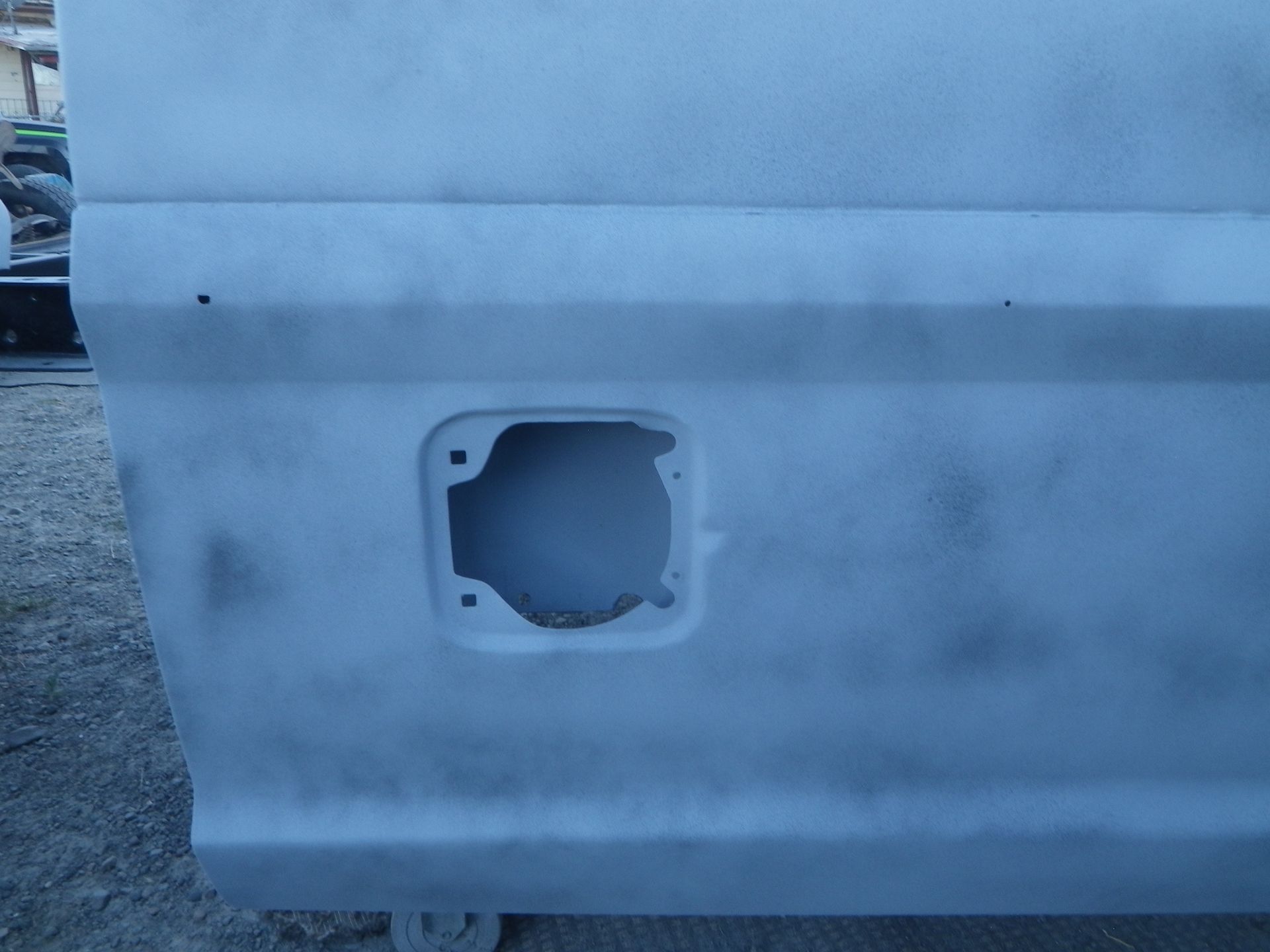

smoothed out ready for final sanding


looks factory
